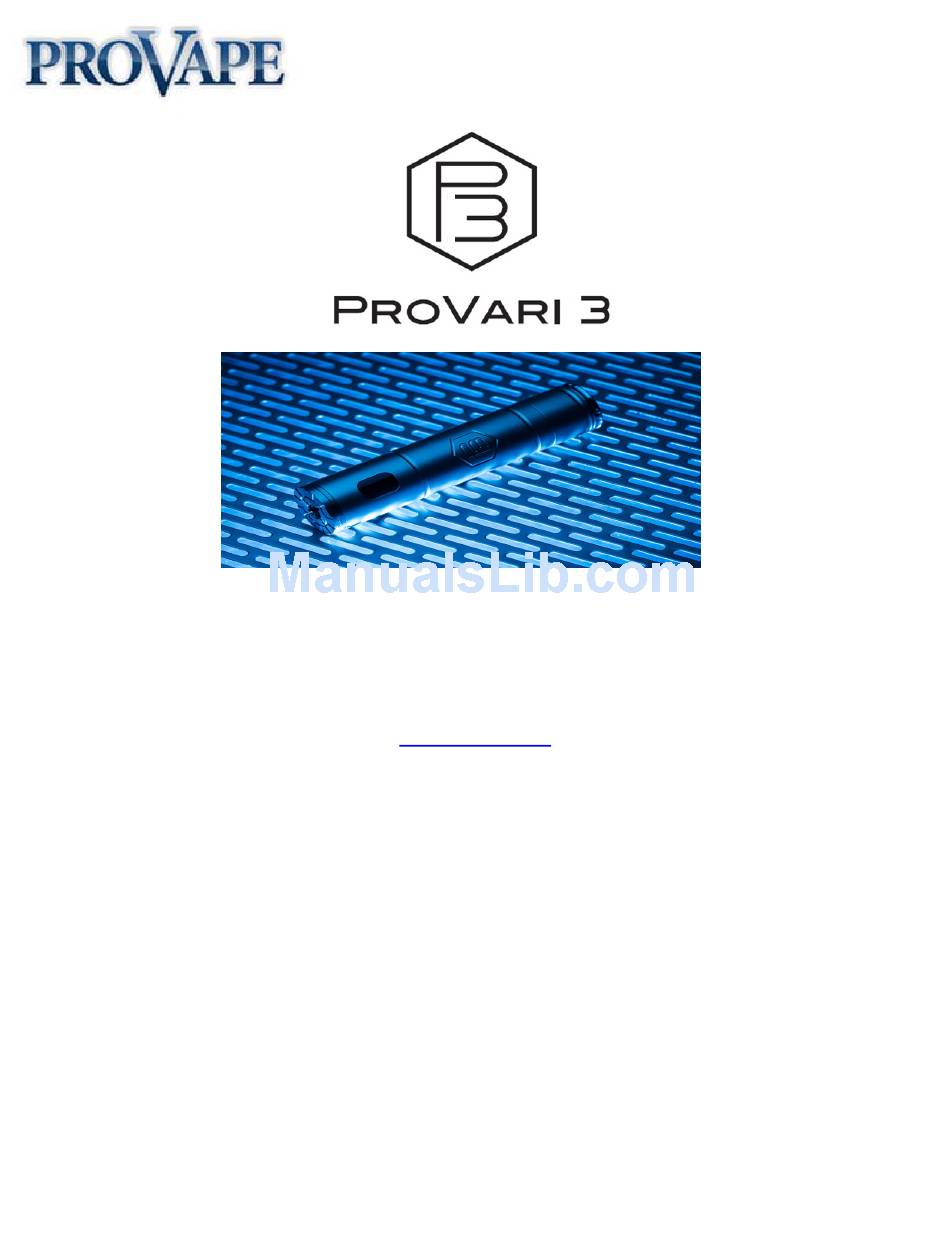

Owner's Manual

Rev: 1.0315

Thank you for purchasing a ProVari 3 personal vaporizer.

We hope you get many years of enjoyment from this device.

www.ProVape.com

Introduction

A personal vaporizer (PV) is a battery-powered device that provides inhaled doses of nicotine by way of a

vaporized solution. In addition to the nicotine delivery, this vapor also provides a flavor and physical

sensation similar to that of inhaled tobacco smoke. Vaporizers do not contain tar and have just a few

ingredients compared to several thousand found in traditional cigarettes. There is no tobacco or combustion

involved in its operation. There is no ash and no cigarette smoke smell. Vaping is the 21st century alternative

to smoking tobacco products. Just please keep in mind that personal vaporizers are not meant to be a

smoking cessation device.

The ProVari 3 is a powerful microprocessor controlled PV that lets you adjust and fine tune the device to your exact

preferences by adjusting the power (in voltage or wattage), along with a number of other parameters, which we will

explain later in this manual. The ProVari 3 uses the latest technology to bring you some new and exciting features.

The ProVari 3 has regulated power output which keeps the voltage or wattage the same with each puff regardless of

your remaining battery power. As the battery drains, the device will keep the power output consistent, giving you the

perfect vapor all day long. Now you can dial-in the perfect settings for your tank or atomizer, and e-liquid!

(Please note that due to ongoing software updates, improvements and changes based on customer

feedback, some of the features or screen images shown in this manual may be slightly different)

Table of Contents

Need help?

Do you have a question about the ProVari P3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Provape ProVari P3

Page 1: Introduction
Thank you for purchasing a ProVari 3 personal vaporizer. We hope you get many years of enjoyment from this device. www.ProVape.com Introduction A personal vaporizer (PV) is a battery-powered device that provides inhaled doses of nicotine by way of a vaporized solution.
Page 2: Table Of Contents
Table of Contents Introduction.................................. 1 Warnings: ..................................3 ProVari 3 Features ..............................4 ProVari 3 Feature Details ............................5 ProVari 3 Components ............................... 9 ProVari 3 Adapter ..............................10 ProVari 3 Ego-adapter and trim ring ........................10 ...
Page 3: Warnings
● Never abuse your ProVari 3 - even though it’s made of metal, you can damage it by dropping it. ● Have your ProVari repaired by ProVape. Do not attempt to repair the unit yourself as damage or personal injury can occur. Any repairs done outside of ProVape will void the warranty.
Page 4: Provari 3 Features
ProVari 3 Features ● The ProVari 3 voltage can be adjusted from 2.9 - 6.0 in 0.1 volt increments. ● The ProVari 3 wattage can be adjusted from 3 – 20* in 0.2 watt increments. ● Flat top design provides a clean hybrid look with the latest tanks. ●...
Page 5: Provari 3 Feature Details
● Scroll speed adjust allows the user to select the speed of the scrolling menu. ● OLED brightness adjustment lets you vary the display intensity. ● Exclusive reliable and safe electronic switch is designed for long life. ● Battery Monitoring shuts the unit off once a battery has reached end-of-charge. ●...
Page 6 20 watts. If you want to use the ProVari 3 at maximum power, you will need to ensure you use the approved batteries sold by ProVape. If you install a battery that cannot safely handle the full power output, the ProVari 3 will not allow the device to work at those levels and the power limit will be reduced.
Page 7 61, replace the battery with a new high drain battery. These are available on the ProVape website if you do not have a local source for them. The IQ value will vary a little but generally if it’s 61 or above you are ok to use that battery.
Page 8 OLED technology, if you set the brightness all the way to high, the display won’t last as long as if it's turned down. While we expect you to get many years of enjoyment out of the ProVari 3, this setting can affect the life of the internal display.
Page 9: Provari 3 Components
ProVari 3 Components Tanks, cartomizers and atomizers screw into the Front Cap (1). Make sure you load these devices with your fluid of choice before attempting to use the ProVari 3. The Front Cap is permanently attached onto the Tube (2). Do not attempt to remove it.
Page 10: Provari 3 Adapter
ProVari 3 Adapter The ProVari 3 features a new standardized thread (P3 thread) which allows the user to easily switch between 510-style threads, Ego-type threads and any new hardware equipped with properly designed P3 threads. On the top of the 510 thread we have added coin slots so you can tighten the connector using a penny or dime.
Page 11: Batteries
To ensure you get the correct batteries you should always purchase them at www.ProVape.com. The ProVari 3 has the ability to detect what type of battery you have inserted and if that battery is capable of providing adequate power to the unit. If you use a poor quality battery, the ProVari 3 will reduce the output power to match what the battery is capable of safely providing.
Page 12: Menu Flow Chart
Menu Flow Chart 4 Button Presses On/Off Toggle eXit Set Voltage or Wattage Set Voltage or Wattage ON Selected DOWN Set Voltage or Wattage Set Voltage or Wattage OFF Selected DOWN Remaining Battery Remaining Battery Left Left ATOMIZER OHMS ATOMIZER OHMS BOOST (Resistance of installed (Resistance of installed...
Page 13: Screen Layout
Screen Layout You can enter the main menu by pressing the button 4 times. When the menu appears, you will notice there are several icons and options available. In the following pages, we will walk you through all of the different icons and how each one allows you to select various options.
Page 14: Check All Screen
Check All Screen The Check All function allows you to quickly see your basic settings on one screen. When this function is turned on (default) one button press will allow you to see the mode you are in (voltage or wattage), what the current voltage or wattage setting is, the amount of battery power remaining and the resistance of your atomizer (or the Boost Value selected).
Page 15 Warning System - The P3 has a warning system that alerts you about a problem. Anytime there is an issue that needs attention, this icon will appear on the status screen. In this example, the device is detecting OP (Open) meaning there is no atomizer installed or the atomizer is burned out.
Page 16: Menu Options And Functions
Menu Options and Functions In this section, we will discuss all the various functions of the ProVari 3 and what they do. While the ProVari 3 is a very powerful device and there are a lot of options, you will find that it’s easy to operate and use with a little practice.
Page 17 Atomizer Up – When selecting this menu item, you will be able to increase the Voltage (or the Wattage) supplied to your atomizer. In this section you will also have access to your battery life, atomizer ohms reading and the IQ (Input Quality) value of your battery and battery connection.
Page 18 to be low. Try stretching your spring out a little to see if this helps improve your IQ value or stabilize that value. Also note that the IQ value does not really come into play until you go over 15 watts.
Page 19 The combined three sets of digits creates the full serial number. Error 1, Error 2, Error 3, Error 4, Error 5 - This set of error codes is helpful to ProVape if you are having trouble. If you need service or a ProVape customer service representative asks for the list of your error codes, you can access this area and read off the codes to help the rep understand and resolve the issues with your device.
Page 20 Set (Settings) – In the Set menu there are numerous different settings that allow you to customize the function and appearance of the ProVari 3. Under the Set category you can save a profile, adjust your display brightness, scroll speed, switch between left and right hand display mode, change the OnTime settings for the Check All function, switch the push button LED On or Off, alter the LED button color and adjust the Boost mode settings.
Page 21 Sav (Save) – Save allows you to save a user specific profile. A profile consists of all of the unique settings in use on the device at a particular time. These user specific settings include: Voltage or Wattage power level Boost level setting LED color LED On/Off setting...
Page 22 Dis (Display) – In the Display menu there are numerous different settings that allow you to customize the appearance of the OLED display. Under the Display option you can adjust your display brightness, scroll speed, switch between left and right hand display mode and change the OnTime settings for the Check All function. Once you have selected the Display option, you will be taken to the Display screen where you will see numerous menu options scroll on the screen.
Page 23 Scroll Speed - This section allows you to adjust the speed of the scrolling menu. When entering this menu area, you will be presented with speed selections 1 through 5. Each time you press the button to select a number, the display will scroll faster or slower depending on what setting you have selected.
Page 24 L/R - Left or Right screen display – This setting changes the orientation of the display. This feature is used to switch the device for use in either the right or left hand. As you select the two options, you will see the display flip from left to right handed mode.
Page 25 LED Menu - This menu section allows you to turn the LED button on and off and lets you change the color of the LED button. Once you have selected the LED option, you will be taken to the LED screen where you can select either the LED On/Off option or the LED Color option.
Page 26 On/Off – LED Button On/Off option. This toggles the LED button on or off. When you press the button to heat up your atomizer, if the LED is turned on, then the button will light up the color of your choice. When this function is turned off, the LED button will not turn on.
Page 27 Boost Menu - This menu section allows you to turn the Boost Mode On and Off and lets you change the duration of the Boost. Boost 1 - .25 seconds Boost 2 – .50 seconds Boost 3 – .75 seconds Boost 4 –...
Page 28: Error Messages And Fixes
Error Messages and Fixes Error Message Suggested Fix REDUCE VOLTS / WATTS OR OUTPUT TOO HIGH OR BAD ATOMIZER [1] >>>>> REPLACE ATOMIZER REPLACE ATOMIZER AND TRY ATOMIZER OHMS BELOW LIMIT [2] >>>>> AGAIN OUTPUT TOO HIGH [3] >>>>> REDUCE VOLTS / WATTS TEMPERATURE HIGH [4] >>>>>...
Page 29 Reduce Volts / Watts or Replace Atomizer – This error can occur if the voltage or wattage is set too high and P3 cannot safely power the atomizer with your current settings. This can also happen if you have the voltage or wattage set too high along with the boost mode set too high. Try lowering your settings.
Page 30: P3 Energy Gauge
This is NOT the case with the P3. Because of this, ProVape engineering has designed a special energy gauge algorithm to be more useful to the P3 user. It displays the true percentage of available energy more accurately.
Page 31 When considering these factors in this unique application, ProVape engineering has designed the energy gauge display of Available Energy to provide a more TRUE display. Because of this, it will work differently than what you are used to using. It will work differently in the following ways: 1) When a battery is initially installed, the energy gauge will display ?? instead of a percentage for about 1-2 button presses.
Page 32: P3 Iq Description
P3 IQ Description P3 Input Quality (IQ) Feature Description The P3 has a unique feature which is called Input Quality (IQ). The original ProVari was the 1 PV to offer the user the capability to measure the atomizer resistance. This new feature extends to the P3 with the capability to allow the user to measure the total quality of any input contact or the battery’s internal resistance.
Page 33 ProVape Inc. © 2014 ProVape Inc. All rights reserved. ProVari, the ProVari logo, and ProVape name and logo are trademarks of ProVape Inc, registered in the U.S. and other countries. Mention of third-party products is for informational purposes only and constitutes neither an endorsement nor a recommendation.
Page 34: Addendum
Addendum: New feature added to Ver. 38 - "Money Saved Counter" We have added a new feature to software Ver 38 that calculates money saved, cigarettes avoided and Vape counter. In the SET menu you will see this new icon. Selecting this will take you into the settings and information for the Money Saved area.
