- Page 1 STORM Racing Drone Type-A USER MANUAL V1.1 Copyright@2014 HeliPal.com. All Rights Reserved...
- Page 2 Never overcharge LiPo batteries. Do not charge above 4.2V per cell. When the battery is fully charged, disconnect it from the charger. Never discharge batteries to below 3V per cell Remove batteries when not using the drone. Copyright@2014 HeliPal.com. All Rights Reserved...

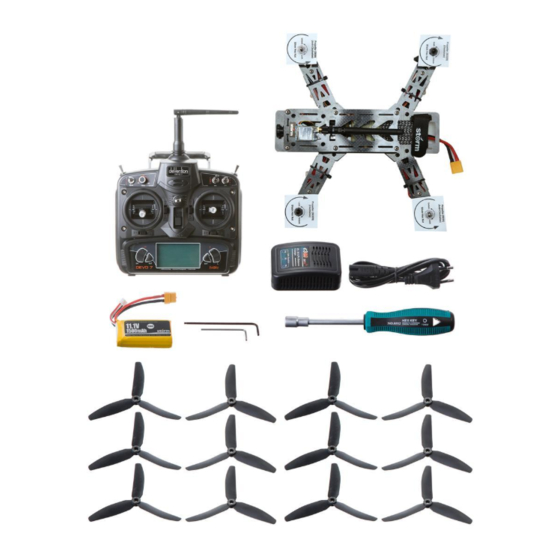

- Page 3 Package Includes Copyright@2014 HeliPal.com. All Rights Reserved...
- Page 4 Circuit Diagram Copyright@2014 HeliPal.com. All Rights Reserved...
- Page 5 Quick Start Procedure Copyright@2014 HeliPal.com. All Rights Reserved...
- Page 6 The bigger different in channel no. the less interference, please select channels no. as much different as possible with occupied channels. Default Setting is channel 5665M. Always check the supported channels of you FPV reception devices such as monitor, goggle Copyright@2014 HeliPal.com. All Rights Reserved...
- Page 7 [FUNCTION] > [TRVAD] > AILE = L100% / R100% [FUNCTION] > [SAFE] > FLAP = HOLD [FUNCTION] > [TRVAD] > THRO = H100% / L100% [FUNCTION] > [SAFE] > GYRO = HOLD [FUNCTION] > [TRVAD] > RUDD = L100% / R100% Copyright@2014 HeliPal.com. All Rights Reserved...
