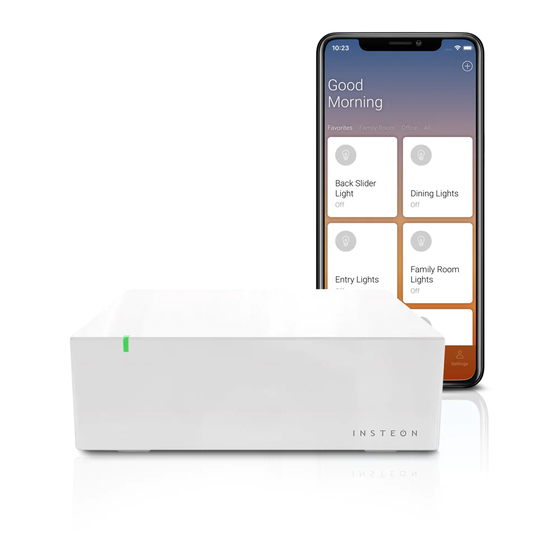

Insteon Hub
Insteon Hub
Owner's Manual
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Insteon Hub and is the answer not in the manual?

Questions and answers

Related Manuals for INSTEON Insteon Hub

Summary of Contents for INSTEON Insteon Hub

  • Page 1 Insteon Hub Insteon Hub Owner’s Manual Owner’s Manual...

  • Page 2: Table Of Contents

    Contents Getting Started Insteon Hub Device Overview Installation Download the App Create an Account Optional Wall Mounting Insteon App Insteon App on iOS Insteon App on Android Insteon App on Windows Hardware Reset Diagnostics Network Reset Factory Reset Appendix Specifications...

  • Page 3: Getting Started

    Getting Started Getting Started Everything you need to quickly get up and running. Everything you need to quickly get up and running.

  • Page 4: Insteon Hub

    Insteon for Hub from your instructions to create an account and setup device’s app store. the Insteon Hub. insteon for hub INSTEON INSTEON for Hub Sign In Create an Account You’re done setting up your Insteon Hub; now start adding devices.

  • Page 5: Optional Wall Mounting

    Optional Wall Mounting Print out this page and use it as a Hang the Hub on two screws by aligning the hanger slots and template to drill mounting holes. sliding down. 2 1/32” 52mm 15/32” 12mm Screw head should be about 5/16” (8mm) in diameter 2 1/32”...

  • Page 6: Insteon App

    Insteon App Insteon App Use the Insteon App to configure and control your Insteon Hub. Everything Use the Insteon App to configure and control your Insteon Hub. Everything from adding a device to controlling your thermostat is handled through the from adding a device to controlling your thermostat is handled through the app.

  • Page 7: Insteon App On Ios

    Insteon App on iOS The Insteon app on iOS uses a right-hand drawer to navigate between Check-In, Favorites, Rooms, Scenes, Thermostats and Settings. You can also add and edit devices, rooms and scenes from the drawer. Check-In Favorites An at-a-glance overview of all of your Insteon A customizable screen where you can place sensors.
  • Page 8 Living Room Garage Outside Thermostat Settings Displays your Insteon or Nest Thermostat. Your one-stop-shop for Hub and Insteon For homes with multiple thermostats, you account settings and configuration. You can can configure the default from settings. also find in-app help here.
  • Page 9 Insteon App on iOS 2:10 PM Living Room Controlling a Device Floor Lamp 2:10 PM Living Room Floor Lamp 2:10 PM Living Room Floor Lamp Tap to turn the device on or off Tap for additional control and to edit the device.
  • Page 10 Insteon App on iOS Monitoring a Sensor Indicates that your sensor is not triggered 2:10 PM Living Room Motion Sensor Motion Detected Indicates that your sensor has been triggered Indicates that the Hub has lost contact with your sensor If a newly added sensor shows yellow, try activating it.
  • Page 11 Insteon App on iOS 2:10 PM Scenes Controlling a Scene Bedtime 2:10 PM Scenes Bedtime 2:10 PM Scenes Bedtime Tap to turn the scene on or off Tap for additional control and to edit the scene. Additional Scene Control 2:10 PM...

  • Page 12: Insteon App On Android

    Insteon App on Android The Insteon app on Android uses tabs to navigate between Check-In, Favorites, Rooms, 2:10 PM Scenes, Thermostats and Settings. You can Favorites add and edit devices, rooms and scenes from the settings button. Bathroom Bedroom Garage...
  • Page 13 Check-In Temp Settings Thermostat Settings Displays your Insteon or Nest Thermostat. Your one-stop-shop for Hub and Insteon For homes with multiple thermostats, you account settings and configuration. You can can configure the default from settings. also find in-app help here.
  • Page 14 Insteon App on Android 2:10 PM Living Room Controlling a Device Floor Lamp 2:10 PM Living Room Floor Lamp 2:10 PM Favorites Floor Lamp Tap to turn the device on or off 72º Favorites Rooms Scenes Check-In Temp Settings Tap for additional control and to edit the device.
  • Page 15 Insteon App on Android Monitoring a Sensor Indicates that your sensor is not triggered 2:10 PM Check-In Motion Sensor Motion Detected Indicates that your sensor has been triggered Indicates that the Hub has lost contact with your sensor 72º Favorites...
  • Page 16 Insteon App on Android 2:10 PM Scenes Controlling a Scene 2:10 PM Living Room Bedtime Floor Lamp 2:10 PM 2:10 PM Scenes Scenes Bedtime Bedtime Tap to turn the scene on or off 72º Favorites Rooms Scenes Check-In Temp Settings 72º...

  • Page 17: Insteon App On Windows

    Insteon App on Windows The Insteon app on Windows Phone uses a six-screen carousel to switch between Quick View, Favorites, Rooms, Scenes, Thermostats and Settings. Quick View Favorites An at-a-glance overview of all of your A customizable screen where you can place Insteon sensors.
  • Page 18 Thermostats Settings Displays your Insteon Thermostat. For Your one-stop-shop for Hub and Insteon homes with multiple thermostats, you can account settings and configuration. You can configure the default from settings. also find in-app help here.
  • Page 19 Insteon App on Windows Controlling a Device Tap the arrows to adjust in 10% increments Slide to quickly adjust the brightness Turn a device on or off, regardless of brightness Monitoring a Sensor Indicates that your sensor is OK Indicates that your sensor has...
  • Page 20 Insteon App on Windows Controlling a Scene Tap to turn the scene on or off Tap to edit the scene Controlling a Camera Use the arrows to pan and tilt your camera...

  • Page 21: Hardware Reset

    Hardware Reset Hardware Reset A network reset will restore the default network configuration to the Hub. A network reset will restore the default network configuration to the Hub. A factory reset will erase all links stored in the device’s database as well as A factory reset will erase all links stored in the device’s database as well as any customized properties.

  • Page 22: Diagnostics

    Test 3 Hub has a valid IP Address Test 4 Connected to Insteon Servers Test 5 Active remote connection to Insteon’s Servers Test 6 Successful remote connection to Insteon’s Servers at power up...

  • Page 23: Network Reset

    Network Reset After a few seconds the Hub will single- Tap the set button three times. The beep. Hub will triple-beep. Your Hub has been restored to default network settings.

  • Page 24: Factory Reset

    Factory Reset Prior to performing a factory reset, you From Settings, tap Account must delete all devices and scenes or factory reset all of your devices and delete your user account from Insteon. Navigate to settings 2:10 PM 2:10 PM Settings...
  • Page 25 Factory Reset When the long beep ends, Press and hold the set button release the set button. The while reconnecting power. The Hub will double-beep. After 30 Hub will emit a long beep. seconds, your Hub will beep again. LONG Unplug and then reconnect your Hub to power.

  • Page 26: Appendix

    Appendix Appendix Everything else you might need to know about your Insteon product. Everything else you might need to know about your Insteon product.
  • Page 27 A special mode that allows more than one link to be either created or removed Unlinking simultaneously, without laborious set button presses. When in linking or unlinking mode, an Insteon device will continue to link to other devices until the set button is tapped or four minutes have elapsed, whichever occurs first. Factory Reset A process that erases all stored links and reconfigures the device to factory defaults.

  • Page 28: Specifications

    Available Colors White Brand: Insteon FCC ID SBP22452 Industry Canada 5202A-22452 Manufacturer Product No.: 2245-222 Patent No.: Protected under US and Foreign Patents (see www.insteon.com/ patents) UPC: 813922013498 Warranty: 2 years, limited Operation Audio Alert Beeper Local Control Setup Memory...
  • Page 29 Multi-Link Support Multi-Unlink Support RF Beacon Radio Frequency 915 MHz Radio Frequency Range Up to 250 feet Mechanical Beep on Button Press Dimensions 1.5” H x 3.75” W x 3.75” D 38mm H x 95mm W x 95mm D Enclosure Material UV stabilized plastic Mounting Tabletop or Wall Mount...

  • Page 30: Troubleshooting

    • You can check to see if the Insteon Hub was able to properly “phone home” to Insteon. This will at least tell you that the Hub is up and running, even if a network configuration problem is preventing you from connecting to the Hub.
  • Page 31 Extender or an additional Dual-Band Insteon device to increase the reach of your Insteon Network. • Log out of the Insteon App and sign back in. From the Insteon App, navigate to Settings and tap Log Out at the bottom of the screen.
  • Page 32 From the Insteon App, navigate to Settings > House and check Hub Local Time. If this time is incorrect or if the Hub Location is incorrect, tap Hub Location and locate your Insteon Hub on the map. This will automatically update your Hub’s internal clock.

  • Page 33: Certifications And Warnings

    To minimize heat buildup, ensure the area surrounding this product is as clear of clutter as possible. • Each Insteon product is assigned a unique Insteon I.D., which is printed on the product’s label. • Changes or modifications to the hardware not expressly approved by Insteon may void the user’s authority to operate the equipment in a licensed manor.

  • Page 34: Product Warranty

    You may also have other legal rights that may vary from state to state. Protected under U.S. and foreign patents (see www.insteon.com/patents) ©2015 Insteon Rev 06.22.15...
