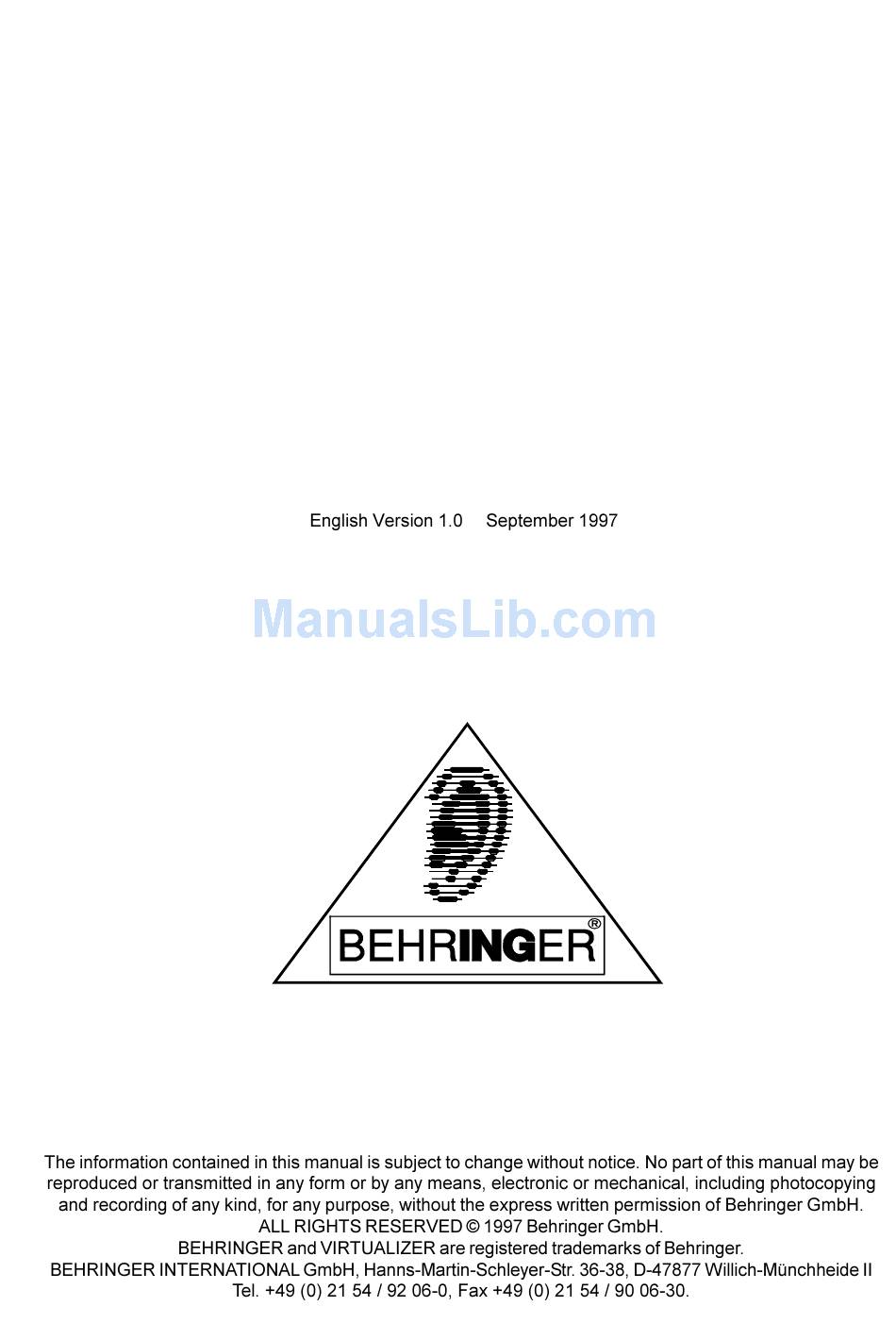

- Page 1 User´s Manual VIRTUALIZER ® DSP1000...
- Page 2 The following operation conditions and installation arrangements have to be presumed: Dipl.-Ing. Uli Behringer, President Willich, 29.7.1997 Name, address, date and legally binding signature of the person responsible...
- Page 3 SAFETY INSTRUCTIONS...
- Page 4 THE VIRTUALIZER DSP1000...
- Page 5 FOREWORD...
-
Page 6: Table Of Contents
TABLE OF CONTENT 1. INTRODUCTION........................7 2. THE CONCEPT ........................11 3. INSTALLATION ........................12 4. CONTROL ELEMENTS ....................... 14 5. THE EFFECT ALGORITHMS ....................17 6. OPERATION .......................... 20 7. APPLICATIONS ........................25 8. SPECIFICATIONS ......................... 29 9. WARRANTY ........................... 32... -
Page 7: Introduction
1. INTRODUCTION Stage Listening Position Diffuse Reflections... - Page 9 Room Plate Speaker Sender Microphone Receiver...
-
Page 11: The Concept
2. THE CONCEPT... -
Page 12: Installation
3. INSTALLATION Unbalanced Operation with 1/4" Connector Strain Relief Clamp Sleeve Tip = Signal Sleeve = GND / Shielding... -
Page 14: Control Elements
4. CONTROL ELEMENTS... -
Page 17: The Effect Algorithms
5. THE EFFECT ALGORITHMS EFFECT ALGORITHM DESCRIPTION APPLICATION Reverb program generating long and Particularly suitable for solo dense reverberation, much like the 01 Cathedral instruments and voices needing lots natural reverb ambience found in of reverb. churches or cathedrals. Simulation of a reverb plate. A A classic reverb program for drums 02 Plate warm, dense reverb. - Page 18 EFFECT ALGORITHM DESCRIPTION APPLICATION Program for distorting vocal sounds, resembles the sound produced by a Try it and see! Can also be used for 14 Vocal Distortion distorted megaphone. The sound processing organ sounds. depends largely on the selected variation. A popular effect in combination with organ sounds, as it simulates the The Rotary Speaker effect is not...
- Page 19 EFFECT ALGORITHM LEFT AUDIO CHANNEL RIGHT AUDIO CHANNEL 25 Pitch/Reverb Pitch Reverb 26 Flanger/Reverb Flanger Reverb 27 Chorus/Reverb Chorus Reverb 28 Tremolo/Reverb Tremolo Reverb 29 Delay/Echo Delay Echo 30 Pitch/Echo Pitch Echo 31 Flanger/Echo Flanger Echo 32 Chorus/Echo Chorus Echo...
-
Page 20: Operation
6. OPERATION Algorithm type Effects structure Early Reverb Rev. Refl. Delay Delay, Echo, Flanger, Pitch Delay Vocoder Vocoder Rotary Stereo Rotary Speaker Speak. Phaser Flang. Vocal Distortion Dist. Delay Serial effect Effect Effect combinations Dual Mode effect Effect 1 combinations Effect 2... - Page 21 before...
- Page 22 Display Mode No controller data are transmitted Controller data are received but not transmitted Controller data are transmitted but not received Controller data are transmitted and received Display Mode No program change data are transmitted Program change data are received but not transmitted Program change data are transmitted but not received Program change data are transmitted and received...
- Page 23 U (Voltage) Quantization Steps Continuous 0111 Analog Signal 0110 0101 0100 0011 0010 0001 0000 t (Time) 1111 1110 1101 Quantization Errors 1100 (Noise) 1011 1010 1001 1000 Conversation Rate Digital Words...
-
Page 25: Applications
7. APPLICATIONS... - Page 26 Channel Subgroup Insert Insert...
-
Page 29: Specifications
8. SPECIFICATIONS... - Page 30 Function Transmitted Recognized Rem ark s Basic Default OFF, 1 - 16 OFF, 1 - 16 memorized Channel Changed OFF, 1 - 16 OFF, 1 - 16 Default 1,2,3,4 1,2,3,4 Mode Messages Altered Note Number True Voice Note ON Velocity Note OFF Key´s After Touch...
- Page 31 BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may differ from those listed or shown.
-
Page 32: Warranty
9. WARRANTY...
