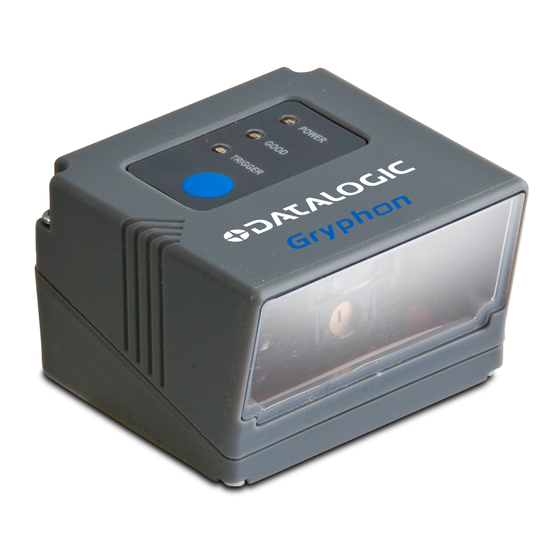

Page 1 Gryphon ™ I GFS4100 Fixed Mount Linear Imager Bar Code Reader Product Reference Guide...
Page 2 Should future revisions of this manual be published, you can acquire printed versions by contacting your Datalogic representative. Electronic versions may either be downloadable from the Datalogic website (www.scanning.data- logic.com) or provided on appropriate media.
Page 3: Table Of Contents
About this Manual ......................................7 Overview ..................................................7 Manual Conventions ............................................. 7 References ........................................8 Technical Support ......................................8 Datalogic Website Support ..........................................8 Reseller Technical Support ..........................................8 Telephone Technical Support ..........................................8 About the Reader ......................................8 Programming the Reader ....................................9 Configuration Methods ............................................
Page 4 Contents GS1-128 AIM ID ..........................................44 Label ID ...............................................44 Label ID: Pre-loaded Sets ......................................44 Label ID: Set Individually Per Symbology ................................45 Label ID Control ..........................................45 Label ID Symbology Selection ....................................46 Set Global Mid Label ID Characters ..................................50 No Read String ..........................................51 CODE VERIFIER ....................................
Page 5 Contents EAN 13 Check Character Transmission ...................................87 EAN-13 Flag 1 Character .......................................88 EAN-13 ISBN Conversion ......................................88 EAN 13 Minimum Reads .......................................89 ISSN ......................................90 ISSN Enable/Disable ........................................90 EAN 8 (JAN 8) ....................................91 EAN 8 Enable/Disable ........................................91 EAN 8 Check Character Transmission ..................................91 Expand EAN 8 to EAN 13 ......................................92 EAN 8 Minimum Reads ........................................92 UPC/EAN GLOBAL SETTINGS ..............................
Page 6 IATA Check Character Transmission ..................................154 DATALOGIC 2 OF 5 ..................................155 Datalogic 2 of 5 Enable/Disable ....................................155 Datalogic 2 of 5 Check Character Calculation ..............................155 Datalogic 2 of 5 Minimum Reads ................................... 156 Datalogic 2 of 5 Decoding Level ..................................... 156 Datalogic 2 of 5 Length Control .....................................
Page 7 Contents Codabar Interdigit Ratio ......................................170 Codabar Character Correlation ....................................172 Codabar Stitching ........................................172 ABC CODABAR ...................................173 ABC Codabar Enable/Disable ....................................173 ABC Codabar Concatenation Mode ..................................173 ABC Codabar Dynamic Concatenation Timeout .............................. 174 GS1 DATABAR™ OMNIDIRECTIONAL ............................175 GS1 DataBar™...
Page 8 Contents RS-232 Only ................................................. 233 RS-232/USB COM Parameters ........................................234 Data Editing ........................................241 Global Prefix/Suffix ............................................242 Global AIM ID ..............................................243 Label ID ................................................. 244 Character Conversion ............................................248 Scanner Data Formatting Control ....................................... 248 Reading Parameters ....................................251 Illumination Mode ............................................. 251 Good Read LED Duration ..........................................
Page 9: Introduction
Chapter 1 Introduction About this Manual This Product Reference Guide (PRG) is provided for users seeking advanced technical information, including connection, programming, maintenance and specifications. Overview Chapter 1, (this chapter) presents information about manual conventions, and an overview of the reader, its features and operation. Chapter 2, Setup presents information about unpacking and setting up the reader.
Page 10: References
Telephone Technical Support If you do not have internet or email access, you may contact Datalogic technical support at (541) 349-8283 or check the back cover of your manual for more contact information. About the Reader Typically, units are factory-programmed for the most common terminal and communications settings.
Page 11: Programming The Reader
Datalogic Aladdin™ is a multi-platform utility program providing a quick and user-friendly configuration method via the RS-232/USB-COM interface. Aladdin is available for download from the Datalogic website. Aladdin allows you to program the reader by selecting configuration commands through a user-friendly graphical interface running on a PC. These commands are sent to the reader over the selected communication interface, or they can be printed as barcodes to be scanned.
Page 12 Introduction NOTES Gryphon™ I GFS4170/GFS4150-9...
Page 13: Setup
Setup Unpacking Check carefully to ensure the reader and any accessories ordered are present and undamaged. If any damage occurred during shipment, contact Datalogic Technical Support. Information is shown on page KEEP THE PACKAGING. Should the unit ever require service, it should be returned in its original shipping container.
Page 14: Installing The Interface Cable
Setup Installing the Interface Cable RS-232 Serial Connection Turn off power to the terminal/PC and connect the reader to the terminal/PC serial port via the RS-232 cable, as shown in Figure 1. If the terminal will not support POT (Power Off the Terminal) to supply reader power, use the approved power supply (AC Adapter).
Page 15: Interface Selection
Interface Selection Interface Selection Upon completing the physical connection between the reader and its host, proceed to Table 1 starting on page 14 to select the interface type the reader is connected to (for example, RS-232 or USB). Scan the appropriate barcode in that section to configure your system’s correct interface type.
Page 16 USB Com to simulate RS-232 standard interface starting on page 21 Select USB-COM-STD RS-232 Wincor-Nixdorf Select RS-232 Wincor-Nixdorf a. Download the correct USB COM driver from the Datalogic Scanning website. KEYBOARD FEATURES USB Keyboard with standard key encoding Select USB Keyboard Set KEYBOARD...
Page 17: Customizing Configuration Settings
Customizing Configuration Settings Customizing Configuration Settings Configure Interface Settings If after scanning the interface barcode from the previous table, your installation requires you to select options to further customize your reader, turn to the appropriate section for your interface type in "Configuration Using Barcodes"...
Page 18: Resetting Product Configuration To Defaults
Setup Resetting Product Configuration to Defaults Restore Custom Defaults If you aren’t sure what programming options are in your imager, or you’ve changed some options and want to restore the Custom Default Configuration that may have been saved in the scanner, scan the Restore Custom Default Configuration barcode below.
Page 19: Configuration Using Barcodes
Chapter 3 Configuration Using Barcodes This and following sections provide programming barcodes to configure your reader by changing the default settings. For details about additional methods of programming, see Configuration Methods on page You must first enable your reader to read barcodes in order to use this Setup, starting on page 11 section.
Page 20: Reading Configuration Barcodes
Configuration Using Barcodes Reading Configuration Barcodes You must first enable your reader to read barcodes in order to use this Setup, starting on page 11 section. If you have not done this, go to complete the appropriate procedure. To program features: 1.
Page 21: Global Interface Features
ENTER/EXIT PROGRAMMING MODE Host Commands — Obey/Ignore GLOBAL INTERFACE FEATURES The following interface features are configurable by all interface types. Host Commands — Obey/Ignore This option specifies whether the reader will obey or ignore host commands. When set to ignore, the reader will ignore all host commands except for those necessary for: •...
Page 22 Configuration Using Barcodes ENTER/EXIT PROGRAMMING MODE NOTES Gryphon™ I GFS4170/GFS4150-9...
Page 23: Rs-232 Only Interface
RS-232 ONLY INTERFACE on page 22 on page 23 on page 23 on page 24 ARITY on page 25 ANDSHAKING ONTROL Use the programming barcodes in this section if modifications to the standard RS-232 interface settings are necessary to meet your system’s requirements. Additional settings which apply to both the RS-232 and USB interfaces are available in the next section, "RS-232/USB-Com Interfaces"...
Page 24: Baud Rate
RS-232 ONLY Interface ENTER/EXIT PROGRAMMING MODE Baud Rate page 233 for information on this feature. Baud Rate = 1200 Baud Rate = 2400 Baud Rate = 4800 DEFAULT Baud Rate = 9600 Baud Rate = 19,200 Baud Rate = 38,400 Baud Rate = 57,600 Baud Rate = 115,200 Gryphon™...
Page 25: Data Bits
ENTER/EXIT PROGRAMMING MODE Data Bits Data Bits This parameter allows the reader to interface with devices requiring a 7-bit or 8-bit ASCII protocol for sending and receiving data. 7 Data Bits DEFAULT 8 Data Bits Stop Bits page 233 Set the number of stop bits to match host device requirements. See for more information on this feature.
Page 26: Parity
RS-232 ONLY Interface ENTER/EXIT PROGRAMMING MODE Parity This feature specifies parity required for sending and receiving data. Select the parity type according to host device requirements. See page 233 for more information. DEFAULT Parity = None Parity = Even Parity = Odd Gryphon™...
Page 27: Handshaking Control
ENTER/EXIT PROGRAMMING MODE Handshaking Control Handshaking Control page 233 for more information about this feature. DEFAULT Handshaking Control = RTS Handshaking Control = RTS/CTS Handshaking Control = RTS/XON/XOFF Handshaking Control = RTS On/CTS Handshaking Control = RTS/CTS Scan Control Product Reference Guide...
Page 28: Rs-232/Usb-Com Interfaces
RS-232/USB-COM INTERFACES NTERCHARACTER ELAY on page 27 ASCII BEL on page 27 OT ON on page 28 ACK NAK O on page 28 PTIONS ACK C on page 29 HARACTER NAK C HARACTER on page 29 ACK NAK T IMEOUT ALUE on page 30 ACK NAK R...
Page 29: Intercharacter Delay
ENTER/EXIT PROGRAMMING MODE Intercharacter Delay Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 milliseconds in 10ms increments.
Page 30: Beep On Not On File
RS-232/USB-Com Interfaces ENTER/EXIT PROGRAMMING MODE Beep On Not on File This option enables/disables the action of the reader to sound a three beep sequence upon receiving a Not-On-File (NOF) host command. Beep On Not On File = Disable DEFAULT Beep On Not On File = Enable ACK NAK Options This enables/disables the ability of the reader to support the RS-232 ACK/NAK protocol.
Page 31: Ack Character
ENTER/EXIT PROGRAMMING MODE ACK Character ACK Character This setting specifies an ASCII character or hex value to be used as the ACK character. ASCII characters or any hex value from 0 to 0xFF can be selected. See page 235 for more information. Setting to previously defined characters such as XON, XOFF, or host com- mands conflicts with normal operation of these characters.
Page 32: Ack Nak Timeout Value
RS-232/USB-Com Interfaces ENTER/EXIT PROGRAMMING MODE ACK NAK Timeout Value This option specifies the amount of time the reader waits for an ACK character from the host following label transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments. A selection of 0 disables the timeout. page 237 for more information on setting this feature.
Page 33: Ack Nak Error Handling
ENTER/EXIT PROGRAMMING MODE ACK NAK Error Handling ACK NAK Error Handling This feature specifies the method the reader uses to handle receive errors detected while waiting for an ACK character from the host. DEFAULT ACK NAK Error Handling = Ignore Errors Detected ACK NAK Error Handling = Process Error as Valid ACK Character ACK NAK Error Handling = Process Error as Valid NAK Character...
Page 34: Disable Character
RS-232/USB-Com Interfaces ENTER/EXIT PROGRAMMING MODE Disable Character Specifies the value of the RS-232 host command used to disable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF or host com- mands conflicts with normal operation of these characters.
Page 35: Usb Keyboard Interfaces
USB KEYBOARD INTERFACES OUNTRY on page 34 ONTROL HARACTERS on page 37 USB K on page 38 EYBOARD PEED Use the programming barcodes in this chapter to select options for USB Keyboard Interfaces. Reference Appendix B, Standard Defaults for a listing of standard factory settings. Information about control character emulation which applies to keyboard interfaces is listed in Appendix F, Scancode Tables.
Page 36: Country Mode
USB Keyboard Interfaces ENTER/EXIT PROGRAMMING MODE Country Mode This feature specifies the country/language supported by the keyboard. Only the USB Keyboard (without alternate key encoding) interface supports ALL Country Modes. All other interfaces support ONLY the following Country Modes: U.S., Belgium, Britain, France, Germany, Italy, Spain, Sweden.
Page 37 ENTER/EXIT PROGRAMMING MODE Country Mode Country Mode — continued Supports only the interfaces listed in the Country Mode fea- ture description. Country Mode = Denmark Country Mode = France Country Mode = Germany Supports only the interfaces listed in the Country Mode feature description.
Page 38 USB Keyboard Interfaces ENTER/EXIT PROGRAMMING MODE Country Mode — continued Supports only the interfaces listed in the Country Mode fea- ture description. Country Mode = Poland Supports only the interfaces listed in the Country Mode feature description. Country Mode = Portugal Supports only the interfaces listed in the Country Mode fea- ture description.
Page 39: Send Control Characters
ENTER/EXIT PROGRAMMING MODE Send Control Characters Send Control Characters This feature Specifies how the reader transmits ASCII control characters to the host. Reference Appendix F, Scancode Tables for more information about control characters. Options are as follows: Control Character 00 . Characters from 00 to 0x1F are sent as control character Ctrl+Keys, special keys are located from 0x80 to 0xA1.
Page 40: Usb Keyboard Speed
USB Keyboard Interfaces ENTER/EXIT PROGRAMMING MODE USB Keyboard Speed This option specifies the USB poll rate for a USB keyboard. DEFAULT USB Keyboard Speed = 1ms USB Keyboard Speed = 2ms USB Keyboard Speed = 3ms USB Keyboard Speed = 4ms USB Keyboard Speed = 5ms Gryphon™...
Page 41 ENTER/EXIT PROGRAMMING MODE USB Keyboard Speed USB Keyboard Speed — continued USB Keyboard Speed = 6ms USB Keyboard Speed = 7ms USB Keyboard Speed = 8ms USB Keyboard Speed = 9ms USB Keyboard Speed = 10ms Product Reference Guide...
Page 42 USB Keyboard Interfaces ENTER/EXIT PROGRAMMING MODE NOTES Gryphon™ I GFS4170/GFS4150-9...
Page 43: Data Format
DATA FORMAT on page 42 LOBAL REFIX UFFIX AIM ID LOBAL on page 43 GS1-128 AIM ID on page 44 ABEL starting on page 44 Label ID: Pre-loaded Sets • Label ID: Set Individually Per Symbology • Label ID Control •...
Page 44: Global Prefix/Suffix
Data Format ENTER/EXIT PROGRAMMING MODE Global Prefix/Suffix This option sets up to 20 characters each from the set of ASCII characters or any hex value from 00 to FF. The characters may be added as a prefix (in a position before the barcode data, also called a header) and/or as a suffix (in a position following the barcode data, also called a footer).
Page 45: Global Aim Id
ENTER/EXIT PROGRAMMING MODE Global AIM ID Global AIM ID This feature enables/disables addition of AIM IDs for all symbology types. AIM label identifiers (as opposed to custom characters you select yourself as with label identifiers) can be included with scanned barcode data. AIM label identifiers consist of three characters as follows: •...
Page 46: Gs1-128 Aim Id
Data Format ENTER/EXIT PROGRAMMING MODE GS1-128 AIM ID If Global AIM ID is disabled, the AIM ID for GS1-128 can be enabled/disabled independently. The AIM ID for GS1-128 is a ]C1, ]C2 or ]C3. AIM IDs for other symbologies can be enabled/disabled independently as well. Contact Customer Support for assistance GS1-128 AIM ID = Disable DEFAULT...
Page 47: Label Id: Set Individually Per Symbology
ENTER/EXIT PROGRAMMING MODE Label ID: Set Individually Per Symbology DEFAULT Label ID Pre-loaded Set = USA Set Label ID Pre-loaded Set = EU Set Label ID: Set Individually Per Symbology This feature configures a Label ID individually for a single symbology. See Label ID: Set Individually Per Symbology, starting on page 246 for detailed instructions on setting this feature.
Page 48: Label Id Symbology Selection
Data Format ENTER/EXIT PROGRAMMING MODE Label ID Symbology Selection This option selects the symbology for which a Label ID is to be configured. See "Label ID"on page or page in “References” for more detailed instructions. Set UPC-A Label ID Character(s) Set UPC-A/P2 Label ID Character(s) Set UPC-A/P5 Label ID Character(s) Set UPC-E Label ID Character(s)
Page 49 ENTER/EXIT PROGRAMMING MODE Label ID Symbology Selection Label ID Symbology Selection — continued Set EAN 13/P2 Label ID Character(s) Set EAN 13/P5 Label ID Character(s) Set EAN 8 Label ID Character(s) Set EAN 8/P2 Label ID Character(s) Set EAN 8/P5 Label ID Character(s) Set GTIN Label ID Character(s) Set GTIN/P2 Label ID Character(s) Set GTIN/P5 Label ID Character(s)
Page 50 Data Format ENTER/EXIT PROGRAMMING MODE Label ID Symbology Selection — continued Set Code 39 Label ID Character(s) Set Code 32 Label ID Character(s) Set Code 39 CIP Label ID Character(s) Set Code 128 Label ID Character(s) Set GS1-128 Label ID Character(s) Set ISBT 128 Label ID Character(s) Set Interleaved 2 of 5 Label ID Character(s) Set Standard 2 of 5 Label ID Character(s)
Page 51 Label ID Symbology Selection — continued Set Industrial 2 of 5 Label ID Character(s) Set IATA Label ID Character(s) Set Datalogic 2 of 5 Label ID Character(s) Set Codabar Label ID Character(s) Set ABC Codabar Label ID Character(s) Set DataBar Omnidirectional Label ID Character(s)
Page 52: Set Global Mid Label Id Characters
Data Format ENTER/EXIT PROGRAMMING MODE Label ID Symbology Selection — continued Set DataBar Limited Label ID Character(s) Set Code 93 Label ID Character(s) Set MSI Label ID Character(s) Set Plessey Label ID Character(s) Set Global Mid Label ID Characters Specifies mid-label ID that is added for transmission between the labels of a two-label pair. To configure this feature, scan the ENTER/EXIT PROGRAMMING MODE barcode above, then the barcode at left followed by the Appendix...
Page 53: No Read String
ENTER/EXIT PROGRAMMING MODE No Read String No Read String This feature defines the string or character to be displayed in case of No Read during a reading phase (in On Line Mode only). It allows up to 20 characters, from the set of ASCII characters or any hex value from 00 to FE.
Page 54: Code Verifier
Data Format ENTER/EXIT PROGRAMMING MODE CODE VERIFIER This feature allows the scanner to verify that all codes read and decoded match a defined string saved in its memory. It is valid when in On Line, Serial On Line, Automatic and Automatic (Object Sense) Operating Modes.
Page 55: Match String
ENTER/EXIT PROGRAMMING MODE Match String Match String This feature allows you to define the string to be used as the match code for Code Verification. The Match String must be configured to include start/stop characters and check digits if their transmission is enabled.
Page 56: Wrong Code String
Data Format ENTER/EXIT PROGRAMMING MODE Wrong Code String page 250 in “References” for more information about this feature. To configure this feature, scan the ENTER/EXIT PROGRAMMING MODE barcode above, then the barcode at left followed by the Appendix digits (in hex) from the Alphanumeric characters in D, Keypad representing your desired character(s).
Page 57: Character Conversion
ENTER/EXIT PROGRAMMING MODE Character Conversion Character Conversion Character conversion is an eight byte configuration item. The eight bytes are 4 character pairs represented in hexadecimal ASCII values. The first character in the pair is the character that will be converted. The second character in the pair is the character to convert to. If the character to convert in a pair is FF, then no conversion is done.
Page 58 Data Format ENTER/EXIT PROGRAMMING MODE NOTES Gryphon™ I GFS4170/GFS4150-9...
Page 59: Digital Output
DIGITAL OUTPUT CTIVATION VENT on page 58 EACTIVATION VENT on page 59 on page 59 EACTIVATION IMEOUT on page 60 CTIVATION TATE page 255 in “References” for more information about Digital Output. Use the programming barcodes in this chapter to select options for Digital Outputs. Reference Appendix B, Standard Defaults for a listing of standard factory settings.
Page 60: Activation Event
Digital Output ENTER/EXIT PROGRAMMING MODE Activation Event Defines the event activating the output. DEFAULT Disable Good Read No Read Wrong Code Gryphon™ I GFS4170/GFS4150-9...
Page 61: Deactivation Event
ENTER/EXIT PROGRAMMING MODE Deactivation Event Deactivation Event Defines the event deactivating the output. See page 255 in “References” for more information about this feature. DEFAULT Disable Timeout Reading Phase Active Deactivation Timeout When Timeout is the selected Deactivation Event, this specifies the maximum duration of the output pulse.
Page 62: Activation State
Digital Output ENTER/EXIT PROGRAMMING MODE Activation State Determines the active state of the output. DEFAULT Closed Open Gryphon™ I GFS4170/GFS4150-9...
Page 63: Power Save
POWER SAVE USB S USPEND on page 62 LEEP IMEOUT on page 63 Use the programming barcodes in this chapter to select Power Save options. Reference Appendix B, Standard Defaults for a listing of standard factory settings. Product Reference Guide...
Page 64: Usb Suspend Mode
Power Save ENTER/EXIT PROGRAMMING MODE USB Suspend Mode This setting enables/disables the ability of USB interfaces to enter suspend mode. See page 254 in “References” for more information about this feature. All LED indicators are off during USB Suspend. DEFAULT USB Suspend Mode = Disable USB Suspend Mode = Enable Gryphon™...
Page 65: Sleep Mode Timeout
ENTER/EXIT PROGRAMMING MODE Sleep Mode Timeout Sleep Mode Timeout This feature sets the amount of time that the reader will be idle before it enters into a low power Sleep Mode. When in Sleep Mode the reader can no longer receive commands from the Host or base station until it is woken up again, either by a trigger pull or when an external trigger event occurs.
Page 66 Power Save ENTER/EXIT PROGRAMMING MODE NOTES Gryphon™ I GFS4170/GFS4150-9...
Page 67: Reading Parameters
READING PARAMETERS LLUMINATION on page 66 EEPER NDICATORS on page 66 Power On Alert • Good Read: When to Indicate • Good Read Beep • Good Read Beep Length • Good Read LED Duration • Green Spot Duration • • LED Indication on page 71 CANNING...
Page 68: Illumination Mode
Reading Parameters ENTER/EXIT PROGRAMMING MODE Illumination Mode Selects the illumination mode for the reader. Options are: • Disabled: the illuminator is always off • Enabled: the illuminator is always on • Triggered: the illuminator is turned on when the reading phase starts, and turned off as soon as the code(s) are read or when the reading phase ends.
Page 69: Good Read: When To Indicate
ENTER/EXIT PROGRAMMING MODE Good Read: When to Indicate Good Read: When to Indicate This feature specifies when the reader will provide indication (beep and/or flash its green LED) upon successfully reading a barcode. This option, which uses CTS, is only valid for RS-232 interfaces. DEFAULT Indicate Good Read = On Decode Indicate Good Read = After Transmit...
Page 70: Good Read Beep Length
Reading Parameters ENTER/EXIT PROGRAMMING MODE Good Read Beep Length Good Read Beep Length = 60 msec Good Read Beep Length = 80 msec DEFAULT Good Read Beep Length = 100 msec Good Read Beep Length = 120 msec Good Read Beep Length = 140 msec Good Read Beep Length = 160 msec Good Read Beep Length = 180 msec Good Read Beep Length = 200 msec...
Page 71: Good Read Led Duration
ENTER/EXIT PROGRAMMING MODE Good Read LED Duration Good Read LED Duration This feature specifies the amount of time that the Good Read LED remains on following a good read. The good read LED on time can be set within a range of 100 milliseconds to 25,500 milliseconds (0.1 to 25.5 seconds) in 100ms increments.
Page 72: Green Spot Duration
Reading Parameters ENTER/EXIT PROGRAMMING MODE Green Spot Duration Specifies the duration of the good read pointer beam after a good read. Green Spot Duration = Disable (Green Spot is Off) DEFAULT Green Spot Duration = Short (300 msec) Green Spot Duration = Medium (500 msec) Green Spot Duration = Long (800 msec) LED Indication Specifies when the scanner’s LEDs will provide notification of successful reading of a barcode.
Page 73: Scanning Features
ENTER/EXIT PROGRAMMING MODE Operating Mode SCANNING FEATURES Operating Mode page 252 Selects the reader's scan operating mode. See in “References” for more information. DEFAULT On Line Serial On Line Automatic Automatic (Object Sense) Test Mode The barcode must remain steady before the reader in order for the Test mode to work properly.
Page 74: Phase Off Event
Reading Parameters ENTER/EXIT PROGRAMMING MODE Phase Off Event DEFAULT Trigger Stop Timeout Trigger Stop - Timeout Phase Off Timeout Timeout can be set within a range of 40 milliseconds to 5100 milliseconds (0.04 to 5.1 seconds) in 20 ms increments. To configure this feature scan the ENTER/EXIT PROGRAMMING MODE barcode above, then the barcode at left, followed by the digits (in hex) from the Alphanumeric characters in...
Page 75: Serial Start Character
ENTER/EXIT PROGRAMMING MODE Serial Start Character Serial Start Character page 253 in “References” for more information. To configure this feature scan the ENTER/EXIT PROGRAMMING MODE barcode above, then the barcode at left, followed by the digits (in hex) from the Alphanumeric characters in Appendix D, Keypad representing your desired character(s).
Page 76: Automatic Threshold
Reading Parameters ENTER/EXIT PROGRAMMING MODE Automatic Threshold page 253 in “References” for more information. To configure this feature scan the ENTER/EXIT PROGRAMMING MODE barcode above, then the barcode at left, followed by the digits (in hex) from the Alphanumeric characters in Appendix D, Keypad representing your desired character(s).
Page 77: Camera Control
Exposure Mode CAMERA CONTROL Exposure Mode Strobed Exposure Mode: For any selectable scanning mode, performance on moving barcodes can be improved by flashing the scanner's lighting (strobe mode). The scanner strobes at a very high frequency, so the change in lighting may not be apparent. When enabled, the scanner can read codes moving at up to 1m/sec, depending on the bar size and direction the code is moving.
Page 78 Reading Parameters NOTES Gryphon™ I GFS4170/GFS4150-9...
Page 79: Code Selection
CODE SELECTION The reader supports the following symbologies (barcode types). Symbology-dependent options for each symbology are included in this chapter. on page 78 ISABLE YMBOLOGIES 5 (I 2 NTERLEAVED on page EAN/UPC on page 79 Coupon Control • TANDARD on page 142 UPC-A •...
Page 80: Disable All Symbologies
Disable All Symbologies Appendix D, Keypad, and scan the appro- 3. If additional input parameters are needed, go to priate characters from the keypad. Additional information about many features can be found in the “Refer- ences” chapter. If you make a mistake before the last character, scan the CANCEL barcode to abort and not save the entry string.
Page 81: Code Ean/Upc
ENTER/EXIT PROGRAMMING MODE Coupon Control CODE EAN/UPC Coupon Control This feature is used to control the reader’s method of processing coupon labels. Coupon Control = Allow all coupon barcodes to be decoded DEFAULT Coupon Control = Enable only UPCA coupon decoding Coupon Control = Enable only GS1 DataBar™...
Page 82: Upc-A
Code EAN/UPC ENTER/EXIT PROGRAMMING MODE UPC-A The following options apply to the UPC-A symbology. UPC-A Enable/Disable When disabled, the reader will not read UPC-A barcodes. UPC-A = Disable DEFAULT UPC-A = Enable UPC-A Check Character Transmission Enable this option to transmit the check character along with UPC-A barcode data. UPC-A Check Character Transmission = Don’t Send DEFAULT UPC-A Check Character Transmission = Send...
Page 83: Expand Upc-A To Ean-13
ENTER/EXIT PROGRAMMING MODE Expand UPC-A to EAN-13 Expand UPC-A to EAN-13 Expands UPC-A data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. DEFAULT UPC-A to EAN-13 = Don’t Expand UPC-A to EAN-13 = Expand UPC-A Number System Character Transmission This feature enables/disables transmission of the UPC-A number system character.
Page 84: Upc-A Minimum Reads
Code EAN/UPC ENTER/EXIT PROGRAMMING MODE UPC-A Minimum Reads This feature specifies the minimum number of consecutive times a UPC-A label must be decoded before it is accepted as a good read. DEFAULT UPC-A Minimum Reads = 1 UPC-A Minimum Reads = 2 UPC-A Minimum Reads = 3 UPC-A Minimum Reads = 4 Gryphon™...
Page 85: Upc-E
ENTER/EXIT PROGRAMMING MODE UPC-E Enable/Disable UPC-E The following options apply to the UPC-E symbology. UPC-E Enable/Disable When disabled, the reader will not read UPC-E barcodes. UPC-E = Disable DEFAULT UPC-E = Enable UPC-E Check Character Transmission Enable this option to transmit the check character along with UPC-E barcode data. UPC-E Check Character Transmission = Don’t Send DEFAULT UPC-E Check Character Transmission = Send...
Page 86: Expand Upc-E To Ean-13
UPC-E ENTER/EXIT PROGRAMMING MODE Expand UPC-E to EAN-13 Expands UPC-E data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. DEFAULT UPC-E to EAN-13 = Don’t Expand UPC-E to EAN-13 = Expand Expand UPC-E to UPC-A Expands UPC-E data to the UPC-A data format.
Page 87: Upc-E Number System Character Transmission
ENTER/EXIT PROGRAMMING MODE UPC-E Number System Character Transmission UPC-E Number System Character Transmission This feature enables/disables transmission of the UPC-E system number character. UPC-E Number System Character = Do not transmit DEFAULT UPC-E Number System Character = Transmit UPC-E Minimum Reads Specifies the minimum number of consecutive times a UPC-E label must be decoded before it is accepted as a good read.
Page 88: Gtin Formatting
GTIN Formatting ENTER/EXIT PROGRAMMING MODE GTIN FORMATTING This feature enables/disables the ability to convert UPC-E, UPC-A, EAN 8, and EAN 13 labels into the GTIN 14-character format. If add-on information is present on the base label prior to the con- version taking place, the add-on information will be appended to the converted GTIN label.
Page 89: Ean 13 (Jan 13)
ENTER/EXIT PROGRAMMING MODE EAN 13 Enable/Disable EAN 13 (JAN 13) The following options apply to the EAN 13 (Jan 13) symbology. EAN 13 Enable/Disable When disabled, the reader will not read EAN 13/JAN 13 barcodes. EAN 13 = Disable DEFAULT EAN 13 = Enable EAN 13 Check Character Transmission Enable this option to transmit the check character along with EAN 13 barcode data.
Page 90: Ean-13 Flag 1 Character
EAN 13 (Jan 13) ENTER/EXIT PROGRAMMING MODE EAN-13 Flag 1 Character Enables/disables transmission of an EAN/JAN13 Flag1 character. The Flag 1 character is the first character of the label. EAN-13 Flag 1 Char= Don’t transmit DEFAULT EAN-13 Flag 1 Char= Transmit EAN-13 ISBN Conversion This option enables/disables conversion of EAN 13/JAN 13 Bookland labels starting with 978 to ISBN labels.
Page 91: Ean 13 Minimum Reads
ENTER/EXIT PROGRAMMING MODE EAN 13 Minimum Reads EAN 13 Minimum Reads This feature specifies the minimum number of consecutive times an EAN 13 label must be decoded before it is accepted as good read. DEFAULT EAN 13 Minimum Reads = 1 EAN 13 Minimum Reads = 2 EAN 13 Minimum Reads = 3 EAN 13 Minimum Reads = 4...
Page 92: Issn
ISSN ENTER/EXIT PROGRAMMING MODE ISSN The following options apply to the ISSN symbology. ISSN Enable/Disable Enables/disables conversion of EAN/JAN13 Bookland labels starting with 977 to ISSN labels. DEFAULT ISSN = Disable ISSN = Enable Gryphon™ I GFS4170/GFS4150-9...
Page 93: Ean 8 (Jan 8)
ENTER/EXIT PROGRAMMING MODE EAN 8 Enable/Disable EAN 8 (JAN 8) The following options apply to the EAN 8 (Jan 8) symbology. EAN 8 Enable/Disable When disabled, the reader will not read EAN 8/JAN 8 barcodes. EAN 8 = Disable DEFAULT EAN 8 = Enable EAN 8 Check Character Transmission Enable this option to transmit the check character along with EAN 8 barcode data.
Page 94: Expand Ean 8 To Ean 13
EAN 8 (Jan 8) ENTER/EXIT PROGRAMMING MODE Expand EAN 8 to EAN 13 Enable this option to expand EAN 8/JAN 8 labels to EAN 13/JAN 13. DEFAULT Expand EAN 8 to EAN 13 = Disable Expand EAN 8 to EAN 13 = Enable EAN 8 Minimum Reads This feature specifies the minimum number of consecutive times an EAN 8 (Jan 8) label must be decoded before it is accepted as good read.
Page 95: Upc/Ean Global Settings
ENTER/EXIT PROGRAMMING MODE UPC/EAN Decoding Level UPC/EAN GLOBAL SETTINGS This section provides configuration settings for UPC-A, UPC-E, EAN 13 and EAN 8 symbologies, and affects all of these unless otherwise marked for each feature description. UPC/EAN Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs.
Page 96: Upc/Ean Correlation
UPC/EAN Global Settings ENTER/EXIT PROGRAMMING MODE UPC/EAN Correlation When correlation is enabled, the reader will combine label data from multiple scans when decoding. This will help the scanner read labels that have spots, voids and/or damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly. DEFAULT UPC/EAN Correlation = Disable UPC/EAN Correlation = Enable...
Page 97: In-Store Minimum Reads
ENTER/EXIT PROGRAMMING MODE In-Store Minimum Reads In-Store Minimum Reads This feature specifies the minimum number of consecutive times an in-store label must be decoded before it is accepted as good read. In-store labels are defined as UPC-A labels with a number-system character of 2 or 4 as well as EAN 8 and EAN 13 labels with a Flag1 character of 2 or an EAN 13 label starting with the three characters '980'.
Page 98: Add-Ons
Add-Ons ENTER/EXIT PROGRAMMING MODE ADD-ONS Contact Customer Support for advanced programming of optional and conditional add-ons. Optional Add-ons The reader can be enabled to optionally read the following add-ons (supplementals): If a UPC/EAN base label and an add-on are both decoded, the reader will transmit the base label and add-on.
Page 99: Optional Add-On Timer
ENTER/EXIT PROGRAMMING MODE Optional Add-On Timer Optional Add-On Timer This option sets the time the reader will look for an add-on when an add-on fragment has been seen and optional add-ons are enabled. (Also see "Optional GS1-128 Add-On Timer"on page 100.) Optional Add-on Timer = 10ms Optional Add-on Timer = 20ms Optional Add-on Timer = 30ms...
Page 100 Add-Ons ENTER/EXIT PROGRAMMING MODE Optional Add-On Timer — cont. Optional Add-on Timer = 60ms DEFAULT Optional Add-on Timer = 70ms Optional Add-on Timer = 100ms Optional Add-on Timer = 120ms Optional Add-on Timer = 140ms Optional Add-on Timer = 160ms Gryphon™...
Page 101 ENTER/EXIT PROGRAMMING MODE Optional Add-On Timer Optional Add-On Timer — cont. Optional Add-on Timer = 180ms Optional Add-on Timer = 200ms Optional Add-on Timer = 220ms Optional Add-on Timer = 240ms Optional Add-on Timer = 260ms Optional Add-on Timer = 280ms Optional Add-on Timer = 300ms Product Reference Guide...
Page 102: Optional Gs1-128 Add-On Timer
Add-Ons ENTER/EXIT PROGRAMMING MODE Optional GS1-128 Add-On Timer This option sets the timer expiration value to read the added part after reading the linear EAN/ UPC part. For UPC/EAN add-ons other than those of that type, see "Optional Add-On Timer"on page 97. DEFAULT Optional GS1-128 Add-On Timer = Disable Optional GS1-128 Add-On Timer = 10ms...
Page 103 ENTER/EXIT PROGRAMMING MODE Optional GS1-128 Add-On Timer Optional GS1-128 Add-On Timer — cont. Optional GS1-128 Add-On Timer = 60ms Optional GS1-128 Add-On Timer = 70ms Optional GS1-128 Add-On Timer = 100ms Optional GS1-128 Add-On Timer = 120ms Optional GS1-128 Add-On Timer = 140ms Optional GS1-128 Add-On Timer = 160ms Product Reference Guide...
Page 104 Add-Ons ENTER/EXIT PROGRAMMING MODE Optional GS1-128 Add-On Timer — cont. Optional GS1-128 Add-On Timer = 180ms Optional GS1-128 Add-On Timer = 200ms Optional GS1-128 Add-On Timer = 220ms Optional GS1-128 Add-On Timer = 240ms Optional GS1-128 Add-On Timer = 260ms Optional GS1-128 Add-On Timer = 280ms Optional GS1-128 Add-On Timer = 300ms Gryphon™...
Page 105: P2 Add-Ons Minimum Reads
ENTER/EXIT PROGRAMMING MODE P2 Add-Ons Minimum Reads P2 Add-Ons Minimum Reads This feature specifies the minimum number of times a P2 add-on must be read before it is marked as valid and then combined with a base label P2 Add-Ons Minimum Reads = 1 DEFAULT P2 Add-Ons Minimum Reads = 2 P2 Add-Ons Minimum Reads = 3...
Page 106: P5 Add-Ons Minimum Reads
Add-Ons ENTER/EXIT PROGRAMMING MODE P5 Add-Ons Minimum Reads This feature specifies the minimum number of times a P5 add-on must be read before it is marked as valid and then combined with a base label DEFAULT P5 Add-Ons Minimum Reads = 1 P5 Add-Ons Minimum Reads = 2 P5 Add-Ons Minimum Reads = 3 P5 Add-Ons Minimum Reads = 4...
Page 107: Gs1-128 Add-Ons Minimum Reads
ENTER/EXIT PROGRAMMING MODE GS1-128 Add-Ons Minimum Reads GS1-128 Add-Ons Minimum Reads This feature specifies the minimum number of times an GS1-128 add-on must be read before it is marked as valid and then combined with a base label DEFAULT GS1-128 Add-Ons Minimum Reads = 1 GS1-128 Add-Ons Minimum Reads = 2 GS1-128 Add-Ons Minimum Reads = 3 GS1-128 Add-Ons Minimum Reads = 4...
Page 108: Code 39
Code 39 ENTER/EXIT PROGRAMMING MODE CODE 39 The following options apply to the Code 39 symbology. Code 39 Enable/Disable Code 39 = Disable DEFAULT Code 39 = Enable Code 39 Check Character Calculation Enable this option to enables/disables calculation and verification of an optional Code 39 check character.
Page 109: Code 39 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE Code 39 Check Character Transmission Code 39 Check Character Calculation — cont. Code 39 Check Character Calculation = Enable Italian Post Check Code 39 Check Character Calculation = Enable Daimler Chrysler Check Code 39 Check Character Transmission Enable this option to transmit the check character along with Code 39 barcode data.
Page 110: Code 39 Start/Stop Character Transmission
Code 39 ENTER/EXIT PROGRAMMING MODE Code 39 Start/Stop Character Transmission Enable this option to enable/disable transmission of Code 39 start and stop characters DEFAULT Code 39 Start/Stop Character Transmission = Don’t Transmit Code 39 Start/Stop Character Transmission = Transmit Code 39 Full ASCII Enables/disables the translation of Code 39 characters to Code 39 full-ASCII characters.
Page 111: Code 39 Quiet Zones
ENTER/EXIT PROGRAMMING MODE Code 39 Quiet Zones Code 39 Quiet Zones This feature specifies the number of quiet zones for Code 39 labels. Quiet zones are blank areas at the ends of a barcode, typically 10 times the width of the narrowest bar or space in the label. Code 39 Quiet Zones = Quiet Zone on one side Code 39 Quiet Zones = Quiet Zones on two sides DEFAULT...
Page 112: Code 39 Minimum Reads
Code 39 ENTER/EXIT PROGRAMMING MODE Code 39 Minimum Reads This feature specifies the minimum number of consecutive times a Code 39 label must be decoded before it is accepted as good read. Code 39 Minimum Reads = 1 DEFAULT Code 39 Minimum Reads = 2 Code 39 Minimum Reads = 3 Code 39 Minimum Reads = 4 Gryphon™...
Page 113: Code 39 Decoding Level
ENTER/EXIT PROGRAMMING MODE Code 39 Decoding Level Code 39 Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. See page 255 for more information on this feature. This configuration item applies to Code 39 and Code 32.
Page 114: Code 39 Length Control
Code 39 ENTER/EXIT PROGRAMMING MODE Code 39 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 39 symbology. Variable Length. For variable length decoding, a minimum and maximum length may be set. Fixed Length. For fixed length decoding, two different lengths may be set.
Page 115: Code 39 Set Length 1
ENTER/EXIT PROGRAMMING MODE Code 39 Set Length 1 Code 39 Set Length 1 This feature specifies one of the barcode lengths for Code 39 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 116: Code 39 Set Length 2
Code 39 ENTER/EXIT PROGRAMMING MODE Code 39 Set Length 2 This feature specifies one of the barcode lengths for Code 39 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 117: Code 39 Interdigit Ratio
ENTER/EXIT PROGRAMMING MODE Code 39 Interdigit Ratio Code 39 Interdigit Ratio This feature specifies the ratio between an intercharacter space and module for Code 39 labels. Code 39 Interdigit Ratio = Disable Code 39 Interdigit Ratio = 1 Code 39 Interdigit Ratio = 2 Code 39 Interdigit Ratio = 3 DEFAULT Code 39 Interdigit Ratio = 4...
Page 118 Code 39 ENTER/EXIT PROGRAMMING MODE Code 39 Interdigit Ratio — cont. Code 39 Interdigit Ratio = 6 Code 39 Interdigit Ratio = 7 Code 39 Interdigit Ratio = 8 Code 39 Interdigit Ratio = 9 Code 39 Interdigit Ratio = 10 Gryphon™...
Page 119: Code 39 Character Correlation
ENTER/EXIT PROGRAMMING MODE Code 39 Character Correlation Code 39 Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/ or voids.
Page 120: Code 32 (Ital Pharmaceutical Code)
Code 32 (ITAL Pharmaceutical Code) ENTER/EXIT PROGRAMMING MODE CODE 32 (ITAL PHARMACEUTICAL CODE) The following options apply to the Code 32 (Italian Pharmaceutical Code) symbology. Code 32 Enable/Disable When disabled, the reader will not read Code 32 barcodes. DEFAULT Code 32 = Disable Code 32 = Enable Code 32 Feature Setting Exceptions The following features are set for Code 32 by using these Code 39 settings:...
Page 121: Code 32 Check Char Transmission
ENTER/EXIT PROGRAMMING MODE Code 32 Check Char Transmission Code 32 Check Char Transmission Enable this option to transmit the check character along with Code 32 barcode data. DEFAULT Code 32 Check Character Transmission = Don’t Send Code 32 Check Character Transmission = Send Code 32 Start/Stop Character Transmission This option enables/disables transmission of Code 32 start and stop characters DEFAULT...
Page 122: Code 39 Cip (French Pharmaceutical)
Code 39 CIP (French Pharmaceutical) ENTER/EXIT PROGRAMMING MODE CODE 39 CIP (FRENCH PHARMACEUTICAL) The following options apply to the Code 39 CIP symbology. Code 39 CIP Enable/Disable Enables/Disables ability of the reader to decode Code 39 CIP labels. DEFAULT Code 39 CIP = Disable Code 39 CIP = Enable Gryphon™...
Page 123: Code 128
ENTER/EXIT PROGRAMMING MODE Code 128 Enable/Disable CODE 128 The following options apply to the Code 128 symbology. Code 128 Enable/Disable When disabled, the reader will not read Code 128 barcodes. Code 128 = Disable DEFAULT Code 128 = Enable Expand Code 128 to Code 39 This feature enables/disables expansion of Code 128 labels to Code 39 labels.
Page 124: Code 128 Check Character Transmission
Code 128 ENTER/EXIT PROGRAMMING MODE Code 128 Check Character Transmission Enable this option to transmit the check character along with Code 128 barcode data. DEFAULT Code 128 Check Character Transmission = Don’t Send Code 128 Check Character Transmission = Send Code 128 Function Character Transmission Enables/disables transmission of Code128 function characters 1, 2, 3, and 4.
Page 125: Code 128 Sub-Code Change Transmission
ENTER/EXIT PROGRAMMING MODE Code 128 Sub-Code Change Transmission Code 128 Sub-Code Change Transmission Enables/disables the transmission of “Sub-Code exchange” characters (NOT transmitted by standard decoding). DEFAULT Code 128 Sub-Code Change Transmission = Disable Code 128 Sub-Code Change Transmission = Enable Product Reference Guide...
Page 126: Code 128 Quiet Zones
Code 128 ENTER/EXIT PROGRAMMING MODE Code 128 Quiet Zones This feature specifies the number of quiet zones for Code 128 labels. Quiet zones are blank areas at the ends of a barcode and are typically 10 times the width of the narrowest bar or space in the label.
Page 127: Code 128 Minimum Reads
ENTER/EXIT PROGRAMMING MODE Code 128 Minimum Reads Code 128 Minimum Reads This feature specifies the minimum number of consecutive times a Code 128 label must be decoded before it is accepted as good read. DEFAULT Code 128 Minimum Reads = 1 Code 128 Minimum Reads = 2 Code 128 Minimum Reads = 3 Code 128 Minimum Reads = 4...
Page 128: Code 128 Decoding Level
Code 128 ENTER/EXIT PROGRAMMING MODE Code 128 Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. See page 255 for more information on this feature. Code 128 Decoding Level = 1 (Conservative) Code 128 Decoding Level = 2 DEFAULT...
Page 129: Code 128 Length Control
ENTER/EXIT PROGRAMMING MODE Code 128 Length Control Code 128 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 128 symbology. See page 256 for more information. DEFAULT Code 128 Length Control = Variable Length Code 128 Length Control = Fixed Length Product Reference Guide...
Page 130: Code 128 Set Length 1
Code 128 ENTER/EXIT PROGRAMMING MODE Code 128 Set Length 1 Specifies one of the barcode lengths for Code 128 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 131: Code 128 Set Length 2
ENTER/EXIT PROGRAMMING MODE Code 128 Set Length 2 Code 128 Set Length 2 This feature specifies one of the barcode lengths for Code 128 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 132: Code 128 Character Correlation
Code 128 ENTER/EXIT PROGRAMMING MODE Code 128 Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/ or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.
Page 133: Gs1-128
ENTER/EXIT PROGRAMMING MODE GS1-128 Enable GS1-128 The following options apply to the GS1-128 symbology. (Also known as USS-128, GS1-128, GTIN-128, UCC-128, EAN-128.) GS1-128 Enable This option enables/disables the ability of the reader to translate GS1-128 labels to the GS1-128 data format. Options are: •...
Page 134: Code Isbt 128
Code ISBT 128 ENTER/EXIT PROGRAMMING MODE CODE ISBT 128 The following options apply to the ISBT 128 symbology. ISBT 128 Concatenation Use this option to enable/disable ISBT128 concatenation of 2 labels. DEFAULT ISBN 128 Concatenation = Disable ISBN 128 Concatenation = Enable ISBT 128 Concatenation Mode Specifies the concatenation mode between Static and Dynamic.
Page 135: Isbt 128 Dynamic Concatenation Timeout
ISBT 128 Dynamic Concatenation Timeout = 750 msec ISBT 128 Dynamic Concatenation Timeout = 1 second ISBT 128 Advanced Concatenation Options To set up pairs of label types for concatenation, use the Datalogic Aladdin configuration page 8 application or contact Datalogic Technical Support, as described on...
Page 136: Interleaved 2 Of 5 (I 2 Of 5)
Interleaved 2 of 5 (I 2 of 5) ENTER/EXIT PROGRAMMING MODE INTERLEAVED 2 OF 5 (I 2 OF 5) The following options apply to the I 2 of 5 symbology. I 2 of 5 Enable/Disable When disabled, the reader will not read I 2 of 5 barcodes. DEFAULT I 2 of 5 = Disable I 2 of 5 = Enable...
Page 137: I 2 Of 5 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE I 2 of 5 Check Character Transmission I 2 of 5 Check Character Calculation - cont. I 2 of 5 Check Character Calculation = Check DHL I 2 of 5 Check Character Calculation = Check Daimler Chrysler I 2 of 5 Check Character Calculation = Check Bosch I 2 of 5 Check Character Calculation = Italian Post I 2 of 5 Check Character Transmission...
Page 138: I 2 Of 5 Minimum Reads
Interleaved 2 of 5 (I 2 of 5) ENTER/EXIT PROGRAMMING MODE I 2 of 5 Minimum Reads This feature specifies the minimum number of consecutive times an I 2 of 5 label must be decoded before it is accepted as good read. DEFAULT I 2 of 5 Minimum Reads = 1 I 2 of 5 Minimum Reads = 2...
Page 139: Of 5 Decoding Level
2 of 5 Decoding Level 2 of 5 Decoding Level This configuration item applies to Interleaved 2 of 5, Datalogic 2 of 5 and Standard 2 of 5. Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to page 255 very conservative depending on a particular customer’s needs.
Page 140: I 2 Of 5 Length Control
Interleaved 2 of 5 (I 2 of 5) ENTER/EXIT PROGRAMMING MODE I 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the I 2 of 5 symbology. Variable Length. For variable length decoding, a minimum and maximum length may be set. Fixed Length.
Page 141: I 2 Of 5 Set Length 1
ENTER/EXIT PROGRAMMING MODE I 2 of 5 Set Length 1 I 2 of 5 Set Length 1 This feature specifies one of the barcode lengths for I 2 of 5 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length...
Page 142: I 2 Of 5 Set Length 2
Interleaved 2 of 5 (I 2 of 5) ENTER/EXIT PROGRAMMING MODE I 2 of 5 Set Length 2 This feature specifies one of the barcode lengths for I 2 of 5 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length...
Page 143: I 2 Of 5 Character Correlation
ENTER/EXIT PROGRAMMING MODE I 2 of 5 Character Correlation I 2 of 5 Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/ or voids.
Page 144: Standard 2 Of 5
Standard 2 of 5 ENTER/EXIT PROGRAMMING MODE STANDARD 2 OF 5 The following options apply to the Standard 2 of 5 symbology. Standard 2 of 5 Enable/Disable When disabled, the reader will not read Standard 2 of 5 barcodes. DEFAULT Standard 2 of 5 = Disable Standard 2 of 5 = Enable Standard 2 of 5 Check Character Calculation...
Page 145: Standard 2 Of 5 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE Standard 2 of 5 Check Character Transmission Standard 2 of 5 Check Character Transmission This feature enables/disables transmission of an optional Standard 2 of 5 check character. Standard 2 of 5 Check Character Transmission = Don’t Send DEFAULT Standard 2 of 5 Check Character Transmission = Send Standard 2 of 5 Minimum Reads...
Page 146: Standard 2 Of 5 Decoding Level
Standard 2 of 5 ENTER/EXIT PROGRAMMING MODE Standard 2 of 5 Decoding Level The Standard 2 of 5 Decoding Level feature is set using "2 of 5 Decoding Level"on page Standard 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the Standard 2 of 5 symbology.
Page 147: Standard 2 Of 5 Set Length 1
ENTER/EXIT PROGRAMMING MODE Standard 2 of 5 Set Length 1 Standard 2 of 5 Set Length 1 This feature specifies one of the barcode lengths for Standard 2 of 5 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length...
Page 148: Standard 2 Of 5 Set Length 2
Standard 2 of 5 ENTER/EXIT PROGRAMMING MODE Standard 2 of 5 Set Length 2 This feature specifies one of the barcode lengths for Standard 2 of 5 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length...
Page 149: Standard 2 Of 5 Character Correlation
ENTER/EXIT PROGRAMMING MODE Standard 2 of 5 Character Correlation Standard 2 of 5 Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/ or voids.
Page 150: Industrial 2 Of 5
Industrial 2 of 5 ENTER/EXIT PROGRAMMING MODE INDUSTRIAL 2 OF 5 The following options apply to the Industrial 2 of 5 symbology. Industrial 2 of 5 Enable/Disable Enables/Disables ability of reader to decode Industrial 2 of 5 labels. DEFAULT Industrial 2 of 5 = Disable Industrial 2 of 5 = Enable Industrial 2 of 5 Check Character Calculation Enables/Disables calculation and verification of an optional Industrial 2 of 5 check character.
Page 151: Industrial 2 Of 5 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE Industrial 2 of 5 Check Character Transmission Industrial 2 of 5 Check Character Transmission Enables/disables transmission of an Industrial 2 of 5 check character. Industrial 2 of 5 Check Character Transmission = Disable DEFAULT Industrial 2 of 5 Check Character Transmission = Enable Industrial 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the Industrial 2 of 5 symbology.
Page 152: Industrial 2 Of 5 Set Length 1
Industrial 2 of 5 ENTER/EXIT PROGRAMMING MODE Industrial 2 of 5 Set Length 1 This feature specifies one of the barcode lengths for Industrial 2 of 5 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 153: Industrial 2 Of 5 Set Length 2
ENTER/EXIT PROGRAMMING MODE Industrial 2 of 5 Set Length 2 Industrial 2 of 5 Set Length 2 This feature specifies one of the barcode lengths for Industrial 2 of 5 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed...
Page 154: Industrial 2 Of 5 Minimum Reads
Industrial 2 of 5 ENTER/EXIT PROGRAMMING MODE Industrial 2 of 5 Minimum Reads This feature specifies the minimum number of consecutive times an Industrial 2 of 5 label must be decoded before it is accepted as good read. DEFAULT Industrial 2 of 5 Minimum Reads = 1 Industrial 2 of 5 Minimum Reads = 2 Industrial 2 of 5 Minimum Reads = 3 Industrial 2 of 5 Minimum Reads = 4...
Page 155: Industrial 2 Of 5 Stitching
ENTER/EXIT PROGRAMMING MODE Industrial 2 of 5 Stitching Industrial 2 of 5 Stitching Enables/disables fixed length stitching for Industrial 2 of 5. DEFAULT Industrial 2 of 5 Stitching = Disable Industrial 2 of 5 Stitching = Enable Product Reference Guide...
Page 156: Code Iata
Code IATA ENTER/EXIT PROGRAMMING MODE CODE IATA The following options apply to the IATA symbology. IATA Enable/Disable Enables/Disables the ability of the reader to decode IATA labels. DEFAULT IATA = Disable IATA = Enable IATA Check Character Transmission Enables/Disables calculation and verification of an optional Industrial 2 of 5 check character. IATA Check Character Transmission = Disable DEFAULT IATA Check Character Transmission = Enable...
Page 157: Datalogic 2 Of 5
Datalogic 2 of 5 = Disable Datalogic 2 of 5 = Enable Datalogic 2 of 5 Check Character Calculation This option enables/disables calculation and verification of an optional Datalogic 2 of 5 check character. DEFAULT Datalogic 2 of 5 Check Character Calculation = Disable...
Page 158: Datalogic 2 Of 5 Minimum Reads
ENTER/EXIT PROGRAMMING MODE Datalogic 2 of 5 Minimum Reads This feature specifies the minimum number of consecutive times an Datalogic 2 of 5 label must be decoded before it is accepted as good read. I 2 of 5 Minimum Reads = 1...
Page 159: Datalogic 2 Of 5 Length Control
ENTER/EXIT PROGRAMMING MODE Datalogic 2 of 5 Length Control Datalogic 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the Datalogic 2 of 5 symbology. Variable Length. For variable length decoding, a minimum and maximum length may be set.
Page 160: Datalogic 2 Of 5 Set Length 1
2 to 50 characters in increments of two. page 256 Table provides some examples for setting Length 1. See for detailed instructions on setting this feature. Table 12. Datalogic 2 of 5 Length 1 Setting Examples STEP ACTION EXAMPLES Desired Setting 2 Characters...
Page 161: Datalogic 2 Of 5 Set Length 2
The length can be set from 2 to 50 characters. A setting of 0 specifies to ignore this length (only one fixed length). page 256 Table provides examples for setting Length 2. See for detailed instructions on setting this feature. Table 13. Datalogic 2 of 5 Length 2 Setting Examples STEP ACTION EXAMPLES Ignore This Desired Setting 4 Characters...
Page 162: Datalogic 2 Of 5 Character Correlation
I 2 of 5 Character Correlation = Enable Datalogic 2 of 5 Stitching This option enables/disables stitching for Datalogic 2 of 5 labels. When parts of a Datalogic 2 of 5 barcode are presented to the reader with this feature enabled, the barcode parts will be assembled by the reader’s software, and the data will be decoded if all barcode proofing...
Page 163: Codabar
ENTER/EXIT PROGRAMMING MODE Codabar Enable/Disable CODABAR The following options apply to the Codabar symbology. Codabar Enable/Disable When disabled, the reader will not read Codabar barcodes. DEFAULT Codabar = Disable Codabar = Enable Codabar Check Character Calculation Enable this option to enables/disables calculation and verification of an optional Codabar check character.
Page 164: Codabar Check Character Transmission
Codabar ENTER/EXIT PROGRAMMING MODE Codabar Check Character Transmission Enable this option to transmit the check character along with Codabar barcode data. Codabar Check Character Transmission = Don’t Send DEFAULT Codabar Check Character Transmission = Send Codabar Start/Stop Character Transmission Enable this option to enable/disable transmission of Codabar start and stop characters Codabar Start/Stop Character Transmission = Don’t Transmit DEFAULT Codabar Start/Stop Character Transmission = Transmit...
Page 165: Codabar Start/Stop Character Set
ENTER/EXIT PROGRAMMING MODE Codabar Start/Stop Character Set Codabar Start/Stop Character Set This option specifies the format of transmitted Codabar start/stop characters Codabar Check Character Set = ABCD/TN*E Codabar Check Character Set = ABCD/ABCD Codabar Check Character Set = abcd/tn*e DEFAULT Codabar Check Character Set = abcd/abcd Codabar Start/Stop Character Match When enabled, this option requires that start and stop characters match...
Page 166: Codabar Quiet Zones
Codabar ENTER/EXIT PROGRAMMING MODE Codabar Quiet Zones Specifies the number of quiet zones for Codabar labels. Quiet zones are blank areas at the ends of a barcode and are typically 10 times the width of the narrowest bar or space in the label. Codabar Quiet Zones = Quiet Zone on one side Codabar Quiet Zones = Quiet Zones on two sides DEFAULT...
Page 167: Codabar Minimum Reads
ENTER/EXIT PROGRAMMING MODE Codabar Minimum Reads Codabar Minimum Reads This feature specifies the minimum number of consecutive times a Codabar label must be decoded before it is accepted as good read. DEFAULT Codabar Minimum Reads = 1 Codabar Minimum Reads = 2 Codabar Minimum Reads = 3 Codabar Minimum Reads = 4 Product Reference Guide...
Page 168: Codabar Decoding Level
Codabar ENTER/EXIT PROGRAMMING MODE Codabar Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative, depending on a particular customer’s needs. See page 255 for more information on this feature. Codabar Decoding Level = 1 (Conservative) Codabar Decoding Level = 2 DEFAULT Codabar Decoding Level = 3...
Page 169: Codabar Length Control
ENTER/EXIT PROGRAMMING MODE Codabar Length Control Codabar Length Control This feature specifies either variable length decoding or fixed length decoding for the Codabar symbology. Variable Length. For variable length decoding, a minimum and maximum length may be set. Fixed Length. For fixed length decoding, two different lengths may be set.
Page 170: Codabar Set Length 1
Codabar ENTER/EXIT PROGRAMMING MODE Codabar Set Length 1 This feature specifies one of the barcode lengths for Codabar Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 171: Codabar Set Length 2
ENTER/EXIT PROGRAMMING MODE Codabar Set Length 2 Codabar Set Length 2 This feature specifies one of the barcode lengths for Codabar Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 172: Codabar Interdigit Ratio
Codabar ENTER/EXIT PROGRAMMING MODE Codabar Interdigit Ratio This feature specifies the ratio between an intercharacter space and module for Codabar labels. Codabar Interdigit Ratio = Disable Codabar Interdigit Ratio = 1 Codabar Interdigit Ratio = 2 Codabar Interdigit Ratio = 3 DEFAULT Codabar Interdigit Ratio = 4 Codabar Interdigit Ratio = 5...
Page 173 ENTER/EXIT PROGRAMMING MODE Codabar Interdigit Ratio Codabar Interdigit Ratio — cont. Codabar Interdigit Ratio = 6 Codabar Interdigit Ratio = 7 Codabar Interdigit Ratio = 8 Codabar Interdigit Ratio = 9 Codabar Interdigit Ratio = 10 Product Reference Guide...
Page 174: Codabar Character Correlation
Codabar ENTER/EXIT PROGRAMMING MODE Codabar Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/ or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.
Page 175: Abc Codabar
ENTER/EXIT PROGRAMMING MODE ABC Codabar Enable/Disable ABC CODABAR The following options apply to the ABC Codabar symbology. ABC Codabar Enable/Disable Enables/Disables ability of reader to decode ABC Codabar labels. DEFAULT ABC Codabar = Disable ABC Codabar = Enable ABC Codabar Concatenation Mode Specifies the concatenation mode between Static and Dynamic.
Page 176: Abc Codabar Dynamic Concatenation Timeout
ABC Codabar ENTER/EXIT PROGRAMMING MODE ABC Codabar Dynamic Concatenation Timeout Specifies the timeout in 10-millisecond ticks used by the ABC Codabar Dynamic Concatenation Mode. ABC Codabar Dynamic Concatenation Timeout = 50 msec ABC Codabar Dynamic Concatenation Timeout = 100 msec DEFAULT ABC Codabar Dynamic Concatenation Timeout = 200 msec ABC Codabar Dynamic Concatenation Timeout = 500 msec...
Page 177: Gs1 Databar™ Omnidirectional
ENTER/EXIT PROGRAMMING MODE GS1 DataBar™ Omnidirectional Enable/Disable GS1 DATABAR™ OMNIDIRECTIONAL The following options apply to the GS1 DataBar™ Omnidirectional (formerly RSS-14) symbology. GS1 DataBar™ Omnidirectional Enable/Disable When disabled, the reader will not read GS1 DataBar™ Omnidirectional barcodes. DEFAULT GS1 DataBar™ Omnidirectional = Disable GS1 DataBar™...
Page 178: Gs1 Databar™ Omnidirectional Minimum Reads
GS1 DataBar™ Omnidirectional ENTER/EXIT PROGRAMMING MODE GS1 DataBar™ Omnidirectional Minimum Reads This feature specifies the minimum number of consecutive times a GS1 DataBar™ Omnidirectional label must be decoded before it is accepted as good read DEFAULT GS1 DataBar™ Omnidirectional Minimum Reads = 1 GS1 DataBar™...
Page 179: Gs1 Databar™ Expanded
ENTER/EXIT PROGRAMMING MODE GS1 DataBar™ Expanded Enable/Disable GS1 DATABAR™ EXPANDED The following options apply to the GS1 DataBar™ Expanded (formerly RSS Expanded) symbology. GS1 DataBar™ Expanded Enable/Disable When disabled, the reader will not read GS1 DataBar™ Expanded barcodes. DEFAULT GS1 DataBar™ Expanded = Disable GS1 DataBar™...
Page 180: Gs1 Databar™ Expanded Minimum Reads
GS1 DataBar™ Expanded ENTER/EXIT PROGRAMMING MODE GS1 DataBar™ Expanded Minimum Reads This feature specifies the minimum number of consecutive times a GS1 DataBar™ Expanded label must be decoded before it is accepted as good read DEFAULT GS1 DataBar™ Expanded Minimum Reads = 1 GS1 DataBar™...
Page 181: Gs1 Databar™ Expanded Set Length 1
ENTER/EXIT PROGRAMMING MODE GS1 DataBar™ Expanded Set Length 1 GS1 DataBar™ Expanded Set Length 1 This feature specifies one of the barcode lengths for GS1 DataBar™ Expanded Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 182: Gs1 Databar™ Expanded Set Length 2
GS1 DataBar™ Expanded ENTER/EXIT PROGRAMMING MODE GS1 DataBar™ Expanded Set Length 2 This feature specifies one of the barcode lengths for GS1 DataBar™ Expanded Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if Fixed Length Mode.
Page 183: Gs1 Databar™ Limited
ENTER/EXIT PROGRAMMING MODE GS1 DataBar™ Limited Enable/Disable GS1 DATABAR™ LIMITED The following options apply to the GS1 DataBar™ Limited (formerly RSS Limited) symbology. GS1 DataBar™ Limited Enable/Disable When disabled, the reader will not read GS1 DataBar™ Limited barcodes. DEFAULT GS1 DataBar™ Limited = Disable GS1 DataBar™...
Page 184: Gs1 Databar™ Limited Minimum Reads
GS1 DataBar™ Limited ENTER/EXIT PROGRAMMING MODE GS1 DataBar™ Limited Minimum Reads This feature specifies the minimum number of consecutive times a GS1 DataBar™ Limited label must be decoded before it is accepted as good read DEFAULT GS1 DataBar™ Limited Minimum Reads = 1 GS1 DataBar™...
Page 185: Code 93
ENTER/EXIT PROGRAMMING MODE Code 93 Enable/Disable CODE 93 The following options apply to the Code 93 symbology. Code 93 Enable/Disable Enables/Disables ability of reader to decode Code 93 labels. DEFAULT Code 93 = Disable Code 93 = Enable Code 93 Check Character Calculation Enables/disables calculation and verification of an optional Code 93 check character.
Page 186: Code 93 Check Character Transmission
Code 93 ENTER/EXIT PROGRAMMING MODE Code 93 Check Character Transmission Enables/disables transmission of an optional Code 93 check character. Code 93 Check Character Transmission = Disable DEFAULT Code 93 Check Character Transmission = Enable Code 93 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 93 symbology.
Page 187: Code 93 Set Length 1
ENTER/EXIT PROGRAMMING MODE Code 93 Set Length 1 Code 93 Set Length 1 Specifies one of the barcode lengths for Code 93 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 188: Code 93 Set Length 2
Code 93 ENTER/EXIT PROGRAMMING MODE Code 93 Set Length 2 This feature specifies one of the barcode lengths for Code 93 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 189: Code 93 Minimum Reads
ENTER/EXIT PROGRAMMING MODE Code 93 Minimum Reads Code 93 Minimum Reads This feature specifies the minimum number of consecutive times a Code 93 label must be decoded before it is accepted as good read. DEFAULT Code 93 Minimum Reads = 1 Code 93 Minimum Reads = 2 Code 93 Minimum Reads = 3 Code 93 Minimum Reads = 4...
Page 190: Code 93 Decoding Level
Code 93 ENTER/EXIT PROGRAMMING MODE Code 93 Decoding Level Decoding Levels are used to configure a barcode Specifies the decoding level for Code 93. symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. page 255 for more information on this feature.
Page 191: Code 93 Quiet Zones
ENTER/EXIT PROGRAMMING MODE Code 93 Quiet Zones Code 93 Quiet Zones Enables/disables quiet zones for Code 93. Code 93 Quiet Zones = No Quiet Zones Code 93 Quiet Zones = Quiet Zone on one side Code 93 Quiet Zones = Quiet Zones on two sides DEFAULT Code 93 Quiet Zones = Auto Code 93 Quiet Zones = Virtual Quiet Zones on two sides...
Page 192: Code 93 Character Correlation
Code 93 ENTER/EXIT PROGRAMMING MODE Code 93 Character Correlation Enables/disables Character Correlation for Code 93. Code 93 Character Correlation = Disable DEFAULT Code 93 Character Correlation = Enable Code 93 Stitching Disable/enable fixed or variable length stitching for Code 93. Code 93 Stitching = Disable DEFAULT Code 93 Stitching = Enable...
Page 193: Msi
ENTER/EXIT PROGRAMMING MODE MSI Enable/Disable The following options apply to the MSI symbology. MSI Enable/Disable Enables/Disables ability of reader to decode MSI labels. DEFAULT MSI = Disable MSI = Enable MSI Check Character Calculation Enables/Disables calculation and verification of an optional MSI check character. MSI Check Character Calculation = Disable DEFAULT MSI Check Character Calculation = Enable Mod10...
Page 194: Msi Check Character Transmission
ENTER/EXIT PROGRAMMING MODE MSI Check Character Transmission Enables/disables transmission of an MSI check character. MSI Check Character Transmission = Disable DEFAULT MSI Check Character Transmission = Enable MSI Length Control This feature specifies either variable length decoding or fixed length decoding for the MSI symbology.
Page 195: Msi Set Length 1
ENTER/EXIT PROGRAMMING MODE MSI Set Length 1 MSI Set Length 1 This feature specifies one of the barcode lengths for . Length 1 is the MSI Length Control minimum label length if in Mode, or the first fixed length if in Variable Length Fixed Length Mode.
Page 196: Msi Set Length 2
ENTER/EXIT PROGRAMMING MODE MSI Set Length 2 This feature specifies one of the barcode lengths for . Length 2 is the MSI Length Control maximum label length if in Mode, or the second fixed length if in Variable Length Fixed Mode.
Page 197: Msi Minimum Reads
ENTER/EXIT PROGRAMMING MODE MSI Minimum Reads MSI Minimum Reads This feature specifies the minimum number of consecutive times an MSI label must be decoded before it is accepted as good read. MSI Minimum Reads = 1 MSI Minimum Reads = 2 MSI Minimum Reads = 3 DEFAULT MSI Minimum Reads = 4...
Page 198: Msi Decoding Level
ENTER/EXIT PROGRAMMING MODE MSI Decoding Level Specifies the decoding level for MSI. Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. page 255 for more information on this feature. MSI Decoding Level = Disable MSI Decoding Level = 1 (conservative) MSI Decoding Level = 2...
Page 199: Msi Stitching
ENTER/EXIT PROGRAMMING MODE MSI Stitching MSI Stitching Enables/disables fixed length stitching for MSI. DEFAULT MSI Stitching = Disable MSI Stitching = Enable MSI Character Correlation Enables/disables Character Correlation for MSI. DEFAULT MSI Character Correlation = Disable MSI Character Correlation = Enable Product Reference Guide...
Page 200: Plessey
Plessey ENTER/EXIT PROGRAMMING MODE PLESSEY The following options apply to the Plessey symbology. Plessey Enable/Disable Enables/Disables ability of reader to decode Plessey labels. DEFAULT Plessey = Disable Plessey = Enable Gryphon™ I GFS4170/GFS4150-9...
Page 201: Plessey Check Character Calculation
ENTER/EXIT PROGRAMMING MODE Plessey Check Character Calculation Plessey Check Character Calculation Enables/Disables calculation and verification of an optional Plessey check character. Plessey Check Character Calculation = Disable DEFAULT Plessey Check Character Calculation = Enable Plessey std. check char. verification Plessey Check Character Calculation = Enable Anker check char.
Page 202: Plessey Length Control
Plessey ENTER/EXIT PROGRAMMING MODE Plessey Length Control This feature specifies either variable length decoding or fixed length decoding for the Plessey symbology. Variable Length. For variable length decoding, a minimum and maximum length may be set. Fixed Length. For fixed length decoding, two different lengths may be set. DEFAULT Plessey Length Control = Variable Length Plessey = Fixed Length...
Page 203: Plessey Set Length 1
ENTER/EXIT PROGRAMMING MODE Plessey Set Length 1 Plessey Set Length 1 This feature specifies one of the barcode lengths for Plessey Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 204: Plessey Set Length 2
Plessey ENTER/EXIT PROGRAMMING MODE Plessey Set Length 2 This feature specifies one of the barcode lengths for Plessey Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 205: Plessey Minimum Reads
ENTER/EXIT PROGRAMMING MODE Plessey Minimum Reads Plessey Minimum Reads This feature specifies the minimum number of consecutive times a Plessey label must be decoded before it is accepted as good read. Plessey Minimum Reads = 1 Plessey Minimum Reads = 2 Plessey Minimum Reads = 3 DEFAULT Plessey Minimum Reads = 4...
Page 206: Plessey Decoding Level
Plessey ENTER/EXIT PROGRAMMING MODE Plessey Decoding Level Specifies the decoding level for Plessey. Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. page 255 for more information on this feature. Plessey Decoding Level = Disable Plessey Decoding Level = 1 (conservative) Plessey Decoding Level = 2...
Page 207: Plessey Stitching
ENTER/EXIT PROGRAMMING MODE Plessey Stitching Plessey Stitching Enables/disables fixed length stitching for Plessey. DEFAULT Plessey Stitching = Disable Plessey Stitching = Enable Plessey Character Correlation Enables/disables Character Correlation for Plessey. DEFAULT Plessey Character Correlation = Disable Plessey Character Correlation = Enable Product Reference Guide...
Page 208 Plessey ENTER/EXIT PROGRAMMING MODE NOTES Gryphon™ I GFS4170/GFS4150-9...
Page 209: Software Configuration Strings
Interface, starting on page 13 1. Download and install the USB-COM driver from www.scanning.datalogic.com 2. Connect your reader to a PC USB port according to the information in Installing the Interface Cable, starting on page 3.
Page 210: Command Syntax
Software Configuration Strings Command Syntax 1. Enter Service (Serial String Programming) Mode $S<CR> This command automatically sets the reader communication to 115200 baud rate. Before continuing, please set the baud rate of the Terminal Emulation Program to 115200. 2. Send Command ...
Page 211 Example 1: 1. $S<CR> Enter Service Mode. 2. $CLFCA02<CR> Write command "Convert to Lower Case" to current configuration. 3. $Ar<CR> Apply and Save Configuration to FLASH (permanent memory) and Exit Service Mode. Each configuration parameter setting removes the condition previously active for that parameter.
Page 212: Serial Configuration Strings
Software Configuration Strings SERIAL CONFIGURATION STRINGS ENTER/EXIT CONFIGURATION COMMANDS Description Command Enter Service Mode (configuration) fixed 115200 Baud rate Exit Service Mode (configuration) return to programmed Baud rate Apply Configuration to RAM (temporary memory) and Exit Service Mode Apply and Save Configuration to FLASH (permanent memory) and Exit Service Mode To configure the reader using configuration strings, it must be placed into Service Mode, which automatically sets the reader communica-...
Page 213 INTERFACE SELECTION COMMANDS Description Command Restore Current Interface (Custom) Default Configuration HA00 RS232-STD HA05 USB-COM HA47 RS232-Wincor-Nixdorf HA12 USB-KBD HA35 USB-KBD-ALT HA2B USB KBD-APPLE HA2C To read a particular parameter setting from the reader, send the read parameter command without any value. The reader will respond with its currently configured value.
Page 214 Software Configuration Strings RS-232/USB-COM PARAMETERS Description Parameter Value Intercharacter Delay No delay or from 10 to 990 ms R2IC Host command character which dis- Disable Character R2DC ables the reader Host command character which Enable Character R2EC enables the reader ACK/NAK Options Disable R2AE...
Page 215 USB-KBD / USB-KBD-ALT / USB-KBD-APPLE PARAMETERS Description Parameter Value Keyboard Country Mode KBCO *Belgium *Britain Croatia Czechoslovakia Denmark *France *Germany Hungary *Italy Japanese (106 key) Norway Poland Portugal Romania Slovakia *Spain *Sweden Switzerland Send Control Characters CTRL + KEY KBSC CTRL + SHIFT + KEY Special Function KEY USB Keyboard Speed...
Page 216 Software Configuration Strings READING PARAMETERS PARAMETERS Description Parameter Value Illumination Mode Disabled SPIL Triggered Enabled Operating Modes On Line SNRM Serial On Line Automatic Automatic (Object Sense) Test Mode Test Mode Multiple Disabled SNTM Enabled Automatic Threshold From 2 to 255 scans without a code SNAT Phase Off Event Trigger Stop...
Page 217 DATA FORMAT Description Parameter Value Data Transmission On Decode LFTX After Phase Off Code Verifier Mode Disabled LFCV Transmit Wrong String Transmit Wrong Code Match String Any string of characters (max 20) between 00-FE COVS Wrong Code String Any string of characters (max 20) between 00-FE WCVS Case Conversion Disable...
Page 218 GS1-128 U8ID ISBT 128 I8ID Interleaved 2 of 5 I2ID Standard 2 of 5 S2ID Industrial 2 of 5 U2ID Datalogic 2 of 5 D2ID IATA IAID Codabar CBID ABC Codabar ACID GS1 Databar 14 (Omnidirectional) 4BID GS1 Databar Expanded...
Page 219 Any string of characters (max 3) between 00-FE Custom Code Identifiers Code 93 C9ID MSID Plessey PLID = Hex value from representing the ASCII character DIGITAL OUTPUT Description Parameter Value OUTPUT Activation Event Disable OUA1 Good Read No Read Wrong Code Deactivation Event Disable OUD1...
Page 220 Software Configuration Strings POWER SAVE Description Parameter Value Sleep Mode Timeout Disable SLTO 10 seconds 30 seconds 1 minute 5 minutes 10 minutes LED AND BEEPER INDICATORS Description Parameter Value Power On Alert Disable BPPU Enable Indicate Good Read On Decode BPIN After Transmit Good Read Beep...
Page 221 CODE SELECTION Description Parameter Value UPC-A ABEN UPC-A Disable Enable ABCT Check Character Tx Disable Enable AB3B Expand to EAN-13 Disable Enable ABNS Number System Tx Disable Enable ABMR Minimum Reads One Read Two Reads Three Reads Four Reads CPCL Coupon Control Allow all coupon barcodes to be decoded Enable only UPC-A coupon decoding...
Page 222 Software Configuration Strings CODE SELECTION Description Parameter Value Enable 3BIN ISSN Conversion Disable Enable 3BF1 Flag 1 Character Disable Enable 3BMR Minimum Reads One Read Two Reads Three Reads Four Reads CPCL Coupon Control Allow all coupon barcodes to be decoded Enable only UPC-A coupon decoding Enable only GS1 Databar coupon decoding EAN-8...
Page 223 CODE SELECTION Description Parameter Value EAN/UPC Global Settings GBEN GTIN Format Disable Enable UNDL Decoding Level Disable Level 1 Level 2 Level 3 Level 4 Level 5 UNCO Character Correlation Disable Enable INMR In-Store Minimum Reads One Read Two Reads Three Reads Four Reads Code 39...
Page 224 Software Configuration Strings CODE SELECTION Description Parameter Value C3CT Code 39 Check Tx Disable Enable C3SS Code 39 Start/Stop Tx Disable Enable Decoding Options C3MR Minimum Reads One Read Two Reads Three Reads Four Reads C3DL Decoding Level Disable Level 1 Level 2 Level 3 Level 4...
Page 225 I8CE ISBT 128 Concatenation Disable Enable I8CM Concatenation Mode Static Dynamic I8DT Dynamic Concat. Timeout From 50 to 2550 ms Chain 0 - Chain 15 Contact Datalogic = Hex value from representing the decimal number (x10 ms) Product Reference Guide...
Page 226 Software Configuration Strings CODE SELECTION Description Parameter Value Interleaved 2 of 5 (I 2 of 5) I2EN I 2 of 5 Disable Enable I2LC Code Length Control Variable Fixed Length 1 (or Min Length) from 2 to 50 characters I2L1 Set Length (only even numbers) Length 2 (or Max Length) from 0 or from 2 to 50 char-...
Page 227 CODE SELECTION Description Parameter Value Standard 2 of 5 S2EN Standard 2 of 5 Disable Enable S2LC Code Length Control Variable Fixed S2L1 Set Length Length 1 (or Min Length) from 1 to 50 characters S2L2 Length 2 (or Max Length) 0 or from 1 to 50 characters Check Options S2CC Check Calculation...
Page 228 Disable Enable IATA IAEN IATA Disable Enable IACT Check Tx Disable Enable Datalogic 2 of 5 D2EN Datalogic 2 of 5 Disable Enable D2LC Code Length Control Variable Fixed D2L1 Set Length Length 1 (or Min Length) from 1 to 50 characters...
Page 229 CODE SELECTION Description Parameter Value Level 4 Level 5 D2CO Character Correlation Disable Enable D2ST Stitching Disable Enable Codabar CBEN Codabar Disable Enable CBLC Code Length Control Variable Fixed CBL1 Set Length Length 1 (or Min Length) from 3 to 50 characters CBL2 Length 2 (or Max Length) 0 or from 3 to 50 characters ABC Codabar...
Page 230 Software Configuration Strings CODE SELECTION Description Parameter Value Three Reads Four Reads CBDL Decoding Level Disable Level 1 Level 2 Level 3 Level 4 Level 5 CBCO Character Correlation Disable Enable CBIR Interdigit Ratio Any ratio or 1 to 10 CBLO Quiet Zones Quiet Zone on One Side...
Page 231 CODE SELECTION Description Parameter Value XBL1 Set Length Length 1 (or Min Length) from 1 to 74 characters XBL2 Length 2 (or Max Length) 0 or from 1 to 74 characters Expanded Decoding Options XBMR Minimum Reads One Read Two Reads Three Reads Four Reads CPCL...
Page 232 Software Configuration Strings CODE SELECTION Description Parameter Value Two Reads Three Reads Four Reads C9DL Decoding Level Disable Level 1 Level 2 Level 3 Level 4 Level 5 C9CO Character Correlation Disable Enable C9LO Quiet Zones No Quiet Zones Quiet Zone on One Side Quiet Zones on Two Sides Auto Virtual Quiet Zones on Two Sides...
Page 233 CODE SELECTION Description Parameter Value MSDL Decoding Level Disable Level 1 Level 2 Level 3 Level 4 Level 5 MSST Stitching Disable Enable Plessey PLEN Plessey Disable Enable PLLC Code Length Control Variable Fixed PLL1 Set Length Length 1 (or Min Length) from 1 to 50 characters PLL2 Length 2 (or Max Length) 0 or from 1 to 50 characters Check Options...
Page 234 Software Configuration Strings NOTES Gryphon™ I GFS4170/GFS4150-9...
Page 235: References
Chapter 5 References This section contains explanations and examples of selected barcode features. See the Configuration section for the actual barcode labels used to configure the reader. RS-232 Parameters RS-232 Only Baud Rate Baud rate is the number of bits of data transmitted per second. Set the reader's baud rate to match the baud rate setting of the host device.
Page 236: Rs-232/Usb Com Parameters
References • RTS/XON/XOFF — RTS is asserted during transmissions. CTS is ignored. XON and XOFF gate transmissions. • RTS On/CTS — RTS is always asserted. CTS gates transmissions. RTS/CTS Scan Control — RTS is asserted during transmissions. CTS gates transmissions and controls enable and disable state of scanner.
Page 237 RS-232 Parameters ACK NAK Options This enables/disables the ability of the reader to support the RS-232 ACK/NAK protocol. When configured, the reader and/or host sends an “ACK” when it receives data properly, and sends “NAK” when the data is in error. Options are: •...
Page 238 References NAK Character This setting specifies an ASCII character or hex value to be used as the NAK character. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host com- mands conflicts with normal operation of these characters.
Page 239 RS-232 Parameters ACK NAK Timeout Value This option specifies the amount of time the reader waits for an ACK character from the host following label transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments. A selection of 0 disables the timeout. To set this value: 1.
Page 240 References ACK NAK Retry Count This feature specifies the number of times the reader retries a label transmission due to a retry condition. The selectable range is from 1 to 254 retries. A selection of 0 disables the count, and a selection of 255 specifies unlimited retries.
Page 241 RS-232 Parameters Disable Character Specifies the value of the RS-232 host command used to disable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters.
Page 242 References Enable Character Specifies the value of the RS-232 host command used to enable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host com- mands conflicts with normal operation of these characters.
Page 243: Data Editing
ID code will be transmitted before the scanned bar code data. 00 - 20 Characters (ASCII) Additional advanced editing is available. See the Advanced formatting features in the Datalogic Aladdin configuration software, or contact Technical Support page 8 (described on for more information.
Page 244: Global Prefix/Suffix
References Global Prefix/Suffix Up to 20 ASCII characters may be added as a prefix (in a position before the barcode data) and/ or as a suffix (in a position following the barcode data) as indicated in Figure 4. Figure 4. Prefix and Suffix Positions OR...
Page 245: Global Aim Id
Data Editing Global AIM ID This feature enables/disables addition of AIM IDs for all symbology types. AIM label identifiers (as opposed to custom characters you select yourself as with label identifiers) can be included with scanned barcode data. AIM label identifiers consist of three characters as follows: •...
Page 246: Label Id
520000 CODE128 230000 540000 CODE32 410000 580000 CODE39 2A0000 560000 CODE39 CIP 590000 590000 CODE93 & 260000 550000 DATALOGIC 2OF5 730000 730000 EAN13 460000 420000 EAN13 P2 460000 4C0000 EAN13 P5 460000 4D0000 EAN8 464600 410000 EAN8 P2 464600 4A0000...
Page 247 Data Editing Label ID Pre-Loaded Sets (continued) Symbology USA Label ID set EU Label ID set ASCII Hexadecimal ASCII Hexadecimal character value character value GS1 DATABAR EXPANDED 525800 740000 GS1 DATABAR LIMITED 524C00 760000 GS1 DATABAR OMNIDIRECTIONAL 523400 750000 GS1-128 000000 6B0000 GTIN...
Page 248 References Label ID: Set Individually Per Symbology To configure a Label ID individually for a single symbology: 1. Go to page 45 and scan the ENTER/EXIT barcode. 2. Select Label ID position as either BEFORE (Enable as Prefix) or AFTER (Enable as suf- fix) by scanning the appropriate barcode in the section "Label ID Control"on page Reference Figure 6 for Label ID positioning options if multiple identification features are...
Page 249 Data Editing Table 32 . Label ID Examples STEP ACTION EXAMPLES Scan the ENTER/EXIT barcode (Scanner enters Programming Mode) Determine placement of the Label ID characters BEFORE or AFTER with regard to scanned Enable as Prefix Enable as Suffix Enable as Prefix Enable as Suffix data using Label ID...
Page 250: Character Conversion
References Character Conversion Character conversion is an eight byte configuration item. The eight bytes are 4 character pairs represented in hexadecimal ASCII values. The first character in the pair is the character that will be converted. The second character in the pair is the character to convert to. If the character to convert in a pair is FF, then no conversion is done.
Page 251 Data Editing 4. Scan the barcode: "Select No Read String." 5. Scan the hex equivalent characters from the keypad in Appendix D that represent the desired character string in step 1 above. 6. If less than the expected string of 20 characters is selected, scan the ENTER/EXIT bar- code to terminate the string.
Page 252: Label Transmit Mode
References 7. Scan the ENTER/EXIT PROGRAMMING MODE barcode to exit Programming Mode. This completes the procedure. Wrong Code String The string sent in case of a mismatch (wrong code read). To set this feature: 1. Determine the desired character string (max 20). 2.
Page 253: Reading Parameters
Reading Parameters Reading Parameters Illumination Mode This feature allows you to select the illumination mode for the reader. The illumination mode can be used to: • increase the overall diode life • reduce power consumption • turn off the illuminator for safety purposes Selections: •...
Page 254: Scanning Features
References Table 33. Good Read LED Duration Setting Examples STEP ACTION EXAMPLES Good Read LED Desired Setting stays on until next 20ms 150ms 2550ms (2.55 sec.) trigger pull (00) Divide by 10 (and pad with leading zeroes) Scan ENTER/EXIT PROGRAMMING MODE Scan LABEL GOOD READ LED DURATION Scan Three Characters From ‘0’...
Page 255: Automatic
Test Mode Serial Start Character (or String): Specifies the string message to be sent over the host interface to activate the reading phase Serial Stop Character (or String): Specifies the string message to be sent over the host interface to stop the reading phase. The Serial Start/Stop Characters must be different and must not contain Appendix E, Reserved Characters reserved characters (see...
Page 256: Test Mode Multiple
References Test Mode Multiple This parameter is active only while the scanner is in Test mode: • Disable: Test mode is possible only for a single barcode • Enable: Test mode is possible for one or more barcodes at the same time Camera Control Exposure Mode Controls the lighting system mode.
Page 257: Digital Output
Digital Output The reader wakes up when receiving an input signal or trigger button press. The reader cannot connect to Aladdin when in sleep mode. Default is 00 (Disable). Digital Output Output Activation: Digital Output can set to be Activated/Deactivated when specified events occur. Line State: Selects whether the line is Active Low or Active High.
Page 258: Set Length 2
References Set Length 1 This feature specifies one of the barcode lengths for Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Length includes the barcode’s data characters only. The number of characters that can be set varies, depending on the symbology.
Page 259: Technical Specifications
Appendix A Technical Specifications Table contains Physical and Performance Characteristics, User Environment and Regulatory information. Table 34. Technical Specifications Item Description Physical Characteristics Grey Color Height 1.54" / 39mm Dimensions Length 2.24" / 57mm Width 2.28" / 58 mm USB model - Approx. 5.0 ounces/140 g Weight (without brackets) RS-232 model - approx.
Page 260 Technical Specifications Item Description 5 mil - 2" to 6.3" (5cm to 16cm) Depth of Field (Typical) 8 mil - 1.2" to 10.6" (3cm to 27cm) 13 mil* - 1.2" to 15.7" (3cm to 40 cm) 20 mil - up to 23.6" (up to 60 cm) 3 mil Minimum Element Width 15% minimum reflectance...
Page 261: Standard Cable Pinouts
Technical Specifications Standard Cable Pinouts RS-232 Electrical Connections 9-pin connector Figure 36 Figure 37 Trigger Trigger signal input (see below) Transmit Data Receive Data Not connected Ground +5Vdc Clear To Send Request To Send Figure 35 Output signal (see below) Default configuration RS-232: 9600, 8, N, 1, no handshaking, ACK/NAK disabled.
Page 262: Led And Beeper Indications
Technical Specifications LED and Beeper Indications Button and LED Status The top of the product has a button and three indicator LEDs: POWER ON = Power ON (yellow LED) OFF = Power OFF or standby (only USB model) GOOD ON = Good Read (green LED) Blinks = USB enumeration or interface inactive or waiting for change of configuration...
Page 263: Error Codes
Technical Specifications INDICATION DESCRIPTION BEEPER Green Spot Upon successful read of a label, the flashes momen- software shall turn the green spot tarily on for the time specified by the configured value. Good Read LED Duration a. Except when in sleep mode or when a other than 00 is selected Table 39 .
Page 264 Technical Specifications NOTES Gryphon™ I GFS4170/GFS4150-9...
Page 265: Standard Defaults
Appendix B Standard Defaults The most common configuration settings are listed in the “Default” column of the table below. Page references are also provided for feature descriptions and programming barcodes for each parameter. A column has also been provided for recording of your preferred default settings for these same configurable features.
Page 266 Standard Defaults Page Parameter Default Your Setting Number Indicate Transmission Failure Enable Disable Character ‘D’ Enable Character ‘E’ USB KEYBOARD Country Mode U.S. Keyboard Send Control Characters Disable USB Keyboard Speed 1 ms DATA FORMAT No Global Prefix Global Prefix/Suffix Global Suffix = 0x0D (CR) Global AIM ID Disable...
Page 267 Standard Defaults Page Parameter Default Your Setting Number READING PARAMETERS Illumination Mode Triggered Power On Alert Enable Good Read: When to Indicate On Decode Good Read Beep Enable Good Read Beep Length 100 ms Good Read LED Duration 100 ms Green Spot Duration 300 ms LED Indication...
Page 268 Standard Defaults Page Parameter Default Your Setting Number Expand UPC-E to UPC-A Disable UPC-E Number System Character Transmission Transmit UPC-E Minimum Reads GTIN GTIN Formatting Disable EAN 13 (Jan 13) EAN 13 Enable/Disable Enable EAN 13 Check Character Transmission Send EAN-13 Flag 1 Character Transmit EAN-13 ISBN Conversion...
Page 269 Standard Defaults Page Parameter Default Your Setting Number Code 39 Check Character Transmission Send Code 39 Start/Stop Character Transmission Don’t Transmit Code 39 Full ASCII Disable Code 39 Quiet Zones Auto Code 39 Minimum Reads Code 39 Decoding Level Code 39 Length Control Variable Code 39 Set Length 1 Code 39 Set Length 2...
Page 270 Standard Defaults Page Parameter Default Your Setting Number Code 128 Character Correlation Disable Code 128 Stitching Enable GS1-128 GS1-128 Enable Transmit in Code 128 Data Format ISBT 128 ISBT 128 Concatenation Disable ISBT 128 Concatenation Mode Static ISBT 128 Dynamic Concatenation Timeout 200 msec ISBT 128 Advanced Concatenation Options Disable...
Page 271 IATA Check Character Transmission Enable Datalogic 2 of 5 Datalogic 2 of 5 Enable/Disable Disable Datalogic 2 of 5 Check Character Calculation Disable Datalogic 2 of 5 Minimum Reads Datalogic 2 of 5 Decoding Level Datalogic 2 of 5 Length Control...
Page 272 Standard Defaults Page Parameter Default Your Setting Number Codabar Minimum Reads Codabar Decoding Level Codabar Length Control Variable Codabar Set Length 1 Codabar Set Length 2 Codabar Interdigit Ratio Codabar Character Correlation Disable Codabar Stitching Disable ABC Codabar ABC Codabar Enable/Disable Disable ABC Codabar Concatenation Mode Static...
Page 273 Standard Defaults Page Parameter Default Your Setting Number Code 93 Length Control Variable Code 93 Set Length 1 Code 93 Set Length 2 Code 93 Minimum Reads Code 93 Decoding Level Code 93 Quiet Zones Auto Code 93 Stitching Enable Code 93 Character Correlation Enable MSI Enable/Disable...
Page 274 Standard Defaults NOTES Gryphon™ I GFS4170/GFS4150-9...
Page 275: Sample Barcodes
Appendix C Sample Barcodes The sample barcodes in this appendix are typical representations for their symbology types. 12345 67890 UPC-A 3 4 5 67 8 9 0 1 2 3 4 0 EAN-13 123ABC Code 39 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 Code 128 12345678901231 Interleaved 2 of 5...
Page 276 Sample Barcodes Sample Barcodes — continued A020096020 Code 32 Codabar Code 93 Code 11 Gryphon™ I GFS4170/GFS4150-9...
Page 277 Sample Barcodes GS1 DataBar™ (RSS) GS1 DataBar™ GS1 DataBar™ variants must be enabled to read the barcodes below (see Omnidirectional on page 175 10293847560192837465019283746029478450366523 (GS1 DataBar™ Expanded Stacked) 1234890hjio9900mnb (GS1 DataBar™ Expanded) 08672345650916 (GS1 DataBar™ Limited) GS1 DataBar™-14 55432198673467 (GS1 DataBar™ Omnidirectional Truncated) 90876523412674 (GS1 DataBar™...
Page 278 Sample Barcodes NOTES Gryphon™ I GFS4170/GFS4150-9...
Page 279: Keypad
Appendix D Keypad Use the barcodes in this appendix to enter numbers as you would select digits/characters from a keypad. Product Reference Guide...
Page 280 Keypad Gryphon™ I GFS4170/GFS4150-9...
Page 281 Keypad Product Reference Guide...
Page 282 Keypad NOTES Gryphon™ I GFS4170/GFS4150-9...
Page 283: Reserved Characters
Appendix E Reserved Characters Reserved Characters Hex Value Notes [SOH] 0x01 [BEL] 0x07 0x23 0x24 0x30 0x33 0X42 0X44 0X45 0X46 0X52 0X53 0x68 0x69 0x73 0x74 [FF] 0xFF Reserved Strings C can be used without [CR] or inside a C<up to 36 chars>[CR] 0x43 <xxx>...
Page 284 NOTES Gryphon™ I GFS4170/GFS4150-9...
Page 285: Scancode Tables
Appendix F Scancode Tables Control Character Emulation Control character emulation selects from different scancode tables as listed in this appendix. Each of the control character sets below are detailed by interface type in the tables. These apply to USB Keyboard platforms. Control Character 00 .
Page 286: Interface Type Usb-Keyboard Or Usb-Keyboard For Apple
Interface Type USB-Keyboard or USB-Keyboard for APPLE Table 41. Scancode Set When Control Character is 00 or 01 NULL C(S)+A C(S)+B C(S)+C C(S)+D C(S)+E C(S)+F C(S)+G C(S)+J C(S)+K C(S)+L Enter C(S)+N C(S)+O C(S)+P C(S)+Q C(S)+R C(S)+S C(S)+T C(S)+U C(S)+V C(S)+W C(S)+X C(S)+Y C(S)+Z...
Page 287 Interface Type USB-Keyboard or USB-Keyboard for APPLE — cont. Table 42. Scancode Set When Control Character is 02 Enter Ar↓ Ar↑ Al↓ Al ↑ Cl ↓ Cl ↑ Cr ↓ Cr ↑  S+ Tab Enter Pg Up Keypd Pg Dwn Home ...
Page 288: Interface Type Usb-Keyboard Alt Mode
Interface type USB-Keyboard Alt Mode Table 43. Scancode Set When Control Character is 00 or 01 Alt+000 Alt+001 Alt+002 Alt+003 Alt+004 Alt+005 Alt+006 Alt+007 Alt+010 Alt+011 Alt+012 Alt+014 Alt+015 Enter Alt+016 Alt+017 Alt+018 Alt+019 Alt+020 Alt+021 Alt+022 Alt+023 Alt+024 Alt+025 Alt+026 Alt+028 Alt+029...
Page 289 Interface type USB-Keyboard Alt Mode — cont. Table 44. Scancode Set When Control Character is 02 Enter Ar↓ Ar↑ Al↓ Al ↑ Cl ↓ Cl ↑ Cr ↓ Cr ↑  S+ Tab Enter Pg Up Keypd Pg Dwn Home ...
Page 290: Microsoft Windows Codepage 1252
Microsoft Windows Codepage 1252 Windows-1252 is a character encoding of the Latin alphabet, used by default in the legacy components of Microsoft Windows in English and some other Western languages. Gryphon™ I GFS4170/GFS4150-9...
Page 291: Index
Pitch – Good Read, Beeper Conversion, character 55, 248 Prefix/Suffix 42, 242 Coupon Control Product Specifications Programming Barcodes Datalogic Aladdin™ Read, Beeper – Good Defaults Read, Beeper Pitch – Good Reading Configuration Barcodes Request to Send RS-232 interface selection RS-232 Serial Connection...
Page 292 Index code 128 code 39 interleaved 2 of 5 Scancode Tables USB Connection select digits/characters Suffix 42, 242 symbology types XON/XOFF Gryphon™ I GFS4170/GFS4150-9...
Page 293: Ascii Chart
ASCII Chart ASCII ASCII ASCII ASCII Hex No. Hex No. Hex No. Char. Char. Char. Char. ‘ “ & ’ < >...
Page 294 Telephone: 49 (0) 61 51/93 58-0 Telephone: (65) 6435-1311 germany.scanning@datalogic.com singapore.scanning@datalogic.com India Iberia Datalogic Scanning India Datalogic Scanning SAS Sucursal en España Telephone: 91- 22 - 64504739 Telephone: 34 91 746 28 60 india.scanning@datalogic.com spain.scanning@datalogic.com Italy United Kingdom Datalogic Scanning SpA Datalogic Scanning LTD Telephone: [39] (0) 39/62903.1...

This manual is also suitable for:

Gryphon i gfs4170 Gryphon i gfs4150-9

Datalogic Gryphon I GFS4100 Product Reference Manual

Introduction

About this Manual

References

Technical Support

About the Reader

Programming the Reader

Setup

Unpacking

Setting up the Reader

Installing the Interface Cable

Interface Selection

Customizing Configuration Settings

Configuration Using Barcodes

Rs-232 Only Interface

RS-232/USB-Com Interfaces

USB Keyboard Interfaces

Data Format

Digital Output

Power Save

Reading Parameters

Code Selection

Issn

Ean 8 (Jan 8)

Upc/Ean Global Settings

Add-Ons

Code 39

Code 32 (Ital Pharmaceutical Code)

Code 39 Cip (French Pharmaceutical)

Code 128

Gs1-128

Code Isbt 128

Interleaved 2 of 5 (I 2 of 5)

Standard 2 of 5

Industrial 2 of 5

Code Iata

Datalogic 2 of 5

Codabar

Software Configuration Strings

Quick Links

Need help?

Questions and answers

Related Manuals for Datalogic Gryphon I GFS4100

Summary of Contents for Datalogic Gryphon I GFS4100
