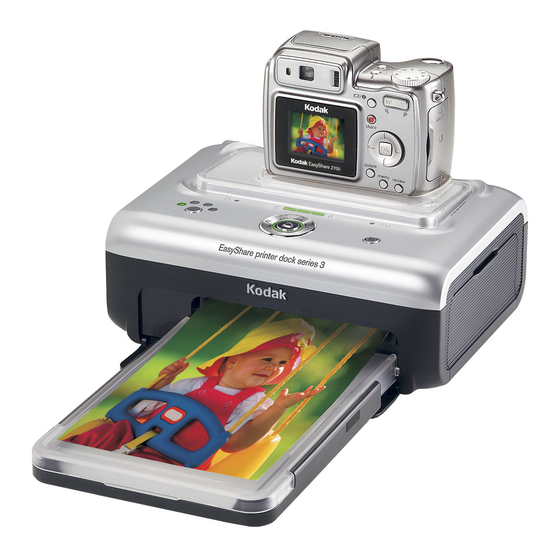

Kodak EasyShare
printer dock series 3
User's Guide
www.kodak.com
For interactive tutorials,
www.kodak.com/go/howto

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EasyShare Series 3 and is the answer not in the manual?

Questions and answers

Related Manuals for Kodak EasyShare Series 3

Summary of Contents for Kodak EasyShare Series 3

  • Page 1 Kodak EasyShare printer dock series 3 User’s Guide www.kodak.com For interactive tutorials, www.kodak.com/go/howto...
  • Page 2 Eastman Kodak Company Rochester, New York 14650 © Eastman Kodak Company, 2004 All screen images are simulated. Kodak, EasyShare, ImageLink, and XtraLife are trademarks of Eastman Kodak Company. P/N 4J1893...

  • Page 3: Product Features

    Refresh button Color cartridge light Transfer button/light Left/Right control Paper tray Print button/light www.kodak.com/go/support Paper tray door Picture Size button Picture Size lights USB device connector (for optional Kodak card reader or PictBridge compatible device) Paper light Camera connector Product features...
  • Page 4 Product features Back/top/side view Power connector (DC-in) USB connector (to computer) Cooling vents Slot for paper path Color cartridge (installed as shown) Cartridge door www.kodak.com/go/support...

  • Page 5: Table Of Contents

    Tagging pictures for printing... 12 3 Printing without a computer ...13 Printing from your digital camera... 13 Printing from a Kodak card reader ... 14 Printing tagged pictures ... 15 Printing from a PictBridge compatible device ... 15 Changing the printed picture size ... 16 Canceling printing...
  • Page 6 5 Using the printer dock with a computer ...23 Connecting to a computer ... 23 Transferring pictures from your digital camera... 24 Transferring pictures from a Kodak card reader ... 25 Printing from a computer... 26 Canceling printing... 29 6 Care and maintenance ...30 General care ...

  • Page 7: Getting Started

    Getting started Finding a location for your printer dock Place the printer dock on a flat, clean, dust-free surface, in a dry location, and out ■ of direct sunlight. 5 in. (12.7 cm) ■ Avoid areas where ventilation ducts, open doors, or frequent passersby might expose the printer dock and paper to high levels of dust and debris.

  • Page 8: Installing The Custom Camera Insert

    IMPORTANT: Use the custom insert that came with your digital camera to dock the camera, otherwise the camera may not fit on the printer dock. Purchase a custom camera insert for your Kodak EasyShare digital camera and other accessories at www.kodak.com/go/accessories.

  • Page 9: Connecting The Power

    Connecting the power RISK OF ELECTRIC SHOCK: Use only the AC power adapter included with your printer dock. Other adapters or cords can damage your camera, printer dock, or computer. Handling and storing the color cartridge For best quality prints, store the color cartridge in a location where the ■...

  • Page 10: Installing And Removing The Color Cartridge

    Getting started Installing and removing the color cartridge 1 Open the cartridge door on the side of the printer dock. IMPORTANT: The color cartridge may lock in place if there is a paper error. Do not attempt to remove the cartridge without first clearing the paper error. Make...

  • Page 11: Handling And Storing The Paper

    Handling and storing the paper Keep the paper away from direct sunlight and out of high-temperature ■ environments (such as a vehicle parked in the sun). www.kodak.com/go/support When the cartridge is almost empty, the Color ■ cartridge light blinks slowly for several seconds.

  • Page 12: Loading The Paper

    Loading the paper 1 Remove the paper tray from the printer dock if installed (see Purchase Kodak color cartridge & paper kits and other accessories at a retailer of Kodak products, or visit www.kodak.com/go/accessories. 2 Slide the paper tray cover back until it "clicks" into place, about 1.25 in.

  • Page 13: Installing And Removing The Paper Tray

    2 Slide the paper tray cover back until it "clicks" into place, about 1.25 in. (3 cm). 3 Slide the paper tray in the printer tray slot until the tray locks into place. IMPORTANT: To ensure the paper tray fits squarely on the printer dock, make sure to keep the paper tray cover all the way open while installing.

  • Page 14: Setting Up Your Digital Camera

    2 AA, 1.5 V 3 V, CRV3 * Contents subject to change. NOTE: The Kodak EasyShare Ni-MH rechargeable battery pack and Kodak Li-Ion rechargeable battery are not charged when you receive them. Completely charge them before using them with your EasyShare camera (see compatible cameras, see the camera user’s guide.

  • Page 15: Extending Battery Life

    ■ If you are getting fewer than 20 pictures per charge with your Kodak EasyShare Ni-MH rechargeable battery pack, (and if none of the tips above seem to help), consider refreshing the battery pack (see For more information on batteries, see your camera user’s guide, or visit...

  • Page 16: Docking And Charging Your Digital Camera

    Docking your digital camera lets you make prints directly from the camera, transfer pictures from the camera to the computer, and charge the camera battery. The Kodak EasyShare printer dock series 3 is ImageLink print system compatible. So in addition to docking Kodak EasyShare digital cameras, you can dock other brands of ImageLink system compatible digital cameras.

  • Page 17: Battery Pack

    Refreshing the Kodak EasyShare Ni-MH rechargeable battery pack NOTE: The battery refresh feature is intended for use with the Kodak EasyShare Ni-MH rechargeable battery pack only. Li-Ion batteries do not require refreshing. For battery information for other brands of ImageLink system compatible cameras, see the camera user’s guide.

  • Page 18: Setting The Picture Quality

    Setting the picture quality Tagging pictures for printing NOTE: The following procedure pertains to Kodak EasyShare digital cameras. For information on tagging pictures on other brands of ImageLink system compatible cameras, see the camera user’s guide. 1 Press the Share button.

  • Page 19: Printing Without A Computer

    The first three passes apply layers of yellow, magenta, and cyan colors to the print, and the fourth pass applies the Kodak XtraLife coating that protects and preserves the image. to review and choose...

  • Page 20: Printing From A Kodak Card Reader

    4 Press to begin printing, or press Purchase a Kodak card reader and other accessories at a retailer of Kodak products, or visit www.kodak.com/go/accessories. 2 Plug the USB connector from the card reader into the USB connector located on the side of the printer dock.

  • Page 21: Printing Tagged Pictures

    The message disappears after 10 seconds of inactivity. Printing from a PictBridge compatible device The Kodak EasyShare printer dock series 3 offers PictBridge technology, which lets you print from any PictBridge compatible camera or device. 2 Use your PictBridge compatible device to review pictures, choose printing options, and print.

  • Page 22: Changing The Printed Picture Size

    For example, if three pictures on your camera are each tagged for printing one copy, and the 4 up option on the printer dock is selected, three 2 x 3 in. (51 x 76 mm) pictures are printed on one sheet of paper.
  • Page 23 Change these settings on your device before printing. If the picture size option selected on your device does not match any of the picture size options on the printer dock, the closest available picture size option on the printer dock is automatically selected.
  • Page 24 Method 2: using the printer dock ■ Place the camera on the printer dock, or insert the memory card into a connected Kodak 8-in-1 or 6-in-1 card reader (sold separately). The current or most recent picture appears on the camera screen.

  • Page 25: Canceling Printing

    Press and hold for 2 seconds. The print job is canceled and ejected from the printer dock. If you cancel a print during the fourth pass (clear coat), the print is ejected upon completion. NOTE: Using the Print button to cancel a print job only works when printing from a docked camera.

  • Page 26: Installing Software

    IMPORTANT: Install Kodak EasyShare software before connecting the printer dock to the computer. 1 Close all software applications that are open on your computer (including anti-virus software). 2 Place the Kodak EasyShare software CD into the CD-ROM drive. www.kodak.com/go/support...
  • Page 27 5 Restart the computer if prompted. If you turned off anti-virus software, turn it back on. See the anti-virus software manual for details. For more information on installing the software, see the ReadMe file on the Kodak EasyShare software CD. For information on the software applications included on the Kodak EasyShare software CD, click the Help button in the EasyShare software.

  • Page 28: Uninstalling The Software

    Mac OS X: 1 Double-click the operating drive for your system. 2 Select Library, then select Printers. 3 Open the Kodak folder, then open the printer dock folder. 4 Double-click the printer dock uninstaller program. 5 Follow the on-screen instructions.

  • Page 29: Using The Printer Dock With A Computer

    Connecting to a computer IMPORTANT: Make sure your camera is NOT docked when you connect the printer dock to the computer. 1 Make sure Kodak EasyShare software is installed on the computer (see www.kodak.com/go/support 2 Plug the labeled (included) into the labeled USB port on your computer.

  • Page 30: Transferring Pictures From Your Digital Camera

    4 Press the Transfer button, Kodak EasyShare software opens on your computer (if it is installed). 5 Use Kodak EasyShare software to transfer pictures from the camera to your computer. See the Kodak EasyShare software Help for details. The printer dock Transfer light blinks while the pictures are being transferred. The Transfer light continues to blink until the Transfer or Print button is pressed, the camera is removed from the printer dock, or the connection is no longer available.

  • Page 31: Transferring Pictures From A Kodak Card Reader

    You can view, copy, delete, and otherwise manage files on the new drives, as you do with other drives on your computer. See your computer documentation for details. Purchase a Kodak card reader and other accessories at a retailer of Kodak products, or visit www.kodak.com/go/accessories.

  • Page 32: Printing From A Computer

    5 Make sure the printer dock is selected as the current printer. 6 Change any other settings, such as paper size and print layout, then click Print. NOTE: The Picture Size button on the printer dock is disabled when printing from a computer. Set printing options using EasyShare software.

  • Page 33: Printing Using Other Applications

    Print from the File menu.) NOTE: The Picture Size button on the printer dock is disabled when printing from a computer. Set printing options in the application from which you are printing.

  • Page 34: Choosing A Color Mode

    Using the printer dock with a computer Choosing a color mode Kodak’s color mode feature uses automatic color correction feature to help you make great-looking prints in no time. The Kodak EasyShare printer dock series 3 features three color mode options: Enhanced—to get richer, more vivid colors.

  • Page 35: Canceling Printing

    Using the printer dock with a computer Mac OS X: 1 Make sure the printer dock is selected as the current printer. 2 From an application File menu, select Print. 3 Select Color Control from the Copies & Pages pop-up menu.

  • Page 36: Care And Maintenance

    IMPORTANT: Always disconnect the power before cleaning. Do not use harsh or abrasive cleaners or organic solvents on the printer dock or any of its parts. ■ To clean, wipe the outside of the printer dock with a clean, dry cloth. Avoid placing objects on the printer dock. ■...

  • Page 37: Cleaning The Paper Feed Roller

    IMPORTANT: Unplug the power before cleaning the paper feed roller. 1 Unplug the AC power cord from the power outlet. 2 Remove the paper tray from the printer dock, and leave the paper tray door open. 3 Lightly moisten a lint-free cloth with water.

  • Page 38: Traveling With Your Printer Dock

    1 Disconnect the power and remove all cables. 2 Remove the paper tray from the printer dock; close the paper tray cover and the paper tray door on the printer dock. 3 Repack the printer dock in the original packing box, or use the optional printer dock travel bag.

  • Page 39: Troubleshooting

    Troubleshooting When you have questions about your printer dock, start here. Additional technical information is available in the ReadMe file located on the Kodak EasyShare software CD. For updates to Troubleshooting information, visit www.kodak.com/go/printerdocks. Printing problems If... Try the following IMPORTANT: Use only Kodak color cartridge &...
  • Page 40 Troubleshooting If... Try the following IMPORTANT: Use only Kodak color cartridge & paper kits for your Printer is jammed (Paper and/or ■ If the Paper light is blinking quickly: cartridge lights Remove the paper tray may blink quickly) Disconnect the power from the printer dock for 5 seconds, then reconnect the power.
  • Page 41 If... Try the following IMPORTANT: Use only Kodak color cartridge & paper kits for your Printing stops during mid-print (paper stops ■ Check the paper: feeding, and Remove the paper tray Paper light may blink) Check the paper slot on the back of the printer dock.
  • Page 42 IMPORTANT: Use only Kodak color cartridge & paper kits for your Print is too light ■ Make sure the paper is loaded with the Kodak logo facing down. Reload if necessary ■ Try re-taking the picture with the flash off. See your camera user’s guide for details.
  • Page 43 Make sure there is at least one picture in the camera’s internal memory or memory card. NOTE: The Kodak EasyShare printer dock series 3 is compatible with the Kodak 8-in-1 Nothing card reader and the Kodak 6-in-1 card reader (each sold separately). Other happens when Kodak USB card readers may work with the printer dock;...
  • Page 44 NOTE: When printing a large number of prints, printing may slow down to prevent the Printing is slow print head from overheating. ■ Make sure the printer dock is not placed in direct sunlight or is not operating in a high-temperature environment. ■ Make sure the cooling vents are not blocked or dirty ■...
  • Page 45 —Advancement of the color cartridge ribbon upon reconnecting power to unlock the color cartridge Supply mismatch is likely to occur as you continue to use your printer dock. If you wish to keep your cartridge and paper supply synchronized, discard unused cartridge or paper when one or the other is fully depleted.

  • Page 46: Transfer/Communication Problems

    If you are trying to transfer pictures from a compatible Kodak card reader connections between the printer dock and the card reader or device. NOTE: The Kodak EasyShare printer dock series 3 is compatible with the Kodak ■ Close unnecessary software applications, and minimize remaining application windows.

  • Page 47: Printer Dock Status Lights

    Fast blink: there is a color cartridge jam Clear the jam Light glows The color cartridge is depleted. steady amber The color cartridge is not installed or is not fully seated. www.kodak.com/go/support Troubleshooting Action/solution None required. None required. (page 34), then press...
  • Page 48 Check the paper supply. Reload with new paper if necessary, then 33). press Clean the paper feed roller (page www.kodak.com/go/support (page 34), then press (page 6), then press (page 7). Press 31).
  • Page 49 Troubleshooting Action/solution Reseat the camera on the printer dock (page 10). Turn off the camera. Install a Kodak EasyShare Ni-MH rechargeable battery pack or Kodak EasyShare Li-Ion rechargeable battery (page your camera user’s guide for other charging options. None; dock is checking the charge status of the battery.
  • Page 50 Light is off There are no pictures in the camera or on the card. The camera is not docked or a compatible Kodak card reader is not connected. The camera is not properly seated on the connector. The camera or card reader is...
  • Page 51 There are no pictures in the camera, on the card, or on the PictBridge compatible device. The camera is not docked, a compatible Kodak card reader or PictBridge compatible device is not connected, or a memory card is not inserted.
  • Page 52 There are no pictures in the camera or on the memory card. The camera is not docked, a compatible Kodak card reader is not connected, or a memory card is not inserted. The printer dock is not connected to the computer.

  • Page 53: Getting Help

    Software Get information on EasyShare software Get help with the Windows operating system and working with digital pictures Other Get support for Kodak docks, cameras, software, accessories, more Get information on Kodak EasyShare printer docks Get information on Kodak inkjet...

  • Page 54: Telephone Customer Support

    Getting help Telephone customer support If you have questions concerning the operation of the software or printer dock, you may speak with a customer support representative. Before you call, have the camera or dock connected to your computer. Be at your computer, and have the following information available: ■...

  • Page 55: Appendix

    Appendix Printer dock specifications For more specifications, visit www.kodak.com/go/printerdocks. Printer dock specifications Printing process Operating environment (for optimum picture quality) Power Print speed Size Weight Print size Paper size with perforated tabs Picture resolution www.kodak.com/go/support Thermal dye transfer Temperature: 50 to 95 °F (10 to 35 °C)

  • Page 56: Important Safety Instructions

    Read and follow these instructions before using Kodak products. Always follow basic safety procedures. ■ The use of an accessory attachment that is not recommended by Kodak, such as an AC adapter, may cause fire, electric shock, or injury. CAUTION: Do not disassemble this product;...

  • Page 57: Upgrading Your Software And Firmware

    ■ Remove batteries when the product is stored for an extended period of time. In the unlikely event that battery fluid leaks inside the product, contact your local Kodak Customer Service representative. In the unlikely event that battery fluid leaks onto your skin, wash immediately with ■...

  • Page 58: Warranty

    This limited warranty will be honored only within the geographical location that Kodak digital cameras and accessories were purchased. Kodak will REPAIR or REPLACE Kodak digital cameras and accessories if they fail to function properly during the warranty period, subject to any conditions and/or limitations stated herein.
  • Page 59 Limitations Request for Warranty service will not be accepted without proof of date of purchase, such as a copy of the original dated Kodak digital camera or accessory sales receipt. (Always keep the original for your records.) This warranty does not apply to the battery(s) used in digital cameras or accessories.

  • Page 60: Regulatory Information

    Unless specific Kodak warranty is communicated to the purchaser in writing by a Kodak company, no warranty or liability exists beyond any minimum requirements imposed by law, even though defect, damage, or loss may be by negligence or other act.

  • Page 61: Canadian Doc Statement

    This is a Class B product based on the standard of the Voluntary Control Council for Interference from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual. www.kodak.com/go/support...
  • Page 62 12 tagging pictures for printing, 12 transferring pictures from, 24 Canadian compliance, 55 canceling printing, 19, 29 card reader. See Kodak card reader care & maintenance general, 30 handling, storing cartridge, 3 handling, storing paper, 5 paper feed roller, 31...
  • Page 63 Kodak card reader, 14, 25 PictBridge compatible device, 15 power, 3 connector camera, i power (DC-in), ii, 3 USB (from device), i, 14, 15, 25 USB (to computer), ii, 23 cooling vents, ii copies, selecting number of, 12, 13, 16...
  • Page 64 28 printing different pictures on same sheet, 17 printing duplicate pictures on same sheet, 18 printing from Kodak card reader, 14 printing from PictBridge compatible device, 15 printing tagged, 15 reviewing on camera, 13, 18 selecting number of copies, 12,...
  • Page 65 47, 51 printing canceling, 19, 29 from a computer, 26 from applications, 27 from docked camera, 13 from Kodak card reader, 14 from PictBridge compatible device, 15 print order, 15 problems, 33 tagged pictures from computer, 27 tagging pictures for, 12...
  • Page 66 12 telephone support, 48 transfer button/light, i, 46 transferring pictures from camera to computer, 24 from Kodak card reader, 25 problems, 40 traveling with printer dock, 32 tray, paper. See paper tray troubleshooting printing problems, 33...
