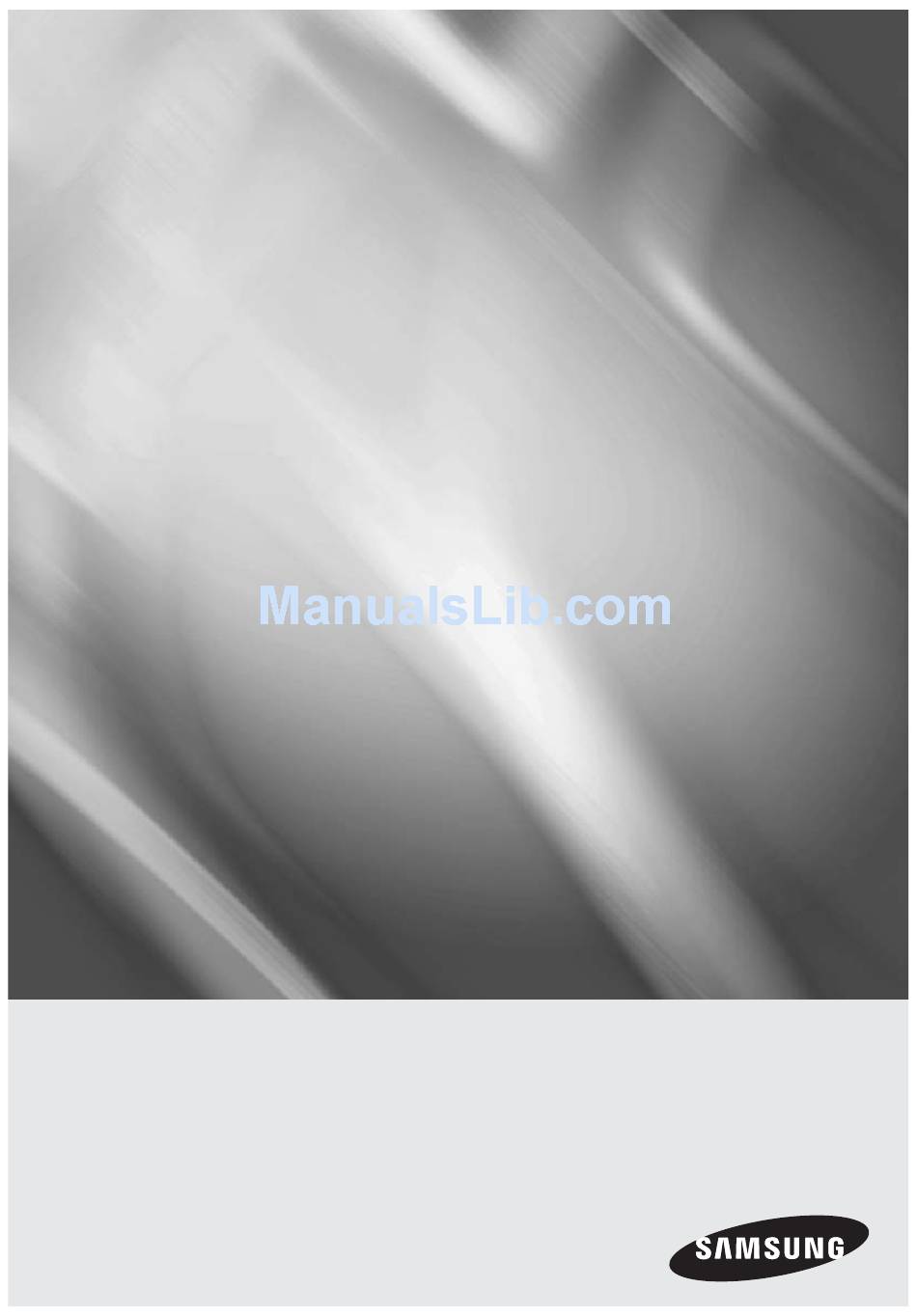

- Page 1 HT-H5500 HT-H5500W HT-H5530 HT-H5550 HT-H5550W 5.1CH Blu-ray™ Home Entertainment System user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register...
-
Page 2: Safety Information
Safety Information This symbol indicates that high voltage is CAUTION present inside. It is dangerous to make any kind of contact with any internal part RISK OF ELECTRIC SHOCK DO NOT OPEN of this product. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO This symbol indicates that important NOT REMOVE THE COVER (OR BACK). - Page 3 • Store the accessories (battery, etc.) in a location safely 3D Precautions out of the reach of children. • Do not install the product in an unstable location such IMPORTANT HEALTH AND SAFETY INFORMATION FOR as a shaky self, a slanted floor, or a location exposed 3D PICTURES.
-
Page 4: Table Of Contents
Contents GETTING STARTED PLAYING CONTENT Accessories 26 Switching the Source Device Speaker Components 26 Playing Commercial Discs Front Panel 26 Playing a Disc with User Recorded Content Rear Panel 27 Playing Files on a USB Device Remote Control 28 Controlling Video Playback 29 Playing a Pre-Recorded Commercial Audio Disc CONNECTIONS 30 Controlling Music Playback... -
Page 5: Getting Started
• Remote Control • User Manual • Batteries HT-H5500W/HT-H5550W only (For Power cord) Power Cable FM Antenna Toroidal Ferrite Core Speaker Components HT-H5500/HT-H5500W HT-H5500W only Centre Wireless Receiver Front x 2 Surround x 2 Subwoofer Speaker Cable Module (SWA-6000) - English... - Page 6 Getting Started HT-H5530 Centre Stand Base x 2 Screw (5x20) x 8 Front x 2 Stand x 2 Surround x 2 Subwoofer Speaker Cable HT-H5550/HT-H5550W Centre Stand Base x 4 Screw (5x20) x 16 HT-H5550W only Wireless Receiver Front x 2 Stand x 4 Subwoofer Speaker Cable...
-
Page 7: Front Panel
Internet or stop the content you are playing on the TV, and then select the BD/DVD mode. ✎ To use the NFC function, tag the compatible Bluetooth source device to the on the top of the product (See page 35). Rear Panel * In case of HT-H5500/HT-H5530/HT-H5550 SURROUND SURROUND AUX IN * FM ANTENNA COOLING FAN... -
Page 8: Remote Control
Getting Started Remote Control Tour of the Remote Control Press to select Home Cinema's Turn the product on and off. mode. (BD/DVD, D. IN, AUX, FUNCTION etc.). To open and close the disc tray. VOLUME MUTE Adjust the volume. RDS DISPLAY Cut off the sound temporarily. -
Page 9: Connections
Front (L) Surround (L) Surround (L) Wireless Receiver Module * HT-H5500/HT-H5530/HT-H5550 * HT-H5500W/HT-H5550W Surround speakers must be connected to the wireless receiver module. Position of the product Place it on a stand or cabinet shelf, or under the TV stand. -
Page 10: Stand Base X
Connections Installing the Speakers on the Tallboy Stand * HT-H5530/HT-H5550/HT-H5550W only Stand Base Turn the Stand Base upside-down and connect it to the Stand. Use the driver to combine the screws on the 3 marked holes. Stand Straighten a supplied speaker wire to the gravity direction and put in the hole on the centre of Stand Base. -
Page 11: Subwoofer
In case of HT-H5500 Centre Speaker Front Speaker (L) SURROUND Surround Speaker (L) SURROUND Subwoofer Front Speaker (R) Surround Speaker (R) SURROUND SURROUND * Refer to page 6 for the speakers of HT-H5530/HT-H5550. In case of HT-H5500W Front Speaker (L) -
Page 12: Attaching The Toroidal Ferrite Core To The Power
Connections ✎ The maximum transmission distance from the product to the wireless receiver module is about 10m, but may vary depending on your operating environment. If a steel-concrete wall or metallic wall is between the product and the wireless receiver module, the system may not operate at all, because the radio waves cannot penetrate metal. -
Page 13: Connecting To A Tv And External Devices
Connecting to a TV and External Devices White Method 1 Method 2 External Devices AUDIO OUT OPTICAL OUT HDMI IN Connecting to a TV Connect an HDMI cable (not supplied) from the HDMI OUT jack on the back of the product to the HDMI IN jack on your TV. -
Page 14: Connecting To A Network Router
IP router is currently being used by policies may prevent the product from accessing another device nearby, it will result in interference Samsung's software update server. If this occurs, and communication failure. contact your Internet Service Provider (ISP) for ✎... -
Page 15: Settings
If you use an HDMI cable to connect the product and 4:3 pictures (the old, standard format) in 4:3 to an Anynet+ (HDMI-CEC)-compliant Samsung pillar box format with black bars on the left and TV and 1.) You have set the Anynet+ (HDMI-CEC) right. -
Page 16: The Home Screen At A Glance
Settings The Home Screen at a Glance 8 Function Use for switching to an external device, and for radio and mode switching for a Bluetooth connection. You can use the remote control’s Play disc Photos Videos Music FUNCTION button and the main unit’s button for mode switching. -
Page 17: Settings Menu Functions
When you connect a Samsung product EXIT Button : Press to exit the current and a Samsung TV with BD Wise to each other menu. via HDMI, and BD Wise is on in both the product and TV, the product outputs video at the video resolution and frame rate of the Blu-ray/DVD Disc. - Page 18 Settings HDMI Colour Format Digital Output Lets you set the colour space format for the HDMI Lets you set the Digital Output to match the output to match the capabilities of the connected capabilities of the AV receiver you’ve connected to device (TV, monitor, etc).
- Page 19 Anynet+ is a convenient function that offers linked operations with other Samsung products that have the Anynet+ feature and lets you control those products with one Samsung TV remote. To operate this function, you must connect this product to an Anynet+ Samsung TV using a HDMI cable.
-
Page 20: Network Setup
If you have a static IP address or the automatic procedure does not work, you'll need to set the Network Settings values manually. Contact Samsung After following Steps 1 to 3 above: Provides contact information for assistance with In the Network Settings screen, change your product. - Page 21 Repeat Steps 4 and 5 until you have filled in all When finished, select Done, and then press the E button. The product verifies the network parameters. connection and then connects to the network. ✎ You can get the network parameter values from ✎...
-
Page 22: Wi-Fi Direct
Settings When finished, select Done, and then press WPS(PBC) the E button. The product searches for the One of the easiest ways to set up the wireless network. network connection is using the WPS(PBC) function. The Network connection fail screen appears. If your wireless router has a WPS(PBC) button, follow Use ◄►... -
Page 23: Upgrading Software
Connected pop-up. When it closes, you turn on the updated product for your use. should see the device listed on the Wi-Fi Direct • Samsung Electronics takes no legal screen as connected. responsibility for product malfunction caused by an unstable Internet connection or consumer •... - Page 24 By USB In the Software Upgrade menu, set Auto Upgrade Notification to On. Visit www.samsung.com. If there is a new software version available, the product will notify you with a pop-up message. Click SUPPORT on the top right of the page.
-
Page 25: Setting Up Dlna
PC using this product. To use DLNA, you must connect the product to your PC via the network (See page 14) and install the SAMSUNG PC Share Manager on the PC. To Download the DLNA Software To use DLNA with your PC, you must install DLNA software on your PC. -
Page 26: Playing Content
Playing Content Press the button to close the disc tray. Your home cinema can play content located on Blu-ray/DVD/CD discs, USB devices, PCs, smart Playback starts automatically. phones, tablets, and in Apps. If playback does not start automatically, press To play content located on your PC or a mobile the 6 button on the remote. -
Page 27: Playing Files On A Usb Device
A screen appears listing the contents of the disc. If necessary, use the ▲▼◄► buttons to select a folder, and then press the E button. Depending on how the contents are arranged, you will see either folders, individual files, or Select a file to view or play, and then press the both. -
Page 28: Controlling Video Playback
Playing Content Controlling Video Playback 2 Using the disc menu, title menu, popup menu, and title list You can control the playback of video content located DISC MENU on a Blu-ray/DVD disc, USB device, mobile device, or PC. Depending on the disc or contents, some of During playback, press this button to display the the functions described in this manual may not be Disc menu. -
Page 29: Playing A Pre-Recorded Commercial Audio Disc
Using the TOOLS Menu Subtitle During playback, press the TOOLS button. Lets you set the desired subtitle language. Title Angle If there is more than one title on a disk or device, To view a scene from another angle. The Angle lets you move to or select a desired title. -
Page 30: Controlling Music Playback
Playing Content Fast Play (Audio CD [CD-DA] only) : Playlist Pl li 0/16 Tools During playback, press the 3 or 4 button. TRACK 001 Repeat Mode Track Each time you press the 3 or 4 button, the playback speed will change. >... -
Page 31: Playing Photo Contents
✎ Ripping encodes music in the .mp3 format at To remove a file from the Playlist, move to the file, and then press the YELLOW (C) button. 192kbps. ✎ On the Track list screen, you can choose Select Press the E button to play the selected files. The Playlist screen appears. -
Page 32: Listening To The Radio
Playing Content ✎ Depending on the disc or storage device, the Presetting Stations Tools menu may differ. All options may not be Example : Presetting FM 89.10 into memory. displayed. Press the FUNCTION button to select FM. ✎ To enable the background music function, the Press the TUNING DOWN... -
Page 33: Using Bluetooth
To show the RDS signals - When pressing the buttons on the primary remote control, make sure that you have selected You can see the RDS signals the station sends on the the FM station using the primary remote control. display. - Page 34 Playing Content • The further the distance is between the Home Play music on the connected device. Cinema and the Bluetooth device, the worse the • You can listen to the music playing on the quality is. connected Bluetooth device over the Home If the distance exceeds the Bluetooth operational Cinema system.
- Page 35 Quick start to On. than Android OS 4.1 Jellybean, you must ✎ download the 'Samsung NFC Connection' To use this function, Bluetooth connection between application from Android market to use the NFC the Home cinema and your smart device should function.
-
Page 36: Using The Special Effects Remote Control Buttons
Playing Content ✎ NFC connection works even when the Home TV SOUND ON/OFF support specifications: Cinema is turned off, if Quick start is set to On. However, NFC connection will work only after the Anynet+ Home Cinema is turned on if the power cord had (HDMI-CEC) TV Sound ON TV Sound OFF... -
Page 37: Network Services
Network Services On your home cinema, select Change Device. Using BD-LIVE™ % button to select your PC in the Use the Device List. Connect the product to the network. Select the kind of file you want to view or play, (See page 14) Photos, Videos, or Music and then press E . -
Page 38: Deleting Apps From My Apps
Network Services Using Apps Using Opera TV Store The first time you access any one of the apps, the At the Opera TV Store, you will find high-quality home cinema displays two agreements. You must Internet video streaming, social network, and music accept both agreements to download and use any streaming services. -
Page 39: Searching For Apps
Repeat this process to delete additional apps. • Bluetooth transmissions can interfere with the Screen Mirroring signal. Before using When finished, select DONE, and then press the the Screen Mirroring function, we strongly E button. recommend that you turn off the Bluetooth Press the RETURN button to go back to the... -
Page 40: Appendix
• Depending on the disc type, some aspect ratios not support CEC. may not be available. • If your Samsung TV has an Anynet+ logo, then it • If you select an aspect ratio and option which is supports the Anynet+ function. -
Page 41: Disk And Format Compatibility
Speaker Settings Playing JPEG files • When Speaker Selection is set to TV Speaker, • You can’t enlarge the subtitle and PG graphics in audio is produced by the TV speakers. the full screen mode. HDMI audio Playing Content • When HDMI audio is output to the TV speakers, it is Using the TOOLS button while playing pictures... -
Page 42: Logos Of Discs The Product Can Play
Please note that this is not a defect in the product. do not match, the disc will not play. ✎ Samsung cannot guarantee that this product will The Region Number for this product is displayed on the play every disc bearing the Blu-ray Disc, DVD, or CD rear panel of the product. -
Page 43: Supported Formats
• "x.v.Colour" is a trademark of Sony Corporation. HDD manufacturer. • "AVCHD" and the AVCHD logo are trademarks of • SAMSUNG is not responsible for any data file damage Matsushita Electronic Industrial Co., Ltd. and Sony or data loss. Corporation. - Page 44 Appendix Video File Support File Extension Container Video Codec Audio Codec Resolution DivX 3.11/4/5/6 MP3, Dolby Digital, DTS, *.avi MP4v3 WMA, PCM H.264 BP/MP/HP VC-1 AP, DivX 5/6 *.mkv MP3, Dolby Digital, DTS H.264 BP/MP/HP *.wmv WMV (wmv9) VC-1 AP, VC-1 SM 1920x1080 MP4 (mp4v) *.mp4...
- Page 45 Digital Output Selections Bitstream Bitstream Bitstream Setup (Re-encoded (Unprocessed) (Re-encoded DTS) Dolby D) Connection HDMI supported AV receiver Up to PCM 7.1ch Dolby Digital Up to PCM 5.1ch Dolby Digital Dolby Digital Up to PCM 5.1ch Dolby Digital Plus Plus Audio Dolby TrueHD Up to PCM 5.1ch...
-
Page 46: Troubleshooting
Refer to the table below when this product does not function properly. If the problem you are experiencing is not listed below or if the instructions below do not help, turn off the product, disconnect the power cord and contact the nearest authorized dealer or Samsung Electronics Service Centre. Symptom Check/Remedy You cannot eject the disc. - Page 47 Symptom Check/Remedy Dolby Digital 5.1 CH • Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1 CH Surround Surround Sound is not Sound is produced only if the disc is recorded with 5.1 channel sound. produced. •...
- Page 48 When the factory default settings are restored, all stored user BD data is deleted. HT-H5500/HT-H5530/HT-H5550 Hereby, Samsung Electronics, declares that this Home Cinema System is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The official Declaration of Conformity may be found at http://www.samsung.com, go to Support > Search Product Support and enter the model name.
-
Page 49: Specifications
HT-H5500W/HT-H5550W Hereby, Samsung Electronics, declares that this Home Cinema System is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The official Declaration of Conformity may be found at http://www.samsung.com, go to Support > Search Product Support and enter the model name. - Page 50 3.41 ✎ Network speeds equal to or below 10Mbps are not supported. ✎ Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. ✎ Weight and dimensions are approximate. ✎ Design and specifications are subject to change without prior notice.
-
Page 51: Licences
Licences Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTSHD, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS-HD Master Audio | Essential is a trademark of DTS, Inc. - Page 52 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Contact Centre Contact Centre Area Web Site Area Web Site ` Europe MONTENE- 020 405 888 www.samsung.com/support...
