Parts List - Char-Broil Electric Patio Caddie 4654870 Assembly, Use & Care Manual

Parts List

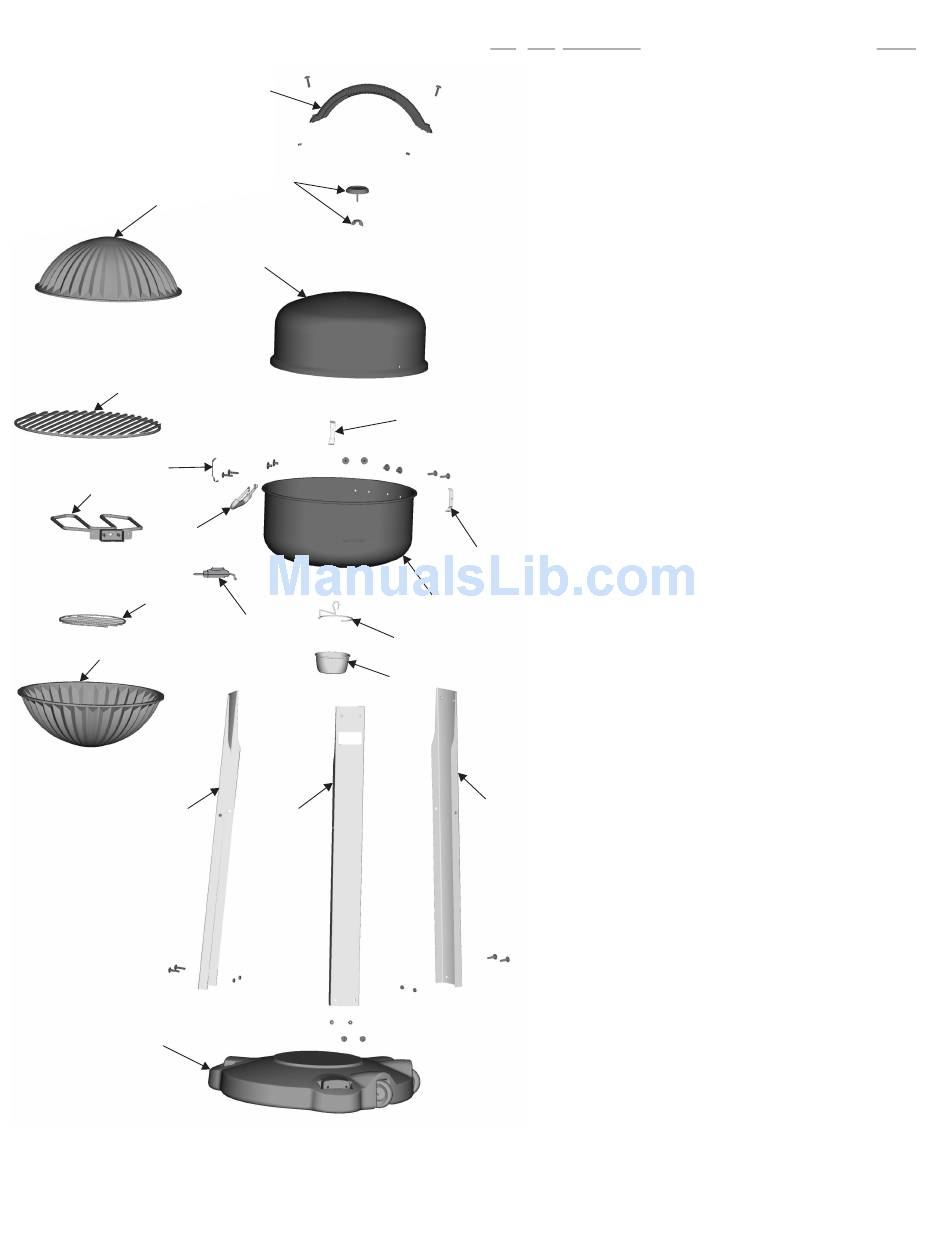

Key Qty. Description Part #
A.......1 .......Base .......................................................................4154381
B.......1 .......Cooking Grate ........................................................4152860
P
C ......1 .......Element Assembly..................................................4159277
D ......1 .......Grill Bottom.............................................................4509581
E.......1 .......Grill Lid ...................................................................4509582
F.......1 .......Control Leg w/Slot ..................................................4302497
N
G ......1 .......Leg .........................................................................4302534
J
H ......1 .......Leg w/Logo.............................................................4525611
I ........1 .......Briquette Grate .......................................................4156128
J .......1 .......Top Insulation Bowl ................................................4152826
E
K.......1 .......Bottom Insulation Bowl...........................................4152827
L .......1 .......Controller................................................................4150235
M ......1 .......Leg Handle .............................................................4150357
N ......1 .......Temperature Gauge w/Wing Nut ............................4157142
O ......3 .......Lid Hangers ............................................................4154245
P.......1 .......Lid Handle ..............................................................4154399
B
Q ......1 .......Grease Cup ............................................................5156609
O
R ......1 .......Grease Clip ............................................................5156610
- -......1 .......Briquette Bag..........................................................4158125
