1
2
3
4
¡Please read these instructions carefully before using this product and keep this manual for future reference.
A
A M
P
P
M
P
P
O
O
W
W
E
E
R
R
B
B
A
A
N
N
D
D
SRC
T
T
U
U
N
N
E
E
S
S
E
E
E
E
K
K
5
6
Weather Band Receiver
PP103985
PP P/N

Operating Instructions

Advertisement

Table of Contents
loading

Related Manuals for Panasonic PP103985

Summary of Contents for Panasonic PP103985

  • Page 1: Operating Instructions

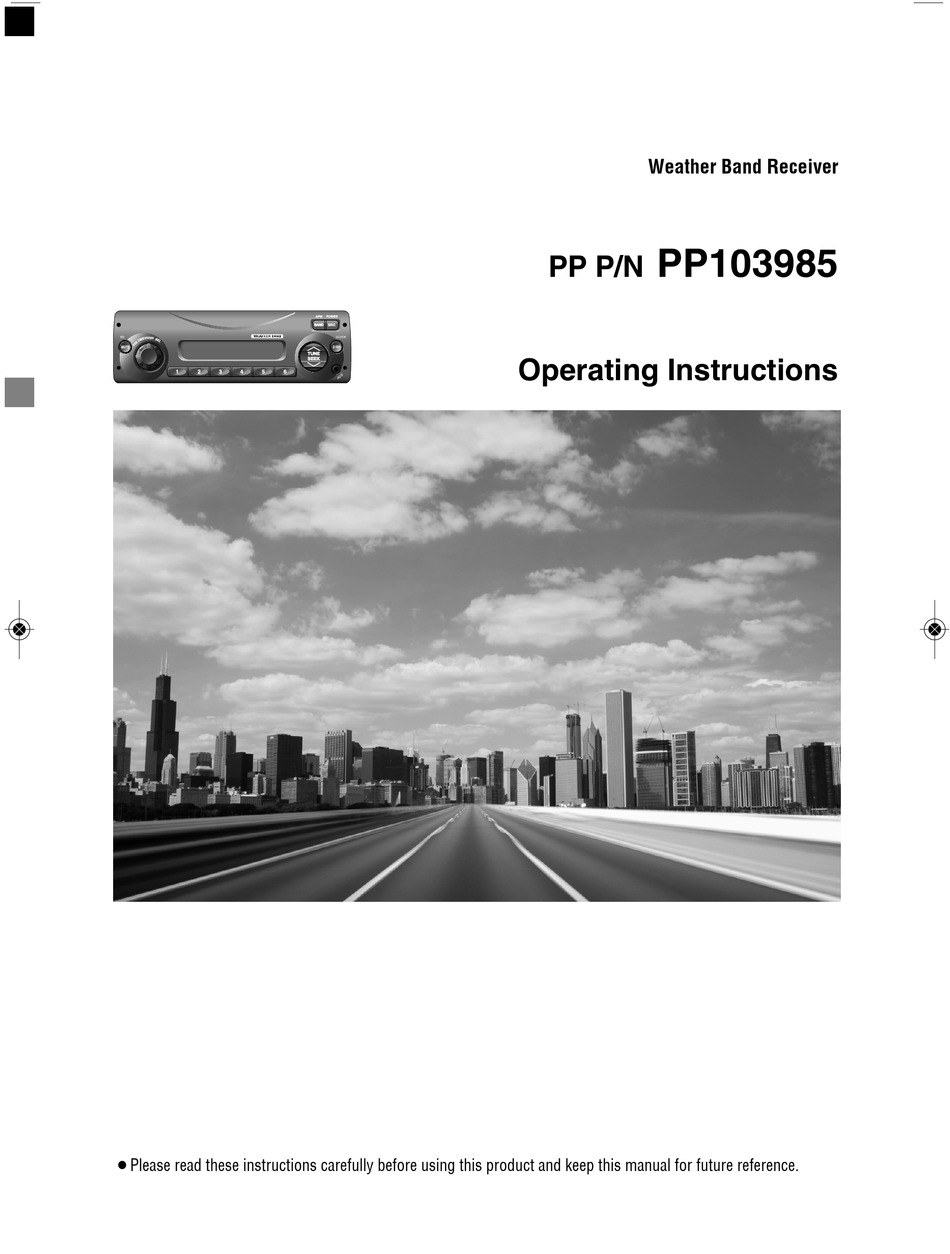

    Weather Band Receiver PP103985 PP P/N Operating Instructions ¡Please read these instructions carefully before using this product and keep this manual for future reference.

  • Page 2: Safety Information (Part 15 Of The Fcc Rules)

    Safety Information Read the operating instructions for the unit and all other This manual uses pictographs to show you how to use the components of your truck audio system carefully before product safely and to alert you to potential dangers result- using the system.
  • Page 3 When wiring, take care not to damage the leads. Prevent Caution them from getting caught in the vehicle chassis, screws, and moving parts such as seat rails. Do not scratch, pull, Observe the following cautions when bend or twist the leads. Do not run them near heat sources or place heavy objects on them.

  • Page 4: Table Of Contents

    Contents Safety Information (Part 15 of the FCC Rules) .........Page 2 Contents ....................4 q Power and Sound Controls.............5 Power, volume, mute, display change, illumination interlock control, SQ (Sound Quality), audio modes (Bass/Treble/Balance/Fader) q Clock Adjustment..............8 Initial time, time readjustment q Radio ................9 Radio mode, band, manual tuning, seek tuning, preset station setting, preset station calling, weather band station q AUX (Auxiliary Input Mode) ..........12...

  • Page 5: Power And Sound Controls

    Power and Sound Controls Power Turn the key in the ignition until the accessory indicator lights. Power on: Press [POWER]. Power off: Hold down [POWER] for more than 1 second. A C C One-Hour Timer With the ignition off, pressing the on this unit will turn on the [POWER] receiver and activate the receiver's one-hour timer.
  • Page 6 Power and Sound Controls (Continued) SQ (Sound Quality) SQ is a function that can call up various sound types at the touch of button in accordance with your listening music type. Press [SQ] for more than 2 seconds to select the sound type as follows: (FLAT) flat frequency response: does not emphasize any part.
  • Page 7 Audio Modes Note: If no operation takes place for more than 5 seconds in audio mode (2 seconds in volume (Bass/Treble/Balance/Fader) mode), the display returns to the regular mode. Push [SEL] to select the audio mode. Push Turn [VOLUME] clockwise or counter- clockwise to change each level.

  • Page 8: Clock Adjustment

    Clock Adjustment Selecting the Clock Display Press [DISP] to change the display. Radio mode display (default) Clock display The 12-hour system is used for the clock. [{TUNE] [}TUNE] (Hours, Minutes) Initial Time Time Readjustment qPress [DISP] (CLOCK). When you want to readjust the time, repeat steps w to y.

  • Page 9: Radio

    Radio Radio Mode Press [SRC] (source) to change to the radio mode. Radio AUX Mode Band Press [BAND] to change the band. (Weather Band) FM stereo indicator, lights while receiving an FM stereo signal. Manual Tuning [}TUNE]: Higher frequency [{TUNE]: Lower frequency Seek Tuning Press and hold for more than 0.5 seconds and release it.
  • Page 10 Radio (Continued) Preset Station Setting Up to 6 stations can be saved in each of the FM1, FM2 and AM preset station memories. Note: Existing saved stations are overwritten with new stations after following this procedure. Band Press [BAND] (APM) to select a desired band. page 9) Preset buttons from [1] to [6] Auto Preset Memory (APM)

  • Page 11: Tuning In A Weather Band Station

    Tuning in a Weather Band Station • Press [BAND] (APM) to select WB (Weather Band). page 9) • Press any of the buttons [1] to [6] to monitor the preset station. Weather Band Frequency (channel) Number Note: The weather band (CH1-6) has been preset. CH7 is se- lected by pressing [{] or [}].

  • Page 12: Aux (Auxiliary Input Mode)

    AUX (Auxiliary Input Mode) Before Using the Portable Audio Device Warning ¡ Please or temporarily fix the portable audio device and mini-plug cable where they will not interfere the driver when driving. Otherwise, they may interfere driving or cause accident. Connecting with the Portable Audio Player The AUX input terminal is equipped on the front panel.

  • Page 13: Display Change

    Listening to the Portable Audio Device q Turn on the connected portable audio device and play the music. w Press [SRC] (source) to change to AUX mode. The sound of the portable audio device is output through the speakers. Radio AUX Mode “AUIn”...

  • Page 14: Troubleshooting

    Troubleshooting If You Suspect Something Wrong Warning Check and take steps as described below. If the described suggestions do not solve the problem, it is ¡Do not use the unit in an irregular condi- recommended to take the unit to your dealership. The tion, for example, without sound, or with product should be serviced only by qualified personnel.

  • Page 15: Product Servicing

    Sound Setting Problem Possible cause Possible solution Left and right balance, or front and rear balance is off on one side. No sound from left, Adjust BAL/FAD as appropriate. right, front, or rear Cables are not correctly connected. speaker. aConnect the cables correctly. The right speaker wire is connected to the left speaker and the left Left and right speaker wire to the right speaker.

  • Page 16: Maintenance

    Maintenance Care of the Unit p Cleaning this Unit p Caution on Cleaning Use a dry, soft cloth to wipe. Never use solvents such as benzine, thinner as they may mar the surface of the unit. Your product is designed and manufactured to ensure the minimum of maintenance. Use a soft cloth for rou- tine exterior cleaning.

  • Page 17: Specifications

    Specifications p General Power Supply: 12 V DC (11 V-16 V) test Voltage 14.4 V, Negative @ ground Current consumption: Less than 2.5 A (0.5 W 4-speaker) 37 W × 4 channels at 400 Hz, Volume Control maximum Maximum Power Output: Tone adjustment range: Bass: ±...

  • Page 18: Specification From The Terminal End (Rear Connector Of This Unit)

    Specification from the Terminal End (Rear Connector of This Unit) Specification from the terminal end (Rear connector of this unit) Cavity Pin # Function Park Lights ACC (Ignition) Cavity C 15 18 Dim PWM Battery Cavity B Power Ground RR+ (Speaker) O 10 RR- (Speaker) Cavity A 11 RF+ (Speaker)
  • Page 19 Memorandum...
  • Page 20 YFM264C214CA PTW1009-1119 Printed in China...
