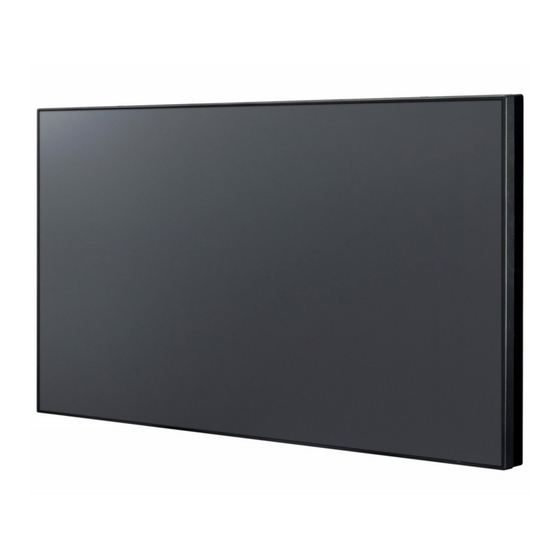

Panasonic TH-47LFV5W Operating Instructions Manual

Full hd lcd display
Hide thumbs Also See for TH-47LFV5W:
Table of Contents

Advertisement

Quick Links

Operating Instructions
FULL HD LCD Display
Please read these instructions before operating your set
English
and retain them for future reference.
Model No.
TH-47LFV5W

Advertisement

Table of Contents
loading

Related Manuals for Panasonic TH-47LFV5W

Summary of Contents for Panasonic TH-47LFV5W

  • Page 1 Model No. TH-47LFV5W Operating Instructions FULL HD LCD Display Please read these instructions before operating your set English and retain them for future reference.

  • Page 2: Table Of Contents

    Dear Panasonic Customer Welcome to the Panasonic family of customers. We hope that you will have many years of enjoyment from your new LCD Display. To obtain maximum benefit from your set, please read these Instructions before making any adjustments, and retain them for future reference.

  • Page 3: Important Safety Notice

    If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local Panasonic dealer. Do not cut off the mains plug. Do not use any other type of mains lead except the one supplied with this display.

  • Page 4: Safety Precautions

    Do not place any objects on top of the Display. • If water is spills onto the Display or foreign objects get inside it, a short-circuit may occur which could result in fire or electric shock. If any foreign objects get inside the Display, please consult your local Panasonic dealer. Transport only in upright position! • Transporting the unit with its display panel facing upright or downward may cause damage to the internal circuitry.
  • Page 5 Display, immediately unplug the power supply plug from the wall outlet. • If you continue to use the Display in this condition, fire or electric shock could result. After checking that the smoke has stopped, contact your local Panasonic dealer so that the necessary repairs can be made. Repairing the Display yourself is extremely dangerous, and shall never be done.

  • Page 6: Cleaning And Maintenance

    Safety Precautions CAUTION „ When using the LCD Display Do not bring your hands, face or objects close to the ventilation holes of the Display. • Heated air comes out from the ventilation holes at the top of Display will be hot. Do not bring your hands or face, or objects which cannot withstand heat, close to this port, otherwise burns or deformation could result.

  • Page 7: Accessories

    Accessories Accessories Supplied Check that you have the Accessories and items shown Operation instruction book CD-ROM (Operation instruction) Wire clampers Connector cable of remote AC Power Cord DVI cable control L type connector of HDMI L type connector of "DVI-I". L type connector of "DVI-D".

  • Page 8: Vesa Mounting

    VESA Mounting To mount this Display to a wall, you will have to obtain a standard wall-mounting kit (commercially available). 1. Lay a protective sheet on a table, which Protective Sheet was wrapped around this Display when it was packaged, beneath the screen surface so as not to scratch the screen face.

  • Page 9: Parts And Functions

    Parts and Functions Control Panel POWER button MENU button Use this button to turn this Display on or put this Display Press to activate the OSD menu when OSD menu is off. to standby. Press to return to previous menu while OSD menu is on. MUTE button Remote control sensor and power status Switch the audio mute ON/OFF.

  • Page 10: Input/Output Terminals

    Input/Output Terminals AC IN PC IN Connect the supplied power cord to the wall outlet. Input the PC source. MAIN POWER SWITCH AUDIO IN 1 Press to switch the main power on/off. Input the PC audio source (3.5 mm stereo phone jack). IR TRANSMITTER IN / OUT COMPONENT/VIDEO IN (BNC) Reserved for the wired connection of the IR control.

  • Page 11: Connections

    Connections AC Cord Connection Cable Securing 1. Plug the AC cord into this Display. There are three clampers supplied to secure cables at three positions. 1. Attach the clamper. 2. Plug the AC cord firmly until it clicks into position. Make sure he AC cord is locked on both the left and right sides. Attach the clamper To remove from the unit: hole...

  • Page 12: Using Video Input

    DVD/VCR/VCD Connection Using COMPONENT input Audio Out COMPONENT Out (YPbPr) DVD / VCR / VCD [AUDIO IN 2] [COMPONENT IN] (YPbPr) Using VIDEO input [Red] [Yellow] [White] AV Out DVD / VCR / VCD [AUDIO IN 2] [Yellow]...

  • Page 13: Using Hdmi Video Input

    Using HDMI video input DVD / VCR / VCD HDMI Out [HDMI IN] When there is no margin in downward space, In order to prevent slack of a HDMI connector, please use the L type connector. please fix certainly by a clamper. Pin assignments and signal names for HDMI terminal: Pin No.

  • Page 14: Using Pc Input

    PC Connection Using PC input PC Out D-Sub 15 pin Audio Out [AUDIO IN 2] [PC IN] [AUDIO IN 1] Signal names for mini D-sub 15-pin connector: Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name GND (Ground) NC (not connected) GND (Ground) GND (Ground)

  • Page 15: Using Dvi Input

    Using DVI input Audio Out [AUDIO IN 2] [DVI-D IN] [AUDIO IN 1] DVI-D Input Connector Pin Layouts: Pin No. Signal Name Pin No. Signal Name T.M.D.S. Data2 - — When there is no margin in downward T.M.D.S. Data2 + +5 V DC space, please use the L type connector.

  • Page 16: External Audio Connection

    External Audio Connection Using audio out Audio In Stereo Amplifier [AUDIO OUT] Using speakers out External speakers To connect the speaker wire: 1. While pressing the lever, insert the core wire. 2. Return the lever. Black Black...

  • Page 17: Serial Terminals Connection

    SERIAL Terminals Connection The SERIAL terminal is used when this Display is controlled by Signal names for SERIAL IN terminal: a computer. Pin No. Signal Name Display No.1 [RS-232C] NOTES: • Use the RS-232C cross cable to connect the computer to These signal names are those of computer specifications.

  • Page 18: Daisy-Chain Connection

    Daisy-chain Connection You can interconnect multiple displays to create a daisy-chain configuration for video wall applications. NOTES: • Use the RS-232C cross cable (female) to connect the computer to this Display,and Display to Display. • The computer shown is for example purposes only. • A DVI cable and IR cable are attached. • When using daisy chain, set the “TILING” menu option in the OSD “CONFIGURATION2 menu”. (see page 27) • Up to 10 displays can be connected with a DVI daisy chain, but the number of the connected displays may be limited by a cable signal or equipment to use.

  • Page 19: Using Network Function

    Using Network Function This display has a network function to control the network connected display with your computer. NOTE: • To use the network function, set each {LAN SETTING} setting and make sure to set the {SERIAL CONTROL} to {LAN}. (see page 20, 28) Network Connection Display (main unit, rear)

  • Page 20: Osd Menu Setup For Network Connection

    OSD Menu Setup for Network Connection To proceed the network setting, you will have to enter the OSD menu. SERIAL CONTROL: 4. In the submenu, press [ ] or [ ] button to select the {DHCP CLIENT} menu, press [ ] or [ ] button to select Select {LAN} as the nectwork control port.

  • Page 21: Using Web Browser Control

    Using Web Browser Control You can use a Web browser to control this Display and set up a network and password. NOTE: • The “Web Browser Control” is currently supported with Windows IE6, IE7, or IE8. Before Using Web Browser Control To use the Web browser control, the Display and computer setups are required.

  • Page 22: Access From Web Browser

    3. Enter the {Username} and {Password} when the Authentication screen is displayed. Authentication screen 4. Click [OK]. NOTES: • Default {Username} and {Password} are as follows: {Username}: admin {Password}: 0000 • Panasonic Corporation and its affiliated companies never directly ask customers for their password. Do not give out your password even if directly asked by a third-party representing themselves as Panasonic Corporation.

  • Page 23: On-Screen Display Menu

    On-Screen Display Menu Entering the OSD Menu OSD Menu Overview Using this Display’s control buttons PICTURE menu PICTURE BRIGHTNESS CONTRAST SHARPNESS BLACK LEVEL TINT COLOR COLOR TEMPERATURE 10000K USER COLOR GAMMA SELECTION NATIVE NOISE REDUCTION FILM MODE AUTO PICTURE RESET :SEL :NEXT :RETURN...

  • Page 24: Screen Menu

    NOTE: This item is functional only when {COLOR H POSITION TEMPERATURE} is set to {USER}. Press the [ ] button to move the image to the right, or [ ] to move the image to the left. GAMMA SELECTION NOTE: This item is functional for PC input only. Gamma is what controls the overall brightness of an image.

  • Page 25: Configuration1 Menu

    CONFIGURATION1 menu V ZOOM Expands the vertical size of the image only. CONFIGURATION1 OFF TIMER H POSITION SCHEDULE DATE AND TIME Moves the horizontal position of the CONFIGURATION1 RESET image left or right. NOTE: This item is functional for PC input only.

  • Page 26: Configuration2 Menu

    CONFIGURATION2 menu 3. Press [ ] or [ ] button to select the schedule: POWER-ON schedule: Press [ ] or [ ] button to set the hour and minute for this Display to turn on. CONFIGURATION2 POWER-OFF schedule: Press [ ] or [ ] button to LANGUAGE...

  • Page 27: Tiling

    TILING POWER ON DELAY Select the delayed time until the power-on mode is activated With this function you can create a single large-screen matrix after the power is turned on manually or automatically. This (video wall) that consists of up to 25 sets of this Display (up setting is useful in hiding start-up messages and powering on to 5-set each at the vertical and horizontal side).

  • Page 28: Screen Saver

    SCREEN SAVER INPUT CHANGE Select the time for input switching as {NORMAL} or {QUICK}. Choose to enable the panel saving functions to reduce the NOTE: The selection {QUICK} may cause a slight noise. risk of the “image persistence”. TERMINAL SETTING SCREEN SAVER Select the mode to display the HDMI or DVI signal according COOLING FAN...
  • Page 29 LAN SETTING FACTORY RESET Assign {IP ADDRESS}, {SUBNET MASK}, and {DEFAULT Reset all the settings in the OSD menus of {PICTURE}, GATEWAY} for this Display. {SCREEN}, {AUDIO}, {CONFIGURATION1}, {CONFIGURATION2}, {CONFIGURATION3}, and {ADVANCED OPTION} to factory preset values. ADVANCED OPTION LAN SETTING 1.

  • Page 30: Input Mode

    Input Mode PC Resolution: Active Resolution Standard Refresh Rate Dot Clock Aspect Ratio Stand for Mode Resolution H Pixels V Lines 60 Hz 25.175 MHz Video Graphic 72 Hz 31.5 MHz Array 75 Hz 31.5 MHz Wide Video WVGA 70 Hz 33.75 MHz 16:9 Graphic Array...

  • Page 31: Cleaning And Troubleshooting

    Cleaning and Troubleshooting Cleaning Caution When Using this Display • Do not bring your hands, face or objects close to the ventilation holes of this Display. The top of this Display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Burns or personal injuries may occur if any body parts are brought too close.

  • Page 32: Troubleshooting

    Troubleshooting Before you call for service, determine the symptoms and make a few simple checks as shown below. Symptom Possible Cause Remedy No picture is displayed 1. The power cord is disconnected. 1. Plug in the power cord. 2. The main power switch on the back 2.
  • Page 33 Symptoms Checks Picture Sound Electrical Appliances Interference Noisy Sound Cars / Motorcycles Fluorescent light Volume Normal No Sound (Check whether the mute function has been activated on the remote control.) Picture Not plugged into AC outlet Not switched on No Picture No Sound PICTURE and BRIGHTNESS/Volume setting (Check by pressing POWER button on this Display or on the remote control.)

  • Page 34: Technical Specifications

    Technical Specifications Display: Item Specifications Screen Size 47” LCD Active Screen Size 46.96 inches (1192.87 mm) diagonal Aspect Ratio 16:9 Number of pixels 1920 (H) × 1080 (V) Pixel Pitch 0.5415 (H) × 0.5415 (V) [mm], 0.0213 (H) × 0.0213 (V) [inch] Displayable Colors 10 Bit (D), 1.06 Billion colors Brightness (typical)
  • Page 35 Model Number Serial Number Pursuant to the directive 2004/108/EC, article 9(2) Panasonic Corporation Panasonic Testing Centre Web Site: http://panasonic.net Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, F.R. Germany © Panasonic Corporation 2014...
