Tarheel Antennas, Inc.
Instruction Manual
for the

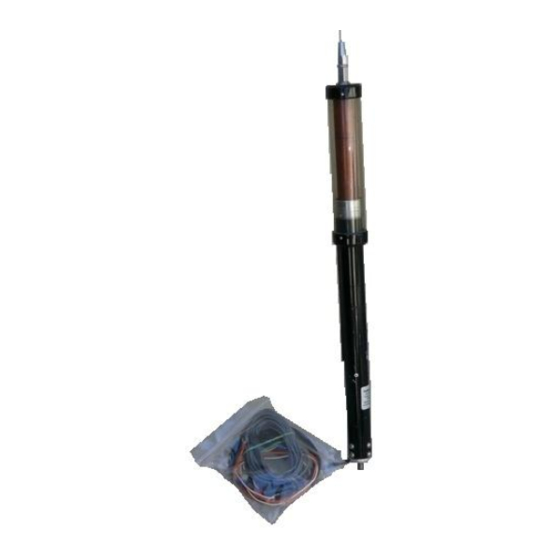

Little Tarheel II
Continuous Coverage
HF Antenna
PROUDLY MADE IN THE
UNITED STATES OF AMERICA
18511 CR 304
St. Joseph, MO 64505
816-671-9409 / 816-364-2619 Fax
E-mail: sales@tarheelantennas.com
Technical Support
919-552-8788
E-mail: tarheelantennas@aol.com
www.tarheelantennas.com
