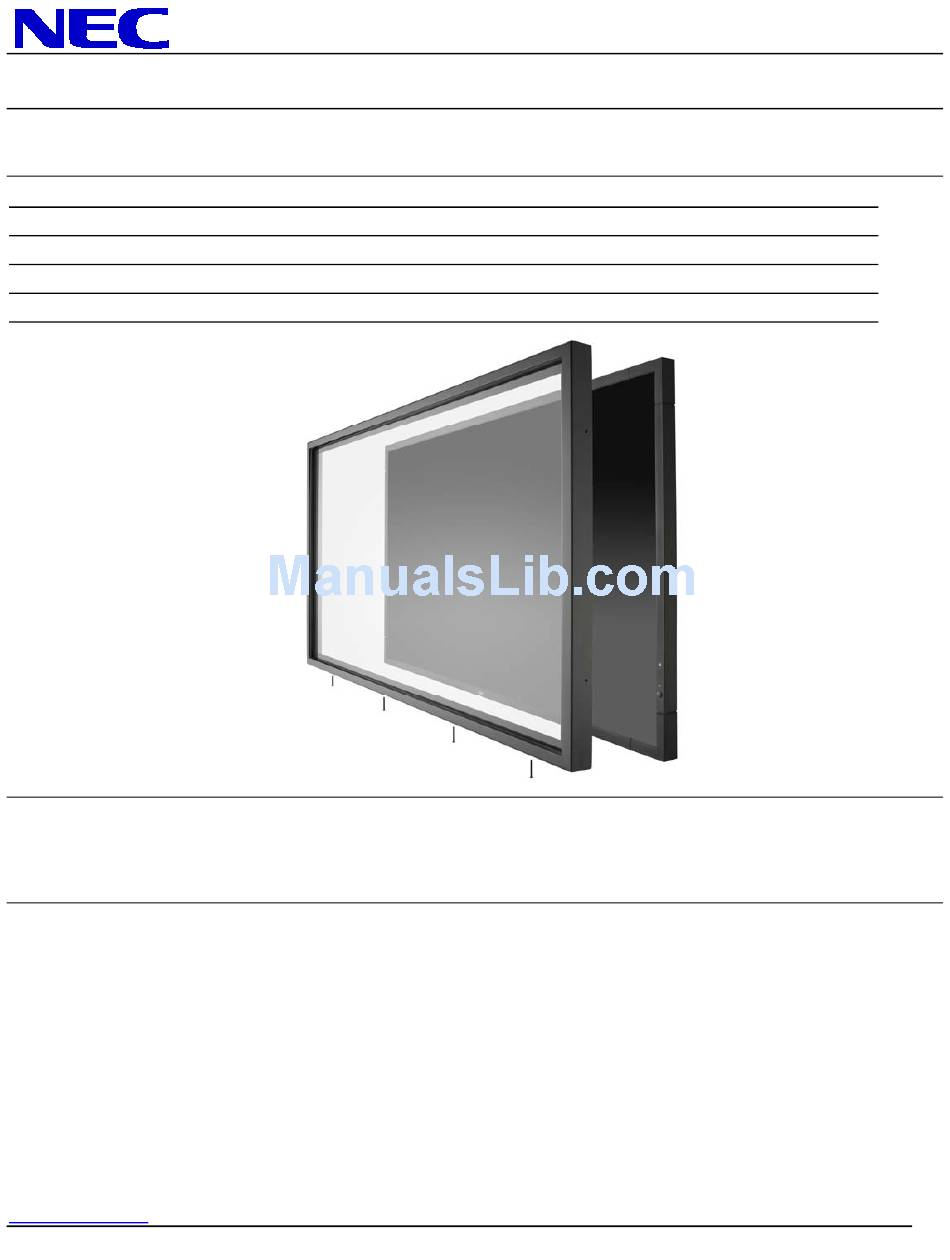

Integration Procedures Page 3 Purpose This procedure describes the steps to install the OL-V652 IR Touch Overlay onto the V652 display Notes and Warnings The overlay contains tempered glass. Use caution when handling. The overlay has an integrated USB cable located in the bottom right corner. Ensure the cable is not pinched, crushed, or damaged during installation.
Page 2
NEC Display Solutions of America, Inc. OL-V652 Installation Guide 10 Point Touch Overlay for the V652 Equipment OL-V652 IR touch screen overlay Bezel retention brackets for OL-V652 6-32 x 1/4" Undercut Phillips Machine Screws Note: Quantity (1) Machine Screw Provided as Spare 10ft.
Page 3
NEC Display Solutions of America, Inc. OL-V652 Installation Guide 10 Point Touch Overlay for the V652 Integration Procedure Place the display face up on a padded surface for overlay integration. 6.1.1 Note that if the unit is already mounted, removing the unit and placing it face up is optional;...
Page 4
NEC Display Solutions of America, Inc. OL-V652 Installation Guide 10 Point Touch Overlay for the V652 6.8.1 Slide the bezel retention bracket from the rear of the monitor between the bottom of the monitor and the touch frame bezel. 6.8.2 Align the bracket screw hole with the bezel.
