A Rear Panel
q w e r
Press this button to set the HUB to Pairing mode when adding an additional
1
Wireless Audio - Multiroom or to switch the HUB to Repeater mode.
SPK ADD
(Press and hold for 1 second to switch to Pairing mode. Press and hold for 10
seconds to switch to Repeater mode.)
2
Used to update the firmware.
SERVICE
The SERVICE port is only for updating.
Used to connect a LAN cable.
If you want to connect another wired device to the router that the HUB is
3
connected to, and all the router's wired ports are occupied, you can connect it
ETHERNET SWITCH
to an unoccupied LAN port on the HUB.
Connecting to the HUB provides the same functionality as being connected to the
router. However, the link to the router will be lost if you power off (unplug) the HUB.
Note : The HUB and the router must have a hard-wired connection.
4
RESET Press the RESET button with a pen tip for 5 seconds to reset the HUB.
5
DC IN
Connector for the power cable.
WAM250
HUB
AH68-02717A-01
AH68-02717A
t

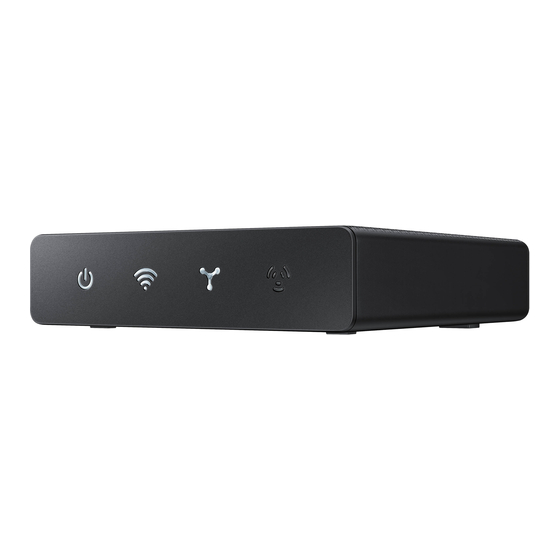

A Front Panel
q w e r
1
This indicator turns on when power is supplied to the HUB.
This indicator blinks when the HUB is in pairing mode.
2
After pairing is complete, this indicator stops flashing and operates in normal mode.
Pairing mode continues for a set time period. The indicator may keep blinking after pairing is
completed.
3
This indicator turns on when the HUB is connected to a wireless router with an Ethernet cable.
This indicator turns on when the HUB is set to Repeater mode and used to expand wireless Wi-Fi
4 coverage in a network that includes another HUB and a wireless router.
If you have trouble connecting the HUB and Wireless Audio - Multiroom because the signal
is blocked or the distance between them is too great, add a new HUB in Repeater mode to
expand wireless coverage.
A What's included
LAN cable
A Connecting the HUB to Your Wi-Fi Network
• A Wireless Audio - Multirooms can be used anywhere your Wi-Fi signal reaches.
Power Adaptor User Manual
Connect the HUB to your router or modem using a
1
LAN cable.
Plug the included power cable into the back of
2
the HUB, and then plug the power cord into a wall
socket.
After the Pairing Indicator on the HUB lights, plug in
3
the Wireless Audio - Multiroom.
(For more information, see the User Manual.)
