Summary of Contents for Core Lighting ColourPoint MK2

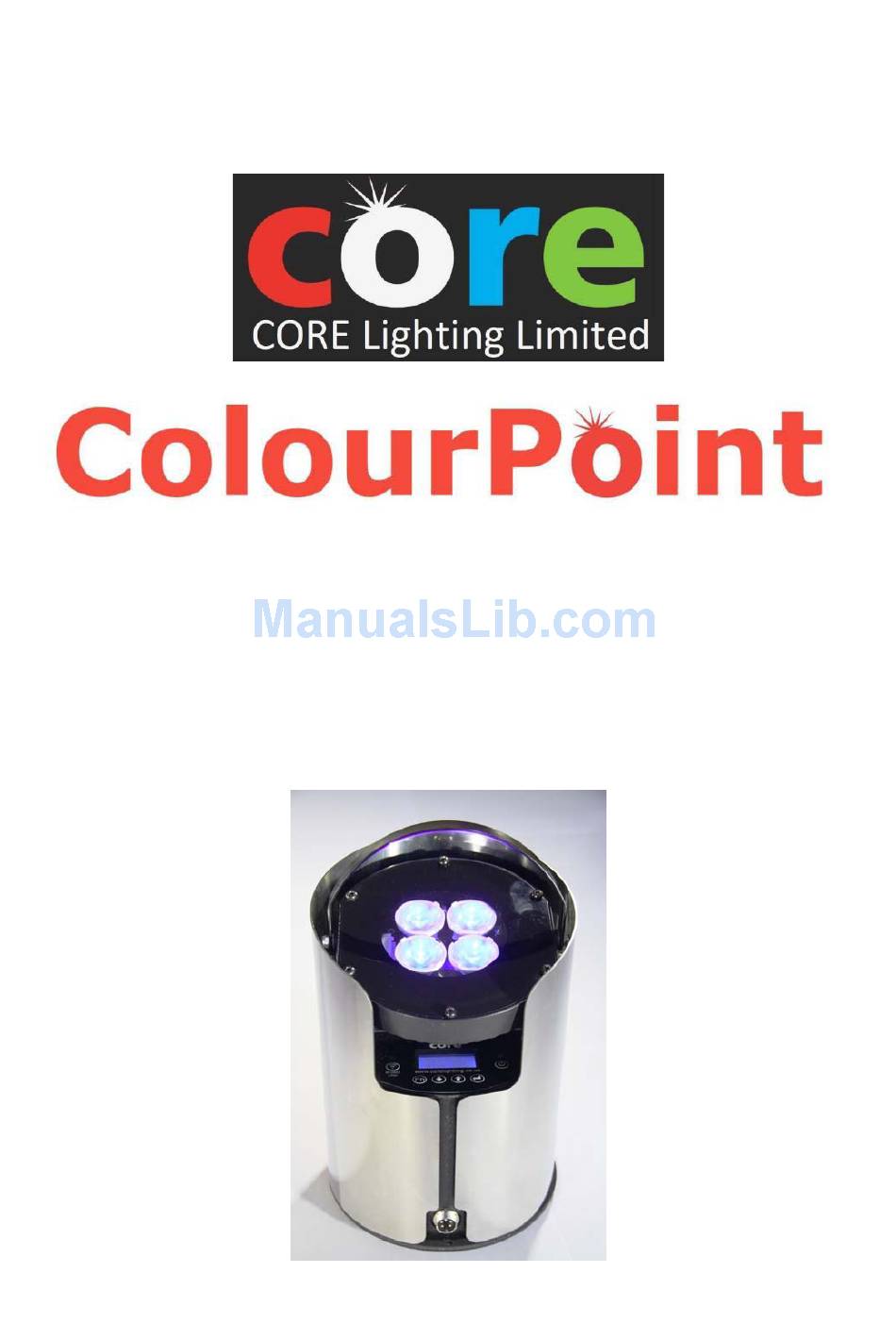

- Page 1 USER MANUAL Battery Wireless Uplighter ...
- Page 2 © 2015 ABC Production Services Ltd. (www.abcgb.com), all rights reserved ...
-
Page 3: Table Of Contents
Contents Product Modification .......................... 5 Safety Information .......................... 5 Before You Begin ............................. 5 Product Overview ........................... 6 Features .............................. 6 Supplied with Hire .......................... 6 Safety .............................. 6 Getting Started ............................ 7 Power .............................. 8 Ventilation and Mounting ........................ 8 Operation .............................. ... - Page 4 Unpairing from all W‐DMX Transmitter units ................... 1 4 Pairing with a W‐DMX Transmitter unit or ColourPoint Master unit .......... 1 4 Pairing with a CORE Point15, Point20 or Point30 Master unit ............ 1 4 Additional Settings .......................... 1 5 Power Mode ............................ 1 5 Brightness Control.......................... 1 5 PWM Frequency Control ........................ 1 5 Keypad Lock ............................ 1 5 Mechanical ............................ 1 6 Dimensions ............................ 1 6 Antenna ...
-
Page 5: Product Modification
Product Modification This CORE Lighting product has been designed and manufactured to meet the strict requirements of UK, EU and International safety regulations. Any unauthorised modifications to the product including replacement of parts with non‐standard parts could compromise safety and result in the product being non‐compliant with relevant standards. If the hirer modifies the unit in any way without consent from ABC Production Services, they will be liable for a repair charge and additional hire charges while the unit is out of use. There are no user serviceable parts within this product. Safety Information Important safety information is contained within this manual. Please read all instructions fully prior to installation and use of the equipment. Internationally recognised symbols are used within the document to highlight important messages as follows: Critical installation or usage information. Failure to comply with this information may cause damage to the product, third party equipment or cause harm or injury. Important installation or usage information. Failure to comply with this information may cause the product to operate incorrectly. Note: Restrictions apply to transporting this equipment on aircraft due to the lithium polymer batteries having capacity greater than 100Wh. Please consult IATA Packing Instructions for further information. Before You Begin The CORE ColourPoint fixture is a battery‐powered wireless up‐lighter capable of providing portable and instant architectural and feature lighting anywhere. With high‐powered red, green, blue and white LEDs the fixture is capable of producing any colour or shade of white using combinations of those LEDs. Ideal for illuminating buildings in colour, both indoors and outdoors, the fixture is powerful enough to light buildings of 3 or 4 storeys. Lighting effects may be created by connecting to effects generators such as lighting desks or other CORE Master units using the in‐built Wireless DMX receiver. Simply connect wirelessly to the transmitter of the generator. The product is designed and manufactured in the UK. © 2015 ABC Production Services Ltd. (www.abcgb.com), all rights reserved ... -
Page 6: Product Overview
Product Overview Features High powered 2,000 lumen RGBW LEDs equivalent to 5300 Lux @ 2m 4 x Cree high‐powered RGBW LED arrays Lithium Ion Battery reducing unit weight to just 4.0Kg LEE Filter Colour Library, separate RGBW control and built‐in colour programs. Wireless DMX wireless master and slave control (2.4GHz W‐DMX) Cable DMX output of full universe– unit acts as Wireless DMX receiver to cable DMX converter 4 or 5 Channel DMX operation Variable PWM frequency for TV work Intuitive LCD menu Designed and Manufactured in the UK Operating temperature range ‐20°C to +45°C or ‐4°F to +113°F Supplied with Hire When hiring these units, the following will be supplied. Please contact ABC Production Services Ltd. immediately if there are any signs of product damage or parts missing. Single Unit: Charging Case of Six Units: 1x ColourPoint wireless LED fixture 6x ColourPoint wireless LED fixture 1x Stainless steel shroud 6x Stainless steel shroud 1x Manual 1x Manual 1x Flightcase 1x 13A Powercon power cable Safety ... -
Page 7: Getting Started
Getting Started Handle LED Emitters Chrome Shroud Control panel Charging, power and DMX out port W‐DMX Indicator LED W‐DMX Display button Charging status LED Power button Enter button Function button Down button Up button © 2015 ABC Production Services Ltd. (www.abcgb.com), all rights reserved ... -
Page 8: Power
Power The battery charger may be included as an accessory for individually hired fixtures or built into the flight case for the charging of multiple fixtures. In either case the supply has an input voltage range of 100‐240 VAC at 50/60Hz. Ensure the product is used only with correct voltage and frequency of mains supply. Never connect the charger or charging case to a dimmer circuit, even when a dimmer has been configured for ‘non‐dim’ or ‘switched operation. Ventilation and Mounting Always use the product in a safe position and ensure there is enough room around it for ventilation. Never close the lid during charging; this allows escape of heat. Operation Power Push and hold this power button for >1 second to switch the unit ON or OFF. The display will show “Core Lighting” and software version for a few seconds before starting. The display backlight will extinguish after a short time to reduce power use Reset To reset the unit, hold down the up and down buttons then press the power button. When the unit starts up, release the buttons an the unit will start up as usual and followed by the message “MASTER RESET” to confirm the unit has reset. Charging Turn the unit OFF before connecting to the charger Only use the supplied charger or charging case For case chargers the unit should be inserted into the case. ... -
Page 9: Control Panel
Control Panel Enables changes to FUNCTION or SETTINGS menus Exits from the current option or menu Navigates backwards through the menu list or decrements a numeric value or navigates back through available values Navigates forward through the menu list or increments a numeric value or navigates forward through available values Enters the currently displayed menu option or saves the currently displayed value Wireless key to enable linking to a W‐DMX transmitter in “Slave” mode or in “Master” mode it adds new slaves Power button turns the unit on and off External Power A separately available power supply is available as an accessory to drive the ColourPoint from mains voltage 100‐250VAC 50/60Hz. Connect this to the charging/power port in the front of the unit. The device supplies 24VDC to the ColourPoint which replaces battery power. Battery is disconnected whilst the Power Supply is plugged in so will not be charged or discharged. © 2015 ABC Production Services Ltd. (www.abcgb.com), all rights reserved ... -
Page 10: Function Modes
Function Modes There are three modes of Operation, accessed through the FUNCTION menu; Cust This mode allows the fixture to output a static Red, Green, Blue or White colour, or any combination thereof; each colour may be set to any value 0 to 255. Col Any W‐DMX signal, if present, is ignored. Static In this mode the fixture outputs a static LEE or preset ‘cc’ colour as selected. The selection is remembered if the unit is switched off then back on or put into another mode. Any W‐DMX signal, if present, is ignored. DMX In this mode the fixture is under control of Wireless DMX so may be controlled by a W‐DMX compatible device or DMX compatible device with a W‐DMX transmitter attached. The options available within DMX mode are described in more detail below. & To change Function press . Use the keys to select “CHANGE Function” and press to accept. & Then use the keys to select the required function as above and press . The three modes of operation are discussed in more detail below. All of these adjust the brightness settings for each colour. Information for more technical users: the brightness is set using Pulse Width Modulation (PWM). The PWM frequency is 610Hz. Cust Col When in Custom Colour mode the display indicates the current selected FUNCTION colour. Cust Col Simply press ... -
Page 11: Static Operation
Static Operation When in STATIC mode the display indicates the current selected colour. STATIC To change the current selected colour press . Lee345 The last character of the currently selected colour is underlined & Use the keys to select a colour from the built‐in library of 70 pre‐programmed colours, including 60 popular LEE Filter Colours The colour changes when cycling through the available options. The selected colour is only saved when is pressed. If is not pressed, the colour reverts to the previously selected colour after 8 seconds. Available Colours: cc001 White Lee075 Evening Blue Lee157 Pink cc002 Half Flesh Tone Lee089 Moss Green Lee159 No Colour Straw cc003 Full Flesh Tone Lee100 Spring Yellow Lee162 Bastard Amber cc004 Half Mint Green ... -
Page 12: Dmx Operation
DMX Operation CORE ColourPoint is equipped with a Wireless Solution W‐DMX wireless radio transmitter Function and receiver. This allows the fixture colour to be set up by or synchronized with sequences produced by a DMX lighting controller or other ColourPoint unit when in Receive, or SLAVE mode. Alternatively when in MASTER mode the unit can be linked to many Slave units which will then duplicate everything output from the Master. If you are not using a ColourPoint as a Master unit then a compatible W‐DMX transmitter attached to a DMX controller is necessary. This could be a lighting desk, a specific controller, or a CORE Point 15, 20 or 30 Master unit. When the ‘Function DMX’ screen is shown, after a few seconds the screen automatically DMX Type reverts to the last mode used, either Master or Slave. By pressing the key the ‘DMX or Master Type’ screen is shown, which allows the user to select the opposite mode using key. DMX Master Operation Once Master mode is set, the Master may be linked to any number of unlinked slaves by pressing the Wireless key momentarily. Master to the unlinked slave units The adjacent link light will flash for a few seconds whilst it links then go solid. DMX Slave Operation When in DMX Slave mode the display will show the current active DMX Start Address so Set DMX the unit can be controlled from elsewhere. The number of channels occupied is depends on the “DMX MODE” setting (4 or 5 channels Addr: 001 may be used by the fixture). In this mode the entire universe is output on a side connector pin, for which a connector cable is available to hire ... -
Page 13: Dmx Start Address
DMX Start Address To set the DMX start address press the key when the display shows the current address. Use the or keys to select the new start address then the key to confirm. Built‐In Effects The ColourPoint is equipped to generate a number of special effects as a stand‐alone Function unit when DMX is placed in Slave Mode or will output these to a number of connected slave units when DMX is in Master Mode. Effect By pressing the key the last used effect type is brought up, which can then be Type: changed using the keys. R’bow 1 By pressing the key to confirm the effect type, the speed can be adjusted from a EFFECT range 1 to 10 using the and keys. When confirmed with the key the screen reverts to show the effect and speed. R’bow 10 W‐DMX Pairing and Unpairing ColourPoint units need to be manually paired with the lighting control unit equipped with a W‐DMX transmitter. This could be a lighting desk with DMX Output, or a CORE Point15/20/30 Master unit with a W‐DMX transmitter inside. This allows a group of ColourPoint fixtures to be controlled from the lighting desk or Point15/20/30 Master using the ... - Page 14 Unpairing from all W‐DMX Transmitter units Switch on the ColourPoint. Press and hold the key until the W‐DMX LINK LED is turned OFF. ColourPoint is now unpaired from the W‐DMX transmitter. Pairing with a W‐DMX Transmitter unit or ColourPoint Master unit Switch on the ColourPoint. Ensure the ColourPoint is unpaired from any other transmitter (the LINK LED is OFF) – above. Ensure the transmitter is within range and switched on. Press its ‘FUNCTION’ button for more than 1s. On a ColourPoint Master unit simply hold down the key momentarily. The transmitter will scan for all unlinked receivers for around 10 seconds; the LED will flash. If pairing is successful the LINK LED on the ColourPoint will illuminate. ALL Unlinked ColourPoint units (and other Unlinked W‐DMX units too) may be linked at the same time. No apparent limit to the number being paired. For receiver units not to be paired with this transmitter, simply switch off those unwanted receivers before this pairing process. They may be paired with a different transmitter after switching on again and repeating the pairing process with the new transmitter. Pairing with a CORE Point15, Point20 or Point30 Master unit Switch on the ColourPoint. Ensure the ColourPoint is unpaired from any other transmitter (the LINK LED is OFF) – above. Ensure the Master unit is within range and switched on. Select MODE MSTR → MSTR DMX → Add Unit → ‘+’ to select ‘YES’ → to confirm. The transmitter will scan for all unlinked receivers for around 10 seconds; the LINK LEDs flash. ...
- Page 15 Additional Settings A number of additional settings may be accessed within the menu system: Power Mode Under the “CHANGE Settings” menu ColourPoint has two power modes that can be selected: Power LongLife 50% Power Power Normal Full Power The “Normal” option provides maximum light output at the cost of reduced battery life. “LongLife” reduces the LED output by 50%, therefore enables 2 x running period for ALL FUNCTIONS, whether stand‐ alone or DMX. To change the power mode press the key and use the keys to select “CHANGE Settings” then press the key . Use the keys to select “POWER MODE” and press to select. Use the keys to toggle between “Norm” and “LongLife” then press to save changes. This setting affects all Static, Cust Colr and DMX modes so that the battery life of each unit can be individually set, irrespective of what’s controlling it. Brightness Control Under the “CHANGE Settings” menu ColourPoint has a separate brightness control that can control the output of the unit in stand‐alone mode: The value may be changed from 0 to 100% in five steps: 0%, 20%, 40%, 60%, 80%, 100%. Press the key and use the keys to select “CHANGE Settings” then press . to accept. Use the keys to select “BRIGHTNS CONTROL” and press to select. Use the keys to toggle between “0%” and “100%” then press ...
- Page 16 Mechanical Dimensions Antenna The antenna is a high‐gain type similar in performance to the Wireless Solutions W‐DMX 2dB standard antenna according to testing. This antenna is now fitted to all CORE POINT units. Locking The unit may be locked to a nearby object by passing a locking wire or padlock through the locking holes in the top or bottom plates. A Kensington Lock point is also provided on the bridle assembly holding the head in place. © 2015 ABC Production Services Ltd. (www.abcgb.com), all rights reserved ...
