- Page 1 CABINET PARTS REFRIGERATOR For Models: KBRS22EVWH1, KBRS22EVBL1, KBRS22EVMS1, KBLS22EVMS1 (White) (Black) (Monochromatic (Monochromatic Stainless−RH) Stainless−LH) 4−09 Litho in U.S.A. (mat) (eeb) Part No. W10268077 Rev. A...
-

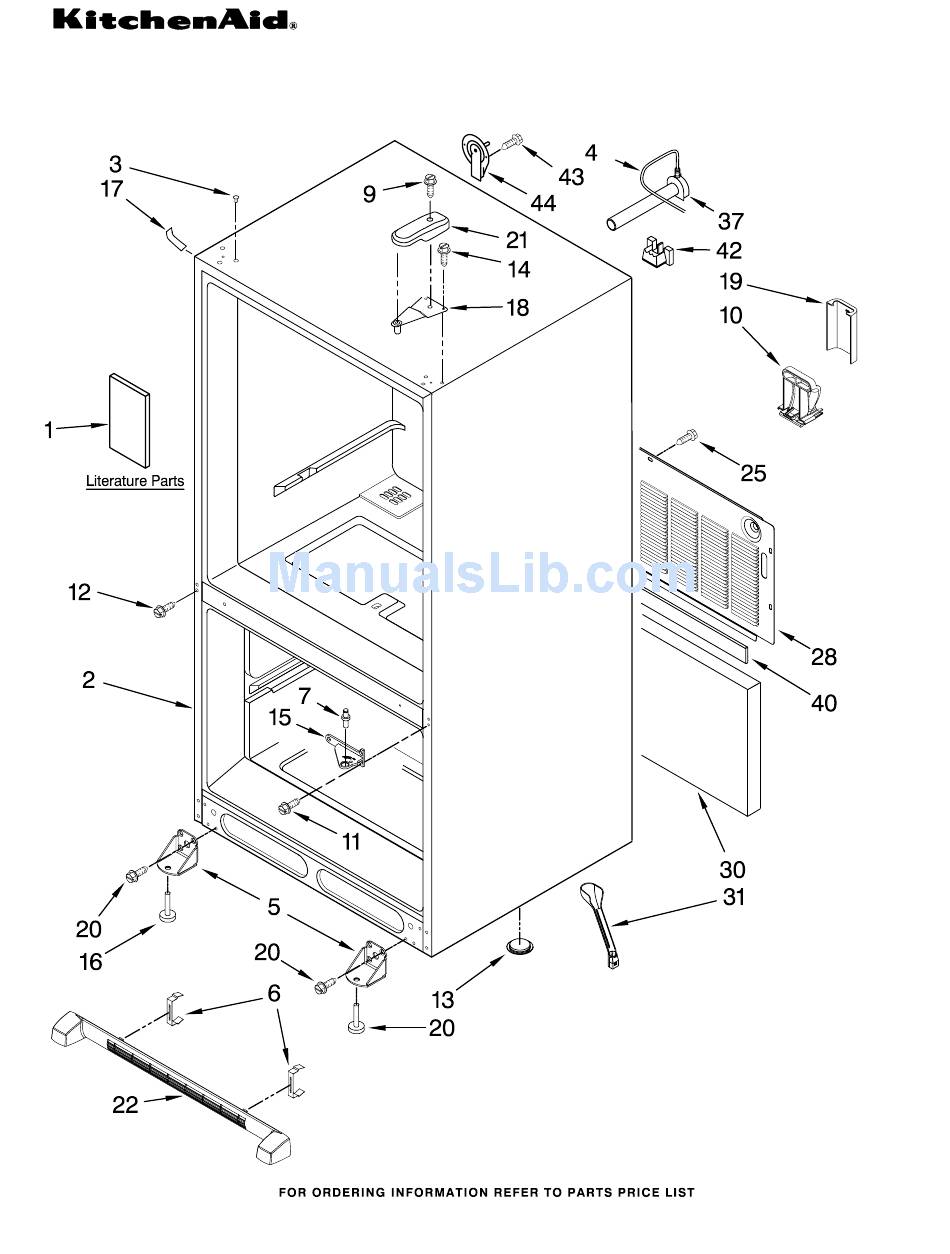

Page 2: Cabinet Parts
CABINET PARTS For Models: KBRS22EVWH1, KBRS22EVBL1, KBRS22EVMS1, KBLS22EVMS1 (White) Illus. Part W10137649 Use & Care Guide W10212714 Energy Guide W10238842 Tech Sheet 12477601W White 12246608 Black 4 B5705333SP Tube, Plastic W10212382 Left W10212381 Right 12627302 Clip, Grille 10351006 Pin, Center Hinge... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KBRS22EVWH1, KBRS22EVBL1, KBRS22EVMS1, KBLS22EVMS1 (White) (Black) (Monochromatic (Monochromatic Stainless−RH) Stainless−LH) W10268077... - Page 4 REFRIGERATOR LINER PARTS For Models: KBRS22EVWH1, KBRS22EVBL1, KBRS22EVMS1, KBLS22EVMS1 (White) (Black) Illus. Part 12806301 Module, Light 3 W10217738 Overlay 12806405 Housing, Control 5 W10217475 Board, Control 6 C3680310V Switch, Light (2) 12806501 Cover, Light 12806601V Housing, Light 9 W10194422V Bulb, Light (2)
-
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KBRS22EVWH1, KBRS22EVBL1, KBRS22EVMS1, KBLS22EVMS1 (White) (Black) (Monochromatic (Monochromatic Stainless−RH) Stainless−LH) W10268077... - Page 6 FREEZER LINER PARTS For Models: KBRS22EVWH1, KBRS22EVBL1, KBRS22EVMS1, KBLS22EVMS1 (White) Illus. Part A3189392 Gasket, Foam 12002497 Gear (Left) 12804901 Cover, Light 5 12812902WD Shaft 12570701V Socket, Light 12002497 Gear (Right) 12990521 Screw (8) 9 W10194422V Bulb, Light 12476401V Housing, Light...
-
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KBRS22EVWH1, KBRS22EVBL1, KBRS22EVMS1, KBLS22EVMS1 (White) (Black) (Monochromatic (Monochromatic Stainless−RH) Stainless−LH) W10268077... - Page 8 REFRIGERATOR DOOR PARTS For Models: KBRS22EVWH1, KBRS22EVBL1, KBRS22EVMS1, KBLS22EVMS1 (White) Illus. Part 12658583WQ White 12658583BQ Black 13023869SQ Stainless−RH 13023870SQ Stainless−LH 12991703 Screw 3 12804701SP Door, Dairy 4 12369502SP Tray, Dairy 5 12849125SP Bucket, Medium (3) 12246607 Black 7 12567321SP Gripper, Medium...
-
Page 9: Freezer Door Parts
FREEZER DOOR PARTS For Models: KBRS22EVWH1, KBRS22EVBL1, KBRS22EVMS1, KBLS22EVMS1 (White) (Black) (Monochromatic (Monochromatic Stainless−RH) Stainless−LH) W10268077... - Page 10 FREEZER DOOR PARTS For Models: KBRS22EVWH1, KBRS22EVBL1, KBRS22EVMS1, KBLS22EVMS1 (White) Illus. Part 13092244WQ White 13092244BQ Black 13092210SQ Stainless W10119642N White W10119643N Black W10119644N Stainless 13001201 Mount, Handle W10164036 White W10164037 Black W10180623 Apollo Grey 12991703 Screw (Black) (Monochromatic (Monochromatic Stainless−RH) Stainless−LH)
-
Page 11: Shelf Parts
SHELF PARTS For Models: KBRS22EVWH1, KBRS22EVBL1, KBRS22EVMS1, KBLS22EVMS1 (White) (Black) (Monochromatic (Monochromatic Stainless−RH) Stainless−LH) W10268077... - Page 12 SHELF PARTS For Models: KBRS22EVWH1, KBRS22EVBL1, KBRS22EVMS1, KBLS22EVMS1 (White) Illus. Part 12530701 Rail, Center 2 W10231483 Trim, Crisper 3 12530805SP Slide, Humidity 4 W10201223 Basket, Freezer 5 W10150038 Basket, Freezer 6 W10231333 Trim, Pantry Front 12990515 Screw (2) 8 W10205416 Divider, Basket...
-
Page 13: Unit Parts
UNIT PARTS For Models: KBRS22EVWH1, KBRS22EVBL1, KBRS22EVMS1, KBLS22EVMS1 (White) (Black) (Monochromatic (Monochromatic Stainless−RH) Stainless−LH) W10268077... - Page 14 For Models: KBRS22EVWH1, KBRS22EVBL1, KBRS22EVMS1, KBLS22EVMS1 Illus. Part DESCRIPTION 12992301 Screw 12825803 Blade, Fan 3 W10210983 Basepan 12990511 Screw 2264017 Capacitor 6 W10217745 Tube, Discharge 7 W10224515 Harness, Evap. Heater 8 W10189185 Pan, Drain 9 W10216919 Screw, Shoulder 12729128 Heater, Defrost...
-
Page 15: Icemaker Parts
ICEMAKER PARTS For Models: KBRS22EVWH1, KBRS22EVBL1, KBRS22EVMS1, KBLS22EVMS1 (White) (Black) (Monochromatic (Monochromatic Stainless−RH) Stainless−LH) W10268077... - Page 16 ICEMAKER PARTS For Models: KBRS22EVWH1, KBRS22EVBL1, KBRS22EVMS1, KBLS22EVMS1 (White) Illus. Part 2256086 Bracket, Ice Maker 2 B5705333SP Tube, Plastic 10526702 Clamp 489276 Screw 12544124 Valve−Inlet 12868001 Arm−Shut Off 12582501 Cover, Front 8 A3223101SP Insert, Tube 9 W10122527 Mold & Heater...
- Page 17 OPTIONAL PARTS (NOT INCLUDED) For Models: KBRS22EVWH1, KBRS22EVBL1, KBRS22EVMS1, KBLS22EVMS1 Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White 72032 Black 4392901 Biscuit PAINT, PRESSURIZED SPRAY (12 oz.) 350942 Primer, White 350930 White 350939 Black 4392901 Biscuit Important: The spray paint is...
