EB802000

IGNITION SYSTEM

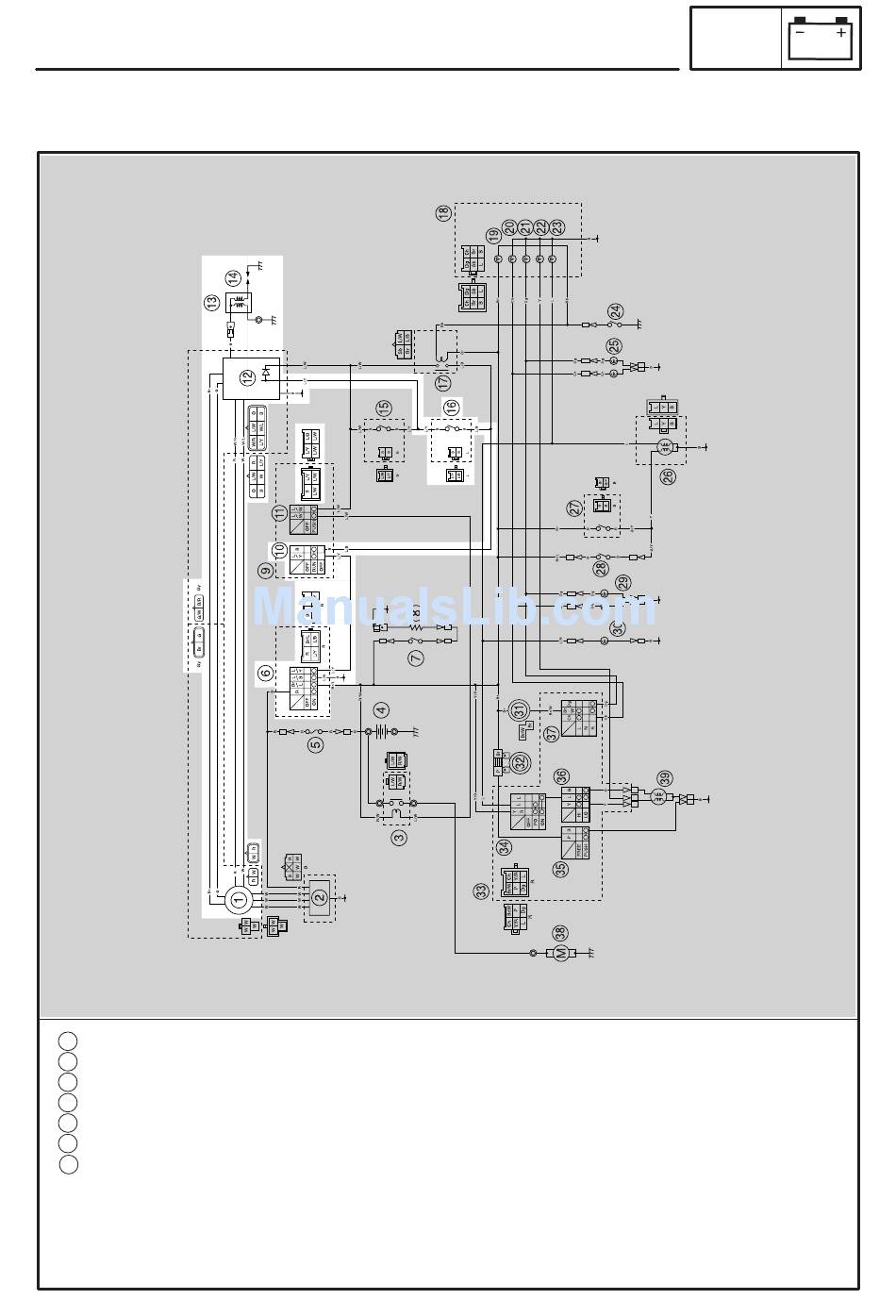

CIRCUIT DIAGRAM

C.D.I. magneto
1
Main switch
6
Engine stop switch
10
C.D.I. unit
12
Ignition coil
13
Spark plug
14
Sidestand switch
15
IGNITION SYSTEM
7-4
ELEC
