Summary of Contents for Saunatec Helo 20SL

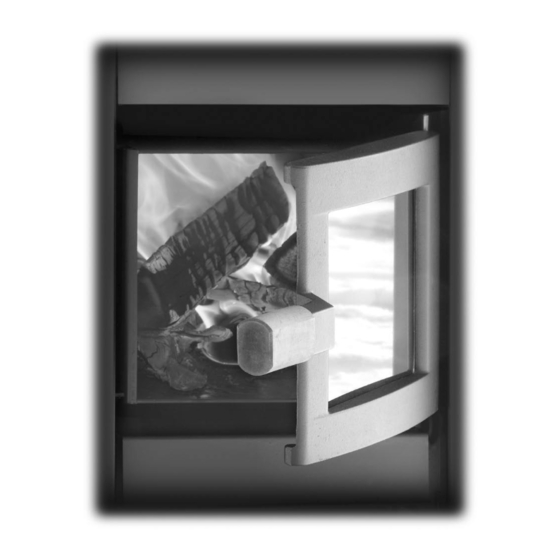

- Page 1 Wood burning sauna heaters Installation and user’s manual...
- Page 2 Saunatec is the world-leading producers of products for saunas and steam saunas. We develop, produce and market products for saunas and steam saunas in the world. Saunatec has the largest factories of sauna products in the world (Finland, Germany and the USA) and a well-developed network of retailers, both nationally and internationally.
-
Page 3: Table Of Contents
Installation Installation of heaters with front water tanks Ventilation in a wood-burning Sauna Sauna rocks Heating up Water quality Mounted water tank Changing the direction of door opening Heater care and maintenance Troubleshooting Helo 20SL, Helo 28SL, Helo 38SL, Installation... -
Page 4: Preparing The Heater For Use
Preparing the heater for use Read the instructions carefully before the first use! The heater is painted with heat- resistant paint and due to its chemical properties it may evaporate burning odours from its surface when heated for the first times. Therefore we recommend the first heating up to be done outdoors or in a well-ventilated sauna room. - Page 5 I N S T R U C T I O N S F O R I N S T A L L A T I O N , U S E A N D M A I N T E N A N C E . S i d e w a l l s : W o o d b u r n i n g s a u n a s t o v e s a r e r e g a r d e d a s f i r e p l a c e s h a v i n g s c o r c h i n g s u r f a c e s .
- Page 6 I f t h e w a l l h a s b e e n b e d d e d i n , a 2 " v e n t h o l e b e t w e e n t h e w a l l a n d t h e v e r t i c a l s u r f a c e s o f t h e F i g u r e 4...
-
Page 7: Wall Protection And Choices Of Material
W a l l p r o t e c t i o n a n d c h o i c e s o f m a t e r i a l s I f t h e w o o d e n w a l l s s u r r o u n d i n g t h e h e a t e r a r e c l o s e r t h a n t h e r e q u i r e d m i n i m u m s a f e t y d i s t a n c e r e c o m m e n d s a n d t h e w a l l s a r e m a d e o f a c o m b u s t i b l e m a t e r i a l ( p a n e l s , b o a r d s , l o g s , e t c ) t h e w a l l s u r f a c e s m u s t b e p r o t e c t e d . -
Page 8: Heater Installation
Heater installation In all our heater models there is a port for the connecting flue duct on top of and behind the heater. Close the unused port with the cap provided. With the heater there is also a 200 mm connecting flue duct, which can be used for rear-mounted flue ducts. Do not push the connecting flue duct too far into the chimney –... -
Page 9: Installation Of Heaters With Front Water Tanks
Installation of heaters with front water tanks Permanently mounted to the front of the heater, the 24-litre hot water tank is made of high- quality noble steel. The faucet can be installed either on the left or right side. The unused faucet port is closed with a plug. -
Page 10: Heating Up
Heating up Wood is the only material that should be burned in the heater. Never use materials with high heat capacity, such as particle board, plastic, charcoal or briquettes. Air is circulated by opening the ash drawer. Excess draught will cause the heater to glow, which will significantly shorten its service life. -
Page 11: Changing The Direction Of Door Opening
Changing the direction of door opening Firebox door The firebox door can be installed to open from the left or right. There are pre-installed hinge mounts on either side of the firebox door opening (see figure). Mounting the door Line up the door and hinge mounts. Insert the hinge pin through the first hole from above, push the pin into the guide channel and then pull down. -
Page 12: Troubleshooting
• If the first heating is done outdoors, a minimum of 2-metre metal duct must be used as a flue duct. 4. Direct installation using adjustable feet • Install the heater on an even base using Saunatec adjustable feet if necessary (accessory). 5. Sauna rocks, care and quality •...
