Page 1: Oven Parts

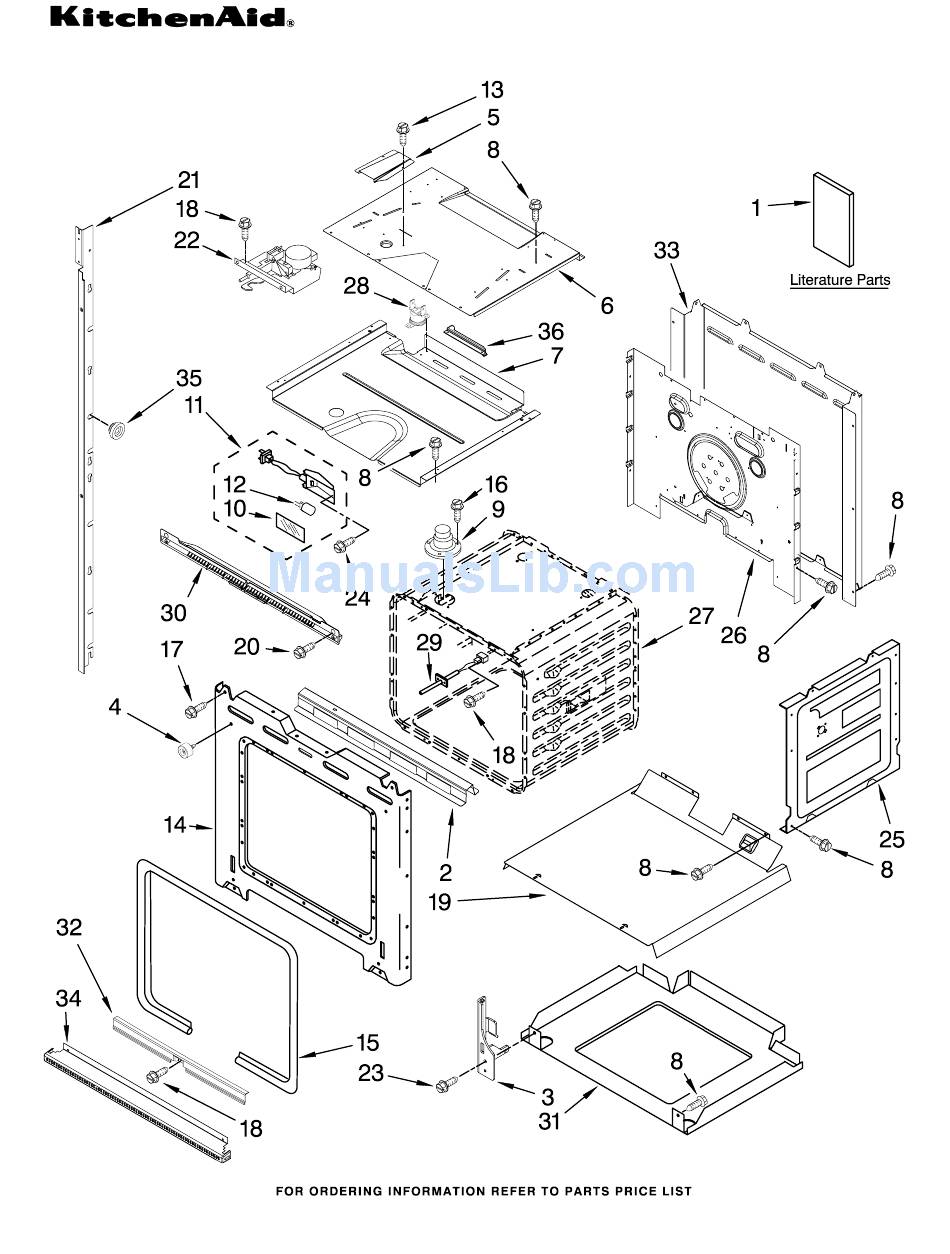

OVEN PARTS 27" BUILT−IN ELECTRIC DOUBLE OVEN For Models:KEBK276SSS03 (Stainless) 1−09 Litho in U.S.A. (amd) (psw) Part No. W10250489 Rev. A... - Page 2 4 W10105790 Bumper, Door (2) 8303829 Exhaust,Vent Slope 6 W10181198 Divider, Center Vent 7 W10204469 Top Chassis 4449809 Screw 4452158 Tube, Vent OVEN PARTS For Models:KEBK276SSS03 (Stainless) Illus. Part DESCRIPTION 10 W10169756 Lens, Light 11 W10009940 Oven Light Assembly 12 W10169757 Bulb, Light...
-
Page 3: Control Panel Parts
W10250489 CONTROL PANEL PARTS For Models:KEBK276SSS03 (Stainless) Illus. Part DESCRIPTION 1 W10216220 Panel, Control 8303687 Support, Appliance Manager 8304333 Keyboard, Glass Touch 5 W10172472 User Inferface 8303720 Backer, Control 8303887 Bracket, Enclosure (2) 4449154 Screw 3400832 Screw 10 W10119142 Appliance Manager... -
Page 4: Oven Door Parts
3196183 Screw 8304580BL Vent, Door Top Bracket, Door 8304377 Right 8304378 Left 8303738BL Door Liner 8303732 Glass, Inner 4449743 Screw OVEN DOOR PARTS For Models:KEBK276SSS03 (Stainless) Illus. Part DESCRIPTION Cover, Hinge W10137044 Right W10137043 Left 8304523 Seal 8304361BL Bracket, Handle... - Page 5 W10250489 INTERNAL OVEN PARTS For Models:KEBK276SSS03 (Stainless) Illus. Part DESCRIPTION 8304602 Element, Broil Shield 9760774 Element, Broil 4449154 Screw 4448715 Rack, Oven 9760768 Element, Bake 4455036 Tray, Bake 4450039 Cover, Bake Tray 4449809 Screw...
- Page 6 TOP VENTING PARTS For Models:KEBK276SSS03 (Stainless) Illus. Part DESCRIPTION 9752759 Relay (2) 8304643 Duct, Air Outlet 4449809 Screw 8303972 Blower, 60mm 8285593 Connector, Cover 7 W10111628 Transformer, Control 4450118 Nut 4449868 Block, Terminal 3400080 Screw 8303722 Vent, Control Panel Side, Control Top...
- Page 7 OPTIONAL PARTS (NOT INCLUDED) W10250489 For Models:KEBK276SSS03 (Stainless) Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White 261869 Cord Brown 72032 Black PAINT, SPRAY 350930 White 261900 Citrine White 830864 Black ADHESIVE 591014 Adhesive Loctite (1/3 oz.) 482338 Sealer, Silastic (3 oz.)
