For Models: KUDS30IVBL0, KUDS30IVWH0, KUDS30IVBT0, KUDS30IVSS0, KUDK30IVBS0
12−08 Litho in U.S.A. (els) (eeb)

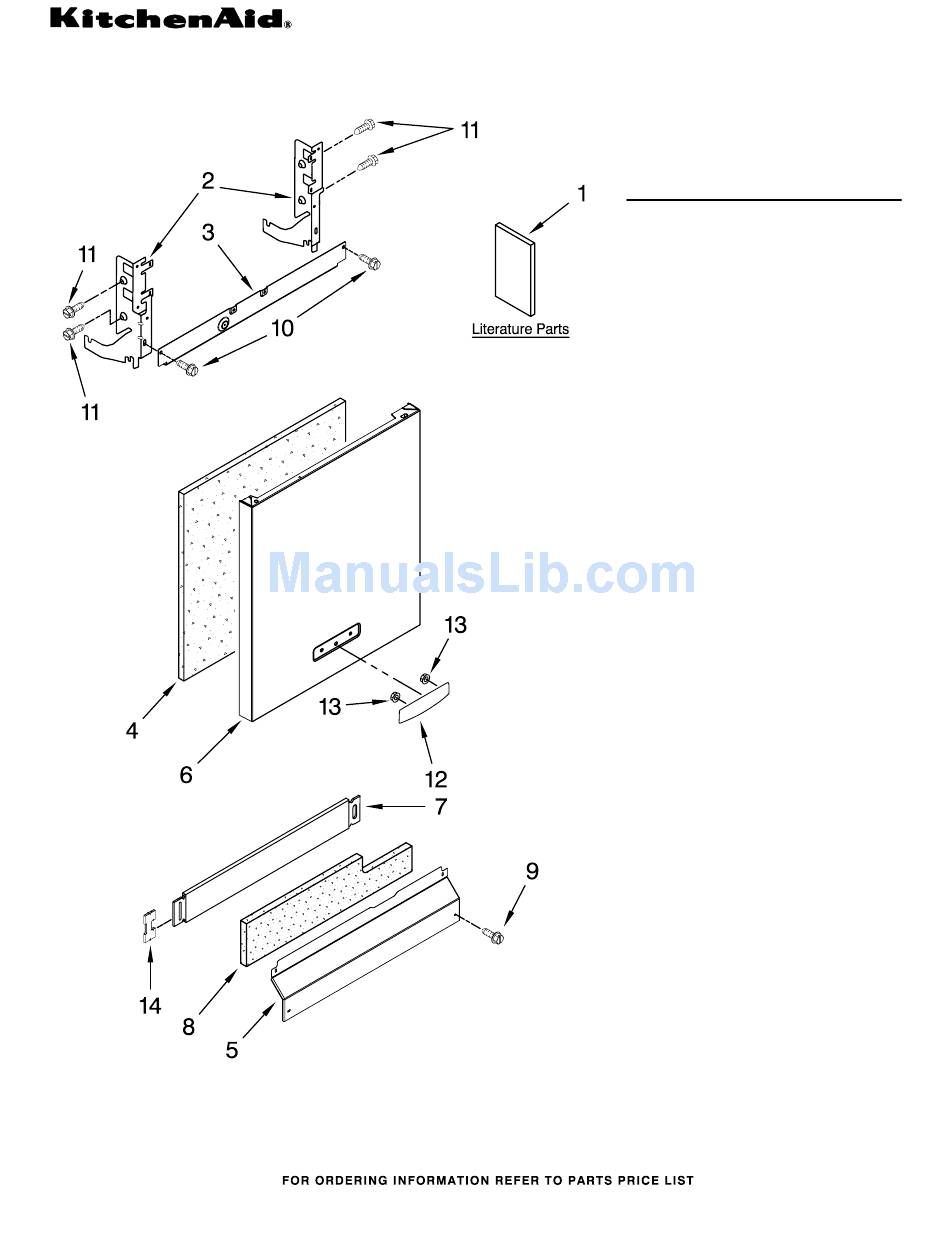

DOOR AND PANEL PARTS
(Black)
(White)
(Biscuit)
(Stainless) (Black/Stainless)
Illus.
No.
1
2
3
4 W10073520 Insulation, Door
5
6
7
8
9
10
11
12
13
14
1
UNDERCOUNTER
DISHWASHER
Part
No.
DESCRIPTION
Literature Parts
W10056407 Instructions,
Installation
W10056439 Energy Guide
W10205938 Guide, Use & Care
Spanish
W10205937 Guide, Use & Care
English/French
W10130990 Tech Sheet
Arm, Hinge
8534854 Left
8534853 Right
8268983 Stiffener, Door
Access Panel
8573255 Black
8573256 White
8573257 Biscuit
Panel, Full Front
(Includes Items
4, 12 & 13)
W10077995 Black
W10077996 White
W10077997 Biscuit
W10137620 Stainless
Toe Panel
(Includes
Items 8 & 14)
8558252 Black
8558253 White
8558254 Biscuit
8268581 Insulation,
Toe Panel
Screw
302868 Black
3400836 White
3400865 Biscuit
304392 Screw
3400071 Screw
Nameplate
W10021860 Black
W10021870 White
W10021880 Biscuit
W10021850 Stainless
2004333 Nut
8269016 Clip, Grounding
Part No. W10246516 Rev. A
Advertisement
Related Manuals for KitchenAid KUDK30IVBS0
Summary of Contents for KitchenAid KUDK30IVBS0
- Page 1 For Models: KUDS30IVBL0, KUDS30IVWH0, KUDS30IVBT0, KUDS30IVSS0, KUDK30IVBS0 12−08 Litho in U.S.A. (els) (eeb) DOOR AND PANEL PARTS (Black) (White) (Biscuit) (Stainless) (Black/Stainless) UNDERCOUNTER DISHWASHER Illus. Part DESCRIPTION Literature Parts W10056407 Instructions, Installation W10056439 Energy Guide W10205938 Guide, Use & Care Spanish W10205937 Guide, Use &...
-
Page 2: Control Panel Parts
CONTROL PANEL PARTS For Models: KUDS30IVBL0, KUDS30IVWH0, KUDS30IVBT0, KUDS30IVSS0, KUDK30IVBS0 (Black) (White) Illus. Part W10056466 Black W10056467 White W10056468 Biscuit W10056469 Stainless 8268540 Spring, Handle 8546546 Clip, BI−Metal 3400412 Screw 8524471 Actuator, Latch 661663 BI−Metal 3369051 Screw 8269117 Black 8269167 White... - Page 3 DOOR AND LATCH PARTS For Models: KUDS30IVBL0, KUDS30IVWH0, KUDS30IVBT0, KUDS30IVSS0, KUDK30IVBS0 Illus. Part DESCRIPTION 3369051 Screw, Door 8281217 Screw 3 W10056249 Inner Door Mastic Assembly (Also Order Item 6) 4 W10077883 Inlet, Air 5 W10164259 Vent Assembly (Also Order Item 6)
- Page 4 FILL, DRAIN AND OVERFILL PARTS For Models: KUDS30IVBL0, KUDS30IVWH0, KUDS30IVBT0, KUDS30IVSS0, KUDK30IVBS0 (Black) (White) (Biscuit) (Stainless) (Black/Stainless) Illus. Part 8268892 Lever, Overfill 2 W10041920 Hose, Inlet 3 W10041900 Water Inlet 8531323 Gasket 8531327 Nut, Inlet 371505 Clamp, Hose 7 W10219505 Fill Valve...
- Page 5 TUB AND FRAME PARTS For Models: KUDS30IVBL0, KUDS30IVWH0, KUDS30IVBT0, KUDS30IVSS0, KUDK30IVBS0 (Black) (White) (Biscuit) (Stainless) (Black/Stainless) W10246516...
- Page 6 TUB AND FRAME PARTS For Models: KUDS30IVBL0, KUDS30IVWH0, KUDS30IVBT0, KUDS30IVSS0, KUDK30IVBS0 (Black) (White) Illus. Part 1 W10164353 Tub Assembly 3400072 Screw 3 W10112096 Door Seal 4 W10082838 Plug Tub 9743002 Gasket, Bracket 8269110 Seal, Cabinet 8573061 Strain Relief 8 W10084084 Mount, Door...
- Page 7 PUMP AND MOTOR PARTS For Models: KUDS30IVBL0, KUDS30IVWH0, KUDS30IVBT0, KUDS30IVSS0, KUDK30IVBS0 (Black) (White) (Biscuit) (Stainless) (Black/Stainless) W10246516...
- Page 8 PUMP AND MOTOR PARTS For Models: KUDS30IVBL0, KUDS30IVWH0, KUDS30IVBT0, KUDS30IVSS0, KUDK30IVBS0 (Black) (White) Illus. Part 8534952 Accumulator Assy 8283527 Shield, Motor 3400069 Screw 8572618 Sump With Seal 8268375 Check Valve, Sump 6 W10083957 Chopper Assembly 9741232 Screw 8531857 Protector, Inlet...
- Page 9 UPPER WASH AND RINSE PARTS For Models: KUDS30IVBL0, KUDS30IVWH0, KUDS30IVBT0, KUDS30IVSS0, KUDK30IVBS0 W10246516 (Black) (White) (Biscuit) (Stainless) (Black/Stainless) Illus. Part DESCRIPTION 1 W10077859 Feed Tube Assembly 8533889 Screw 8557720 Sprayarm, 3rd Level 4 W10118464 Cover, Screw 5 W10082867 Mount 6 W10082949 Manifold...
-
Page 10: Heater Parts
HEATER PARTS For Models: KUDS30IVBL0, KUDS30IVWH0, KUDS30IVBT0, KUDS30IVSS0, KUDK30IVBS0 (Black) (White) Illus. Part 8537057 Heater Element 717273 Washer, Heater 8268548 Nut, Heater 3400931 Retainer, Spring NOTE: If heater element is removed, it must be replaced. (Biscuit) (Stainless) (Black/Stainless) DESCRIPTION Assembly... - Page 11 UPPER RACK AND TRACK PARTS For Models: KUDS30IVBL0, KUDS30IVWH0, KUDS30IVBT0, KUDS30IVSS0, KUDK30IVBS0 (Black) Illus. Part DESCRIPTION 1 W10056270 Dishrack, Upper 8268654 Adjuster Assembly 3385089 Track Rack 4 W10082860 Stop, Track 8539110 Handle, Dishrack 6 W10077844 Clip, No−Flip W10246516 (White) (Biscuit) Illus.
- Page 12 LOWER RACK PARTS For Models: KUDS30IVBL0, KUDS30IVWH0, KUDS30IVBT0, KUDS30IVSS0, KUDK30IVBS0 (Black) (White) (Biscuit) (Stainless) (Black/Stainless) Illus. Part 1 W10056271 Lower Rack 8519695 Left Side 8519663 Right Side 3 W10082868 Wheel & Transport 8531233 Basket, 5 W10078215 Retainer, Combo 6 W10056272 Tinerow...
- Page 13 LOWER WASHARM AND STRAINER PARTS For Models: KUDS30IVBL0, KUDS30IVWH0, KUDS30IVBT0, KUDS30IVSS0, KUDK30IVBS0 W10246516 (Black) (White) (Biscuit) Illus. Part DESCRIPTION 1 W10077965 Wash Arm Assembly 2 W10077899 Cap, Internal Rear Feed (Also Order Item 3) 8268340 Seal, Sprayarm 4 W10077898 Hub, Lower...
- Page 14 OPTIONAL PARTS (NOT INCLUDED) For Models: KUDS30IVBL0, KUDS30IVWH0, KUDS30IVBT0, KUDS30IVSS0, KUDK30IVBS0 Illus. Part DESCRIPTION ACCESSORIES Side Panel Kits 8171656 White 8171657 Black 8171658 Biscuit 8171659 Stainless Steel Custom Panel & Trim Kit 8212489 Black Drain Hose 3385556 12 Ft. Moisture Barrier Kit 4396277 Kit Vinyl Touch−Up (4 oz.)
