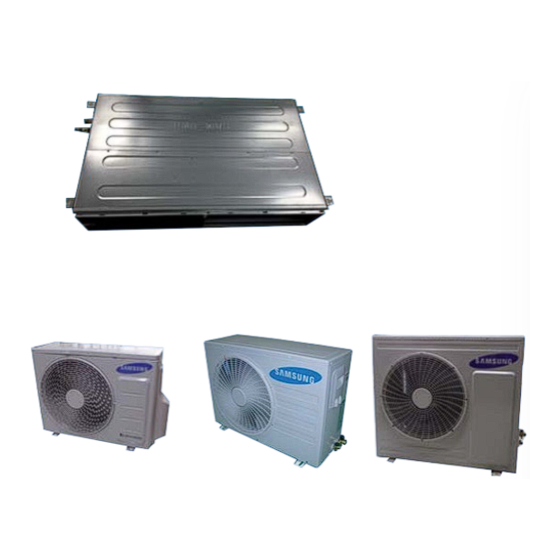

Samsung AC052HBLDKH User Manual
Duct type series slim duct ma duct global duct
Hide thumbs
Also See for AC052HBLDKH:
- Manual (53 pages) ,
- Service manual (82 pages) ,
- Installation instructions manual (35 pages)
Advertisement
Advertisement
Table of Contents
Related Manuals for Samsung AC052HBLDKH
Summary of Contents for Samsung AC052HBLDKH
-
Page 2: Table Of Contents
Features of your new air conditioner Contents Safety precautions ................. 3 Cool Summer Offer Checking before use ..............9 On those hot sweltering summer days and long restless Viewing the parts ................ 11 nights, there is no better escape from the heat than the Cleaning and maintaining the air conditioner .... -
Page 3: Safety Precautions
If you have any questions, call your nearest contact center or find help and information online at www. samsung.com. Important safety symbols and precautions: Hazards or unsafe practices that may result in severe personal injury WARNING or death. - Page 4 Safety precautions FOR INSTALLATION WARNING Do not install this appliance near a heater, inflammable material. Do not install this appliance in a humid, oily or dusty location, in a location exposed to direct sunlight and water (rain drops). Do not install this appliance in a location where gas may leak.
- Page 5 FOR POWER SUPPLY WARNING When the circuit breaker is damaged, contact your nearest service center. Do not pull or excessively bend the power line. Do not twist or tie the power line. Do not hook the power line over a metal object, place a heavy object on the power line, insert the power line between objects, or push the power line into the space behind the appliance.
- Page 6 Safety precautions FOR USING WARNING Do not touch the circuit breaker with wet hands. This may result in electric shock. Do not strike or pull the air conditioner with excessive force. This may result in fire, injury, or problems with the product. Do not place an object near the outdoor unit that allows children to climb onto the machine.
- Page 7 FOR USING WARNING If any foreign substance such as water has entered the appliance, cut the power by unplugging the power plug and turning the circuit breaker off and then contact your nearest service center. Failing to do so may result in electric shock or fire. Do not attempt to repair, disassemble, or modify the appliance yourself.
- Page 8 Safety precautions FOR USING CAUTION Do not use this air conditioner to preserve precision equipment, food, animals, plants or cosmetics, or for any other unusual purposes. This may result in property damage. Avoid directly exposing humans, animals or plants from the air flow from the air conditioner for long periods of time.
-
Page 9: Checking Before Use
Checking before use Operation ranges The table below indicates the temperature and humidity ranges the air conditioner can be operated within. Refer to the table for efficient use. MODE OUTDOOR TEMPERATURE INDOOR TEMPERATURE INDOOR HUMIDITY COOLING -15°C/5°F to 50°C/122°F 18°C/64°F to 32°C/90°F HEATING -20°C/-4°F to 24°C/75°F 27°C/81°F to less 80% or less DRYING... - Page 10 Checking before use Tips on using air conditioner Here are some tips that you would follow when using your air conditioner. TOPIC RECOMMENDATION Cooling • I f current outside temperatures are much higher than the selected indoor temperature, it may take time to bring the inner temperature to the desired coolness. • A void drastically turning down the temperature. Energy is wasted and the room does not cool faster.
-
Page 11: Viewing The Parts
Viewing the parts Congratulations on the purchase of the air conditioner. We hope you enjoy the features of your air conditioner and stay cool or warm with optimal efficiency. Please read the user manual to get started and to make the best use of the air conditioner. SLIM DUCT TYPE Air filter (the return air side) Ceiling Air intake Air outlet MA DUCT TYPE Air filter (the return air side) Ceiling Air intake Air outlet Type... -
Page 12: Cleaning And Maintaining The Air Conditioner
Cleaning and maintaining the air conditioner Cleaning the filter For the best performance from your air conditioner, clean it periodically. When cleaning, make sure to unplug from the unit for user’s safety. When cleaning the filter, make sure to unplug the power from the unit. Washable foam based Air filter captures large particles from the air. The filter is cleaned with a vacuum or by hand washing. Slim duct type 1. Slide out the Air filter on the rear side panel to the right side. 2. -
Page 13: Ma Duct Type
MA duct type 1. Slide out the Air filter on the rear side panel to the right side. 2. Clean the Air filter with a vacuum cleaner or soft brush. If dust is too heavy, then rinse it with running water and dry it in a ventilated area. - Page 14 Cleaning and maintaining the air conditioner GLOBAL DUCT (Plastic Type) 1. Press both hooks and take the filter downward. 2. Clean the Air filter with a vacuum cleaner or soft brush. If dust is too heavy, then rinse it with running water and dry it in a ventilated area.
- Page 15 GLOBAL DUCT (Steel wire Type) 1. Pull out the Air filter from the frame . 2. Clean the Air filter with a vacuum cleaner or soft brush. If dust is too heavy, then rinse it with running water and dry it in a ventilated area.
- Page 16 Cleaning and maintaining the air conditioner If the air conditioner will not be used for an extended period of time, dry the air conditioner to maintain it in best condition. D ry the air conditioner thoroughly by operating in Fan mode for 3 to 4 hours and disconnect the power plug. There may be internal damage if moisture is left in components. ...
-
Page 17: Appendix
Appendix Troubleshooting Refer to the following chart if the air conditioner operates abnormally. This may save time and unnecessary expenses. PROBLEM SOLUTION The air conditioner • B ecause of the protective mechanism, the appliance does not start does not operate operating immediately to keep the unit from overloading. immediately after it The air conditioner will start in 3 minutes. - Page 18 Appendix PROBLEM SOLUTION The fan speed does • C heck if you selected Auto or Dry mode. not change. The air conditioner automatically adjusts the fan speed to Auto in Auto/Dry mode. Timer function does • C heck if you press the Power button on the remote control after not set. you have set the time. Odors permeate in • C heck if the appliance is running in a smoky area or if there is a smell the room during entering from outside.
- Page 19 Model specification (Dimension and weight) Dimension and weight Type Model Net dimension (WxDxH) (mm) Net weight(kg) 1100*450*200 AC052HBLDKH 22.5 AC071HBLDKH 1100*450*200 22.5 850*700*250 AC035HBMDKH 850*700*250 AC052HBMDKH 850*700*250 AC060HBMDKH 850*700*250 AC071HBMDKH 850*700*250 AC052HBMPKH 1200*700*250 AC090HBMDKH 1200*700*250 AC100HBMDKH Indoor Unit 1300*700*300 AC120HBMDKH...
- Page 20 KYRGYZSTAN 00-800-500-55-500 www.samsung.com 1-800-10-7267864 [PLDT] TADJIKISTAN 8-10-800-500-55-500 www.samsung.com PHILIPPINES 1-800-8-7267864 [Globe landline and Mobile] www.samsung.com /ph MONGOLIA +7-800-555-55-55 www.samsung.com 02-4222111 [Other landline] BELARUS 810-800-500-55-500 www.samsung.com SINGAPORE 1800-SAMSUNG(726-7864) www.samsung.com /sg SAMSUNG ELECTRONICS CO.,LTD. No.501,Suhong East Road,Suzhou Industrial Park,Jiangsu Province,P.R.China AEEE Yönetmeliğine Uygundur Samsung Electronics (UK) Ltd, Euro QA Lab. This product is RoHS compliant Blackbushe Business Park. Saxony Way, Yateley, Hampshire. GU46 6GG United Kingdom...
-
Page 21: Air Conditioner
Duct Type Series Slim Duct MA Duct Global Duct Air Conditioner user manual This manual is made with 100% recycled paper. imagine the possibilities Thank you for purchasing this Samsung product. DB68-04234A-04...
