Check the DCR Battery Level
When the DCR is not used for extended periods of time or in storage
it must be charged periodically to maintain the battery charge.
Motorola recommends charging the DCR once every three months.
If the display characters become dim and hard to read this is an
indication that the DCR battery requires charging.
If the DCR battery fully discharges the debit function will be
inoperable but the MSR will still function for credit card transactions.
Return the DCR for service.
NOTE While the DCR is being used in normal operation
(application is accessing the DCR port), the DCR
charges from the MC70/75.
To check the battery level:
Remove the DCR from the MC70/75.
1.
2.
Press and hold the
5
key until the battery status displays on the
DCR display.
BATT OK - Battery is significantly charged
•
BATT LOW - Battery charge is low.
•
If
displays, charge the DCR for approximately three
BATT LOW
hours.

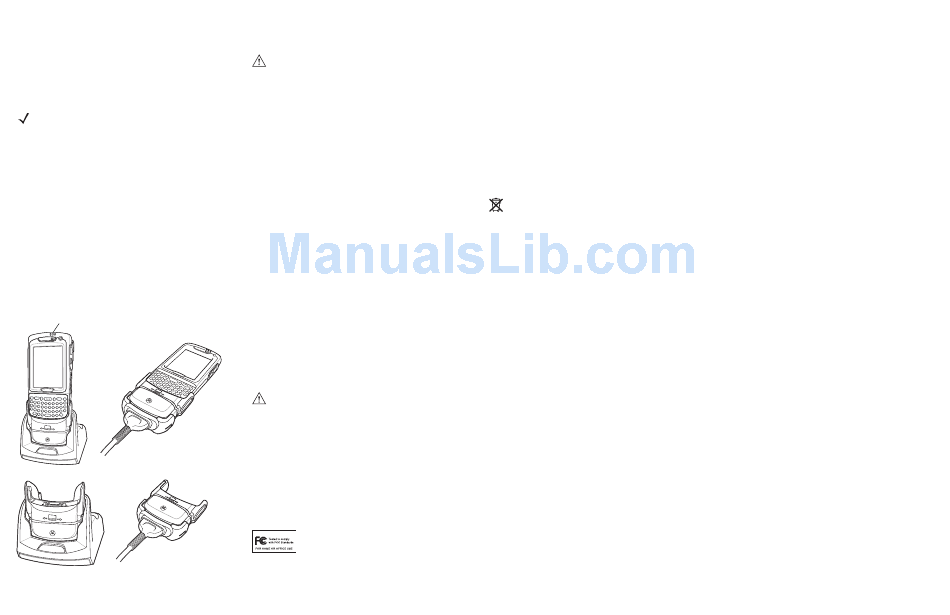

To charge the DCR, place it onto an MC70/75 and then place both
into a cradle or connect them to a charging cable. The MC70/75
Charging LED indicates that the DCR is charging. If the Charging
LED is not flashing or on, reconnect the DCR and place back into
the cradle or charging cable. The DCR can also be charged in the
cradle or charging cable without being connected to an MC70/75 but
there is no indication that the DCR is charging. Ensure that the DCR
is seated properly and check periodically that the DCR has charged.
Failure to do so can cause the DCR not to charge properly.
Charge LED
(center)
4
Charging the MC70/75
You can charge the MC70/75 while the DCR is attached. Place the
MC70/75 with the DCR into a cradle to charge the MC70/75.
NOTE If you are going to replace the MC70/75 battery,
remove the DCR from the MC70/75 before replacing
the battery.
Key Injection
If the DCR was tampered with or the battery has completely
discharged. "KEYCLEAR" displays on the DCR display. The key
must be re-injected into the DCR. For key loading instructions see
your system administrator or contact customer service.
Maintenance
There are no serviceable part in the DCR. Do not tamper with the
device. If the DCR is opened the key will be cleared.
Service Information
If you have a problem using the equipment, contact your facility's
Technical or Systems Support. If there is a problem with the
equipment, they will contact the Motorola Enterprise Mobility
Support at: http://www.symbol.com/contactsupport.
For guides and software go to: http://www.motorola.com/
enterprisemobility/support.
Regulatory Information
This device is approved under the Symbol Technologies brand:
Symbol Technologies, Inc., is the Enterprise Mobility business of
Motorola, Inc., ("Motorola")
All Symbol devices are designed to be compliant with rules and
regulations in locations they are sold and will be labeled as required.
Local language translations are available at the following website:
http://www.motorola.com/enterprisemobility/support
Any changes or modifications to Symbol Technologies equipment,
not expressly approved by Symbol Technologies could void the
user's authority to operate the equipment.
For use only with Symbol approved and UL Listed mobile
computers. Symbol approved and UL Listed accessories and/or
Symbol approved and UL Listed/Recognized battery packs.
Only use Symbol approved and UL Listed accessories,
CAUTION
battery packs and battery chargers.
Do NOT attempt to charge damp/wet mobile computers or
batteries. All components must be dry before connecting to an
external power source.
Declared maximum operating temperature 50ºC.
Power Supply
Use only a Motorola/Symbol approved power supply output rated at
5.4 Vdc and minimum 3A. The power supply shall be Listed to UL/
CSA 60950-1; and certified to IEC60950-1 and EN60950-1 with
SELV outputs. Use of alternative power supply will invalidate any
approval given to this device and may be dangerous.
Radio Frequency Interference Requirements-FCC
Note: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and
5
used in accordance with the instructions, may cause harmful
interference to radio communications. However there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or
relocate the receiving antenna
•
Increase the separation between the equipment and receiver
•
Connect the equipment into an outlet on a circuit different from
•
that to which the receiver is connected
Consult the dealer or an experienced radio/TV technician for
•
help.
Radio Frequency Interference Requirements –
Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
