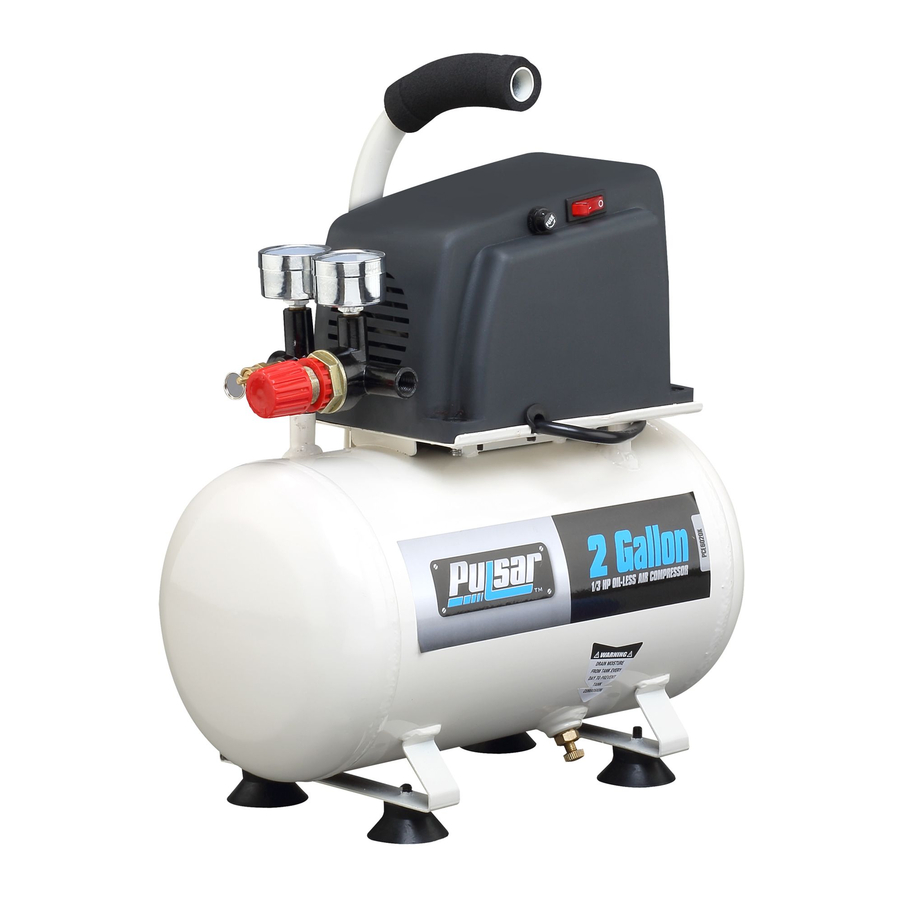

2 Gallon Air Compressor
Model No. PCE6020K
For Service Please Call Toll Free: 1-866-591-8921
WARNING
Read and follow all safety rules and instructions in this manual before attempting
to operate this machine. Failure to comply with these instructions may result in
personal injury.
Diagrams within this manual may not be drawn proportionally. Due to continuing improvements,
actual product may differ slightly from the product described herein.
er' s Manual
Owner's Manual

Table of Contents

Topic
Hazard Warnings
Service
2
Page
4
5
15
15
16
16
18
19
21
21
23
24
24
25
29
30
33

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCE6020K and is the answer not in the manual?

Questions and answers

Related Manuals for Pulsar PCE6020K

Summary of Contents for Pulsar PCE6020K

  • Page 1: Table Of Contents

    Troubleshooting Glossary Terms Parts Listing Limited Warranty Model No. PCE6020K For Service Please Call Toll Free: 1-866-591-8921 WARNING Read and follow all safety rules and instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury.

  • Page 2: Safety Guidelines-Definitions

    PREVENT EQUIPMENT PROBLEMS. The following symbols help Injury, Property Damage, And / Or Voiding Of Your Warranty. Pulsar Products, Inc Will Not Be Liable For Any you recognize this information. Please read the manual and pay attention to these sections.
  • Page 3 Owner’s Manual Air Compressor Hazard Warnings (cont’d) Hazard Warnings RISK OF EYE OR HEAD INJURY Dust What could happen: WARNING! DUST FROM POWER SANDING, SAWING, GRINDING, DRILLING, AND OTHER CONSTRUCTION ACTIVITIES CONTAIN CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM.
  • Page 4 Air Compressor Owner’s Manual Hazard Warnings (cont’d) Hazard Warnings (cont’d) RISK OF FIRE OR EXPLOSION RISK OF HEARING LOSS What could happen: What could happen: How to prevent: RISK TO BREATHING/INHALATION HAZARD What could happen: How to prevent it:...
  • Page 5 Air Compressor Owner’s Manual Hazard Warnings (cont’d) Hazard Warnings (cont’d) RISK OF INJURY RISK OF INJURY (cont’d) What could happen: How to prevent it:...
  • Page 6 Air Compressor Owner’s Manual Hazard Warnings (cont’d) Hazard Warnings (cont’d) RISK OF INJURY (cont’d) RISK OF ELECTRIC SHOCK What could happen: How to prevent it:...
  • Page 7 Air Compressor Owner’s Manual Hazard Warnings (cont’d) Hazard Warnings (cont’d) RISK OF ENTANGLEMENT RISK OF CUT OR BURNS What could happen: What could happen: How to prevent it: How to prevent it:...

  • Page 8: Precautions

    Owner’s Manual Air Compressor Compressor (cont’d) Basic Air Compressor Components Oil-less aircompressors are factory A & B lubricated for life and do not require any oil. The basic components of the air compressor are the electric motor, pump, pressure switch, and tank. The electric motor (see A) powers the pump.

  • Page 9: Assembling The Air Compressor

    Air Compressor Owner’s Manual Compressor (cont’d) Compressor (cont’d) COMPRESSOR CONTROLS Assembling the Air Compressor Unpack the air compressor. Inspect the unit for damage. If the unit has been damaged Power switch: This switch turns the compressor power ON and OFF. in transit, contact the carrier and complete a damage claim.

  • Page 10: Electrical Power Requirements

    Owner’s Manual Air Compressor Compressor (cont’d) Compressor (cont’d) ELECTRICAL POWER REQUIREMENTS (cont’d) Electrical Power Requirements Extension Cord Electrical Wiring Use the chart on the right for LENGTH OF Refer to the air compressor’s registration label for the unit’s voltage and amperage the proper extension cord length.

  • Page 11: Breaking In The Pump

    Owner’s Manual Air Compressor Compressor (cont’d) Compressor (cont’d) OPERATING INSTRUCTIONS BREAKING IN THE PUMP 1.Turn the switch to the OFF position. 2. Open the petcock. Turn counterclockwise (loosen). 3. Plug in the power switch to the ON position. WARNING! HIGH TEMPERATURES ARE GENERATED BY THE ELECTRIC MOTOR AND THE PUMP.

  • Page 12: Maintenance

    Air Compressor Owner’s Manual Compressor (cont’d) Compressor (cont’d) MAINTENANCE MAINTENANCE (cont’d) Relieve the air pressure in the system and open the petcock on the WARNING! TO AVOID PERSONAL INJURY, ALWAYS SHUT bottom of the tank to drain. OFF AND UNPLUG THE COMPRESSOR AND RELIEVE ALL AIR PRESSURE FROM THE SYSTEM BEFORE PERFORMING ANY SERVICE ON THE AIR WARNING! CONDENSATION WILL ACCUMULATE IN THE TANK.

  • Page 13: Troubleshooting

    Air Compressor Owner’s Manual Compressor (cont’d) Compressor (cont’d) TROUBLE SHOOTING TROUBLE SHOOTING (cont’d) Note: Trouble shooting problems may have similar causes and solutions. Excessive starting and stopping, while not in use Low pressure, not enough air or compressor does not stop. This is normal in some applications hile running Remove and clean or replace.
  • Page 14 Air Compressor Owner’s Manual Compressor (cont’d) Compressor (cont’d) TROUBLE SHOOTING (cont’d) TROUBLE SHOOTING (cont’d) Motor will not run (cont’d) Overheating ated air.

  • Page 15: Glossary Terms

    Owner’s Manual Air Compressor Compressor (cont’d) Parts Listing TROUBLE SHOOTING (cont’d) Glossary of Terms...
  • Page 16 Air Compressor Owner’s Manual Parts Listing Parts Listing PARTSNO. DESCRIPTION PARTS NO. DESCRIPTION PCE6020K-A-01 Air tank assmbly PCE6020K-A-21 Bolt M6 15 PCE6020K-A-02 Moisture release valve PCE6020K-A-22 Plain washer PCE6020K-A-03 Rubber foot PCE6020K-A-23 Plain washer PCE6020K-A-04 Cover PCE6020K-A-24 Vibration foot PCE6020K-A-05...

  • Page 17: Limited Warranty

    LIMITED WARRANTY (cont’d) THIS WARRANTY DOES NOT COVER: Pulsar Products, Inc. warrants to the original purchaser who uses the product in a consumer Merchandise sold as reconditioned, used as rental equipment, or floor or display application (personal, residential or household usage) that all products covered under this models.
