Sykla One User Manual

Sykla model one timepiece user guide
Hide thumbs

Advertisement

Quick Links

Download this manual
Model ONE

User Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the One and is the answer not in the manual?

Questions and answers

Summary of Contents for Sykla One

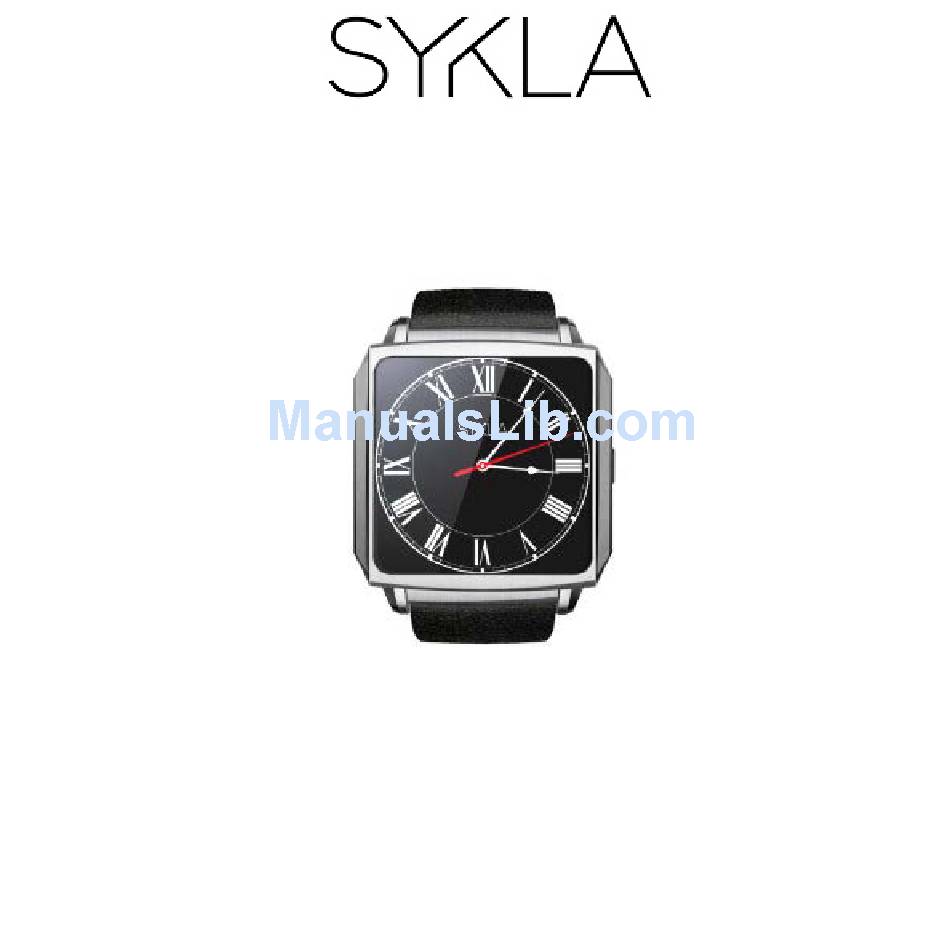

  • Page 1: User Guide

    Model ONE User Guide...
  • Page 2 1. Introduction Congratulations on purchasing the SYKLA Model ONE. We are confident that you will be happy with the quality and features of this elegant timepiece. The Sykla smart watch has the following features: Always ON Technology (Android and iPhone)
  • Page 3 Warnings:  The watch is made to function in an ambient temperature of ~15 to 120 degrees Fahrenheit.  When charging please make sure there is dry surface, good ventilation and sufficient clearance.  When connecting to the USB port please use the provided USB cable only.
  • Page 4 In The Box  Sykla Smart Watch  USB cable and wall charger  User Guide 3. Before using the Sykla Smart Watch Make sure the Smart Watch is fully charged. Please charge the Smart Watch for 3 hours before use.
  • Page 5 Smart Watch overview: Figure 1: Smart Watch Physical Characteristics Figure 1 shows the location of the physical interfaces: • 1.6” TFT display – display the user interface on watch, and ALWAYS display the time as a regular watch in standby state •...
  • Page 6 to change time display image • MIC and speaker – For voice communication Power On/Off Press and hold the power button 5 seconds to turn on/off the device. Reset the Smart watch Press power button for over 6 seconds to reset when the watch is dead.
  • Page 7 interwork with Smart Watch. The APK is obtained by visiting Google Play, download to the smart phone and install. This is a simple procedure. Procedure to download and install the “Smartwatch” into the Smart phone. 4.1 Android APK download and installation Turn on smart watch →Main menu →...
  • Page 8 Fig.2 Fig.3 4.2 Connect Smart Watch with the phone using Bluetooth. Settings on your phone→ Click Bluetooth ( Fig.4 ) →...
  • Page 9 Find "Smartwatch" in Bluetooth device list ( Fig.5 ) → Pair with phone ( Fig.6 ).
  • Page 10 On your iPhone go to Settings > Bluetooth Locate the “SmartWatch” and connect to it The Smart Watch will indicate “Connected” 5. Smart Watch – User interaction and navigation Navigation: The Smart watch uses Tap and Swipe for navigation for going from one menu to another.
  • Page 11 For menus with sub-menus, returning to the previous menu is by swiping downwards on the screen. Smart Watch notifications: Smart watch has the following notification icons: Missed calls Unread message Stopwatch on Bluetooth on Smart watch is connected with phone Smart watch is synchronized with phone Battery status...
  • Page 12 6. Functions and Settings on the APK (Android Only) 6.1 Find watch: Click on "Find watch" menu ( Fig.7 ), Smart Watch will ring and vibrate ( Fig.8 ). 6.2 Camera: Click on the "camera" menu ( Fig.9 ) and press OK to confirm ( Fig.10 ).
  • Page 13 Fig.7 Fig.8...
  • Page 15 6.4 Weather City: Click the weather city menu ( Fig.15 ), enter the name of...
  • Page 16 the city ( Fig.16 ), weather can be checked on smart watch ( Fig.17 ).
  • Page 17 6.5 Sport: Smart watch will upload the sports records to the APK on smart phone. The weekly and monthly data is displayed in graphical form so as to help the user to control their sports ( Fig.18, 19, 20 ).
  • Page 18 6.6 Heart beat: Smart watch will upload the records of heart beat to the APK in the smart phone. The weekly, monthly data is displayed in graphical form so as to facilitate the user to know their health situation ( Fig21, 22, 23 ).
  • Page 19 6.7 Settings on the APK Settings includes accessibility settings, notifications service settings, SMS service settings and other settings.
  • Page 20 6.7.1 Accessibility settings Enter the following steps one by one on Smartwatch APK, Main menu→Settings→Accessibility settings ( Fig.24 )→ Service/Smart watch ( Fig.25 ), turn the off/on, then press “OK” to confirm, then the smart watch service is on as is shown in Fig.26.
  • Page 21 Fig. 25 Fig.24 Fig.26...
  • Page 22 6.7.2 Notification service settings: When this option is checked ( Fig.27 ), the smart watch can push notifications if there are any updates on Facebook, Twitter or Gmail, and etc. The notifications APP and the blocked APP can be setup in Notifications APP ( Fig.28, Fig.29 ) and Blocked APP ( Fig.30, Fig.31 ) in advance.
  • Page 23 Fig.27 Fig.28 Fig.29...
  • Page 24 Fig.30 Fig.31...
  • Page 25 6.7.3 SMS service settings: When SMS service is checked, smart watch can send/receive messages. 6.7.4 Show connection status: When this option is checked, smart watch will show the connection status in the status bar when the watch is connected. 6.7.5 Always send notifications: When this option is checked, smart watch will send the notifications all the time.
  • Page 26 7. Using the menus on smart watch Note: Before using most of the functions below, please make sure that smart watch have been synchronized with your smart phone. 7.1 SMS (Android Only) SMS function including receive messages, type and send short messages. Click“Message”...
  • Page 27 Choose a contact Edit a message Send the message 7.2 Dial (Android and iPhone) A phone number can be dialed on dial directly or in call records.
  • Page 28 Click“Dial” Dial a number Or click the“call log” Choose a contact Make a call...
  • Page 29 7.3 Contacts Select your desired contact record, long press on the contact, you can view the current contact record, send text messages, edit/ delete contact and set up phonebook. Add a new contact: Click“Contact” Add new contact Enter name & number...
  • Page 30 New contact added Long press a contact Options 7.4 Notifications (Android Only) This function will allow you to receive the notifications if there are any updates on Facebook, Twitter, Gmail, Line, and etc.
  • Page 31 New notifications Read it directly 7.5 Sports The watch supports pedometer function, which can calculate the steps, run time, speed and calories consumption, for tracking physical activities. Slide the screen to the left to the “user settings”, the...
  • Page 32 weight and step distance of a person and the model of “Walk” and “Run” can be setup. Slide to "mode settings", the sports time, distance and alert types can be setup. Click”Sport” Show the score Click “Start” Set user setting Mode setting Display records...
  • Page 33 7.6 Calculator Click “Calculator” Enter an equation Display the results 7.7 Find phone (Android Only) Click the “find phone” icon, smart phones will ring and vibrate, allowing you to find your phone quickly.
  • Page 34 Click “Find phone” Press icon Your phone will ring 7.8 Music (Android Only) After the watch is connected with smart phone and the music player on smart phone is running, it can control the music player to play, pause, play previous and play next.
  • Page 35 Click “Music” Next song Pause 7.9 Phone anti-lost (Android Only) Phone Anti-lost can be turned on or off. When it is turned on, the smart watch will ring or vibrate when the distance between smart watch and phone is more than 10 meters.
  • Page 36 “Phone anti-lost” Anti-lost off Anti-lost on...
  • Page 37 7.10 Clock Clock includes alarm clock, stopwatch and countdown function. Click “Clock” Alarm clock Stopwatch Countdown...
  • Page 38 7.11 Applications Applications includes answer by shaking, gesture bright screen, clock setting, about watch, clock style, phone anti-loss, and find phone functions. Answer by shaking: When receiving a call, user can shake the hands to accept the phone call. Clock sleep schedule: Between these hours the Always ON watch face will “sleep”...
  • Page 39 Heart rate monitor can count the heart rate. Hold your finger on the metal part around the screen display when wearing the watch. Hold for about 20 seconds for one reading. The reading records will be saved in record list and can also be uploaded to the APK in the smart phone.
  • Page 40 Click “Heart rate” Press “start” Testing Records display...
  • Page 41 7.14 APP download APP download is the QR code of the link for downloading the APK to smart phone. User can easily download the APK on smart phone by scanning the QR code in the smart watch.
  • Page 42 7.15 User Profiles In the Profiles menu you can configure 4 different profiles for quickly adjusting volume and vibrate settings during different occasions. You have General, Silent, Meeting, and Outdoor to choose from. 7.16 Silent Mode From the main menu you can quickly set SILENT mode to disable all sounds from the watch.
  • Page 43 7.17 Voice Control You can access Siri and Google Now voice control by doing a PRESS and HOLD on the home screen or by pressing the Voice Control icon. Once you activate the Voice Control the icon will turn blue and your phone will prompt for you to speak the command.

  • Page 44: Troubleshooting

    8. Troubleshooting Trouble Solution Failure to turn Charge the smart watch for 3 hours with the USB cable provided. Failure to Open smart watch, check the connect “Settings”-- “Bluetooth”. Make sure Bluetooth with Bluetooth and Visible is turned on the smart and connected.
  • Page 45 Some phones (like iPhone) do not even though fully support the User Profiles. profile is set for Instead use the SILENT MODE to Vibrate or Silent make sure the watch is properly muted from making any sounds. Other problem Please contact support@sykla.com...
