Marantz DR6000 Service Manual

Compact disc recorder

Hide thumbs Also See for DR6000:

User manual (26 pages)

Specifications (1 page)

User manual (26 pages)

Table Of Contents

Table of Contents

Quick Links

Troubleshooting

Need help?

Do you have a question about the DR6000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Marantz DR6000

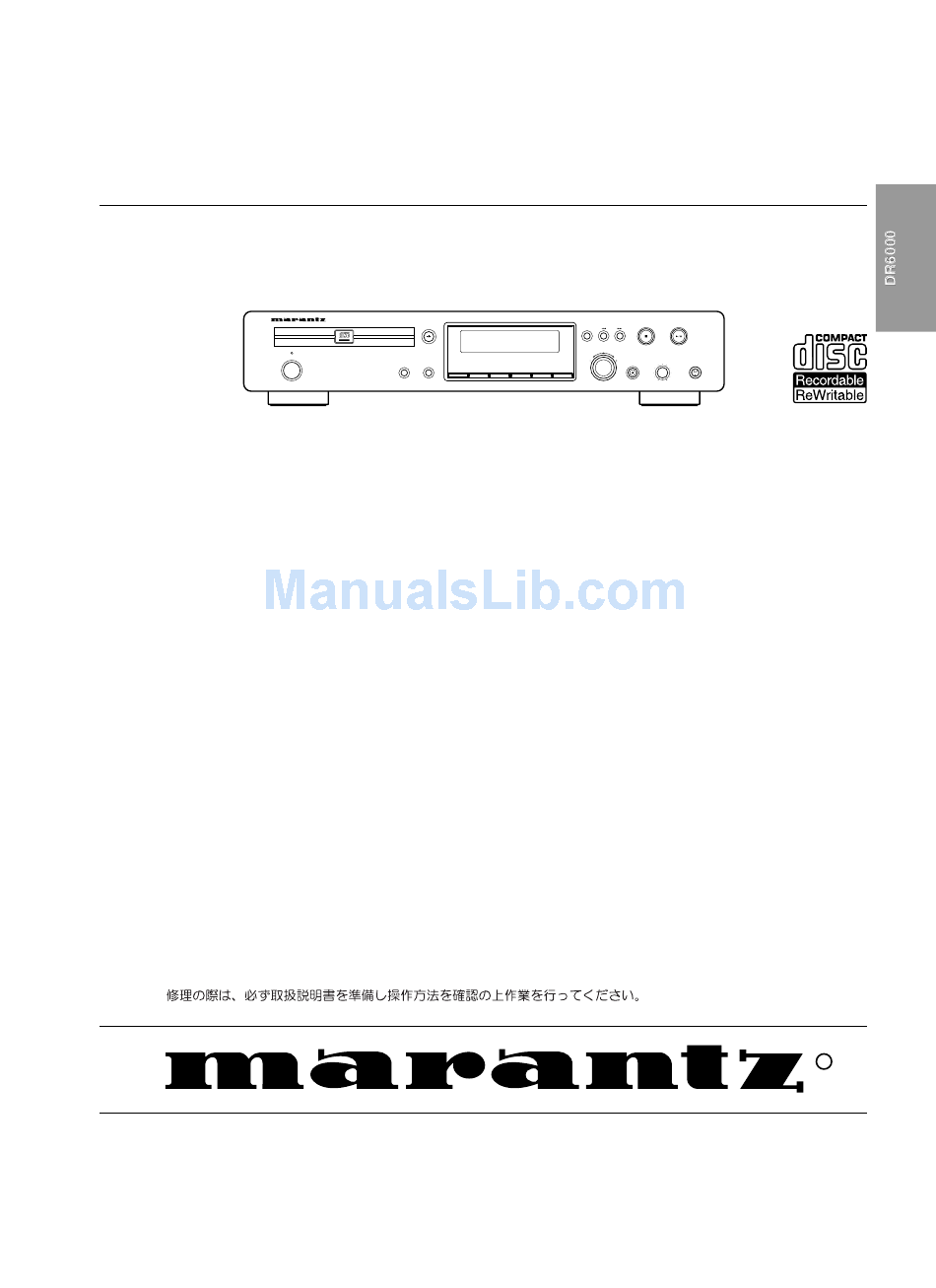

Page 1 DELETE PUSH ENTER REMARK : This service manual explains them by extracting specifications designed for the model DR6000 only. The explanation for CD-R module "MAR770" (Loader : CDL4009' + CD-R Main board) is not mentioned on this service manual. The CD-R module information is described in the service manual of CD-R modules <MAR770/MAR775>.
Page 2 MARANTZ Parts for your equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified.
Page 3: Servicing The Dr6000
1.Servicing the DR6000 1.1 INTRODUCTION: The DR6000 is the consumer version of a CD recorder, this means that the SCMS (Serial Copy Management System) is included. The DR6000 can only record on the Audio CDRs (Consumer Use). The DR6000 is suitable for recording and playback of CD-R W discs (CD-Re Writable disc).
Page 4 This PCB consists of power supply part and audio part. The power suppluy part delivers the several voltages for the diffrent PCB in the DR6000. On this power supply sevel fuses (secondary side) are mounted on this PCB. The audio part takes care that the signal from CDR main module is converted into an analog signal via DA converter and outputs the analog signal.
Page 5: Technical Specifications
2 TECHNICAL SPECIFICATIONS GENERAL System ....................Compact disc digital audio Number of channels ................2 (stereo) Applicable discs ..................CD, CD-R (digital audio), CD-RW (digital audio) Power Requirement F version ................... AC 100 V 50 / 60 Hz K version ................... AC 110 V / 220 V 50 /60 Hz N version ...................
Page 6: Warnings
3. WARNINGS WARNING WAARSCHUWING All ICs and many other semiconductors are susceptible to Alle IC´s en vele andere halfgeleiders zijn gevoelig voor electrostatic discharges (ESD). Careless handling during electrostatische ontladingen (ESD). repair can reduce life drastically. Onzorgvuldig behandelen tijdens reparatie kan de levensduur When repairing, make sure that you are connected with the drastisch doen vermindern.
Page 7: Service Hints And Tools
4. SERVICE HINTS AND TOOLS SERVICE TOOLS Audio signals disc 4822 397 30184 Disc without errors (SBC444)+ Disc with DO errors, black spots and fingerprints (SBC444A) 4822 397 30245 Disc (65 min 1kHz) without no pause 4822 397 30155 Max. diameter disc (58.0 mm) 4822 397 60141 Torx screwdrivers Set (straight)
Page 8 5. Diagnostic Software 5.1 Dealer mode The purpose of the dealer mode is to prevent people taking out the CD inside the player at exhibitions, showrooms etc.. This mode disables the open/close function of the player. The dealer mode can be switched on and off pressing keys [OPEN/CLOSE] and [STOP] of the CDR player simultaneously while switching on the unit.
Page 9 Electrical service diagnostics ELECTRICAL SERVICE DIAGNOSTICS (software versions, test for defective components) If power ON, switch power OFF Load CD-DA disc (SBC444A) Press <PLAY> + <F FWD> simultaneously and switch ON unit LOADER TESTS PLAYER INFORMATION CDR LOADER TEST Display : ABORT TEST CD-DA disc must be loaded "PLAYER ID"...
Page 10 5.3.1 Description Loader tests These tests determine if the CDR loader and the CD loader in case of a DR6050 work correctly. A CD-DA disc with a The intention of the electrical service diagnostics is to show the minimum of 3 tracks needs to be inserted in both loaders. A software versions present in the player and to direct the dealer disc test is executed to check focus control, disc motor control, towards defective internal units.
Page 11 5.4 Mechanical service diagnostics MECHANICAL SERVICE DIAGNOSTICS (test for defective components) If power ON, switch power OFF Press <PLAY/PAUSE> + <STOP> simultaneously and switch ON unit < > OPEN TRAY TEST FOCUS TEST Visual inspection Display shows “BUSY” Display shows “OPENED” <...
Page 12 5.5 DC-erase service mode DC ERASE SERVICE MODE (erasement of complete CD-RW) Load CD-RW disc Press <ERASE> + <RECORD> simultaneously and switch ON unit Display shows: “ ER mm:ss ” :remaining minutes :remaining seconds TOTAL and REM are also illuminated Display shows: “...
Page 13: Faultfinding Trees
6. Faultfinding Trees NO DISC LOADED SWITCH ON POWER STBY LED? PRESS <DISPLAY> CHECK: • MAINS, MAINS CABLE • POWER SUPPLY & TRAFO ⇒ WIRING ⇒ ON/OFF SWITCH ⇒ FUSES ⇒ VOLTAGES • DISPLAY (SEE FAULT FINDING GUIDE DISPLAY BOARD) DISPLAY? ⇒...
Page 14 Faultfinding Trees CD-DA DISC LOADED CHECK: • WIRING DISC • POWER SUPPLY VOLTAGES DETECTION & READING? • ELECTRICAL SERVICE DIAGNOSTICS: REPLACE CDR MODULE IF "DERRn" OR "BERRn" ERROR OCCURS CHECK: DISPLAY: • DISC: DIRT, SCRATCHES, DAMAGED... “CD” & • ELECTRICAL SERVICE DIAGNOSTICS: T.O.C.
Page 15 CD-R DISC LOADED CHECK: • DISC WIRING DETECTION & • POWER SUPPLY VOLTAGES READING? • ELECTRICAL SERVICE DIAGNOSTICS: REPLACE CDR MODULE IF "DERRn" OR "BERRn" ERROR OCCURS CHECK: DISPLAY: DISPLAY: • DISC: DIRT, SCRATCHES, DAMAGED... “CD R” & “CD” OR “CD R” & •...
Page 16 CD-RW DISC LOADED CHECK: • DISC WIRING DETECTION & • POWER SUPPLY VOLTAGES READING? • ELECTRICAL SERVICE DIAGNOSTICS: REPLACE CDR MODULE IF "DERRn" OR "BERRn" ERROR OCCURS CHECK: DISPLAY: DISPLAY: • DISC: DIRT, SCRATCHES, DAMAGED... “CD RW” & “CD” OR “CD RW” & •...
Page 17: Faultfinding Guide
7. Faultfinding Guide 7.1 Display Board 7.1.1 Description of display board Display controller TMP87CH74F TMP87CH74F (QY01) is a high speed and high performance 8-bit single chip microprocessor, containing 8-bit A/D General description conversion inputs and a VFT (Vacuum Fluorescent Tube) The display board has three major parts : the FTD (Fluorescent driver.
Page 18 7.1.2 Test instructions Grid lines Level and timing of all grid lines, G1-->G15, can be checked either at the FTD itself or at the display controller. Grid lines Supply voltages G13, G14 and G15 each have an extra current amplifier in line The display board receives several voltages via connector : QY04 for G13, QY03 for G14 and QY02 for G15.
Page 19 Figure 7-5 KEY MATRIX SCAN LINE IR receiver - remote control In the DR6000 the IR receiver ZY01 is mounted on the display Easy jog knob board. In all versions the IR receiver connects to the display controller. The signal coming from the receiver can be checked Rotary operation at pin 22 of the display controller.
Page 20 7.1.3 Display board troubleshooting guide SWITCH POWER ON, EXIT STAND BY MODE CHECK : • SUPPLY VOLTAGES ⇒ -30V ±5% at conn. JY01-2 ⇒ 4V3 ± 10% between conn. JY01-1 and JY01-3 DISPLAY? ⇒ +5V ± 5 % at conn. JY01-10 •...
Page 21 Pin description 7.2 I/O Board Pin Name PIN / FUNCTION The I/O board for the DR6000 is a full high performance AINR+ Right channel analog positive input pin AD/DA panel, acting as an interface to the outside world. Key AINR- Right channel analog negative input pin components are DS1807, ADC AK5351 and DAC TDA1305.
Page 22 Addressable Dual Audio Taper Potentionmeter : DS1807 Block diagram Control Logic Address Logic Figure 7-12 Pin description DESCIPTION L0, L1 Low End of Resistor H0, H1 High End of Resistor W0,W1 Wiper Terminal of Resistor 3V/5V Power Supply Input A0..A2 Chip Select Inputs Serial Data I/O Serial Clock Input...
Page 23 7.2.2 Analog-out path Description DAC TDA1305 The I2S-bus data format being the digital output signal, goes from the DASP on the CDR main board via flex and connector Description JJ01 to the I/O board. Here it is presented to the D/A converter The TDA1305 is a high performance, single-chip stereo, audio TDA1305.
Page 24 Pin configuration and description PINNING SYMBOL DESCRIPTION analog supply voltage analog ground TEST1 test input; pin should be connected to ground (internal pull-down resistor) bit clock input word select input DATA data input CLKS1 clock selection 1 input CLKS2 clock selection 2 input digital ground digital supply voltage TEST2...
Page 25 Troubleshooting analog-out path LOAD SBC442 TEST CD (1kHz, -30dB) 4822 397 30155 CHECK: • Flex and wire connections • +5V, +12V, -12V • CL11 = 11.2896MHz at pin 2 conn. JJ01 PRESS <PLAY> CHECK: • KILL voltage testpoint 1 : -8V during play •...
Page 26: Wiring Diagram
8. WIRING DIAGRAM W001 WH04 WY01 POWER TRANSFORMER COLD VDC2 POWER SW BOARD PH16 BOARD PH26 VFTD VDC1 W801 SYS- RESET 12VA IIC- DATA JH01 W801 12VA IIC- CLK 12VD DISPL- INT J801 12VA +5VD WH04 WY02 RC-5 OUT JH04 JH06 RC-5 IN STAND-BY...
Page 27: Block Diagram
9. BLOCK DIAGRAM OVERALL BLOCK DIAGRAM CDR MAIN BOARD CDL 4009 DISPLAY ASSY LOADER ASSY 7703 VY01 7330 CDM3800 DISPLAY 1330 FLASH 15-BT-62GNK HALL DRIVE, HALL FEEDBACK MOTOR FLEX 11P DRIVER QY01 JY01 BA6856FP ZY01 TURN SLAVE DISPLAY 10 WIRES ADDRESS DATA TABLE...
Page 28: Schematic Diagram And Parts Location
10. SCHEMATIC DIAGRAM AND PARTS LOCATION WY04 A/D CONV C713 220/16V DISPLAY VY01 D701 Q703 Q705 PP16-1/2 AK5351 1SS302 D709 R725 1SS302 PY16 1/4W DGND C711 220/16V D705 R717 R715 R713 R726 TST4 TST3 4.7K 4.7K C726 R727 R722 D703 C728 SMOD2 TST2...
Page 29 Q701 PP16 QF51 QF52 Q311 QN51 - QN54 Q801 Q804 Q805 Q810 QN01 - QN04 Q802 Q803 Q806 QH01 - QH15(Odd no.) Q705 Q702 Q706 Q821 QH02 - QH16(Even no.) QD50 Q822 Q841 Q601 QD54 Q602 Q703 QD51 - QD53 QD55 - QD57 QN06 QN05 QD01 QD03...
Page 30 R820 2.2K PP16-2/2 POWER SUPLLY/MUTE R808 C816 2.2K 100/16V D812 7.5V Q802 +5VA Q851 +12VA Q803 T0.5A L 250V C808 2SB1185 D852 NJM78M08FA D851 D850 NJM78M05FA 16.5V 220/16V 14.3V C818 F804 0.22/50V 6.9V 11.2V +12V AC12P R814 C810 C811 D804 R802 2.2K C813...
Page 31 PY16 QY04 QY03 QY02 QY05 QY01 SY04 CDR STOP CDR PLAY WG385K1020 SY03 SY01 SY05 SY17 SY18 QY05 PY16 OPEN QY04 QY03 QY02 WY02 TYPE CY06 SY26 PY26 XY01 RY04 SY13 ZY01 SY23 SY06 SY08 SY07 SY22 SY12 SCROLL DISPLAY CY07 RY06 SY02...
Page 32: Exploded View And Parts List
11. EXPLODED VIEW AND PARTS LIST 5 1 2 6 SYM BO L S T Y L E PAR T S NA ME MAR K MA T E RI A L /FIN IS H 3 X 8 ( M) 5 1 1 0 + B .
Page 33 001B GOLD 9965 000 05936 FRONT PANEL GL 385K248110 001B BLACK 9965 000 05923 FRONT PANEL BL 385K248010 002B 4822 454 11825 MARANTZ BADGE 185J251010 003B 9965 000 01393 STANDBY LED LENS 312J355010 009B GOLD 9965 000 05017 FRONT CHASSIS RIGHT GL...
Page 34: Electrical Parts List
12. ELECTRICAL PARTS LIST NOTE ON SAFETY FOR FUSIBLE RESISTOR : ASSIGNMENT OF COMMON PARTS CODES. RESISTORS The suppliers and their type numbers of fusible resistors : 1) GD05 × × × 140, Carbon film fixed resistor, ±5% 1/4W are as follows; : 2) GD05 ×...
Page 35 VERS. VERS. POS. PART NO. POS. PART NO. PART NO. PART NO. DESCRIPTION DESCRIPTION COLOR COLOR (FOR PCS) (FOR PCS) (MJI) (MJI) P916-HEAD PHONE C601 FILM 0.0033µF J M 50V DF15332350 CIRCUIT BOARD C602 FILM 0.0033µF J M 50V DF15332350 P916-CAPACITORS C603 C901...
Page 36 VERS. VERS. POS. PART NO. POS. PART NO. PART NO. PART NO. DESCRIPTION DESCRIPTION COLOR COLOR (FOR PCS) (FOR PCS) (MJI) (MJI) C842 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 R611 4822 051 30152 CHIP 1.5kΩ ±5% 1/16W NN05152610 C843 4822 124 12328 ELECT.
Page 37 VERS. VERS. POS. PART NO. POS. PART NO. PART NO. PART NO. DESCRIPTION DESCRIPTION COLOR COLOR (FOR PCS) (FOR PCS) (MJI) (MJI) RD70 4822 157 10416 EMI FILTER BLM118102S 1608 FN31010030 D841 RD73 4822 051 30223 CHIP 22kΩ ±5% 1/16W NN05223610 4822 130 32968 DIODE RL203-M11 2A-200V HD20001710...
Page 38 VERS. VERS. POS. PART NO. POS. PART NO. PART NO. PART NO. DESCRIPTION DESCRIPTION COLOR COLOR (FOR PCS) (FOR PCS) (MJI) (MJI) QH07 CY10 4822 122 31765 CER. CHIP 00pF ±5% CG 50V DD95101300 4822 130 63928 CHIP TRS. 2SA1312 B HX113121B0 CY11 4822 126 11687 CER.
