Summary of Contents for Roberts R862

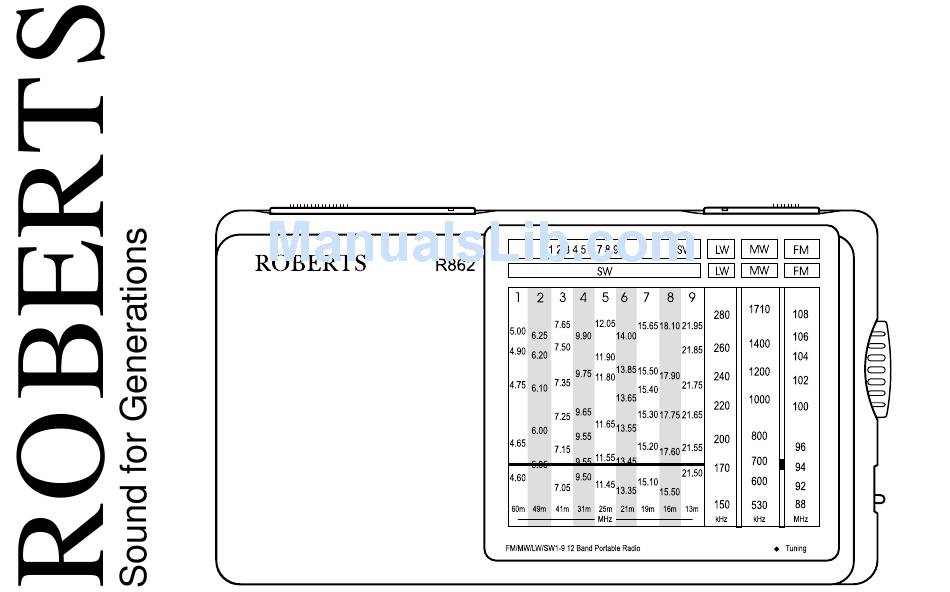

- Page 1 R862 LW/MW/SW1-9/FM 12 band Portable Radio...
-
Page 2: Controls (Front)
Controls (front) 1. Telescopic aerial 2. SW band switch 3. Waveband switch 4. Tuning indicator 5. Battery compartment 6. Tuning scale... - Page 3 Controls (left and right hand ends) 7. Volume control 8. Headphone socket 9. DC input socket 10. Tuning control If you need any further advice, please 11. On/Off switch call our Technical Helpline on 0181 758 0338 (Mon-Fri)
- Page 4 If the batteries are left in the radio for long periods they could leak and cause corrosion damage. Therefore if the R862 is only to be used via an external power supply the batteries should be removed.
- Page 5 Mains adaptor (not included) the On/Off switch (11) to the ‘Off’ position. The AC adaptor for use with the R862 should Note : the telescopic aerial (1) is inoperative on the provide 3 volts DC output at 200mA centre pin LW/MW bands negative.
-
Page 6: Specifications
Specifications Aerial System LW : Built-in Ferrite aerial Power Requirements MW : Built-in Ferrite aerial Batteries :3V 2 x IEC LR6 (AA)size FM : Telescopic aerial External :3V 200mA (centre pin negative) SW : Telescopic aerial Frequency Coverage Battery Life 150 - 281 kHz Approx. - Page 7 In the event that it is not possible to return the instrument to the Roberts dealer from whom it was purchased, please contact Roberts Radio Technical Services Department at the address shown on the back page of this manual before taking further action.
- Page 8 Imported by:- ROBERTS RADIO LIMITED PO BOX 130 MEXBOROUGH SOUTH YORKSHIRE S64 8YT ROBERTS RADIO TECHNICAL SERVICES DEPARTMENT 97-99 Worton Road Isleworth Middlesex TW7 6EG Technical Helpline :- 0181 758 0338 Issue 1...
