Lava LD-236DLH-B Instruction Manual

24” led tv with dvd and digital mpeg4 dvb-t/c tuner

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

24" LED TV with DVD and Digital

MPEG4 DVB-T/C Tuner

LD-236DLH-B

Table of Contents

Need help?

Do you have a question about the LD-236DLH-B and is the answer not in the manual?

Questions and answers

Summary of Contents for Lava LD-236DLH-B

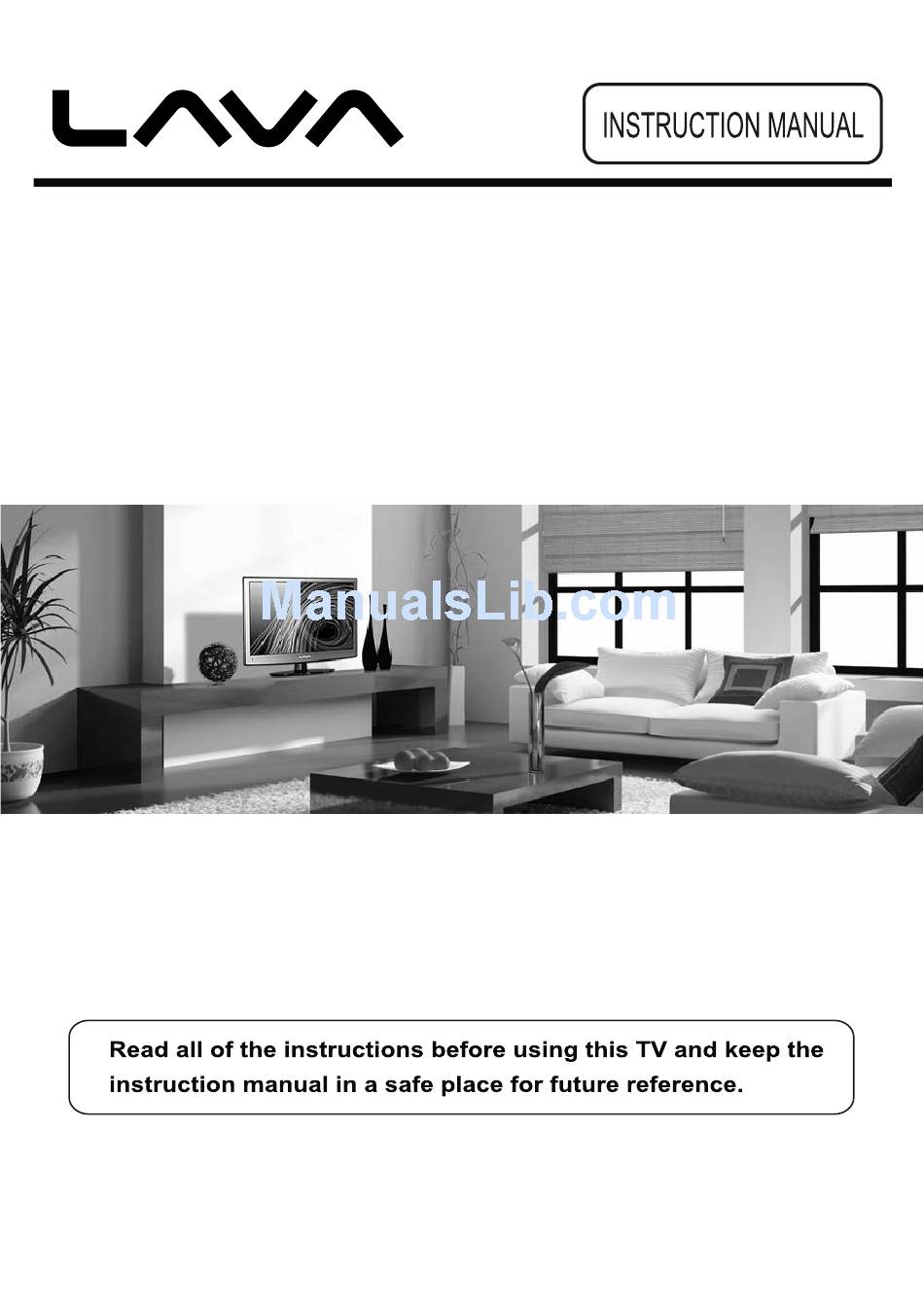

Page 1 24” LED TV with DVD and Digital MPEG4 DVB-T/C Tuner LD-236DLH-B...
Page 3: Table Of Contents
Contents Contents Caution Safety Information Product Introduction Front View/Accessories Connections Remote Control Basic Operation OSD Menu 8-14 1. Channel menu 2. Picture menu 3. Sound menu 4. Time menu 5. Lock menu 13-14 6. Setup menu Multimedia Operation 16-18 Recording Operation 19-20 EPG Menu DVD Operation...
Page 4: Caution
Caution Caution The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of un-insulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Page 5: Safety Information
Safety Information Safety Information To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below . Electrical safety • The TV set should only be connected to a mains supply which matches that stated on the label on the mains adaptor.
Page 6: Product Introduction
Product Introduction Product Introduction Front View SOURCE: Display the input source menu. MENU: Display/exit the OSD menu. CH+/-: Scan through channels. VOL+/-: Adjust the volume. PLAY: Play/pause the disc playing. EJECT: Eject the disc. POWER: Turn on/standby the TV set. DVD: Insert a 12cm disc according to the Remote Control window silk.
Page 7: Connections
Connections Connections POWER HDMI HDMI SCART PC AUDIO POWER: Connect to the mains adaptor. USB: USB jack for update and PVR. HDMI1/2: Connect it to the HDMI of DVD or other equipment. SCART: Connect them to the SCART video output terminal of DVD.(used in component source) PCAUDIO: Connect it to the audio output terminal of PC.
Page 8: Remote Control
Remote Control Remote Control SOURCE POWER: Turn the TV on/standby. SOURCE: Press to display the input source menu. NUMBER BUTTONS Press0-9 to select a TV channel directly when you are watching TV. FAV: Display the favorite program list. Return to the previous channel viewed. PICTURE SOUND SLEEP...
Page 9: Remote Control
Remote Control Remote Control SOURCE : Press to start record the program in DVB mode. TV/TXT: Turn off/on the Teletext display. CANCEL: Cancel the Teletext display. PICTURE SOUND SLEEP REVEAL: Reveal any hidden text. MUTE INFO HOLD: Hold or carry on the current subpage. SIZE: Press to see top half of page double size, Press again to see the bottom half of page double size.
Page 10: Basic Operation
Basic Operation Basic Operation Power on/off 1. Connect to the power supply with a power cord and an adaptor. 2. -To turn on the TV Press POWER button on the TV or remote control. -To turn off theTV Press POWER button on the TV or remote control. Input Source select Press SOURCE button on the TV set or remote control to display input source menu, and use CH+/- button on the TV set or...
Page 11: Osd Menu
OSD Menu OSD Menu 1. CHANNEL menu Description Auto Tuning Press OK button to enter the hint menu, and Press button to select the Tune Type, then press button, and use button to select the Country for the TV, then press OK button to start auto tuning.
Page 12 OSD Menu OSD Menu Channel List Press OK button to enter the Programme Edit menu as the following picture. Delete: Select a channel and press RED button, the program will be deleted. Rename: Select an ATV channel and press the GREEN button to change the name of the channel by buttons.
Page 13: Picture Menu
OSD Menu OSD Menu 2. PICTURE menu Description Picture Mode: Choose from Standard, Dynamic, Personal and Mild. Note: Contrast, Brightness, Color and sharpness are only available and can be adjusted in the User mode option in the Picture Mode Settings. Contrast: Controls the difference between the brightest and darkest regions of the picture.
Page 14: Sound Menu
OSD Menu OSD Menu 3. SOUND menu Description Sound Mode: Allows you to select among: Standard, Music, Movie, Sports and Personal. Treble(Can be adjusted when the sound mode is Personal) : Controls the relative intensity of higher pitched sounds. Bass (Can be adjusted when the sound mode is set to Personal): Controls the relative intensity of lower pitched sounds.
Page 15: Time Menu
OSD Menu OSD Menu 4. TIME menu Description Clock: Display the time. Time Zone: Allows you to select the time zone. Sleep Timer: Allows you to setup the sleep timer among: 10min, 20min, 30min, 60min, 90min, 120min,180min, 240min and off. Auto Standby : Turn on/off the auto standby function when where’s no signal.
Page 16: Lock Menu
OSD Menu OSD Menu 5. LOCK menu Description Lock System: Turn on/off the Lock System function. Note: You should enter the code to operate the menu.(original code is 0000) Set Password: Set pin code. If the Pin code has been changed you must enter the present code.
Page 17: Osd Menu
OSD Menu OSD Menu Block Program: Parental Guidance: Key Lock:...
Page 18: Setup Menu
OSD Menu OSD Menu 6. SETUP menu Software update(USB) Description OSD Language: Allows you to select menu language. TT Language: Allows you to select teletext language. Audio Language: Allows you to select audio language. Subtitle Language: Allows you to select subtitle language. Hearing Impaired: Turn on/off the Hearing Impaired function.
Page 19: Multimedia Operation
Multimedia Operation Multimedia Operation Basic Operation 1). Press the SORUCE button on the remote control to display the input source menu, select Media source by the buttons, and press OK button to enter the Multimedia menu seen below. Hints and informations of USB device MAINS MENU: PHOTO MUSIC MOVIE TEXT 2).
Page 20 Multimedia Operation Multimedia Operation 1. Photo Photo viewing Press button to select the option on the menu, and press OK button to change. Pause: Play/pause the photo view. Prev./Next: View the previous/next photo. Stop: Stop the photo view. Repeat: Select the repeat mode from Repeat All, Repeat 1, Repeat None. Music: Play/Pause the music.
Page 21: Multimedia Operation
Multimedia Operation Multimedia Operation 3. Movie Play the movie Press button to select the option on the menu, and press OK button to change. Pause: Play/pause the music. FB/FF: Fast backward/fast forward. Prev./Next: Play the previous/next file. Stop: Stop the movie. Repeat: Select the repeat mode from Repeat All, Repeat 1, Repeat None.
Page 22: Recording Operation
Recording Operation Recording Operation PVR settings 1. PVR File System Press the MENU button, select SETUP menu, and select “PVR File System”, then press OK button to enter the setting menu. Please check whether your USB device works or not before recording. Select Disk: Select the device for the Record files.
Page 23: Recording Operation
Recording Operation Recording Operation Recording Record and Time shift function buttons REC: Press to start recording. PAUSE: Press to enter the timeshift mode, press play to play the recording. Stop: Press to stop recording or timeshift. REC LIST: To display the recorder menu. 1) Recording menu When you press REC button in DTV mode, the screen will display the recording menu as below:...
Page 24: Epg Menu
EPG menu EPG menu Display the programme guide by pressing the EPG button. Display the information of the programme Display the Channel list programme name Options You can select a programme for recording using the buttons. Record: Press RED button to display the Recorded Mode menu, and set the timer record. When the programme starts it will be recorded to the USB device.
Page 25: Dvd Operation
DVD Operation DVD Operation Press the Power button on the TV or the remote control, then press the SOURCE button to select DVD mode. If there is no disc in the DVD player the screen will show "NO DISC". Insert Disc according to picture next to disc slot. Do not touch the playing surface.
Page 26: Dvd Operation
DVD Operation DVD Operation General Setup Page - - TV Display 16:9 OSD Lang Screen Saver Last Memory General Setup Page - - TV Display 16:9 OSD Lang Screen Saver Last Memory...
Page 27 DVD Operation DVD Operation...
Page 28 DVD Operation DVD Operation Spdif Setup Spdif out Spdif off Spdif /RAW is for amplifiers with a built in digital decoder. Spdif/PCM is selected for amplifiers with no built in digital decoder. - - Spdif Setup Page - - Spdif Output Spdif Off Spdif/RAW Spdif/Pcm...
Page 29 DVD Operation DVD Operation or NO disc...
Page 30 DVD Operation DVD Operation...
Page 31 DVD Operation DVD Operation...
Page 32 DVD Operation DVD Operation...
Page 33: Simple Troubleshooting
Simple Troubleshooting Simple Troubleshooting If the display fails or performance dramatically deteriorates check the Display in accordance with the following instructions.Remember to check the peripherals topinpiont the source of the failure. If the display still fails to perform as expected,connect your helpline for assistance. No power - Check all connections to the TV.
Page 34: Maintenance And Service
Maintenance and Service Specifications Technical – Panel Panel 24” Screen Size 477.417 (H) x 268.416 (V) Display Area 1920(H) x 1080(V) Display Res 170(H)/160(V) (CR 20) Viewing Angle 16:9 Aspect 0.1165 (H) x 0.3495 (V) Pixel pitch (H/V) 300 nits Brightness 800:1 Contrast...
Page 35 ROVI: This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited. DOLBY PROLOGIC: Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic", and the double-D symbol are trademarks of Dolby Laboratories. Service must be carried out by authorised personnel.
