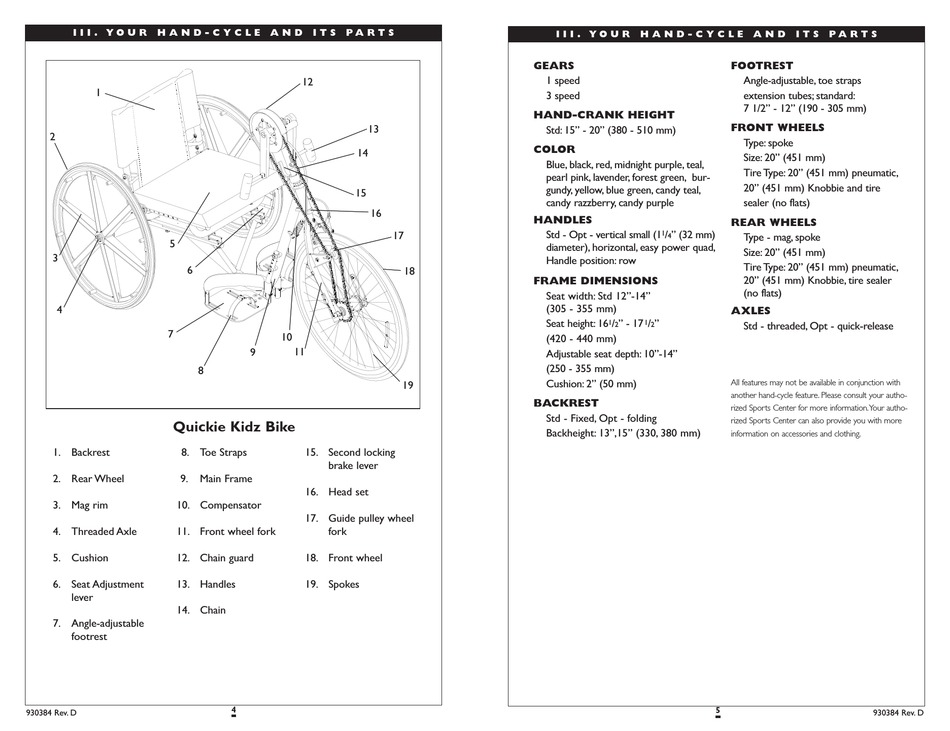

I I I . Y O U R H A N D - C Y C L E A N D I T S P A R T S
1
2
5
3
6
4
7
8
Quickie Kidz Bike
1. Backrest 8. Toe Straps
2. Rear Wheel 9. Main Frame
3. Mag rim 10. Compensator
4. Threaded Axle 11. Front wheel fork
5. Cushion 12. Chain guard
6. Seat Adjustment 13. Handles
lever
14. Chain
7. Angle-adjustable
footrest
930384 Rev. D
12
13
14
15
16
17
18
10
11
9
19
15. Second locking
brake lever
16. Head set
17. Guide pulley wheel
fork
18. Front wheel
19. Spokes
4
I I I . Y O U R H A N D - C Y C L E A N D I T S P A R T S
GEARS
1 speed
3 speed
HAND-CRANK HEIGHT
Std: 15" - 20" (380 - 510 mm)
COLOR
Blue, black, red, midnight purple, teal,
pearl pink, lavender, forest green, bur-
gundy, yellow, blue green, candy teal,
candy razzberry, candy purple
HANDLES
Std - Opt - vertical small (1 / " (32 mm)
1
4
diameter), horizontal, easy power quad,
Handle position: row
FRAME DIMENSIONS
Seat width: Std 12"-14"
(305 - 355 mm)
Seat height: 16 / " - 17 / "
1 1
2 2
(420 - 440 mm)
Adjustable seat depth: 10"-14"
(250 - 355 mm)
Cushion: 2" (50 mm)
BACKREST
Std - Fixed, Opt - folding
Backheight: 13",15" (330, 380 mm)
FOOTREST
Angle-adjustable, toe straps
extension tubes; standard:
7 1/2" - 12" (190 - 305 mm)
FRONT WHEELS
Type: spoke
Size: 20" (451 mm)
Tire Type: 20" (451 mm) pneumatic,
20" (451 mm) Knobbie and tire
sealer (no flats)
REAR WHEELS
Type - mag, spoke
Size: 20" (451 mm)
Tire Type: 20" (451 mm) pneumatic,
20" (451 mm) Knobbie, tire sealer
(no flats)
AXLES
Std - threaded, Opt - quick-release
All features may not be available in conjunction with
another hand-cycle feature. Please consult your autho-
rized Sports Center for more information.Your autho-
rized Sports Center can also provide you with more
information on accessories and clothing.
930384 Rev. D
5
