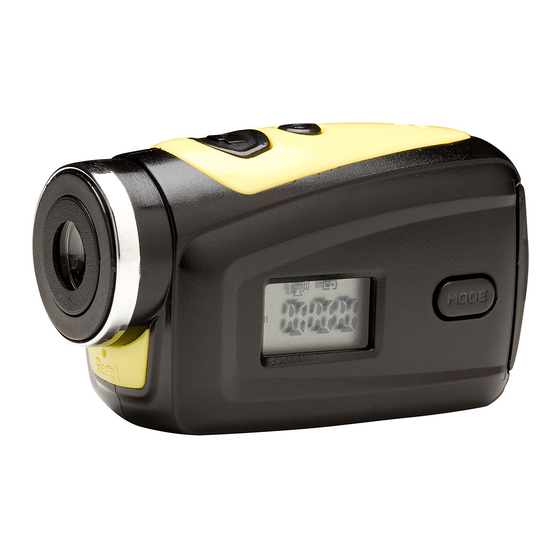

Denver AC-1300 Quick Start Manual

1.Appearance
1
2
6
7
1. Black and white digital screen
2. MODE key
3. Shutter
4. Power
5. Microphone
2.Key Functions and Indictors
Key/Indica
tor
Power Power On/Off
Video recording mode, Recording/Stop
Capture mode, taking pictures
Replay mode; after connecting to TV, short press
Shutter
to play the recorded video; long press to enter
shortcut for deletion; short press to confirm file
deletion.
Switchover of video recording and capture mode
in circle and change image size;
In capture mode, long press MODE key to format
MODE
TF card;
key
Replay mode: after connecting to TV, it is used
for next or previous photo, or exit from deletion
mode.
3.Start Operation
Battery
This camera uses the original packaged built-in rechargeable 3.7V
lithium battery.
Battery disassembly is prohibited.
Memory card installation
Following instructions by the card slot, it is plug the TF memory
card into the card slot with metal pins inwards.
To take the memory card out, please press the TF card downward
and take it out.
Power-on
Press and hold power key for 2 seconds and release it for power-on
of the camera.
Mode switchover
After power-on, the camera enters the default mode of video
recording at a default size of Lo. In video recording mode at Lo size,
click MODE key to switch the size to HI; in video recording mode at
HI size, click MODE key to enter capture mode at Lo size, and in
capture mode at Lo size, click MODE key to return to video
recording mode at Lo size.
Video recording
In video recording mode, click Shutter key to start video recording
and click it again to stop recording.
Capture
In capture mode, press Shutter key to take pictures.
TV output
When output of image and audio from the camera to TV is needed,
please plug common end of TV cable into TV port of the camera.
The yellow port is for video input, and the red/white port is for audio.
Replay
After connecting to TV, the camera enters the replay mode. In
replay mode, press MODE key to select photo or recorded video.
After selecting recorded video file, press Shutter key to play the file.
During playing the recorded video, press Shutter key to stop
playing.
In replay mode, long press Shutter key to enter shortcut deletion
prompt, press Shutter key to confirm deletion, and press MODE
key to exit from deletion.
Power-off
In power-on mode, long press Power key to power the camera off.
Connection to computer
Firstly power the camera on, and then connect the camera with
attached USB cable to USB port of the computer. After connecting
to the computer, the camera automatically enters portable disc
mode.
AC-1300 Quick Start Guide
5
4
3
8
10
9
6. Lens
7. Reset
8. USB port
9. TV port
10.
TF card slot
11.
Function

4.Advanced Operation

Video recording, capture mode
( With maximum 29 minutes video recording per sequence)
After power-on, the camera automatically enters video recording
mode. In video recording mode at Lo size, click MODE key to
switch the size to HI; in video recording mode at HI size, click
MODE key to enter capture mode at Lo size, and in capture mode
at Lo size, click MODE key to return to video recording mode at Lo
size.
In video recording mode, press Shutter key to start recording and
press it again to stop recording, press MODE key to switch to Lo
size. In capture mode, press Shutter key to start shooting, and
press MODE key to switch to Lo size.
◆ In video recording mode, information are displayed on the screen
as below:
1 2
7
8
No. Icon
Video Indicates high resolution in current
1
recording HI video recording mode
Video Indicates currently in video recording
2 recording mode (Flashing icon means in the
icon process of video recording)
3 Battery level Indicates level of battery
4 TF card Indicates a memory card available
Indicates
5 Recording Lo
video recording mode
Time left for Indicates time left in FT card for video
6
recording recording
Capture
7 Indicates currently in capture mode
mode
Indicates high resolution in current
8 Capture HI
capture mode
Photo to be Indicates quantity of photos to be
9
captured captured in current internal memory
Indicates low resolution in current
10 Capture Lo
capture mode
Replay Mode
After power-on and connecting to TV, the camera enters the replay
mode. In replay mode, press MODE key to select photo and
recorded video. After selecting video file, press Shutter key to play
it. During playing, press Shutter key to Stop playing.
In replay mode, long press Shutter key to enter file deletion mode.
In file deletion mode, press Shutter key to confirm deletion, and
press MODE key to exit from deletion.
◆ In replay mode, information are displayed on the screen as
below:
1
4
No.
Icon
1 Replay mode
2 File quantity
3 TF card
Icon for video
4
recording
File Deletion
After connecting to TV, the camera enters the replay mode. In
replay mode, long press Shutter key to enter file deletion mode,
press Shutter key to confirm deletion, and press MODE key to exit
from deletion.
3
4 5
9
10
Description
low resolution in current
2
3
Description
Indicates reply mode
Indicates there are total 31 files, and
th
the 19 file is being browsed
currently.
Indicates a memory card available
Indicates the current file is a video
recording file.
6
