Owners

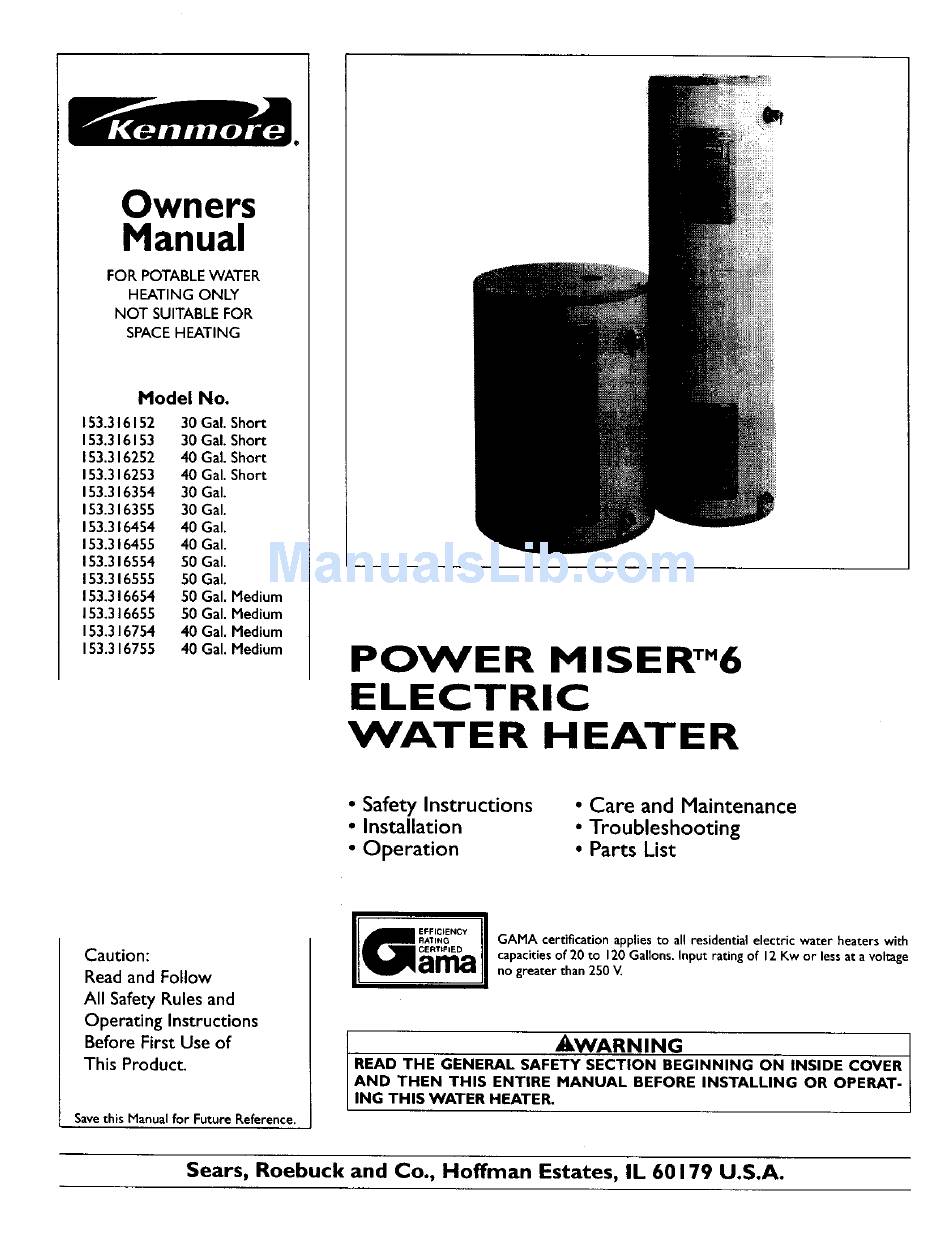

Manual
FOR POTABLE WATER
HEATING ONLY
NOT SUITABLE FOR
SPACEHEATING
Model No.
153.316152
30 GaL Short
153.316153
30 Gal. Short
153.316252
40 Gal. Short
153.316253
40 Gal. Short
153.316354
30 Gal.
153.316355
30 Gal.
153.316454
40 Gal.
153.316455
40 Gal.
I$3.316554
50 Gal.
153.316555
50 Gal.
153.316654
SOGal. Medium
153.316655
50 Gal. Medium
153.316754
40 Gal. Medium
153.316755
40 Gal. Medium
POWER
MISERrM6
ELECTRIC
WATER
HEATER
• Safety Instructions
• Installation
• Operation
• Care and Maintenance
• Troubleshooting
• Parts List
Caution:
Read and Follow
All Safety Rules and
Operating Instructions
Before First Use of
This Product.
Save this Manual for Future Reference.
GAMA certificationappliesto all residential electric water heaters with
capacitiesof 20 to 120Gallons. Input rating of 12 Kw or lessat a voltage
no greater than 250 V.
_WARNING
I
READ THE GENERAL SAFETY SECTION BEGINNING
ON INSIDE COVER
ANDING
THIsTHENwATERTHIS
HEATER.ENTIRE
MANUAL
BEFORE
NSTALLING
OR OPERAT-
Sears, Roebuck
and Co., Hoffman
Estates,
IL 60179
U.S.A.
Advertisement
Table of Contents
Related Manuals for Kenmore POWER MISER 153.316152
Summary of Contents for Kenmore POWER MISER 153.316152
- Page 1 Owners Manual FOR POTABLE WATER HEATING ONLY NOT SUITABLE FOR SPACEHEATING Model No. 153.316152 30 GaL Short 153.316153 30 Gal. Short 153.316252 40 Gal. Short 153.316253 40 Gal. Short 153.316354 30 Gal. 153.316355 30 Gal. 153.316454 40 Gal. 153.316455 40 Gal. I$3.316554 50 Gal.
-
Page 2: Cc_
The valvemust be marked with a maximum set pressure not to exceed the marked hydrostaticworking pressureof the water heater (150 Ibs./sq.in.) and a dischargecapacity not lessthan the water heater input rate as shownon the model rating plate. (Electric heaters, watts dividedby 1000x 3415 equalBTUIHr. rate.) Yourlocaljurisdictional authority, w hilemandating the useof a temperature-pressure reliefvalvecomplying with ANSI Z21.22... -
Page 3: Table Of Contents
Materials and Basic Tools Needed ... Materials Needed ... Basic Tools ... Installation Instructions Removing the Old Water Heater ... Facts to Consider About the Location ... Facts to Consider About the Convertible Water Piping ... Temperature-Pressure Rdief Valve ... -
Page 4: Customer Responsibilities
153.316555 153.316654 153.316655 153.316754 153.316755 *Wiring size based on standard 60°C copper wire. If distance from fuse box to water heater is more than 90 feet, refer to your local electrical code. Preparing for the New Installation • Read the "Safety Precautions"... -
Page 5: Materials And Basic Tools Needed
To simplify the installation Sears has available the installation parts shown below. You may or may not need all of these materi- als, depending on your type of installation. WATER HEATER HEAT TRAPS HELP REDUCE TO THERMAL WATER HEATER INSTALLA-... -
Page 6: Installation Instructions
Instructions drain supply from the water Mineral buildup or sediment may have accumulated in I the old water heater. This causesthe water heater to be I much heavier than normal and this residue, if spilledout, [ could causestaining. copper have... -
Page 7: Facts To Consider About The Location
You should carefully choose an indoor location for the new water heater, because the placement is a very important consideration for the safety of the occupants in the building and for the most economical use of the appliance. This water heater is not intend- ed for outdoor installation. Whether... -
Page 8: Water Piping
It will harm the dip tube and damage the tank. • Look at the top cover of the water heater. The water outlet is marked hot. Put two or three turns of teflon tape around the threaded... -
Page 9: Temperature-Pressure Rdief Valve
Compliance with such local requirements must be satis- fied by the installer or end user of the water heater with a locally prescribed temperature-pressure installed in the designatedopening in the water heater in daceof the factory furnishedvalve. -
Page 10: Filling The Water Heater
The water heater is factory set to oper- ate at 3800 watts. The lower element ate at 5500 watts. Refer to the "Facts to Consider Location"... - Page 11 Converting the Lower Element (cont'd) 2. The convertible element is located behind the lower access panel of the water heater. Remove the two screws securing the access panel, and remove panel. 3. Remove the insulation block to expose the opening.
-
Page 12: Converting The Lower Element
12. Complete "ON" tank with water. Never use this water heater unlessit is completely full of water. To prevent damage to the tank and heating ele- ment, the tank must be filled with water. Water must flow from the hot water faucet before turning power. -
Page 13: Wiring Diagrams
Installation Instructions Wiring Diagrams STANDARD WIRING 2 WIRE LEAD WATER HEATERS NON-SIMULTANEOUS OPERATION 240 VOLT DOUBLE ELEMENT FOR SSO0 WATTS FOR 3800 WAT'I WIRING FOR 3 WIRE LEAD WATER HEATERS NON-SIMULTANEOUS OPERATION 240 VOLT DOUBLE ELEMENT UPPER HEATING ELEMENT $S BAR FOR SS00 WATTS FOR 3800 WATTS *Note: Some Lower Hi-Temp Limit switches may have 4 terminals. -
Page 14: Wiring
If you are not familiar with electric codes and practices, or if you have any doubt, even the slightest doubt, in your ability to con- nect the wiring to this water heater, obtain the service of a com- petent electrician. Contact your Sears salesperson to arrange for a professional electrician. -
Page 15: Installation Checklist
• Will a water leak damage anything? See "Facts to Consider About the Location" section• • Are the cold and hot water lines connected to the water heater correctly? See "Water Piping" instructions in the "Installation Instructions section• • Is there adequate clearance for maintenance around the water heater? •... -
Page 16: Service And Adjustment
Mixing valves are available at plumbing supply or hardware stores. Follow manufactur- ers instructions for installation of the valves. -
Page 17: Lower Thermostat Adjustment
• OPEN the water beater drain valve to allow for tank draining. NOTE: If the water heater is going to be shut down and drained for an extended period, the drain valve should be lefx open with hose connected allowing water to terminate to an adequate drain. -
Page 18: Element Cleaning And Replacement
HAZARD OF ELECTRICAL SHOCKI any access panels or servicing the water heater, sure the electrical supply to the water heater is turned "OFF". Failure to do this could result OUS BODILY INJURY, OR PROPERTY DAMAGE. 2. Turn off the water supply... - Page 19 11. Close the water heater drain valve by turning the right (clockwise). of the water heater. 12. Open the cold water supply valve to the water heater. NOTE: The cold water supply valve must be left open when the water heater is in use.
-
Page 20: Drain Valve Washer Replacement
Before calling for repair service, read the Start Up Conditions and Operational Guide of this manual. If a condition of the water heater, let a qualified person check it out. Contact (1-800-469-4663). (cont'd) use a *_2" x ,3/,, x ¼" thick washer... -
Page 21: Troubleshooting Guide
The water within the water heater tank expands as it is heated and increases the pressure of the water system. If the relieving point of the water heater s temperature-pressure relief valve is reached, the valve will relieve the excesspressure. -
Page 22: Operational Conditions
Troubleshooting Operational Conditions SMELLY WATER In each water heater there is installed at least one anode rod (see parts section) for corrosion protection of the tank. Certain water conditions will cause a reaction between this rod and the water. The most common... -
Page 23: High Temperature Shut Offsystem
In a new installation, connected. Review and check piping cold water line is connected water heater and the hot water line to the hot water outlet on the water heater. marked Make sure the electrical supply to your water heater is "ON". -
Page 24: Leakage Checkpoints
Troubleshooting Leakage Checkpoints Use this guide to check a "Leaking" water heater. Many suspect- ed "Leakers" are not leaking tanks. Often the source of the water can be found and corrected. If you are not thoroughly familiar with electric codes, the water heater, and safety practices, contact your local Sears Service Center to check the water heater. - Page 25 Notes...
-
Page 26: Parts Order List
Parts Order KENMORE POWER MISER 6 ELECTRIC WATER HEATERS MODEL NUMBERS: 153.316152 30Gal. Short 153.316153 30Gal. Short 153.316252 40Gal. Short 153.316253 40 GM. Sho_ NOTE: UPPER ELEMENT: These water heaters are equipped with 3800 watt elements. LOWER ELEMENT: These water heaters are equipped... - Page 27 If the parts you need are not stocked locally, your order will be electronically handling. The model number of the water heater will be found on the model rating plate located above the access panel. WHEN ORDERING REPAIR PARTS, ALWAYSGIVE THE FOLLOWING INFORMATION: MODEL NUMBER...
- Page 28 3800 watt, 240 volt element is needed, order Super Limeguard replacement element Item 42 31906. If, at the time of installation, the water heater was_onverted to operate at 5500 watts, order Super Limeguard replace- ment element Item 42 31908. (See model rating plate "If Converted"...
- Page 29 If the parts you need are not stocked locally, your order will be electronically handling. The model number of the water heater will be found on the model rating plate located above the access panel. WHEN ORDERING REPAIR PARTS, ALWAYSGIVE THE FOLLOWING INFORMATION:...
- Page 30 3800 watt, 240 volt element is needed, order Super Limeguard replacement element Item 42 31906. If, at the time of installation, the water heater was converted to operate at 5500 watts, order Super Limeguard replace- ment element Item 42 31908. (See model rating plate "If Converted"...
- Page 31 If the parts you need are not stocked locally, your order will be electronically handling. The model number of the water heater will be found on the model rating plate located above the access panel. WHEN ORDERING REPAIR PARTS, ALWAYSGIVE THE FOLLOWING INFORMATION:...
-
Page 32: Warranty
Aher one year and through 6 years from the date of purchase, when your Sears Kenmore water heater is used in a single-family residence and is installed and operated in accordance with the information in this manual, ifa part fails due to a materials or workmanship, Sears will furnish a replacement free of charge.
