Specifications
SD audio player
Type
: SD audio player
Sampling rate
: 32 kHz/44.1kHz/48kHz
Audio format
: AAC format/MP3 format
Number of channels
: 2 channels (stereo)
Frequency response
: 20 Hz to 20,000 Hz (+0dB, –6dB)
Maximum recording time (with a 64 MB SD memory card)
High-quality rec.
: Approx. 64 minutes (128 kbps)
Standard rec.
: Approx. 86 minutes (96 kbps)
Long-hour rec.
: Approx. 129 minutes (64 kbps)
: Headphones (3.5 mm dia. stereo × 1)
Output
2.5 mW/ch (32 ohms)
matching impedance (16 ohms to 47 kohm)
Duration of battery
: Approx. 11 hours when using two fully
charged rechargeable batteries
Approx. 17 hours when using two alkaline
batteries (L30 (24A), AAA size)
Power requirements
: DC 1.2 V (rechargeable battery)
DC 1.5 V (AAA size battery)
Two batteries are used in parallel.
Dimensions (W × H × D) : 2
1
(Excluding buttons and controls)
Mass
: Approx. 0.172 lbs (78 g)
(without batteries)
Battery charger
Input power source
: AC 120 V, 60 Hz
Output voltage
: DC 1.7 V, 950 mA
* Design and specifications are subject to change without notice.
This main unit is resistant to spray.
Supplied Accessories
Check the packing carton for these accessories.
Headphones 1 pc.
Extension cord 1 pc.
USB reader/writer unit 1 pc.
Carrying pouch 1 pc.
Remove the rechargeable batteries from their case before use.
Use numbers indicated in parentheses when asking for replacement parts.
• SD logo is a trademark.
• Portions of this product are protected under copyright law and are
provided under license by ARIS/SOLANA/4C.
• RealJukebox® is a registered trademark of RealNetwork, Inc.
" × 2
" (53.5 × 30.5 × 65 mm)
/
"× 1
3
/
9
/
8
16
16
Battery case
Rechargeable battery (BN-R1213)
1 pack (2 pcs.)
CD-ROM (Media Manager) 1 pc.
Battery charger (AC-R129) 1 pc.
SD memory card (64 MB) 1 pc.

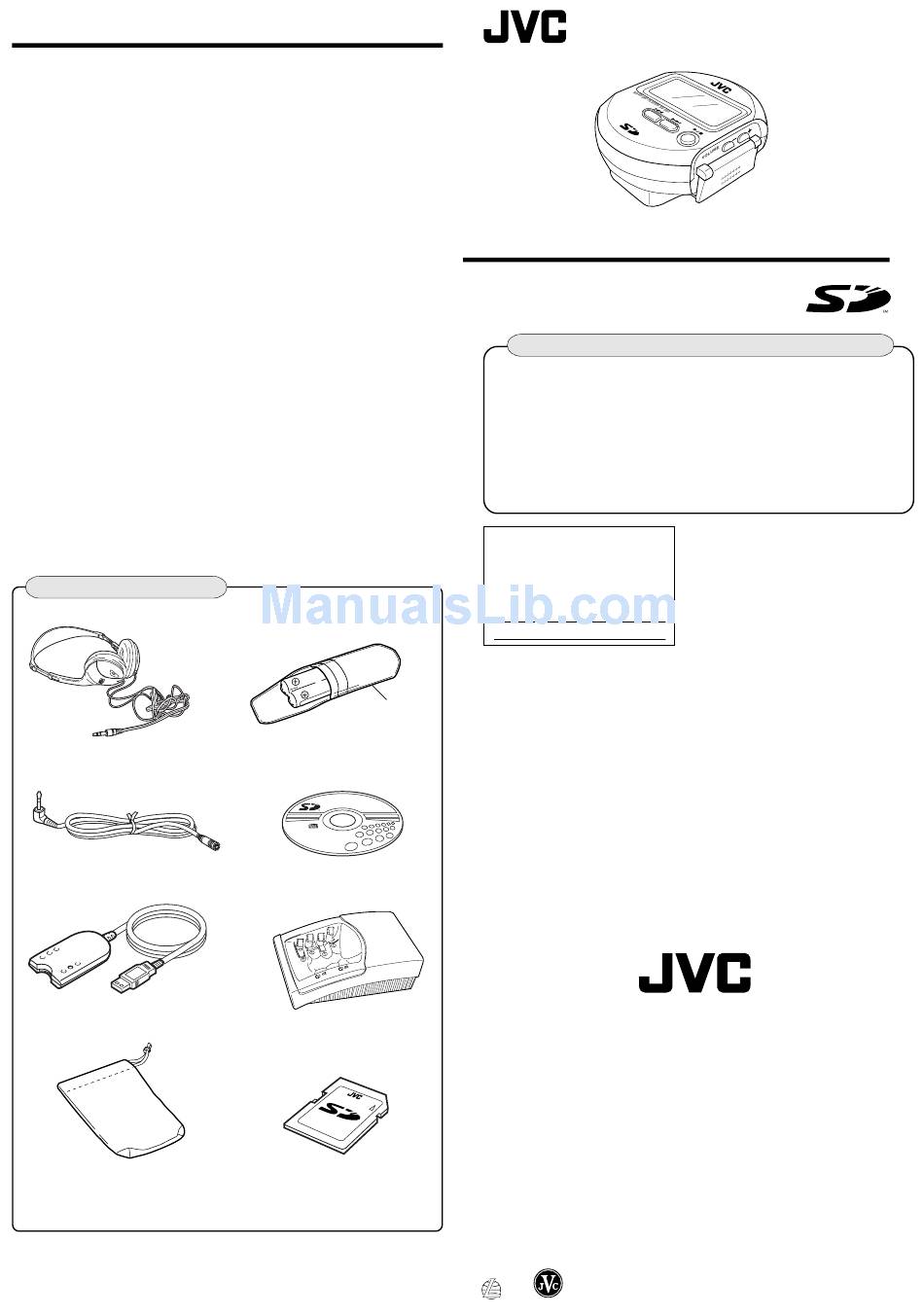

SD Audio Player
XA-SD1
Be sure to read this before any other information
After checking the accessories, perform check-out (recording) on
the SD memory card using the following procedure.
For more details, read the operating instructions of Media Manager
and the Online Help of RealJukebox®.
1 Install the USB reader/writer driver and installation
software (RealJukebox®) in the CD-ROM in your PC.
2 Connect the USB reader/writer to the PC.
3 Open RealJukebox® and perform check-out of the SD
memory card.
For Customer Use:
Enter below the Model No. and Serial
No. which are located either on the rear
of the cabinet or inside of the battery
compartment. Retain this information
for future reference.
Model No.
Serial No.
VICTOR COMPANY OF JAPAN, LIMITED
Printed in Japan
0601HMMWSTOZK
EN
INSTRUCTIONS
Thank you for purchasing this JVC
product. Please read these instructions
carefully before starting operation to be
sure to obtain optimum performance and
a longer service life from the unit.
LVT0718-002A [J]
Advertisement
Table of Contents
Related Manuals for JVC XA-SD1
Summary of Contents for JVC XA-SD1
-
Page 1: Specifications
3 Open RealJukebox® and perform check-out of the SD memory card. * Design and specifications are subject to change without notice. Thank you for purchasing this JVC For Customer Use: This main unit is resistant to spray. product. Please read these instructions Enter below the Model No. -
Page 2: Preparing The Power Supply
Preparing the power supply Insert rechargeable nickel metal hydride batteries (BN-R1213, hereinafter referred to as rechargeable batteries) or L30 (24A) alkaline dry cell batteries. Recharging the Rechargeable Batteries Insert batteries in the Main unit. Open the battery compartment cover. Insert two rechargeable Rechargeable battery: (BN-R1213) batteries in the battery (supplied) -
Page 3: Connect Headphones
Playback Set to NORM. HOLD MODE NORM Connect headphones. To use an extension cord, see below. Insert the plug Extension cord firmly. (supplied) Insert an SD memory card con- taining data check-out (recording). ~ Slide the card cover on the side of the unit in the direction of the arrow and open the card cover. -
Page 4: Skipping Tracks
Using the convenient features HOLD Preparation Set the MODE switch knob to "NORM". MODE NORM Press 4/¢ during playback. • When the all-track repeat mode (see below) is set, it is also possible to skip from the final track to the first track. •... -
Page 5: Display Mode
Elapsed play time Bit rate display* Cut here : Each press switches the displayed information. SD Audio Player XA-SD1 Quick Operation Reference The displayed information returns * If you cut out this sheet for use, it is Track title recommended to retain it between plastic... - Page 6 Cautions Before using this unit, be sure to read the applicable items of the operating THE FOLLOWING PHRASES ARE APPLIED ONLY FOR U.S.A.: instructions and these safety-suggestions carefully. This device complies with Part 15 of the FCC Rules. Afterwards keep them handy for future reference. Take special care to Operation is subject to the following two conditions : (1) This device follow the warnings indicated on the unit itself as well as in the operating instructions.
-
Page 7: Listening Caution
When purchasing rechargeable batteries hazard and is illegal in many areas. As a safety precaution, the SD audio players made by JVC have a con- You should use extreme caution or temporarily discontinue use in poten- struction designed to make it impossible to recharge ordinary batteries. -
Page 8: Troubleshooting Guide
Messages Troubleshooting Guide Before requesting service for this unit, check the chart below for a possible No SD memory card is inserted. NO CARD cause of the problem you are experiencing. Some simple checks or a minor The SD card is not inserted firmly. adjustment on your part may eliminate the problem and restore proper A card other than SD memory card is operation.
