SERVICE MANUAL

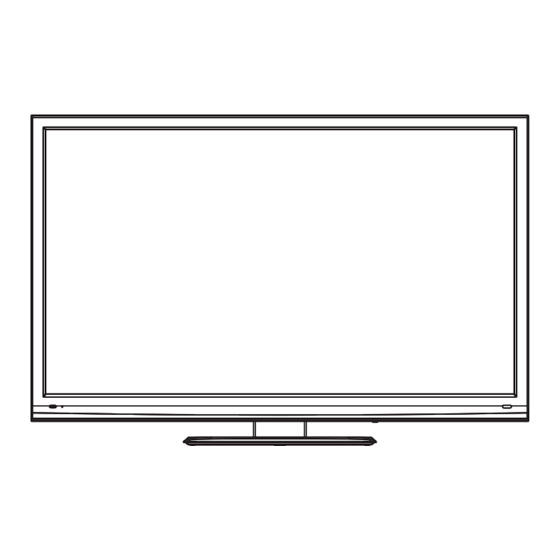

LED-LCD TV
with 3D Function
FILE NO.
LED-46XR123D
PRODUCT CODE No.
PRODUCT CODE No.
1 682 351 89: PAL-B/G (Australia)
NTSC(AV)
INPUT
3
1
2
4
5
6
7
8
9
Q.TOOL
RECALL
0
EPG
LIST
OK
MENU
EXIT
MUTE
VOL
CH
INFO
ZOO M
TTX
STEREO
FRZ/MIX
FAV.LIST
INDEX
TV/RADIO
SUBTITLE
REFERENCE No.:SM0915222
Advertisement
Table of Contents
Related Manuals for Sanyo LED-46XR123D
Summary of Contents for Sanyo LED-46XR123D
-
Page 1: Service Manual
FILE NO. LED-46XR123D SERVICE MANUAL PRODUCT CODE No. PRODUCT CODE No. 1 682 351 89: PAL-B/G (Australia) NTSC(AV) LED-LCD TV with 3D Function INPUT Q.TOOL RECALL LIST MENU EXIT MUTE INFO ZOO M STEREO FRZ/MIX FAV.LIST INDEX TV/RADIO SUBTITLE REFERENCE No.:SM0915222... -
Page 2: Table Of Contents
CONTENTS Safety precautions………………………………………………………………………..… Alignment instructions …………………………….…….………………………………… Software upgrade instructions .................. Working principle analysis……………………………….………….…………....Block diagram…………………………………..………………………………….………… IC block diagram………………………………………………………………………..…… Wiring diagram ……………………………………………………………………………. Troubleshooting flow chart ………………………………………………………………..…… Schematic diagram………………………………………………………………………… APPENDIX-A: Assembly list APPENDIX-B: Exploded View Assembling the Stand WALL MOUNTING INSTRUCTIONS... -
Page 3: Safety Precautions
Attention: This service manual is only for service personnel to take reference with. Before servicing please read the following points carefully. Safety precautions 1. Instructions Be sure to switch off the power supply before replacing or welding any components or inserting/plugging in connection wire. -
Page 4: Installation Precautions
would be unable to work and no way to get it repaired. If the connection wires, connections or components fixed by the thermotropic glue need to disengage when service, please soak the thermotropic glue into the alcohol and then pull them out in case of dagmage. -
Page 5: Alignment Instructions
Adjustment Instruction Safety Instructions 1.1 Power supply must be cut off when replacing or welding any component or inserting / pulling out connective lines; 1.2 Anti-electrostatic measures must be carried out during the whole producing processes! Do not touch IC by hands at will; Use anti-electrostatic iron;... - Page 6 3.2 Adjustment flow as Fig. 1: Check if EDID、 HDCP KEY、 FLASH has been written? General assembly and combined adjustment White balance adjustment Input central signal, check TV function (omitted channel, analog parameters control, etc. ), check earphone, speakers output. Check accessory and packing Check AV input, output and relevant functions.
- Page 7 Adjustment Instruction 4.1 The unit adjustment 4.1.1 According to the wiring diagram specified by “Product Specification”, connect power/backlight board assembly, data processing assembly, IR/Key board assembly correctly, supply with power, turn on the TV set. Check display. 4.1.2 Factory menu instruction Press key “INPUT”, then press digital keys “2、5、8、0”...
- Page 8 4.1.4 ADC calibration for Component channel a) Switch to Component channel; b) Press key “INPUT”, then press digital keys “2、5、8、0” in turn to enter into primary factory menu; c) Move cursor to item “ADC ADJUST” and press key “OK” to enter into the inferior submenu; d) Input Component signal (VG-849 Timing:972(1080i), Pattern:918 100% color bar);...
- Page 9 Gain/Offset upward, coordinates of Y will increase, adjust G Gain/Offset downward, coordinates of Y will decrease; Note: Sanyo customer requires that default color temperature is Normal, adjust white balance of color temperature Normal and Cool in Dynamic picture mode; for other customers, please adjust white balance of color temperature Cool in Dynamic picture mode.
- Page 10 5.4 D-SUB port Input D-SUB signal from VG-849 with formats listed as Table 3 separately, check picture and sound; if H./V. of picture displays abnormally, enter into main menu Picture->Screen->Auto Adjust to perform auto calibration. Table 3 D-SUB signal formats H.- Freq.
- Page 11 Table 5 Video & audio signal formats of digital HDMI Item Unit Parameter Note Deep color：RGB 4:4:4（24 bit/pixel，30 bit/pixel，36 bit/pixel）、 YUV 4:4:4 （24 bit/pixel，30 bit/pixel，36 bit/pixel）、 Video 对于1080p，deep color只支持到30 bit/pixel。 YUV 4:2:2(16 bit)、YUV 4:2:2(20 bit)、YUV 4:2:2(24 bit) Audio sample 32、44.1、48 freqence Audio data...
-
Page 12: Software Upgrade Instructions
Software Upgrading Instruction Software Upgrading Instruction as Table 6 Table 6 Software Upgrading Instruction Software SMT before Location Part No. Part model Upgrading method function upgrading Upgrade with ALL100, etc., N103 5272532006 EN25Q32A-100HIP FLASH need write protection, refer to Note1; N105 5272404005 CAT24C04WI-GT3... - Page 13 Fig. 3 Device MX25L64 successful connection If connection is failed, press the first menu “Device” and choose “MX25L64” manually, then press “Connect”; 4） Press “Read”, choose upgrading file, such as “MERGE.bin”; please refer to Fig. 4; Fig. 4 Choosing upgrading file 5）...
- Page 14 6） Press “Run” shown as Fig. 4 to perform upgrading in two steps, “Erase” and “Program”; Normal upgrading process: The first step “Erasing…， Flash Status: 03” will last for some time, or erasing is failed if the step passes over immediately; please confirm procedure 2) to perform upgrading again; The second step is “Programming…，Flash Status:00”;...
-
Page 15: Working Principle Analysis
Working Principle of the Unit 1、 ATV PAL signal flow Receive RF PAL analog signal and sent it to XC5200C (D/A silicon Tuner controlled by main chip MSD309PX through I C bus) to be demodulated, then differential IF signal is send out to main chip MSD309PX analog demodulation to be demodulated to get analog CVBS video signal and SIF sound signal. - Page 16 4、 D-SUB/YPbPr input signal flow D-SUB、YPbPr video signal is inputted to main chip MSD309PX to be processed by A/D convertor, video decoder, anti-interlacing part, video processor and zoom controller, then a pair of LVDS signals are outputted to chip MST6M30 to be processed by modules of 120HZ, MEMC and 3D effect, then two pairs of LVDS signals are outputted to drive display panel.
-
Page 17: Block Diagram
Block Diagram Speakers... -
Page 18: Ic Block Diagram
IC Block Diagram 1、 TUNER IC XC5200C The Single-Chip Multi-Standard Tuner XC5200C supports all analog TV formats transmitted worldwide in the 42-1000 MHz band on either cable or terrestrial broadcast channels. It implements on-chip tuning, and channel filtering without external (SAW) filters and has no manually tunable parts. The broadband tuner converts the selected channel into an Intermediate Frequency (IF), which is then sampled by an internal high-resolution analog-to-digital converter (A/D) for further processing. - Page 19 2、 AMP IC TAS5711 The TAS5711 is a 20-W, efficient, digital audio power amplifier for driving stereo bridge-tied speakers. One serial data input allows processing of up to two discrete audio channels and seamless integration to most digital audio processors and MPEG decoders.
- Page 20 3、 AUDIO IC MAX9820 The MAX9820 Windows Vista®-compliant stereo headphone amplifier is designed for portable Equipment where board space is at a premium. It features Maxim’s DirectDrive® architecture to produce a ground-referenced output from a single supply, eliminating the large output-coupling capacitors required by conventional single-supply headphone amplifiers.
-
Page 21: Wiring Diagram
Wiring Diagram Panel Key Board I I R Board Speakers Debug Speaker Power Power Switch Main board... -
Page 22: Troubleshooting Flow Chart
Troubleshooting Block Diagram 1．Panel doesn’t light up. Supply with power, check if red indicator lights up in STANDBY state? Press key POWER on remote control or unit, check indicator. Check if 5V is supplied Blue to X601-PIN3 ? Check if level of X601-PIN1 on main Check STANDBY... - Page 23 No picture, but backlight is normal: 2． Can control the TV set Press key MENU, by keys on remote can OSD display control or the unit? normally? Do no channel have picture at all? 有 Enter into factory menu to initialize EEPROM, then cut off main power and then turn on the TV set again, check if there is picture?
- Page 24 No sound, but picture is normal: 3． No sound Check if level of Check there Check N607-PIN19&25 signal inputted (signal input are all high? N607-PIN15&20&21 circuits) on main &22 ? board. Check +24V on Check if level of Check power voltage power board.
- Page 30 C522 R576 R578 R575 R577 220n 470K 470K 470K 470K V_PFC R522 D501 D523 C529 47u V_9500 C521 N503 R539 SSC9512 V503 R536 V_PFC Vsen NC16 4.7u CD4148WP R524 C526 D513 C523 1000p D524 C535 220n C524 R540 2.2u D512 NC12 MMSZ5245B D520...
- Page 31 APPENDIX-A: Main Assembly 9246KI7710 LED-46XR123D NAME MAIN COMPONENT AND IT'S NO. N101 MSD309PX-LF-SV 5270309003 N107 NT5TU32M16DG_AC 5273216001 N108 NT5TU32M16DG_AC 5273216001 Data processing N312 SGM4918 5274918001 XI6KI0230110 N607 TAS5711 5275711001 board N205 XC5200C 5275200002 N803 MST6M30RS 5270630002 N804 NT5TU32M16DG-BE 5273216002 IR board...
-
Page 32: Appendix-B: Exploded View
APPENDIX-B: Exploded view (LED-46XR123D) - Page 33 PART LIST OF EXPLODED VIEW REF.No. DESCRIPION Front cabinet assembly Key board assembly Main board assembly Display panel Power board assembly Back cover assembly Standing pole assembly Pedestal assembly Panel pressing block Pedestal connecter Interface baffle (down) Interface baffle (side) 3D IE assembly Power cord bracket Sound box assembly...
- Page 34 PART LIST LED-46XR123D ver. REF.No. PARTS No. DESCRIPION Q'TY REMARK XI6646770040 Front cabinet assembly XI635KI01605 Key board assembly Main board assembly XI6KI0230110 XI5203468510 Display panel 1 V460H1-LS2 C7 Power board assembly XI6KI02320A0 XI674677H040 Back cover assembly XI615611500A Standing pole assembly...
- Page 35 Appendix: Installing the Stand If the stand is provided, please read these instructions thoroughly before attempting this installation. You must install your TV into the stand in order for it to stand upright on a cabinet or other flat surface. If you intend to mount your TV on a wall or other vertical surface, you must remove the stand column.
- Page 37 April 2011...
