5.0 Commissioning
5.7 Navigator Controller Installation – Evaporative Cooler

5.7.1 Accessing Evaporative Cooler Installer Setup

NOTE: The Navigator Controller must be in OFF status
to change the parameters.

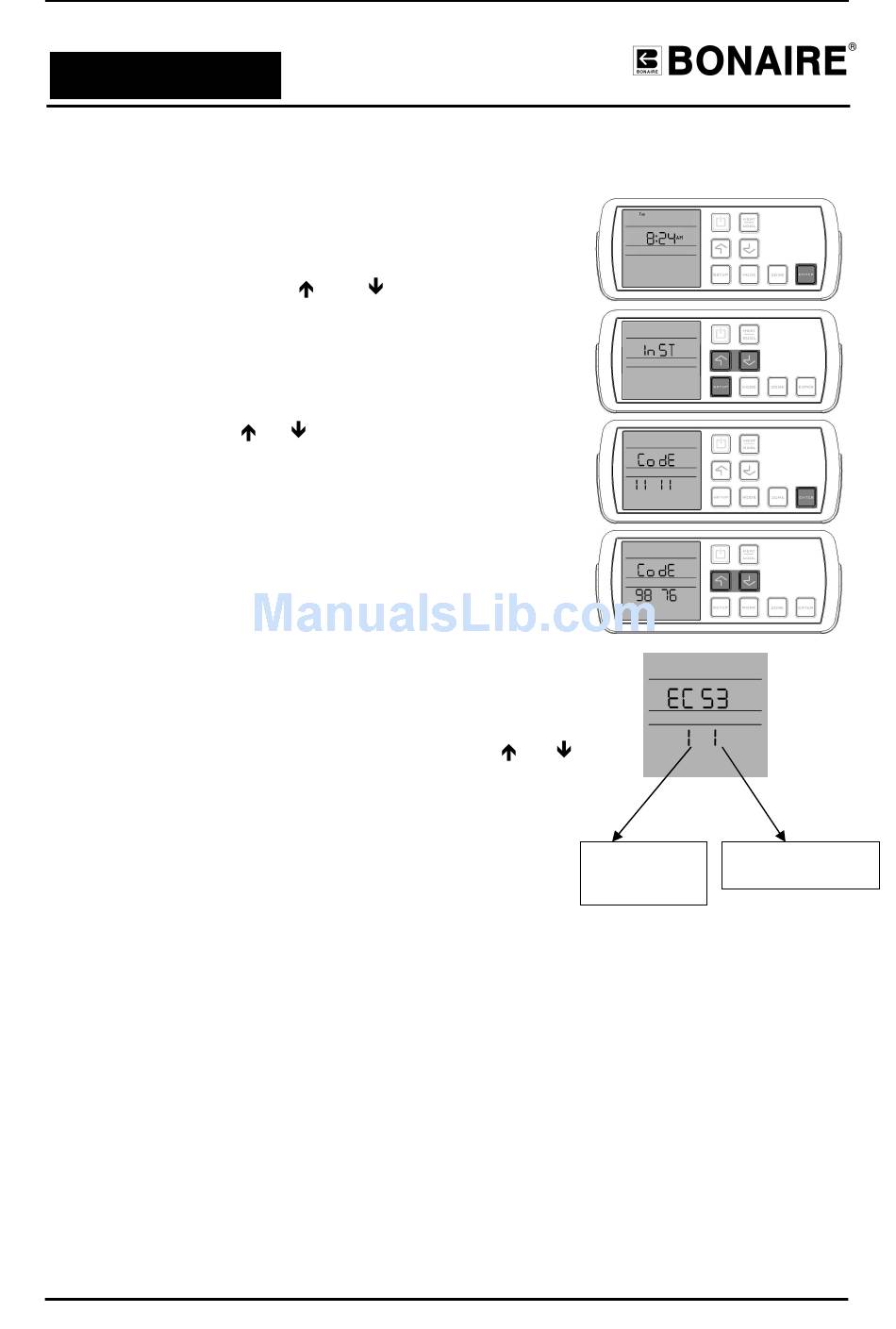

1. Press and hold the ENTER button for 3 seconds.
2. Press & release the
to enter the installer set up mode.
3. The word "InST", "nSTA", "STAL", "TALL", "ALLE",
"LLEr"(Installer) will scroll across the upper part of the
display. Press the ENTER button now to access.
4. When the CodE "11 11" appears input the code "98
76" using the
and press the ENTER button to move on to the next
digit.
NOTE: The Navigator Controller will display the
appliance controller ID "EC XX" for an
Evaporative Cooler ("XX" is the unique ID
number).For example "EC 53".
5. Press the ENTER button when "EC XX" appears.
The display will now show digits "1 1". The lower left digit
is the parameter number and the lower right digit is the
parameter option value. Parameter numbers and option
values can be found in the EAC Installer Parameters
Table.
6. To select the parameter number use the
buttons to find desired number and press ENTER.
7. Adjust the option value (see EAC parameter table) to
the required value and press ENTER. This will set
option value and return you to the parameter
selection menu.
8. When finished press the ON/OFF button to exit.
BONAIRE EAC
then then SETUP buttons
or buttons to change each digit,
Page 28
or
Parameter
Number
Options Value
