Summary of Contents for Entar TANGO 250

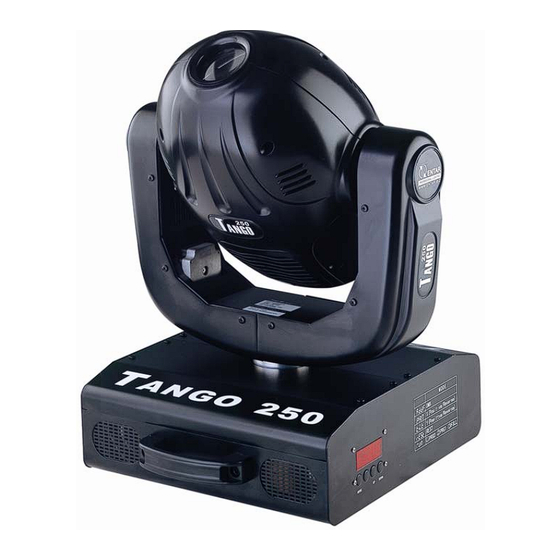

- Page 1 TANGO 250, M-250 USER MANUAL Tango 250 user’s manual...
-
Page 2: Safety Information
Read this manual before powering or installing the fixture, follow the safety precautions listed below and observe all warnings in this manual and printed on the fixture. If you have any question about how to use this fixture safely, please contact your Entar dealer. Warning! Always disconnect from mains supply before replacing the lamp. - Page 3 Color: 7 plus open white with rainbow effect Rotating gobo: 7 plus open white Focus: Motorized Pan: 530 ° Tilt: 270 ° Speed: pan and tilt speed adjustment Gobo specifications Outer diameter: 27 mm Image diameter: 21 mm Tango 250 user’s manual...
- Page 4 Always use an approved safety cable. CONNECTING THE SERIAL DATA LINK The Tango 250 has locking 3-pin data input and output sockets that are wired for use with DMX devices with pin 1 to shield, pin 2 to cold(-) and pin 3 to hot(+).
-
Page 5: Control Panel
Press [up] or [down] key to reset the fixture. OPERATING MODES The Tango 250 can run in 3 modes: DMX, sound activation and auto. The fixtures can run in master/slave mode with sound activation. To activate sound trigger, press [mode] to enter (RUN), then press [up] or [down] key to select (PRG0). -
Page 6: Dmx Protocol
CCW, slow → fast No rotation 137-255 CW, slow → fast Shutter, strobe, reset Shutter closed 8-231 Strobe, slow → fast 232-239 Keep 4 seconds for reset the fixture 240-255 Shutter open Dimmer 0-255 Closed → open Tango 250 user’s manual... - Page 7 Prism 0-126 Prism off 127-255 Prism on Focus 0-255 Infinity → 2 meters Pan/Tilt speed 0-255 Fast → slow Tango 250 user’s manual...
