INSTALLATION INSTRUCTIONS FOR PART 99-3305
Silverado 2007-09
BUICK Enclave 2008-09, Lucerne 2006-09
GMC Acadia 2008-09
Savanna 2008-09
Sierra 2007-09
(Excluding Classic Models)
Yukon 2007-09
99-3305
KIT FEATURES
• DIN Radio Provision with Pocket
• ISO Radio Provision with Pocket
KIT COMPONENTS

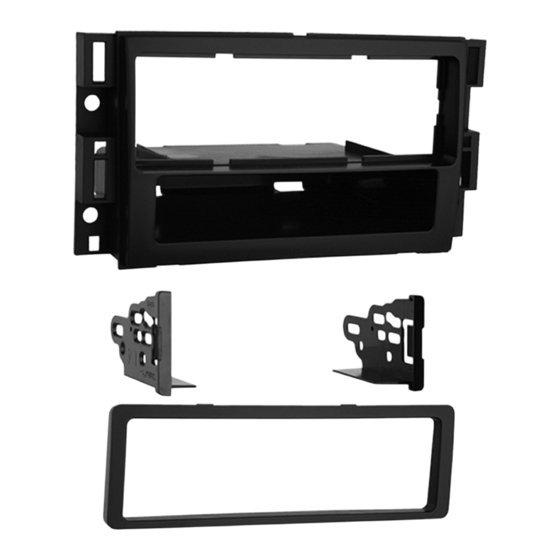

• A) Radio Housing • B) ISO Brackets • C) Trim Plate
A
WIRING AND ANTENNA CONNECTIONS:
(Sold Separately)
Harness:
• GMOS-LAN-01 - GM LAN interface 2006-up
• GMOS-LAN-02 - GM LAN amplified interface 2006-up
Antenna Adapter:
• 40-CR10 - Chrysler/GM antenna adapter 2002-up
• Phillips Screwdriver • Socket Set • Torx Driver • Allen Wrench
1-800-221-0932
© COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION
APPLICATIONS
CHEVROLET
Avalanche 2007-09/Equinox 2007-09
Express Van 2008-09/Impala 2006-09
Monte Carlo 2006-07/Tahoe 2007-09
(Excluding Classic Models)
Suburban 2007-09
HUMMER H2 2008-09
PONTIAC Torrent 2007-08
SATURN Outlook 2008-09/Vue 2008-09
SUZUKI XL7 2007-09
B
TOOLS REQUIRED:
Small Flat Blade Screwdriver • Panel Removal Tool
C
www.metraonline.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 99-3305 and is the answer not in the manual?

Questions and answers

Related Manuals for Metra Electronics 99-3305

Summary of Contents for Metra Electronics 99-3305

  • Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-3305 APPLICATIONS CHEVROLET Avalanche 2007-09/Equinox 2007-09 Express Van 2008-09/Impala 2006-09 Monte Carlo 2006-07/Tahoe 2007-09 Silverado 2007-09 (Excluding Classic Models) Suburban 2007-09 BUICK Enclave 2008-09, Lucerne 2006-09 HUMMER H2 2008-09 GMC Acadia 2008-09 PONTIAC Torrent 2007-08 Savanna 2008-09...

  • Page 2: Table Of Contents

    99-3305 T ABLE OF CONTENTS ash Disassembly - Chevrolet Impala 2006-2009..........1 - Chevrolet Monte Carlo 2006-2007 .

  • Page 3: Chevrolet Impala 2006-2009

    99-3305 DASH DISASSEMBL Y BUICK LUCERNE CHEVY IMPALA / MONTE CARLO 2006-09 isconnect the negative battery ter- minal to prevent an accidental short circuit. Unclip and remove the trim panel around radio and a/c control. (Figure A) Remove (6) 9/32” screws to extract radio and a/c control from sub dash.

  • Page 4: Chevrolet Avalanche 2007-2009

    99-3305 DASH DISASSEMBL Y SILVERADO (Excluding Classic Models)/SUBURBAN CHEVY AVALANCHE/TAHOE GMC YUKON/SIERRA (Excluding Classic Models) 2007-09 Note: Refer also to the instructions included with the aftermarket radio. Disconnect the negative battery termi- nal to prevent an accidental short cir- cuit.

  • Page 5: Chevrolet Express Van 2008-09/Gmc Savanna 2008-2009

    99-3305 DASH DISASSEMBL Y CHEVY EXPRESS VAN 2008-09/GMC SAVANNA 2008-09 Note: Refer also to the instructions included with the aftermarket radio. Disconnect the negative battery terminal to prevent an accidental short circuit. Remove (2)10mm bolts from below knee bolster under steering column and remove panel.

  • Page 6: Suzuki Xl-7 2007-2009

    99-3305 DASH DISASSEMBL Y SUZUKI XL-7 2007-09 Note: Refer also to the instructions included with the aftermarket radio. Disconnect the negative battery termi- nal to prevent an accidental short cir- cuit. Press in on sides of the shifter boot to release it from the shifter trim panel.

  • Page 7: Chevrolet Equinox 2007-089/Pontiac Torrent 2007-2008

    99-3305 DASH DISASSEMBL Y CHEVROLET EQUINOX 2007-09 PONTIAC TORRENT 2007-09 Note: Refer also to the instructions included with the aftermarket radio. Disconnect the negative battery termi- nal to prevent an accidental short circuit. Remove shifter knob. Unsnap panel below power window switch and remove.

  • Page 8: Buick Enclave/ Gmc Acadia//Saturn Outlook 2008

    99-3305 DASH DISASSEMBL Y BUICK ENCLAVE/GMC ACADIA/ SATURN OUTLOOK 2008-09 Note: Refer also to the instructions included with the aftermarket radio. BUICK ENCLAVE Disconnect the negative battery termi- nal to prevent an accidental short cir- cuit. Unclip the radio trim panel including the climate controls.

  • Page 9: Hummer H2 2008-2009

    99-3305 DASH DISASSEMBL Y HUMMER H2 2008-09 Note: Refer also to the instructions included with the aftermarket radio. Disconnect the negative battery termi- nal to prevent an accidental short cir- cuit. Unclip the radio trim panel including the a/c vents. Unplug any harnesses connected to the panel and remove the panel.

  • Page 10: Saturn Vue 2008-2009

    99-3305 DASH DISASSEMBL Y SATURN VUE 2008-09 Note: Refer also to the instructions included with the aftermarket radio. Disconnect the negative battery termi- nal to prevent an accidental short cir- cuit. Unclip and remove the trim panel on top of the radio trim panel. (Figure A) Remove (2) Phillips screws exposed under panel removed in step 2.

  • Page 11: Din Radio Provision With Pocket

    99-3305 KIT ASSEMBL Y DIN RADIO PROVISION Note: Refer also to the instructions included with the aftermarket radio. NOTE: XL-7 ONLY Trim top corners of radio housing. (Figure A) Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs down.

  • Page 12: Final Assembly

    Left Rear (-) ....Green / Black *NOTE: When a Black wire is not present, ground radio to vehicle chassis. All colors may not be present on all leads due to manufacturer’s specifications. REV. 05/27/09 © COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION INST99-3305...
