CyberVision PPC 3D GRAPHICS ACCELERATOR BOARD User Manual page 27

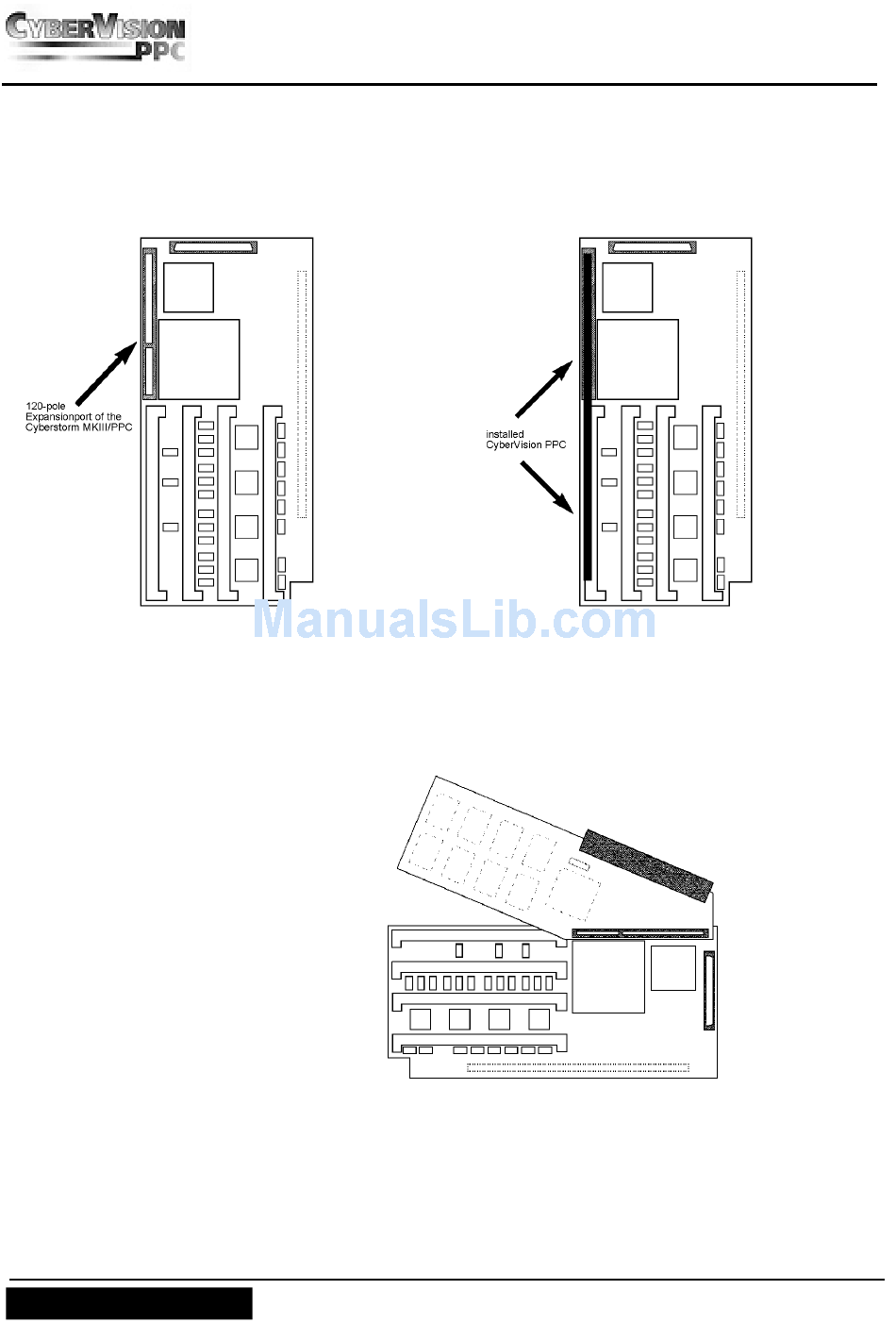

Picture 3.
Position of the
Cyberstorm MKIII/PPC
in an Amiga 4000 Desktop
CyberVision PPC is plugged onto the CYBERSTORM MKIII/PPC as shown in picture 5 and 6.
In these computers the isolator is not needed.
Picture 5.
Proper installed
CyberVision PPC
in an Amiga 3000 Desktop
8. Press the card into the slot by pressing on the top of the card. If the CyberVision PPC has
been correctly fitted, the connector of the CyberVision PPC and the connector of
page 26
Picture 4.
Proper installed
CyberVision PPC
in an Amiga 4000 Desktop
User's Guide
