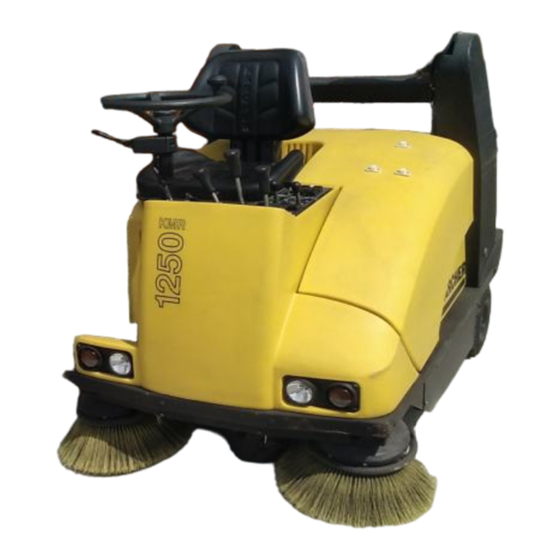

- Page 1 KMR 1250 D 1.091-114 1.091-134 www.karcher.com 5.956-834 A2003105 (06/02)
- Page 2 Betriebsanleitung für Anwender Deutsch Ersatzteilliste User Instructions English Spare Parts List Notice d’instructions pour l´utilisateur Français Liste des pièces de rechange Gebruiksaanwijzing Nederlands Onderdelenlijst Istruzioni per l’uso per utilizzatori Italiano Lista dei ricambi Instruktionsbok för användaren Svenska Reservdelslista Seite 3 Seite171 Page 27 Page171...
-
Page 3: Table Of Contents
KMR 1250 D Contents For your safety ...28 On behalf of the environment ... 29 Intended usage ...30 Sweeper functions ... 30 Main components ... 30 Prior to initial start-up ...31 Unloading procedure ... 31 Pushing the sweeper by hand ... 31 After moving the machine ... -
Page 4: For Your Safety
Disconnect the battery at the negative terminal. Caution while handling the battery! Observe the safety information provided by the battery manufacturer. Always use batteries and chargers recommended by KÄR- CHER, otherwise your warranty could be rendered invalid. KMR 1250 D... -
Page 5: On Behalf Of The Environment
KMR 1250 D On behalf of the environment User Instructions Caution while transporting the sweeper! Make sure that the sweeper is secured properly if you are going to transport it to a different location. Do not use a forklift truck for loading purposes as it could damage the sweeper. -
Page 6: Intended Usage
Filter system – integrated dust extraction for main roller by means of radial turbine – 2 circular filters with 2 x 3 m – electric filter cleaner with automatic shaking mechanism KMR 1250 D effective surface area... -
Page 7: Prior To Initial Start-Up
KMR 1250 D Prior to initial start-up User Instructions Unloading procedure Do not use a forklift truck for unloading as it could cause damage to the sweeper. The sweeper has been lashed onto a pallet to ensure that it can be transported safely. The procedure for unpacking the sweeper is as follows: 1. -
Page 8: Operating Controls
* Function only operative in conjunction with 7 (two-handed operation). User Instructions Tip waste hopper * Raise waste hopper * Lower waste hopper * Filter cleaning Sweeping mode, wet / dry 17a. Driving pedal backwards 17b. Driving pedal forwards Horn Steering wheel Open/close unit cover KMR 1250 D... -
Page 9: Preparing The Sweeper For Use
KMR 1250 D Preparing the sweeper for User Instructions All directions given (left/right, front/rear) are as seen from the driver’s seat. n Check the oil level in the engine (see Chapter: “Mainte- nance”). n Check the amount of fuel in the tank and fill up, if required (see below). -
Page 10: Starting The Sweeper
Press left pedal, machine moves backwards The travel speed can be infinitely adjusted forwards or backwards with the respective pedal. Avoid jerky motions of the pedal, as this can damage the hydraulic system. KMR 1250 D (opera- and, if required, the side... -
Page 11: Braking
KMR 1250 D Cleaning the filter User Instructions Braking n Release the drive pedal and the sweeper will brake auto- matically. Important note: Safety! It is possible that the automatic braking function will not be sufficient to bring the sweeper to a halt. In this case, either make use of the parking brake as well or gently press the drive pedal in the opposite direction to travel. -
Page 12: Emptying The Waste Hopper
The best position for emptying the hopper is when it has been fully extended. As soon as you release the button for activating the tipping system, the hopper automatically returns to its original position. n Lower the hopper 1 + 4 KMR 1250 D... -
Page 13: Typical Applications
KMR 1250 D Typical applications User Instructions Caution while sweeping! Do not sweep up packing bands, wires or similar items, otherwise the sweeping mechanism will be damaged. Do not sweep any burning/glowing objects. Sweeping on dry ground If there is a large amount of rubbish, such as several layers... -
Page 14: Shutting The Sweeper Down For Longer Periods
Store the sweeper in a protected environment and ensure that it cannot roll away. n Remove the ignition key. n Disconnect the battery. n Charge the battery with a suitable charger approx. every two months (see Chapter: “Maintenance”). KMR 1250 D by pulling back the corre-... -
Page 15: Transporting The Sweeper
KMR 1250 D Transporting the sweeper Cleaning and care User Instructions If the sweeper is going to be transported on the back of a vehicle, it must be properly secured so that it cannot move unintentionally. n Apply the parking brake. -
Page 16: Maintenance
The maintenance booklet (Order-no. 5.950-536) can be found in the tool compartment on the sweeper (under the bonnet). The necessary maintenance tasks should be carried out by an authorised service agent. KMR 1250 D... -
Page 17: Maintenance Tasks
KMR 1250 D Maintenance tasks User Instructions Safety information applicable to maintenance tasks Before you begin any maintenance tasks, please read the enclosed leaflet Safety Information No. 5.956-250. Caution! Make sure engine cannot be started uninten- tionally. In order to prevent the engine from being started unintentio- nally, proceed as follows after you have parked the sweeper. -
Page 18: Checking Tyre Pressures
Pour engine oil into the filler hole. Capacity = 1.1 litres n Check the oil level with the dipstick – see “Checking the oil level”. n Wipe up any oil spillage and dispose of the waste oil appropriately. KMR 1250 D... -
Page 19: Cleaning Or Replacing The Air Cleaner
KMR 1250 D Cleaning or replacing the air cleaner Clean fuel filter Checking the hydraulic system User Instructions Do not run the engine without an air cleaner other- wise this will lead to increased wear on the engine The air cleaner must be washed out more frequently if the engine is run in particularly dusty environment. -
Page 20: Checking The Level Of Electrolyte In The Battery
Connect the positive (battery) post (+) with the battery charger (red clip) n Connect the negative (battery) post (-) with the battery charger (black clip) n Connect the battery charger to the network and switch on as necessary. Charging period according to manufacturer’s specifications. KMR 1250 D... -
Page 21: Replacing The Sealing Skirts
KMR 1250 D Replacing the sealing skirts Direction of travel Replacing the side brush Replace light unit User Instructions The sealing skirts fulfil an important function. They retain the partial vacuum in the area round the brushes which is es- sential so that the sweeper can function properly. -
Page 22: Adjusting The Sweeping Pattern
(first release the parking brake). n The width of the sweeping pattern should be 30–50 mm. Note: The shape of the sweeping pattern should not be trapezoi- dal. If it is, call customer service. KMR 1250 D... -
Page 23: Replacing The Main Brush Roller
KMR 1250 D Replacing the main brush roller Brush roller seen from above Direction of travel User Instructions n Park the sweeper and switch off the engine n Lower the brush roller. n Open the RH side flap n Undo the retaining bolt on the lower forked head swivel the push rod towards the rear. -
Page 24: Replacing Fuses
Insert a new filter cartridge (pins should fit into the holes) n Turn the handle back to its original position and make sure it locks in place. n Mount the filter box and engage the catches. KMR 1250 D... -
Page 25: Troubleshooting
KMR 1250 D Troubleshooting Problem Engine does not start Sweeper does not move Brushes do not rotate No dust extraction Poor sweeping results Dust is stirred up during sweeping Lifting mechanism for emptying hopper does not work Sweeper travels forwards... -
Page 26: Technical Specifications
DIN 49848 4-stroke 296 cm³ 4,4 kW 3.3 L 1,1 L 12 Volt 44 Ah KMR 1250 D electric DIN HVLP 51524/2 46 c St /4 °C 1,4 L IPX3 -5 to + 40 °C 0 - 90 % 83,5 dB(A) 101 dB(A) <... - Page 27 KMR 1250 D 1.091-114.0 1.091-134.0 7.654-002.0 6.348-316.0 6.348-337.0 6.905-986.0 7.312-003.0 7.313-003.0 7.306-501.0 6.435-289.0 6.435-295.0 6.435-331.0 6.654-116.0 N IK < < M IC > > 6.491-640.0 6.303-058.0 7.651-002.0 6.651-382.0 6.682-378.0 7.644-017.0 7.644-007.0 6.644-277.0 7.644-018.0 6.414-526.0 6.491-532.0 6.435-288.0 6.435-331.0 6.435-295.0 6.303-125.0 5.031-452.0...
- Page 28 KMR 1250 D 1.091-114.0 1.091-134.0 5.190-082.0 5.190-083.0 5.365-215.0 5.031-378.0 5.190-084.0 5.190-084.0 4.038-524.0 5.190-055.0 5.394-439.0 5.365-216.0 6.905-982.0 5.190-083.0 5.365-215.0 5.190-089.0 5.190-082.0 06/99 - 02/02...
