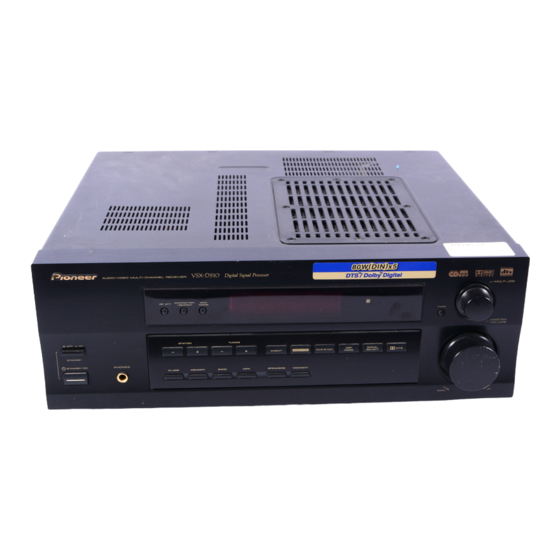

Audio/video multi-channel receiver
Hide thumbs Also See for VSX-D510:
Table of Contents

Advertisement

Quick Links

See also: Manual
AUDIO/VIDEO MULTI-CHANNEL RECEIVER
VSX-D510
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model
Type
VSX-D510
MYXJIEW
MYXJIGR
MVXJI
CONTENTS
1. SAFETY INFORMATION ...................................... 2
4. PCB CONNECTION DIAGRAM ......................... 26
5. PCB PARTS LIST ............................................... 39
6. ADJUSTMENT .................................................... 46
PIONEER CORPORATION
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
c
PIONEER CORPORATION 2001
ST ANDBY
ST ANDBY/ON
PHONES
Power Requirement
AC220-230V
AC220-230V
AC230V
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
1
N∫m-Û.,?
R
Digital Signal Processor
MULTI JOG
TONE
MASTER
VOLUME
ST A TION
TUNING
DVD
DSP
SIGNAL
DIRECT
MONITOR
5.1CH
MODE
SELECT
/DTS
CLASS
MEMORY
BAND
MPX
SPEAKERS
MIDNIGHT
DOWN
UP
7. GENERAL INFORMATION ................................ 47
7.1 DISASSEMBLY and DIAGNOSIS ................ 47
7.2 PARTS .......................................................... 49
7.2.1 IC ............................................................ 49
7.2.2 DISPLAY ................................................. 54
T – ZZR MAR. 2001 Printed in Japan
ORDER NO.
RRV2439
Remarks

Advertisement

Table of Contents
loading

Related Manuals for Pioneer VSX-D510

Summary of Contents for Pioneer VSX-D510

  • Page 1 PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2001 T –...

  • Page 2: Safety Information

    The use of a substitute replacement component which does Leakage 0.5mA current Device not have the same safety characteristics as the PIONEER tester under recommended replacement one, shown in the parts list in test this Service Manual, may create shock, fire, or other hazards.

  • Page 3: Exploded Views And Parts List

    See Contrast table (2) MYXJIGR Types Only (Dutch/Swedish/Portuguese) Operating Instructions See Contrast table (2) (French/Italian/Spanish) MYXJIEW Type Only (2) CONTRAST TABLE VSX-D510/MYXJIEW, /MYXJIGR and VSX-D510/MVXJI are constructed the same except for the following: Part No. Mark Symbol and Description Remarks VSX-D510 /MYXJIEW /MYXJIGR...

  • Page 4: Exterior Section

    VSX-D510 2.2 EXTERIOR SECTION Accessory of Front Panel Refer to "2.3 FRONT PANEL SECTION".
  • Page 5 ↔ AMP&PRIMARY CN53) Strain Relief CM-22B AC Power Cord See Contrast table (2) • • • • • (2) CONTRAST TABLE VSX-D510/MYXJIEW, /MYXJIGR and VSX-D510/MVXJI are constructed the same except for the following: Part No. Mark Symbol and Description Remarks VSX-D510 /MYXJIEW...
  • Page 6 VSX-D510 2.3 FRONT PANEL SECTION...
  • Page 7 VSX-D510 • FRONT PANEL SECTION PARTS LIST Mark No. Description Part No. FRONT Assy XWZ3337 POWER SW Assy XWZ3352 R. ENCODER Assy XWZ3353 H.P. Assy XWZ3356 MECHA SW Assy XWZ3358 Front Panel XMB3035 Sub Button XAD3068 Earth Plate A XNG3044...

  • Page 8: Block Diagram And Schematic Diagram

    VSX-D510 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM CN105 UNIT D.D & INPUT ASSY AXX7048 IC101 IC104 IC102 IC1101 IC1701 IC1703 IC1201 IC1901 IC1705 DIGITAL CN1901 CN1501 IN ASSY DTS DECODER IC1705 IC303 CN305 CN104 IC302 IC302 VIDEO & 6CH IN ASSY...
  • Page 9 VSX-D510 IC108 H.P. ASSY CN102 Q551 IC103 Q105 IC105 IC601 RY751 CN106 (FRONT L) AMP & PRIMARY ASSY Q603 Q601 IC106 IC602 RY753 Q653 Q651 IC107 IC602 RY752 Q632 Q631 CN104 CN305 VIDEO & IC107 6CH IN ASSY VSX-D510 Q112...
  • Page 10 VSX-D510 3.2 OVERALL WIRING CONNECTION DIAGRAM and AMP INPUT ASSY D15A06-075-2651 R.ENCODER ASSY (XWZ3353) FRONT ASSY (XWZ3337) XDD3072 AMP INPUT ASSY (AWX7382) 1/2, AMP&PRIMARY ASSY (XWZ3373) FM/AM XDD3059 TUNER UNIT (AXX7048) VIDEO& REGULATOR ASSY XDD3058 6CH IN ASSY (AWX7493) (XWZ3333)
  • Page 11 VSX-D510 Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". D15A04-125-2651 POWER SW ASSY (XWZ3352) MECHA SW ASSY (XWZ3358) H.P. D15A04-070-2651 ASSY (XWZ3356) TRANS3 ASSY (AWX7392) AMP INPUT ASSY...
  • Page 12 VSX-D510 3.3 D.D & INPUT ASSY (1/3) D.D & INPUT ASSY FM/AM TUNER UNIT (XWX3025) QTL1013 QTL1013 VSX-D510 CN802...
  • Page 13 VSX-D510 : The power supply is shown with the marked box. CN303 E-VR IC...
  • Page 14 VSX-D510 3.4 D.D & INPUT ASSY (2/3) D.D & INPUT ASSY (XWX3025)
  • Page 15 VSX-D510 : The power supply is shown with the marked box. MULTI CH CODEC IC DTS DECODER IC SRAM(256K)
  • Page 16 VSX-D510 3.5 D.D & INPUT ASSY (3/3) D.D & INPUT ASSY (XWX3025) E-SW IC...
  • Page 17 VSX-D510...
  • Page 18 VSX-D510 3.6 AMP&PRIMARY (1/2), TRANS2 and TRANS3 ASSYS AMP&PRIMARY ASSY (XWZ3373)
  • Page 19 VSX-D510 • NOTE FOR FUSE REPLACEMENT CAUTION - FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. TRANS3 ASSY (AWX7392) TRANS2 ASSY (AWX7468) CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO.
  • Page 20 VSX-D510 3.7 AMP&PRIMARY (2/2), REGULATOR, MECHA SW and TRANS1 ASSYS REGULATOR ASSY (AWX7493)
  • Page 21 VSX-D510 AMP&PRIMARY ASSY (XWZ3373) MECHA SW ASSY (XWZ3358) CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.315 FOR IC52 MFD, BY LITTELFUSE INC. TRANS1 ASSY (AWX7390) 1SS133 REK1026 (T2.5A) LIVE ATT7037 NEUTRAL AC POWER CORD...
  • Page 22 VSX-D510 3.8 VIDEO&6CH IN, H. P. and DIGITAL IN ASSYS VIDEO&6CH IN ASSY (XWZ3333) VSX-D510 VIDEO SW IC...
  • Page 23 VSX-D510 DIGITAL IN ASSY (XWZ3361) H.P. ASSY (XWZ3356)
  • Page 24 VSX-D510 3.9 FRONT, R. ENCODER and POWER SW ASSYS R.ENCODER ASSY FRONT ASSY (XWX3353) (XWZ3337)
  • Page 25 VSX-D510 POWER SW ASSY (XWZ3352) POWER SW ASSY S501 : STANDBY/ON FRONT ASSY S451 : DIRECT S452 : MONITOR S453 : DVD 5.1CH S454 : DSP MODE S455 : SIGNAL SELECT S456 : DOLBY / DTS S457 : MIDNIGHT S458 : SPEAKERS...

  • Page 26: Pcb Connection Diagram

    VSX-D510 4. PCB CONNECTION DIAGRAM NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic 3. The parts mounted on this PCB include all necessary parts for diagrams. several destinations. 2. A comparison between the main parts of PCB and schematic For further information for respective destinations, be sure to diagrams is shown below.

  • Page 27: Regulator Assy

    VSX-D510 4.2 TRANS2, TRANS3, REGULATOR and TRANS1 ASSYS REGULATOR ASSY Q805 Q803 Q806 Q801 Q804 Q802 IC804 CN101 IC803 TRANS3 ASSY J4 J3 J5 IC802 IC801 POWER TRANSFORMER CN53 CN302 TRANS1 ASSY (ANP7331-C) SIDE A TRANS2 ASSY...
  • Page 28 VSX-D510 4.3 D.D & INPUT ASSY CN303 CN401 D.D & INPUT ASSY IC102 IC107 Q111 IC109 Q112 Q1608 Q1607 IC103 IC1602 IC160 IC105 Q107 Q108 Q1609 Q1610 Q1602 Q1601 Q1604 Q1 IC106 Q109 Q110 Q106 IC108 Q105 IC1701 IC1712 IC170...
  • Page 29 VSX-D510 CN1901 FM/AM TUNER UNIT IC102 Q104 Q101 Q103 Q102 IC1101 IC1301 (XNP3037-A) 1602 IC1603 IC1604 IC1201 2 Q1601 Q1604 Q1603 Q1606 Q1605 IC1001 Q1101 Q1102 IC1401 SIDE A 1701 IC1712 IC1703 IC1704 IC1705 Q1003 Q1004 Q1001 Q1002 IC104 CN802...
  • Page 30 VSX-D510 D.D & INPUT ASSY IC101 IC1601...
  • Page 31 VSX-D510 (XNP3037-A) IC1601 SIDE B...
  • Page 32 VSX-D510 4.4 AMP INPUT, AMP&PRIMARY and MECHA SW ASSYS MECHA SW ASSY CN106 (XNP3035-B) SIDE A AMP INPUT ASSY (XNP3035-B) SIDE B (ANP7331-C) SIDE A AMP&PRIMARY ASSY Q704 Q702 Q703 Q701 Q655 Q691 Q631 Q632 Q633 Q692 Q656 Q604 Q606...
  • Page 33 VSX-D510 IC52 IC51 AC IN NEUTRAL LIVE CN801 CN801...
  • Page 34 VSX-D510 4.5 H.P., FRONT, R.ENCODER and POWER SW ASSYS FRONT ASSY H.P. ASSY POWER SW ASSY I K M...
  • Page 35 VSX-D510 CN103 CN102 R.ENCODER ASSY (XNP3035-B) SIDE A...
  • Page 36 VSX-D510 FRONT ASSY IC401 Q401 Q441 Q442 Q403 Q402 R.ENCODER ASSY (XNP3035-B) SIDE B...
  • Page 37 VSX-D510 Q404 Q481 Q482 Q471 IC401 Q405 IC481 Q485 H.P. ASSY POWER SW ASSY...
  • Page 38 VSX-D510 4.6 VIDEO&6CH IN ASSY VIDEO&6CH IN ASSY CN803 (XNP3035-B) SIDE A Q303 Q301 Q302 VIDEO&6CH IN ASSY IC302 CN104 IC303 IC301 (XNP3035-B) SIDE B...

  • Page 39: Pcb Parts List

    VSX-D510 5. PCB PARTS LIST NOTES : ÷ Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List. ÷ The mark found on some component parts indicates the importance of the safety factor of the part.
  • Page 40 VSX-D510 Mark No. Description Part No. Mark No. Description Part No. C 116 ELECT. CAPACITOR CEAT4R7M50 L 1302 CHIP SOLID INDUCTOR QTL1013 C 117 ELECT. CAPACITOR CEAT470M25 L 1401 CHIP SOLID INDUCTOR ATL7002 C 118 ELECT. CAPACITOR CEAT470M25 L 1601...
  • Page 41 VSX-D510 Mark No. Description Part No. Mark No. Description Part No. C 141 CHIP CERAMIC C. CKSRYB822K50 C 167 CHIP CERAMIC C. CCSRCH221J50 C 142 CHIP CERAMIC C. CKSRYB153K50 C 168 CERAMIC CAPACITOR CKSRYB152K50 C 143 CERAMIC CAPACITOR CKSQYB224K16 C 169 ELECT.
  • Page 42 VSX-D510 Mark No. Description Part No. Mark No. Description Part No. C 192 CHIP CERAMIC C. CKSRYB103K50 Q 702 TRANSISTOR 2SB1238X C 193 CHIP CERAMIC C. CKSRYB103K50 Q 703 TRANSISTOR 2SA1145 C 194 ELECT. CAPACITOR CEAT4R7M50 Q 704 TRANSISTOR 2SC1845 C 195 ELECT.

  • Page 43: Regulator Assy

    VSX-D510 Mark No. Description Part No. Mark No. Description Part No. C606 ELECT. CAPACITOR CEAT4R7M50 C763 AUDIO FILM CAPACITOR CFTYA224J50 C607 CERAMIC CAPACITOR CCCSL120J50 C764 AUDIO FILM CAPACITOR CFTYA224J50 C608 CERAMIC CAPACITOR CCCSL120J50 C765 FILM CAPACITOR CQMB472J50 C609 CERAMIC CAPACITOR...
  • Page 44 VSX-D510 Mark No. Description Part No. Mark No. Description Part No. C307 ELECT. CAPACITOR CEAT470M25 Q802 TRANSISTOR KRC101M C308 ELECT. CAPACITOR CEAT470M25 Q803 TRANSISTOR KRA103M C309 ELECT. CAPACITOR CEAT470M25 Q804 TRANSISTOR KRC101M C310 ELECT. CAPACITOR CEAT470M25 D801 DIODE S5688G C311...

  • Page 45: Digital In Assy

    VSX-D510 Mark No. Description Part No. Mark No. Description Part No. Q 401 CHIP DIGITAL TRANS. DTA124EK RESISTORS Q 402 CHIP DIGITAL TRANS. DTA124EK R1551 METAL OXIDE RESISTOR RS1/2LMF121J Q 403 DIGITAL TRANSISTOR DTC143EK R1552 METAL OXIDE RESISTOR RS1/2LMF121J R1553...

  • Page 46: Adjustment

    VSX-D510 Mark No. Description Part No. Mark No. Description Part No. C441 CERAMIC CAPACITOR CKSRYB103K50 MECHA SW ASSY C442 ELECT. CAPACITOR CEJA470M10 C451 CHIP CAPACITOR CKSRYB102K50 C452 CHIP CAPACITOR CKSRYB102K50 SWITCHES AND RELAYS C453 CHIP CAPACITOR CKSRYB102K50 S 591 SWITCH...

  • Page 47: General Information

    VSX-D510 7. GENERAL INFORMATION 7.1 DISASSEMBLY and DIAGNOSIS Note : This photograph shows other models. Diagnosis However, the work method is the same. Remove the Bonnet (seven screws). Rear Panel Pull up ×2 ×3 ×3 ×2 ×2 Diagnosis ×5 REGULATOR Assy AMP&PRIMARY Assy...
  • Page 48 VSX-D510 Diagnosis of D.D & INPUT Assy Remove FM/AM TUNER Unit and Shield R3 (five screws). Please check SIDE A of the D.D & INPUT Assy on this status. Please check IC101 mounted on side B from SIDE A. The Pin number points on SIDE A of IC 101 are shown as follows.
  • Page 49 VSX-D510 7.2 PARTS 7.2.1 IC • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. PDG260A (FRONT ASSY : IC401) • System Control MCU • Pin Arrangement (Top View)
  • Page 50 VSX-D510 • Pin Function Pin Name Pin Function Active Grid output 2 Grid output 1 − Connect to VDD ACIN AC pulse input RDS_DT Serial control DATA signal of RDS communication RDS_CK Serial control CLOCK signal of RDS communication DIRLOCK...
  • Page 51 VSX-D510 Pin Name Pin Function Active D_MUTE Digital mute (Not used) 9273_CS TC9273 Chip select DSP_MT DSP mute (ASSY mute) CDC_RST CODEC reset FM+(RDS) Tr switch ON/OFF for power supply of RDS decoder (L : AM, power OFF , H : Other) −...
  • Page 52 VSX-D510 M62446FP (D.D & INPUT ASSY : IC103) • Sound Controller IC (Volume and Tone Control) • Block Diagram Volume OUT4 DVDD 17-24kΩ <SW> OUT3 Volume OUT2 DATA 17-24kΩ OUT1 LATCH <SR> DGND AVDD Volume 17-24kΩ SWin AGND <SL> GNDS...
  • Page 53 VSX-D510 W24257AJ-12 (D.D & INPUT ASSY : IC1301) • 32K × 8 High-Speed CMOS Static RAM • • Block Diagram Pin Function Pin Name Function DECORER Addres Inputs CORE ARRAY I/O1 CONTROL DATA I/O I/O1 I/O8 I/O2 I/O3 I/O4 Data Inputs/Outputs...
  • Page 54 VSX-D510 7.2.2 DISPLAY XAV3010 (FRONT ASSY : V401) • FL DISPLAY • Pin Assignment DIGITAL SIGNAL SELECT DIRECT MONITOR RF ATT PRO LOGIC TUNED DIGITAL DTS MIDNIGHT STEREO LOUDNESS MONO ANALOG DIGITAL • Grid Assignment DIGITAL DIRECT MONITOR RF ATT...
  • Page 55 VSX-D510 • Pin Connection Pin No. 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 Connection F2 F2 NP NP P22 P21 P20 P19 P18 P17 P16 P15 P14 P13 P12 P11 P10 P9 P8 P7 P6 P5 P4 P3 P2 Pin No.

  • Page 56: Panel Facilities And Specifications

    VSX-D510 8. PANEL FACILITIES AND SPECIFICATIONS 8.1 PANEL FACILITIES Front Panel N∫m-Û.,? Digital Signal Processor MULTI JOG TONE MASTER VOLUME ST A TION TUNING SIGNAL DIRECT MONITOR /DTS 5.1CH MODE SELECT PHONES CLASS MEMORY BAND SPEAKERS MIDNIGHT DOWN & 1 — OFF/ _ ON (Main power) button STANDBY/ON button Switches the receiver between on and standby.(note that the...
  • Page 57 VSX-D510 Display DIGITAL MONITOR RF ATT SIGNAL SELECT DIRECT PRO LOGIC TUNED DIGITAL DTS MIDNIGHT STEREO LOUDNESS MONO ANALOG DIGITAL 1 SIGNAL SELECT indicators - RDS indicator Lights to indicate the type of input signal assigned for the Lights when an RDS broadcast is received.

  • Page 58: Remote Control

    VSX-D510 Remote Control MIDNIGHT Use to put receiver in MIDNIGHT mode. To use first press the button then operate this button. RECEIVER 5.1 ch When the DVD/LD or DVD 5.1 CH function is selected each press switches the DVD/LD input between DVD/LD and DVD Î...

  • Page 59: Rear Panel

    VSX-D510 BAND button @ TOP MENU button Use to switch between the AM and FM band when in TUNER In DVD mode this button brings you to the top or most mode. fundamental menu. D. ACCESS button # CHANNEL +/– buttons (DISPLAY, RF ATT) Use to directly access a radio station by pressing the number of Use to select the stations of memorized radio frequencies.

  • Page 60: Parts

    VSX-D510 8.2 SPECIFICATIONS Amplifier Section FM Tuner Section Frequency Range ....... 87.5 MHz to 108 MHz Continuous Power Output (STEREO MODE) Usable Sensitivity FRONT ..80 W + 80 W (DIN 1 kHz, THD 1.0 %, 8 Ω) ......Mono:13.2 dBf, IHF (1.3 µV/ 75 Ω) 50 dB Quieting Sensitivity ....
