Specifications, Installation and
Operating Instructions for Woodsman
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
Proudly Manufactured By:
Solid Fuel Burners
Harris Home Fires
41 Braddon St
Addington
Christchurch 8024
New Zealand
Email sales@hhf.co.nz
Issued: March 2013 V2.32
P O Box 4043
Christchurch 8140
New Zealand
Phone 03 366 1796
Freephone 0800 3661796
Fax 03 366 1795
1
Advertisement
Table of Contents
Related Manuals for Woodsman AS/NZS 2918:2001
Summary of Contents for Woodsman AS/NZS 2918:2001
- Page 1 Issued: March 2013 V2.32 Specifications, Installation and Operating Instructions for Woodsman Solid Fuel Burners KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE Proudly Manufactured By: Harris Home Fires P O Box 4043 41 Braddon St Christchurch 8140 Addington New Zealand Christchurch 8024...
-
Page 2: Table Of Contents
Contents PAGE Testing and Certification Clearances 4 & 5 Flue Shields Ceiling Heights Flue Shield Deflector Floor Protector/Hearth Graph (Graph 1) Dimensions Reducing Clearances Installation Instructions Floor Protector Materials Minimum Flue Height Flue Installation Details HeatSaver Flue Kit Installation Instructions 12 &... -
Page 3: Testing And Certification
Testing and Certification AS/NZS AS/NZ AS/NZS AS/NZS ECan Cert MODEL 2918:2001 2918:2001, APP E 4012:1999 4013:1999 Number Brunner Complies 0.5g/kg 111242 Brunner WB Complies 0.5g/kg 111243 Tasman Complies 0.5g/kg 111475 Tasman WB Complies 0.5g/kg 111477 Aspen Complies 0.5g/kg 111306 Aspen WB Complies 0.5g/kg 111307... -
Page 4: Clearances 4
Minimum Safe Installation Clearances to COMBUSTIBLE Materials ECR MkIII, FLARE-WOOD TARRAS MKII BRUNNER & ASPEN FLARE-MULTI MkIV, MkV See Flue Shield See Flue Shield TASMAN See Flue Shield STRONGMAN requirements requirements requirements 875* GRAPH 1 1233** 1015 1020 1084 1084 1364 1280 1287... - Page 5 Minimum Safe Installation Clearances to COMBUSTIBLE Materials Totara 1060* Graph 1 Graph 1 Graph 1 Graph 1 * Dimension P can be 920mm with a factory supplied heat deflector fitted...
-
Page 6: Flue Shields
Ceiling Heights All Woodsman free standing fires have been tested and approved to ASNZ 2918:2001 with a ceiling height of 2.4m and with the factory flue shield fitted in the below configu- rations. In some cases, the top of the flue shield terminates within 600mm of the ceiling height (refer to ASNZ 2918:2001 4.5.2) but all ceiling temperatures did not exceed the... -
Page 7: Floor Protector/Hearth Graph (Graph 1)
Hearth Graph Graph 1 Hearth Sizes Thickness of hearth (mm) This graph refers to Page 4 figure C and Page 5 figures Q & R. The hearth distance out in front of the fire (taken from the door), is dependent on the thickness of the hearth. -
Page 8: Dimensions
Dimensions TOTARA STRONG- FLARE FLARE BRUNNER, TARRAS MKIII, V TASMAN & MKII Deluxe WOOD MULTI ASPEN Overall Stove Width Stove Depth Door to Rear Overall Stove Depth Ledge to rear Overall Stove Height Insert Fascia Height Insert Depth Insert Maximum Height Insert Fascia Width Flue Centre to... -
Page 9: Reducing Clearances
(combustible to stove) Calculation: 198mm x 0.3 = 59mm WARNING - This is only an example, you must refer to the full AS/NZS 2918:2001 document for more details and consult your local building inspector. Where heat shields are used to reduce appliance dimensions, additional flue shielding may be required... -
Page 10: Installation Instructions
Installation Instructions This appliance should only be installed by a trained and NZHHA qualified installer. Warning: the appliance and flue system shall be installed in accordance with AS/NZS 2918 and the appropriate requirements of relevant building code/codes. Warning: appliances installed in accordance with this standard shall comply with the requirements of AS/NZS 4013 where required by the regulatory authority, i.e. -
Page 11: Minimum Flue Height
Flue Installation Detail Your Woodsman appliance should be installed with a HeatSaver Flue System. A HeatSaver Flue System is available from all authorised Woodsman dealers throughout New Zea- land. The HeatSaver Flue System contains a complete installation drawing and correct clearances from the ceiling level up. -
Page 12: Heatsaver Flue Kit Installation Instructions 12
HeatSaver Flue Kit Installation INSTALLATION INSTRUCTIONS This HeatSaver flue system is tested and certified to AS/NZS 2918:2001 Appendix F, which means it is approved for use on all solid fuel appliances with a flue diameter of 150mm. A copy of the Laboratory Test Certificate for this HeatSaver Flue System is included as ... - Page 13 HeatSaver Flue Kit Installation...
-
Page 14: Operation Instructions Wood
By following this simple method of low burn firing, you will achieve very low emission rates and obtain the high efficiency burn that is associated with the Woodsman product. The fuel approved for use in Clean Air Zones in this appliance is wood with a moisture content of less than 25% of dry weight. -
Page 15: Operation Instructions Multi-Fuel
Operating Instructions Multi-fuels Your Woodsman Multi-fuel will operate perfectly well burning coal, wood, briquettes or a mixture of any of these. Often the hottest temperatures are achieved by burning a mix- ture of wood with coal laid over the top. -
Page 16: Caring For Your Fire
Cleaning the Outside of the Fire Woodsman fires are finished in a high temperature paint. Only use a damp cloth (no chemicals) when cleaning the outside of the fire. If any scratches occur, you can easily touch up the fire with an aerosol can of matching paint. -
Page 17: Air Tubes
(AIR-12450) (2119) The air tube in your Woodsman fire is an integral part of the appliance and helps ensure a clean, efficient and controllable burn. However, air tubes are a consumable item and are designed to be replaced as they are likely to degrade with use due to the exposure to the extreme heat of the fire. -
Page 18: Baffles
(FI-12295) (2137) The baffle in your Woodsman fire is an integral part of the appliance and helps ensure a clean, efficient and controllable burn. However, baffles are a consumable item and are designed to be replaced as they are likely to degrade with use due to the exposure to the extreme heat of the fire. -
Page 19: Fire Bricks
Tarras (MKI) Tarras MKII The fire bricks in your Woodsman fire are an integral part of the appliance and helps ensure a clean and efficient burn. However, fire bricks are a consumable item and are designed to be replaced as they are likely to degrade with use due to the exposure to the extreme heat of the fire. -
Page 20: Useful Tips
Useful Tips Get the most out of your Woodsman Tips for lighting the fire Use finely cut, dry kindling wood. Firelighter cubes or gel work best when ensuring ignition of the kindling. Cross stack kindling over and around fire lighter like a small tower. -
Page 21: Trouble Shooting
The baffle may not be in place correctly, visually check to see if it has moved. You may need a cowl like the Woodsman Columbia cowl to help encourage draw, espe- cially where there are environmental problems like high winds. -
Page 22: Warranty Details
10 Year Firebox Warranty - Multi-Fuels 1 Year Parts Warranty - All Fires Your WOODSMAN fire is warranted for a period of 1 year to the original purchaser, from the date of purchase, against defective materials and workmanship which includes the firebox and all parts.
Need help?
Do you have a question about the AS/NZS 2918:2001 and is the answer not in the manual?
Questions and answers

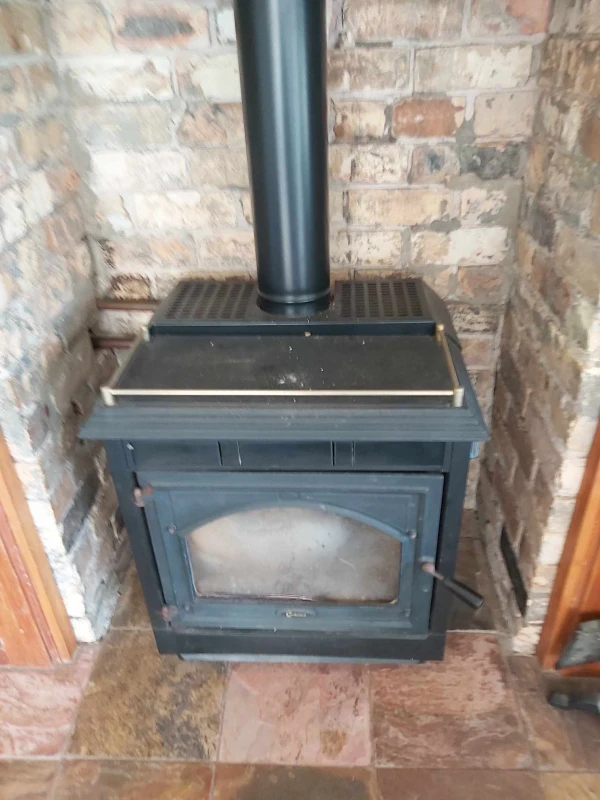

Minimum distance WITH a heat shield to a freestanding wood burner
According to AS/NZS 2918:2001, the minimum distance to a Woodsman freestanding wood burner with a heat shield depends on the heat shield construction:
- Single 12 mm continuous material with air gap: clearance factor is 0.4
- Single 25 mm continuous material with air gap: clearance factor is 0.3
- Two spaced layers of 12 mm continuous material with air gap: clearance factor is 0.2
To find the minimum distance, multiply the unshielded clearance by the relevant clearance factor. The specific unshielded clearance is not provided in the context, so the exact minimum distance cannot be calculated.
