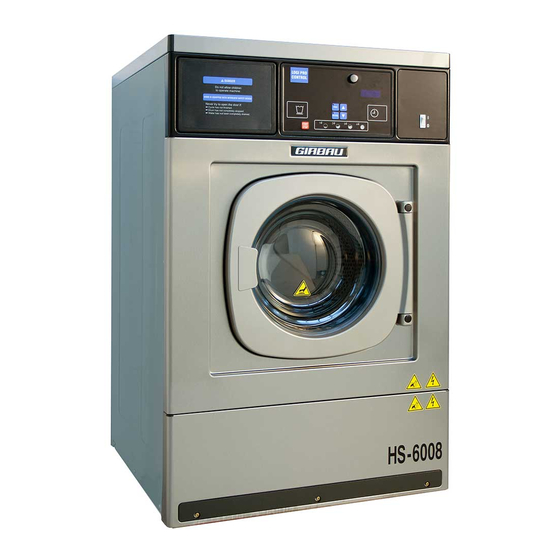

GIRBAU HS-6008 Operation Instructions Manual

Washers logi control

Hide thumbs Also See for HS-6008:

Installation instructions manual (30 pages)

Operation instructions manual (25 pages)

Installation manual (24 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the HS-6008 and is the answer not in the manual?

Questions and answers

Ruy Costa

April 27, 2025

Na máquina HS-6008 é possível abrir a porta no meio da lavagem,por roupa e continuar o ciclo de lavagem?

Summary of Contents for GIRBAU HS-6008

Page 1 08500 VIC (Barcelona) • SPAIN Tel. 34 93 8861100 Fax 34 93 8860785 girbau@girbau.es LOGI www.girbau.com Advanced For USA & CANADA: CONTINENTAL GIRBAU Inc. 2500 State Road 44 WI 54904 Oshkosh • USA Tel. 1(920) 231-8222 Fax 1(920) 231-4666 info@cont-girbau.com www.cont-girbau.com Cod. 429597...
Page 2 Model From serial # High Speed HS-6008 2.080.001 HS-6013 2.110.001 HS-6017 2.120.001 1.430.001 EH020 EH030 1.460.001 EH040 1.470.001 Medium Speed MS-610 2.020.001 MS-613 2.030.001 MS-617 2.040.001 MS-623 2.050.001 EM025 1.370.001 EM030 1.380.001 EM040 1.390.001 EM055 1.400.001 Cod. 429597 Rev. 01/0106...
Page 3 For the contents of SAFETY INSTRUCTIONS, chapters 1. DESCRIPTION, 2. OPERATING INSTRUCTIONS, 4. TROUBLESHOOTING, 5. MAINTENANCE and 6. SERVICE REMOVAL, see Operation Instructions LOGI CONTROL, supplied with the washer or request it to the manufacturer: girbau@girbau.es, (USA/CANADA: info@cont-girbau.com). Cod. 429597 Rev. 01/0106...
Page 4 Advanced Mode 3. ADVANCED USE MODE. There is an advanced use mode: the MOD mode. This mode includes five different menus through which, each user can personalise the operation of the washing machine. Menus for advanced use mode: MENU PURPOSE Modification of the program contents Information menu INFO...
Page 5 Advanced Mode 3.2.1. Master program ROTATION COOL EXTRACT EXECUTION TEMP. ROTATION PAUSE EXTRACT LEVEL DOSING TIME DOWN TIME PHASE C / F 0 ... 40 Y / N 1…4 0 / 1 1...3 1...8 n.p. n.p. n.p. 32 ... 104 0 ...
Page 6 Advanced Mode 3.2.2. Programs contents. General application. - 1. E - 2. H XTRA HEAVY SOIL HITE EAVY SOIL HITE Ph Ph cd rh Ph Ph cd rh - - - - - - - - - - - - - - - - - - - - - - - - - - -...
Page 7 Advanced Mode 3.2.3. Programs contents. USA / CANADA application. - 1. E - 2. H XTRA HEAVY SOIL HITE EAVY SOIL HITE Ph Ph L cd rh Ph Ph L cd rh - - - - - - - - - - - - - - - - - - - - - - - -...
Page 8 Advanced Mode 3.2.4. Programs contents. Great Britain application. - 1. H - 2. H – W EALTHCARE EAVY SOIL HITE Ph Ph cd rh Ph Ph cd rh - - - - - - - - - - - - - - - - - - - - - - - - - - -...
Page 9 Advanced Mode 3.2.5. Phases definition. PHASES DEFINITION Soaking and pre-washes. Optional execution phases. Water heating is permitted only in 1, 2, 3 machines with heating. Washing. Obligatory execution phase. The mixing of hot and cold water and/or water heating is permitted.
Page 10 Advanced Mode 3.2.7. Modification of a program Access the MODIFICATION mode (section 3.1) The display will indicate Pro. Press the MOD key to access the PROGRAMMING menu. The display will indicate Pr-1. Ready to modify program 1. The keys are used to select another program.
Page 11 Advanced Mode Dosing. Permits to activate or deactivate dosing that appear in the master table. OPTIONS MEANING Without dosing External dosing of soak and pre-wash detergent External dosing of wash detergent Bleach dosing Softener or neutraliser dosing n.p. Not possible to program dosing in the phase The first executed soak or pre-wash phase doses the deposited detergent in the pre-wash compartment of the washer dispenser.
Page 12 Drain + wash speed Drain + positioning speed Drain + low extract speed Drain + medium extract speed Drain + medium/high extract speed Drain + high extract speed R.P.M. FOLLOWING MACHINE MODEL MS-620 HS-6008 HS-6013 HS-6017 OPTIONS EM025 EH020 EH030 EH040...
Page 13 Advanced Mode Extract time Extract time programmed in the phase. It is valued in minutes. OPTIONS MEANING n.p. Drain time E-1 Programmable range in not final phase of the program 2 ... 4 2 ... 9 Programmable range in final phase of the program keys will modify the displayed option.
Page 14 Advanced Mode 3.3. Information menu. INFO menu PARAMETERS MEANING Type of control LOGI Washer’s model Version of program Number of cycles executed Number of times the anti-suds function has been activated Access the MODIFICATION menu. Section 3.1. Display shows Pro. Press key.
Page 15 Advanced Mode 3.4.1. Parameters modification Access the MODIFICATION mode. Section 3.1. Display shows Pro. Press key twice. In the display reports INFO, Mod are showed successively. Press the MOD key to display the first parameter. Buzzer The door safety unlock can be advised by the sounding of a beep. The duration of this warning is programmable.
Page 16 Advanced Mode OPTIONS MEANING Without suds prevention SP-0 SP-1 First level of suds prevention SP-2 Second level of suds prevention The key allows the modification of the option displayed. The MOD key validates the selection on the display and permits the access to the following programmable function.
Page 17 Advanced Mode 3.6. Clock of the system. Hour menu The access to this menu is only possible if the option clock is available. This menu allows the user to enquire and / or modify the hour in the system. The clock must be at the real time for the proper operation of the starting time. 3.6.1 To set de clock Access the MODIFICATION mode.
