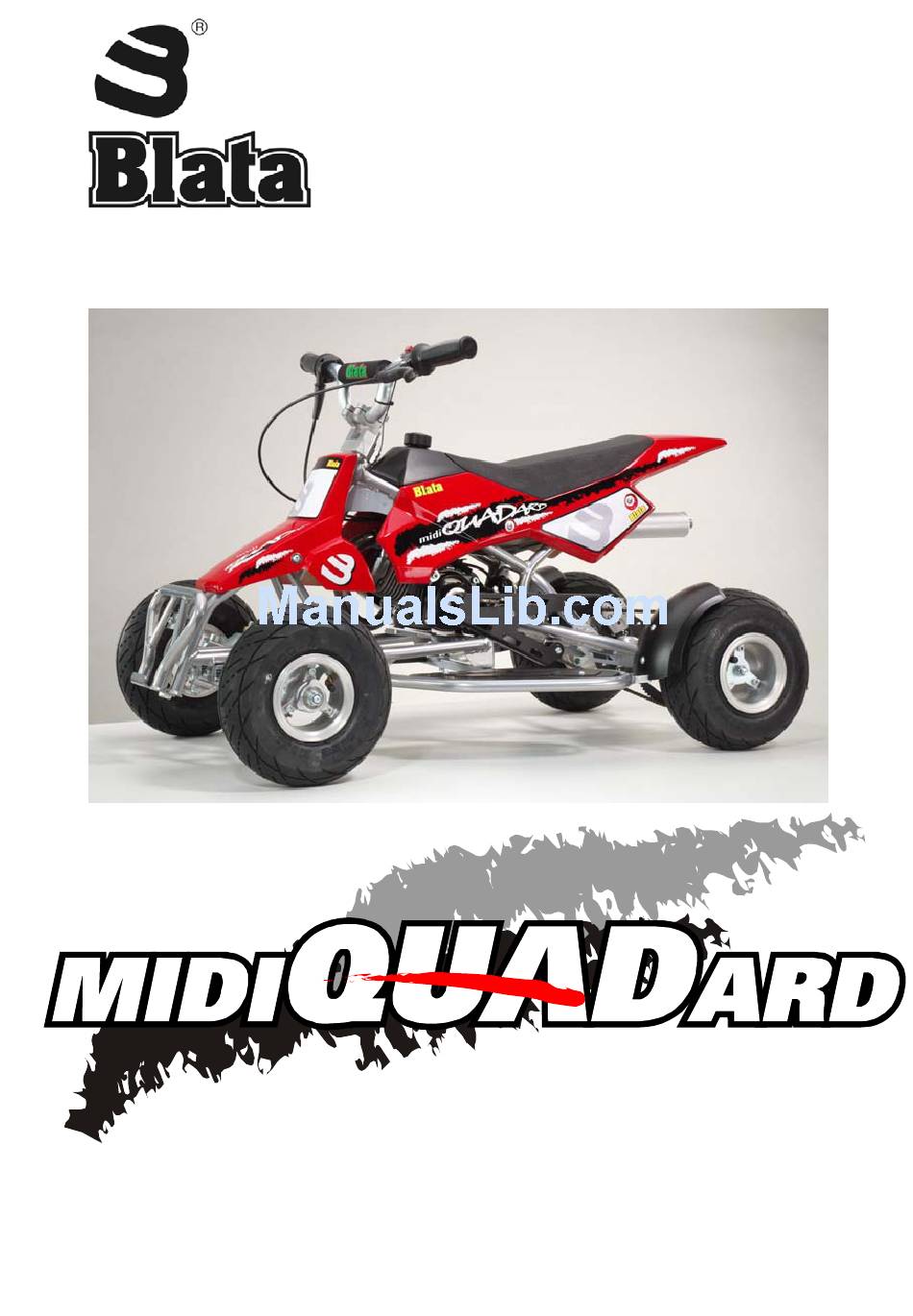

Blata MIDIQUADARD Nstruction Manual
  1. Manuals
  2. Brands
  3. Blata Manuals
  4. Offroad Vehicle
  5. MIDIQuadard
  6. Nstruction manual

Blata MIDIQUADARD Nstruction Manual

Quadard
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIDIQUADARD and is the answer not in the manual?

Questions and answers

Summary of Contents for Blata MIDIQUADARD

  • Page 2 Noise emitted by machinery and equipment (Minibike BLATA QUADARD) - Measurement of emission sound pressure levels at a work station and at other specified positions. Levels measured by authorized person ( TUV CZ s.r.o.). Test record (no. : 815/90/06/BT/IZ/H) is deposited with producer.

  • Page 3: Table Of Contents

    QUADARD INSTRUCTION MANUAL TABLE OF CONTENTS Page INTRODUCTION..........................2 PURPOSE OF USE ........................... 2 SAFETY WARNING .......................... 2 TECHNICAL SPECIFICATIONS ....................... 3 UNPACKING AND SETTING UP BEFORE RIDING - Fig. 1 ............4 BEFORE STARTING THE ENGINE....................4 ENGINE STARTING - Fig. 2 ......................5 CARBURETOR - Fig.

  • Page 4: Introduction

    INTRODUCTION Dear customer, Thank you for purchasing this product manufactured by Blata. The proper care and maintenance that your Quadard requires is outlined in this manual. Following these instructions will ensure a long trouble-free operating life of the vehicle and your satisfaction with it.

  • Page 5: Technical Specifications

    TECHNICAL SPECIFICATIONS one cylinder; two-stroke; air-cooled ENGINE 39,9 ccm DISPLACEMENT 2,5 kW at 8 700 rpm POWER OUTPUT TORQUE 3,5 Nm at 6 000 rpm CARBURETOR Dell’Orto 14 Contact-less IGNITION Manual – hand pull type STARTING Centrifugal automatic CLUTCH FRAME welded high-strength steel tubes rear disk –...

  • Page 6: Unpacking And Setting Up Before Riding - Fig. 1

    UNPACKING AND SETTING UP BEFORE RIDING Your Quadard is packed with folded handlebars and brake lever. After unpacking, set up the handlebars to a comfortable position. After setting-up the handlebars, tighten the handlebar bolts (M6), the brake lever bolt, and the throttle grip bolt according to Fig.1.

  • Page 7: Engine Starting - Fig. 2

    ENGINE STARTING Fill the fuel tank with pre mix fuel and refit the fuel cap. Open the fuel cock , turning it to the position “ON”, Fig. 3. Set the choke to open (position “B“, Fig. 3). Without turning the throttle grip, gently pull the starter rope twice and then on the third pull, the engine should start, Fig.

  • Page 8: Riding

    RIDING Sit on the vehicle and slowly twist the throttle to start moving forward. When riding the Quadard, keep in mind the rules applicable to riding four-wheel vehicles (sit on the front part of the seat; do not lean back; try to keep the load of your body as forward as possible)! Reduce speed accordingly when going around corners.

  • Page 9: Drive Chain Adjustment

    DRIVE CHAIN ADJUSTMENT Loosen the bolts (M5) on the rear axle carrier also loosen (M6) bolt on the rear brake to allow for tensioning the chain, then adjust by moving the excentric disc on the axle, the drive chain slack should be 5 mm (0,2 in). making sure not to over tighten the chain.

  • Page 10: Rear Brake Pads Replacement

    REAR BRAKE PADS REPLACEMENT (Fig. 7 ) First, screw in the adjusting screw on the left brake lever on the handlebars. Loosen the nuts (M5 - 914.003.01) holding the brake body to the brake holder, and pull the brake body, rearward. Do not loosen the cable retainer! Remove the two distance bushes and the two threaded bushes from the brake body.

  • Page 11: Air Filter Cleaning

    AIR FILTER CLEANING Loosen the sleeve screw, no.2 (see Fig. 3) so you can remove the air filter cover, no.1. Now you have free acces to the filter. Remove the filter, clean it in petrol and lubricate it with engine oil. To re-install the filter, reverse the procedure above. PINION REPLACEMENT (Fig.

  • Page 12: Quadard - Assembly - Fig. 6

    215.045.01 110.001.00...
  • Page 13 215.006.00 217.010.74...

  • Page 14: Rear Brake - Assembly - Fig. 7

    Fig. 7 – REAR BRAKE - assembly 916.072.02...

  • Page 16: Front Axle - Fig. 9, Rear Axle Shaft - Fig. 10

    217.010.74...

  • Page 19: Quadard - Spare Parts List

    MIDI - QUADARD 210.000.00 510.002.00 MIDI - QUADARD STARTER COMPLETE 510.003.00 STARTER ROPE 510.004.00 ENGINE HOLDER 110.001.00 ENGINE COMPLETE 510.005.00 HOLDER 110.001.01 ENGINE PROPER 510.006.00 GUIDE BUSH 110.002.00 CARBURETTER SHA 1412L 510.007.00 STARTER CASE 110.004.00 PISTON COMPLETE - A 510.008.00 STARTER SPRING 110.004.01 PISTON COMPLETE - B...
  • Page 20 LINING JOINING ELEMENTS 174.004.00 SEAT - TAIL ASSY, UNPAINTED 912.006.02 SCREW M 5 x 16 174.007.00 SEAT - TAIL ASSY, PAINTED 914.001.01 SCREW M 5 x 16 174.022.00 SADDLE 914.003.01 SCREW M 5 x 20 214.001.00 BODY KIT COMPLETE, UNPAINTED 914.003.02 SCREW M 5 x 20 214.002.00...

  • Page 21: Torque Settings

    TORQUE SETTINGS (1 FT-LB = 1.3558 Nm) PART NAME TORQUE SETTING ( Nm ) SECURED BY ENGINE Cylinder – Bolts M6 Flange – M5 Starter case – 4 Ratchet wheel –bolt M4 Loctite 243 Magneto (rotor) – nut M8 Starter prowls – bolts M5 Loctite 243 Ignition coil –...

  • Page 22: Certificate Of Warranty

    It is a great honour for us that you have chosen our product. Our wish is that Quadard gives you years of trouble-free enjoyment. BLATA Company - the manufacturer of your Quadard. All rights for technical, text and design changes reserved for the BLATA Company. Serial Number : CZ ..........
  • Page 24 COPYRIGHT BLATA 2006 Last update: 11.12.2006...
