Summary of Contents for Maxon PM200
-
Page 2: Table Of Contents
User Manual PM200 Table of Contents Table of Contents .........................1 Specification .........................3 About Your PM200 Radio ....................3 Safety Information ........................4 Unpacking Information ......................5 PM200 Features & Description ....................6 Product Description ......................6 Front and Rear panels ......................7 Front panel layout ......................7 Rear panel layout ......................7... - Page 3 User Manual PM200 1200/2400 bps Key ....................16 DTMF Key........................16 Group Key ......................... 16 Emergency Key ......................17 Status and Error Messages....................18 Service Information......................19 Page 2...
-
Page 4: Specification
We urge you to thoroughly read this manual before operating the radio The application of some of the functions described in this manual is determined by the system you use. Your Maxon Dealer will program your radio so that you have the greatest number of functions possible relative to your needs. -
Page 5: Safety Information
User Manual PM200 Safety Information 1. WARNING! NEVER connect the transceiver to an AC outlet. This may pose a fire hazard or result in an electric shock. 2. NEVER operate the radio transmitter without a suitable artificial load or antenna connected. -
Page 6: Unpacking Information
User Manual PM200 Unpacking Information Remove and carefully inspect the contents of your package(s) for the following items: 1. PM200 Transceiver 2. Microphone 3. Installation kit 4. User Manual * If any items are missing, please contact your Dealer PM200 + Microphone... -
Page 7: Pm200 Features & Description

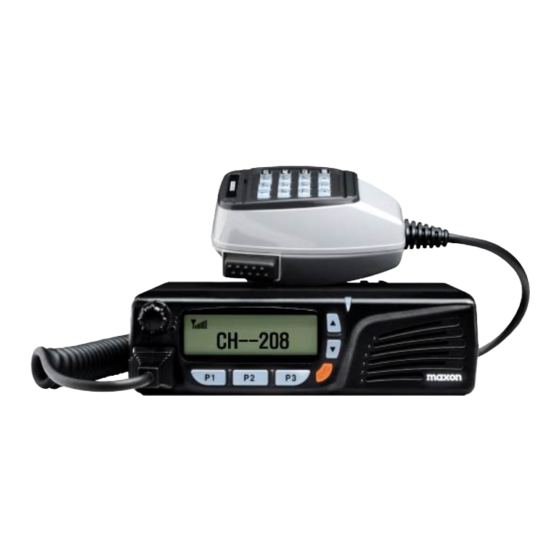

The PM200 is a DTMF, SECALL and SMS mobile radio with 208-channel capability. The radio is programmable for output power, channel spacing, and a range of features. The three buttons located on the bottom left-hand side of the radio under the LCD, are described as programmable. -
Page 8: Front And Rear Panels
User Manual PM200 Front and Rear panels Front panel layout 1.) RJ45 Microphone Socket 2.) On/Off Volume Control 3.) Alpha Numeric LCD (P1-P3) Programmable Keys 5.) Status LED 6.) Emergency Key (Orange) 7.) Up/Down Channel/Menu Keys 8.) Internal Speaker Rear panel layout 9.) BNC Antenna Connector... -
Page 9: Front And Rear Descriptions
User Manual PM200 Front and Rear descriptions 1. Microphone socket Connect the supplied microphone or optional DTMF/Heavy Duty microphone. NEVER connect non-specified microphones the pin assignments may be different and the transceiver may be damaged. 2. Volume control switch To turn the radio ON and OFF, rotate the knob clockwise ON and anticlockwise to turn OFF. -
Page 10: Lcd Display
The LCD can display Alpha numeric characters and can be scrolled using the programmerable (P1) – (P3) keys. Short message service Text can be sent and displayed by the PM200. Selcall numeric codes stun and revive and error messages can also be displayed. -
Page 11: Basic Radio 0Peration
To turn the radio off, rotate the control anti-clockwise until a click is heard. Channels The PM200/250 Series radio can store up to 208 channels within the same frequency band. These channels can be selected by using the ▼▲ (up/down) keys. The channels can all be programmed using the PM200/250 programmer. -
Page 12: Squelch Options
The PM200/250 radios are capable of generating all 38 standard CTCSS tones and can also generate the 83 standard DCS codes and 83 inverted DCS codes. -
Page 13: Muting Options
User Manual PM200 Muting Options The radio is programmable with different muting options: These options are associated with various Selcall functions. Please check with your dealer for full programmable options. Power up: OPEN - the radio is powered up in Monitor Open mode, (Speaker On). -
Page 14: Display Logo
Delay expires and Scan Speed resumes, the LED shall also resume flashing green. Priority Scan A priority channel can be allocated using the PM200/250 programmer. The priority channel will be part of the list of channels that make up the scan list. The priority channel when used with other P1→S1→P1→S2→P1→S3→P1→S4→P1... -
Page 15: Transmitting During Scanning
User Manual PM200 to the priority channel can be programmed between 1 to 7 seconds in 1-second increments. When carrier, or carrier and tone, are removed, the radio will revert back to the previously selected channel. Transmitting During Scanning The radio can be set to behave in a number of ways when the PTT is pressed during Scan. -
Page 16: Basic Programmable Features
Icon. To add or delete channel from P Scan Editable List, use P2 button. Basic programmable features Function Keys There are six push-buttons on the face of the PM200/250; Up / Down ( ), P1, P2, P3 and ▼▲ Emergency, below are the default programming settings. -
Page 17: Monitor Key
Public address Key User selectable On/Off. When selected and the external speaker is attached, the radio will output voice audio over the external speaker. Please note that the PM200 will not transmit an RF carrier in this mode. Open/Close Key Press to toggle the radio status Open or Close mode. -
Page 18: Emergency Key
User Manual PM200 Press the programmed key to select the group number. Emergency Key When the orange emergency key is pressed, a pre-programmed sequence or set of sequences is transmitted. Up to three sequences can be attached to the emergency key. (Please see Selcall section). -
Page 19: Status And Error Messages
PM200 Status and Error Messages Your PM200 radio has a sophisticated microprocessor control, which provides a range of audible alert tones. Upon each power-up, a quick melody indicates that the self-test of the microprocessor functions has been completed. A sequence of audible tones may be sounded with any of the following conditions: •... -
Page 20: Service Information
For further information on how to safely dispose of your used batteries, contact your Maxon Dealer. Maintenance Your PM200 Radio is designed to be maintenance free. To keep your radio in good working condition: Clean external surfaces with a clean cloth dampened in a solution of dishwasher detergent diluted in water. - Page 21 User Manual PM200 PM200 Series This product is marked with in accordance with the Class II product requirement specified in the R&TTE Directive 1999/5/EC. This equipment is intended for use in:- Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany,...
- Page 22 User Manual PM200 Maxon House, Cleveland Road, Hemel Hempstead, Hertfordshire, United Kingdom, HP2 7EY Tel: + 44 (0) 1442 267 777 Fax: + 44 (0) 1442 215 515 info@maxoncic.co.uk www.maxoncic.co.uk Page 1...
