Cooper 9930 User Manual

Hardwired control unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

INSTALLATION GUIDE
HARDWIRED
CONTROL UNIT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9930 and is the answer not in the manual?

Questions and answers

malchom Sanders
February 19, 2025

what happens to alarm if external power fails

User image 67b5c67992957
0
1 comments:
Mr. Anderson
February 19, 2025

If external power fails, the Cooper 9930 alarm system may generate an AC Fail alert. Command 137 allows configuration of the AC Fail Override, where:
- Option 0: The system never overrides the AC Fail alert.
- Option 1: The alert is inactive.
- Option 2: The alert is triggered for any AC failure.

Additionally, if Plug-by Communications Output 1 (Command 151) is configured, it can send an AC Fail notification.

This answer is automatically generated

0

Related Manuals for Cooper 9930

Summary of Contents for Cooper 9930

  • Page 1 INSTALLATION GUIDE HARDWIRED CONTROL UNIT...
  • Page 2 © Cooper Security Ltd. 2005 Every effort has been made to ensure that the contents of this book are correct. However, neither the authors nor Cooper Security Limited accept any liability for loss or damage caused or alleged to be caused directly or indirectly by this book. The contents of this book are subject to change without notice.

  • Page 3: Table Of Contents

    Contents 1. INTRODUCTION..................1 About this Manual ............................1 Features of the Control Unit .........................2 Elements of the IAS .............................3 9930 and 9940 Keypads ..........................4 ScanProx Proximity Tag Reader........................4 User Control ..............................5 2. TECHNICAL DESCRIPTION ............... 7 Control Unit Specification..........................7 General..............................7 Power Supply ............................7...
  • Page 4 Figure 19. Connecting a 9928 Keyswitch Interface ..................23 Figure 20. Plug-By Communicator Wiring ....................25 Figure 21. Fitting a Plug-by Communicator....................26 Figure 22. Fitting Control Unit PCB ......................26 Figure 23. Fitting a Battery.........................27 Figure 24. Sensitive Area on 9930 Keypad for Tag..................32 Page ii 497283 Issue 1...

  • Page 5: Introduction

    1. INTRODUCTION About this Manual This manual is divided into four chapters: 1. Introduction: this describes the parts of an Intruder Alarm System (IAS) based on the 9651 control unit. 2. Technical description: this defines the operating parameters of the different parts of the system.

  • Page 6: Features Of The Control Unit

    ° 700-entry event log. ° Output test commands. ° Engineer walk test command. Cooper Security Ltd supplies two variants of the software: ° Standard software, supplied with 9651xx-xx control unit. This software provides EN51031 compliance. ° DD243 upgrade kit. This kit provides enhanced software on a replaceable chip that enables the Installer to program the 9651 to be compliant with DD243.

  • Page 7: Elements Of The Ias

    9651 1. Introduction Elements of the IAS An IAS comprises a control unit in a shielded case, with 1 to 4 separate keypads and various detectors or other devices, for example keyswitches, connected to programmable zones. The control unit has eight zone connectors on its printed circuit board (PCB). Figure 1 shows how these elements are connected.

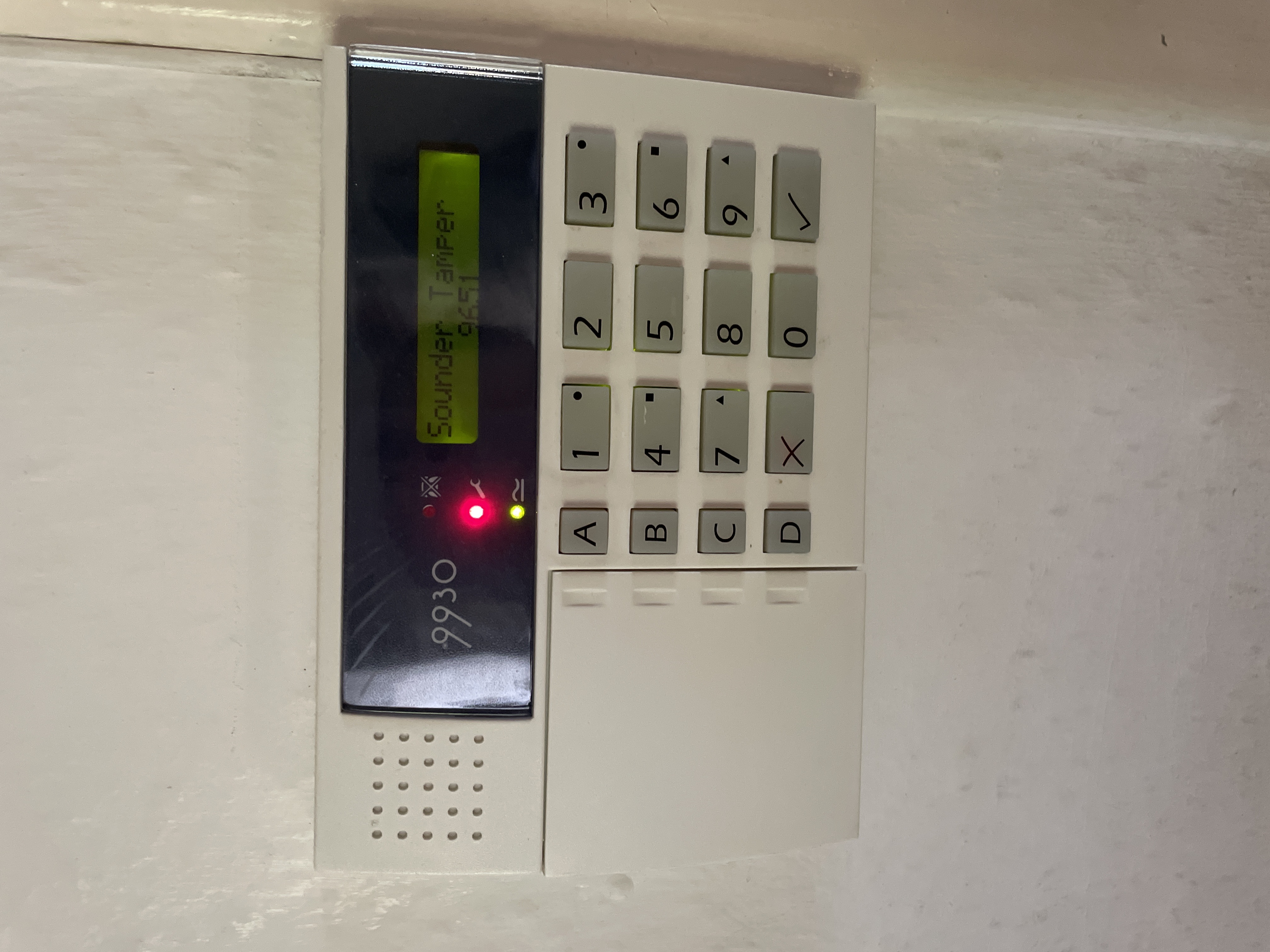

  • Page 8: 9930 And 9940 Keypads

    Figure 2. 9930 and 9940 Keypads The control unit supports the connection of 9930 and 9940 keypads. The 9940 is the later replacement for the 9930, and offers smaller size, a built-in wide-area proximity reader and connections for an external panic alarm switch.

  • Page 9: User Control

    9651 1. Introduction User Control The control unit provides 50 independent User access codes and a separate Duress Code. Users can change these codes at any time but cannot use them to program the system. During installation, the Installer can select whether access codes use four or six digits.
  • Page 10 1. Introduction 9651 (This page is intentionally blank.) Page 6 497283 Issue 1...

  • Page 11: Technical Description

    750mA. Nominal power requirements (DC): 9651 130mA quiescent, 220mA active 9930 20mA quiescent, 35mA backlight on 9940 30mA quiescent, 70mA backlight on 15mA typical, 20mA maximum Standby battery (not supplied) 12V rechargeable lead-acid, gel-type battery.

  • Page 13: Compatible Equipment

    ScanProx Proximity Module (with two tags) Proxtagpk5 Pack of five proximity tags 9928EUR-00 Keyswitch Interface (the keyswitch interface is no longer available for purchase, but is supported in existing installations) 9930EUR-50 9930 LCD Keypad (ScanProx-compatible) 9940EUR-50 9940 LCD Keypad 497283 Issue 1 Page 9...

  • Page 14: Control Unit Pcb Layout

    2. Technical Description 9651 Control Unit PCB Layout Figure 3 shows the layout of the PCB used in the control unit. 1. Outputs (3 open collector outputs) 6. NVM Reset pins 2. AUX power 7. Plug-by (standalone) communicator connector 3. Lid tamper switch 8.

  • Page 15: Installation

    3. INSTALLATION Caution: Always remove mains power before opening the case lid. Do not work inside the control unit with mains power present. Overview A typical installation comprises the following main steps: Survey the site and decide on positions for wired detectors, control unit, keypads, external and internal sounders.

  • Page 16: Cabling For Keypads

    9651 Cabling for Keypads Cooper Security recommends that you use 8-core 7/0.2 or 16/0.2 alarm cable for wiring keypads. You can connect the keypads in either a star or bus configuration. If you intend to use long cable runs, Cooper Security recommends that you use star wiring with no more than 200m of cable per branch.

  • Page 17: Fitting The System

    9651 3. Installation Fitting the System Fitting the Control Unit Case Remove the control unit case from its packaging. Remove the front screws and slide off the case lid. The upper part of the case back has a central keyway. Mark and drill a hole for the keyway.

  • Page 18: Fitting A 9930 Keypad

    9651 Fitting a 9930 Keypad The backplate of the 9930 keypad (see Figure 5) contains an adjustable cam that you can use to make sure the tamper switch will operate correctly when the keypad is mounted on an uneven surface.

  • Page 19: Fitting The Scanprox 934 Module

    9651 3. Installation Fitting the ScanProx 934 Module Note: If fitting a 934 module to an existing installation, put the alarm system into programming mode and then remove all power, both mains and battery. If you do not remove all power, the system will not recognise the 934 module.

  • Page 20: Wiring The Control Unit

    3. Installation 9651 Wiring the Control Unit Cable Entries The control unit case back provides several cable entries. It is designed to stand away from the wall to leave space for the cables. Mains Connection Connect the control unit to a suitable supply using a double pole disconnect device in accordance with EN60950-1:2001 Clause 3.4.3.

  • Page 21: Keypads

    9651 3. Installation Keypads Connecting Keypads Figure 10 shows the connections for keypads. Use the "ET" connector terminals on the keypad PCB to connect an exit terminate button or lock switch. If you are using a lock switch, do not connect any other devices to these terminals.

  • Page 22: Connecting Sounders

    3. Installation 9651 Keypad Addressing The control unit is supplied with one keypad. If you have fitted more keypads, each one must be given a separate "address". Links LK2 to LK4 set the keypad address, as shown in Figure 12. Keypad 1 Keypad 2 Address...
  • Page 23 9651 3. Installation Lyntech Ltd - 120 LED/120 lexon Control Panel 12V AUX Terminals Bell-Box STRB HOLD + Terminals Elmdene Rapier 300, 4000, 5000, 6000; Prima 100-600; Starlight 020 Control Panel 12V AUX Terminals Bell-Box Terminals CQR Security - Sigma, Cequera, Plus and Ultima Control Panel 12V AUX Terminals...

  • Page 24: Connecting Detector Circuits To The Main Pcb

    3. Installation 9651 Connecting Detector Circuits to the Main PCB The connectors for the detector circuits, or zones, are on the left-hand edge of the main PCB in the control unit. The table below summarises the number and type of zones that can connect to the main PCB of the control unit. Use Command 21 to specify which of these wiring types you are using.

  • Page 25: Figure 15. Fsl Connections

    9651 3. Installation The wiring resistance of the cable to the detector (including joints) should not exceed 100 ohms. The recommended maximum cable length within a zone is 200–300m. Alarm contacts Zone 1 2K2 EOL Tamper contacts Zone 2 Alarm contacts 2K2 EOL Tamper contacts Figure 15.

  • Page 26: Programming Outputs

    3. Installation 9651 Programming Outputs Control unit panel outputs can be programmed using the commands shown in the table below. Open collector outputs are of a "pull down" type that provides negative-applied control signals; the system adjusts the output polarity when you select the output type.

  • Page 27: Wiring Keyswitches

    9651 3. Installation Wiring Keyswitches To allow a user to set and unset the system using a keyswitch, connect a fixed position or spring loaded (momentary) key switch to a zone input. Note that a key switch cannot reset the system. When programming the control unit select zone type (KM) for momentary or (KF) for fixed position keyswitches.
  • Page 28 3. Installation 9651 The 9928 can be connected to either a momentary or a latched keyswitch (see Figure 19). When using a momentary keyswitch, remove the jumper from link M/C. When using a latched keyswitch, fit a jumper to link M/C. Note: If you connect a keyswitch through a keyswitch interface, it can be used to set and unset the whole system or Level B only.

  • Page 29: Communicator

    9651 3. Installation Communicator The 9651 can be fitted with a communicator or speech dialler, for example the Scantronic 660, 8400, and 8440 digital communicators or the SD1 or SD2 Speech diallers. To connect an SD1 or SD2 follow the instructions provided with those products.

  • Page 30: Figure 21. Fitting A Plug-By Communicator

    3. Installation 9651 Figure 21. Fitting a Plug-by Communicator Make any necessary connections from the communicator to the communication wiring harness. The default is a positive voltage when the output is inactive but this can be inverted if required using Command 159.

  • Page 31: Fitting A Battery

    9651 3. Installation If the system has already been installed: Re-connect the battery. Fit the case lid. Apply mains power. Test communicator operation. Fitting a Battery Fit a rechargeable battery into the back of the case. There is space in the case for a 12V 7Ah battery;...

  • Page 33: Programming

    4. PROGRAMMING Introduction This chapter is divided into four sections: 1. Introduction provides an overview of how to program a 9651 control unit. 2. Programming Commands lists and describes the commands available to program aspects of a 9651 control unit's operation. 3.

  • Page 34: Entering Installer Mode

    Programming 9651 2. Duress mode provides the same access as user mode but also secretly communicates the duress status. There is only one user code of this type. Entering Installer Mode Chapter 3 describes how to enter installer mode for the first time in a new installation.

  • Page 35: Restoring Default Access Codes (First Stage Reset)

    9651 Programming The display shows: 99:Checking Sys followed by the time and date. The system is now in user mode. Note: If any 24-hour, Fire, PA or Technical zones are active when you enter Command 99, the keypad gives an error tone and displays the faults. Correct the problems identified.

  • Page 36: Restoring Default Command Settings

    You can use any industry-standard ISO tag or card with the 934 module. To purchase tags from Cooper Security, quote part number Proxtagpk5. A tag acts as an alternative to a user access code. You can assign a user a tag, an access code, or both.
  • Page 37 9651 Programming To Add a Tag Key in User 01 access code while the system is unset. The display shows: Select? Press 4 to select the change codes option. The display shows: Old Code= Enter the access code of the user for whom you want to program a tag and press y.

  • Page 38: Programming Commands

    Programming - Programming Commands 9651 Programming Commands 0: Country PTT Defaults Use this command to select the country and PTT defaults; it also loads default access codes and programming options. Use Command 126 to select language without making other changes. Note: If you select options 6 or 7 (Finland, Norway, Sweden or...

  • Page 39: Zone Types

    9651 Programming - Programming Commands P Q R S A B C Æ Å Ä T U V D E F W X Y Z G H I Space ' ( ) : . - ! & J K L Move right M N O Ø...
  • Page 40 Programming - Programming Commands 9651 Value Type Description Technical Use this zone type when you want to monitor equipment, for Alarm (TC) example a freezer, without raising a full alarm. If a Technical Alarm zone is activated while the system is set, the system makes no audible alarm.

  • Page 41: Zone Attributes

    9651 Programming - Programming Commands Value Type Description Forbikobler This zone type is a Scandinavian type of Entry/Exit zone (the (FB) word "forbikobler" means "bypass" in Danish). Use this type for zones connected to standalone external keypads or access controllers. If the zone is triggered by the external keypad during the exit time, the control unit stops the exit time and sets the system.
  • Page 42 Programming - Programming Commands 9651 Value Attribute Valid for Description Soak Test (S) Normal Alarm Use this zone attribute if you want to place on (NA) long-term test a detector that you suspect is giving false alarms. Zones with this attribute Entry Route are disabled for 14 days after you return the (ER)
  • Page 43 9651 Programming - Programming Commands Value Attribute Valid for Description Armed in When applied, the zone is armed when the Level A user selects Level A. Armed in When applied, the zone is armed when the Level B user selects Level B. Armed in When applied, the zone is armed when the Level C...
  • Page 44 Programming - Programming Commands 9651 23: Remote Reset Enable Option 1 enables Remote Reset, which is designed to operate with the plug- by communicator. After an alarm, the user keys in an access code to silence the alarm but cannot reset the system. The first alarm message to display and the Service lamp remain visible.
  • Page 45 9651 Programming - Programming Commands Option Internal (default). System operates the internal sounders only. Local. System operates both internal and external sounders. Note: Compliance with PD 6662 / prEN 50131-1: 2004 (see page 78) prohibits an alarm after a failure to set the system, which would require Command 27 to be set to option 0.
  • Page 46 Programming - Programming Commands 9651 29: Entry Alarm Delay Time This command determines what the system does if a user strays from an Entry Route zone during entry. If you select option 0 (the default), the system gives an immediate alarm when the user strays from an Entry Route zone during entry.
  • Page 47 9651 Programming - Programming Commands 33: System User/Engineer Reset To require an engineer reset, select option 1. To permit a user reset, select option 0 (the default). Certain types of events always need an engineer reset, irrespective of the option that you choose here: °...
  • Page 48 Programming - Programming Commands 9651 37: Daytime Tamper Communication This command defines how the control unit reports tamper indications (for example, an attempt to open a control unit or keypad case) while the alarm system is unset. Option Internal sounder only (default). Internal sounder and communication of tamper indication to the Alarm Receiving Centre (ARC).
  • Page 49 9651 Programming - Programming Commands 39: Level A Exit Mode Use this command to select the exit mode for Full Set. The keypads give a double "beep" confirmation tone at the end of all setting modes, including Silent Set. The default is option 0, Timed. Option Timed.
  • Page 50 Programming - Programming Commands 9651 If an intruder opens the Final Exit door without first unlocking the lock switch, the control unit immediately starts an unconfirmed alarm. If the intruder goes on to violate another zone and Alarm Confirmation is enabled, the control unit sends a confirmed alarm.
  • Page 51 9651 Programming - Programming Commands 42: Bell Duration When an alarm occurs (for example, an intruder violates a zone), the system waits for the Bell Delay before operating the external sounder for the Bell Duration. This command sets the Bell Duration. Note: Compliance with PD 6662 / prEN 50131-1: 2004 (see page 78) requires that the Bell Duration does not exceed 15 minutes.
  • Page 52 Programming - Programming Commands 9651 46: Tamper Alarm Response his command specifies which sounders the control unit will activate for a Tamper Alarm while the system is unset. Option Internal sounders only (default) Keypad sounders only Internal and keypad sounders 48: Lockout Keypads During Entry This command enables you to lock keypads during entry when proximity tag readers or remote setting devices are being used to unset the system.
  • Page 53 9651 Programming - Programming Commands 50: CSID Code To enable the user to use the "Remote Reset" facility (enabled with Command 23), you must program the control unit as "Engineer Reset" (Command 33 option 1) and install a four-digit Central Station Identification (CSID) code: Contact the Alarm Receiving Centre (ARC) and obtain the CSID code.
  • Page 54 Programming - Programming Commands 9651 53: Abort User/Engineer Reset This command specifies how the system is reset after an aborted alarm. Option Use the reset option selected for the system with Command 33 (default). Permit the user to reset after an abort. 56: Number of Digits in Access Codes The control unit can use either four-digit or six-digit access codes.
  • Page 55 9651 Programming - Programming Commands 60: Level B Final Exit Operation In a single system, this command specifies how the system treats Final Exit zones during part set B. If you select option 0 (the default), Final Exit zones included in Level B continue to act as Final Exit zones during part set B. If you select option 1, these zones act as Normal Alarm zones during part set B.
  • Page 56 Programming - Programming Commands 9651 63: Level B Alarm Response This command sets the alarm response for Level B. Option Keypad sounders only. Internal sounders and keypad sounders (default). Local alarm (internal and external sounder only). Full alarm (communication and internal/external sounders). 65: Level B Exit Time This command sets the Exit Time for Level B.
  • Page 57 9651 Programming - Programming Commands 69: Forbikobler Door Locking This command specifies whether the door controlled by the Forbikobler system is normally unlocked while the system is reset or opened only for a controlled time. Even if the door is normally unlocked, it can be locked with a user command if required.
  • Page 58 Programming - Programming Commands 9651 Local alarm (internal and external sounder only). Full alarm (communication and internal/external sounders). 75: Level C Exit Time This command sets the Exit Time for Level C. Option 10 seconds 20 seconds (default) 30 seconds 45 seconds 60 seconds 120 seconds...
  • Page 59 Note: You cannot change the operation of Final Exit and Entry Route zones assigned to Level D as you can with Levels B and C (see Commands 60, 61, 70 and 71). For this reason, Cooper Security recommends that you use Level D for simple applications only.
  • Page 60 Programming - Programming Commands 9651 Armed Lamp: active continuously while the system is full or part set. Set Latch: active when the system is set and inactive when the system is unset or an alarm condition occurs. It is active for one second when a reset is performed or the control unit leaves installer mode.
  • Page 61 9651 Programming - Programming Commands Pulse Set 3: active for time set by Command 170. Pulse Set 4: active for time set by Command 170. Pulse Unset 1: active for time set by Command 172. Pulse Unset 2: active for time set by Command 172. Pulse Unset 3: active for time set by Command 172.
  • Page 62 Programming - Programming Commands 9651 Press A and B to scroll up and down through the types (PA, FI and MD). Notes: Selecting option 1 also enables any PAs connected to 9928 keyswitch interfaces or to 9940 keypads. Compliance with DD243: 2004, which relates to the ACPO Security Systems Policy 2004, requires that dual key PA is disabled (option 0).
  • Page 63 9651 Programming - Programming Commands 99: Leave Installer Mode This command returns to user mode (for more information, see page 30). 106: Line Fault Response This command sets how the control unit responds when it detects a fault on an attached plug by communicator. The response depends on whether the system is set or unset.
  • Page 64 Note: Compliance with PD 6662 / prEN 50131-1: 2004 (see page 78) requires that Command 134 is set to 1 or 2 (Cooper Security recommends 1). 135: Line Fault User/Installer Reset Use this command to determine how Line Fault alerts are reset.
  • Page 65 9651 Programming - Programming Commands 137: AC Fail Override Use this command to determine how AC Fail alerts can be overridden. Option Never. The user cannot override AC Fail alerts when setting the system and must first reset them. Command 134 determines how the alert can be reset.
  • Page 66 Programming - Programming Commands 9651 139: Fault User/Installer Reset Use this command to determine how alerts can be reset for all faults that do not have an individual reset command. Option User Reset (default). Fault alerts can be reset by the user or installer. Installer Reset.
  • Page 67 9651 Programming - Programming Commands 02 PA 03 Burglar 04 Open/Close 15 Zone Omitted 05 Alarm Abort 07 Alarm Confirmation 06 Technical Alarm Option Not Used Smoke Detector Fire Comms Acknowledge (Note 1) DD243 kit only. Battery Fault Burglar System Alarm Open/Close Not used Alarm Abort...
  • Page 68 Programming - Programming Commands 9651 The plug-by outputs can be tested using Command 92 (page 75). 159: Invert Plug-by Outputs By default, plug-by outputs have a positive voltage when inactive and this is removed when the output is active. This command inverts that logic so that a positive voltage is applied when the output is active.
  • Page 69 9651 Programming - Programming Commands 162: External Sounder on Confirmed or Unconfirmed Alarm (DD243 kit only) Note: Set Alarm Confirmation (Command 89) to 1 or 2 to access this command. This command selects whether the control unit will operate the external sounder for a confirmed alarm or for an unconfirmed alarm.
  • Page 70 Programming - Programming Commands 9651 163: Confirmed Alarm during Entry (DD243 kit only) Note: Set Alarm Confirmation (Command 89) to 1 or 2 to access this command. This commands controls how the system treats alarms that arise during entry. The options select the number of non-Entry Route zones that must be triggered to provide a confirmed alarm after the entry time.
  • Page 71 9651 Programming - Programming Commands 164: User/Engineer Reset after Confirmed Alarm (DD243 kit only) Note: Set Alarm Confirmation (Command 89) to 1 or 2 and Enable Engineer Reset (Command 33) to access this command. Use this command to select who can reset the system after a confirmed alarm.
  • Page 72 Programming - Programming Commands 9651 Notes: Generating a pulse on an output depends both on a set or unset pulse being defined for the output and on the output being associated with a level that is being armed or disarmed. Commands 174 (Fire) and 175 (PA) activate only the Pulse Unset outputs configured with Command 172.
  • Page 73 9651 Programming - Programming Commands 185: Keyswitch Auto Reset This command instructs the control unit to reset automatically if the user uses the keyswitch to set the system on leaving. Option Off (default). User must reset manually. On. System resets automatically when the user sets it with a keyswitch (KM or KF).
  • Page 74 Programming - Programming Commands 9651 Each entry timer can be assigned to any zone of types FE (Final Exit), ER (Entry Route) and FB (Forbikobler), using the zone programming commands 01 to 08 (see page 34). Set zone attribute X7 to a value between one and four to select the required entry timer.
  • Page 75 9651 Programming - Programming Commands The same principle applies equally well in any other situation where there are multiple entrances with entry routes of different lengths. Managing entry timers in this way enables you to assign the most appropriate of four intervals to each entrance, without being restricted by the way in which you have set up your levels.

  • Page 76: Testing Commands

    Programming - Testing Commands 9651 Testing Commands 90: Reading the Event Log The control unit keeps a log of recent events. The log can contain up to 700 events. Each event is described by a short text message. To review the event log, make sure the system is in installer mode and then: Key in 90y.
  • Page 77 9651 Programming - Testing Commands Keypad Display Meaning AUX DC Fail Auxiliary power failed AUX DC Fail Rstr Auxiliary power restored Bad Checksum Control unit memory corrupted Batt Flt Rstr Battery reconnected Batt Load Fail Battery failed load test Batt Missing Battery disconnected Bell Tamper Sounder tampered with...
  • Page 78 Programming - Testing Commands 9651 Keypad Display Meaning Md K== Alarm Medical alarm started at keypad == Override # Fault overridden in level # PA K== Alarm Panic alarm started at keypad == PA Z== Alarm Panic alarm started in zone == PA Z== Rstr Panic alarm reset in zone == Set Fail Z==...

  • Page 79: 91 To 96: Testing Outputs

    9651 Programming - Testing Commands Keypad Display Meaning XT Fault Zone == Zone of type ‘Fault’ active XT PwrFl Rst Z== Power output fault reset in zone == XT PwrFl Z== Power output fault in zone == Note: The log is protected and cannot be erased by the Installer or a user. 91 to 96: Testing Outputs You may test parts of the system by entering commands at the keypad.

  • Page 80: 199: Display Zone Circuit Resistance

    Programming - Testing Commands 9651 199: Display Zone Circuit Resistance This command lets you step through the zones connected to the control unit, viewing the resistance of the circuit connected to each. Press 1 (down) and 3 (up) keys to step through the list of zones. The display shows the resistance of the circuit in ohms, or O/C for open circuit.

  • Page 81: System Configurations (Dd243 Kit Only)

    "Confirmation technology (BS DD243 applies) is desirable for newly installed systems but is not mandatory in terms of this policy." Cooper Security therefore recommends that systems in Scotland are installed to comply with DD243: 2004, and Installers obtain copies of the ACPOS policy from their local Police Authority.

  • Page 82: Pd 6662 / Pren 50131-1: 2004 Compliance

    Programming - System Configurations 9651 Command Name Value Page Notes Th4.08g0.5586 0 Tr2024 Tc2.809 Tw[( 66)8.0244T4 r4.2(o[( 64(l2.809 Tu Page 78 497283 Issue 1...
  • Page 83 9651 Programming - System Configurations Grade 2X The 9651 control unit can be configured to comply with this grade. Grade 2 The 9651 with DD243 option control units can be configured to comply with this grade. Grade 3 9651 control units are not designed to comply with this grade. Grade 4 9651 control units are not designed to comply with this grade.

  • Page 84: Programming Commands Quick Reference

    9651 Programming Commands Quick Reference Command Key in: Command Key in: Country PTT Defaults (page 34) Zone attributes, any of: X1 = C (Chime) Country: X2 = S (14-day Soak Test) 0 = UK X3 = D (Double Knock) 1 = Italy (I) X4 = O (Omit Allowed) 2 = Spain (EE) 3 = Portugal (P)
  • Page 85 9651 Programming Commands Quick Reference Command Key in: Command Key in: Exit Fault External Sounder Bell Duration (page 47) 27yny 42yny (page 40) 1 1.5 minutes 0 Internal 2 3 minutes 1 Local 3 5 minutes Status Display (page 41) 28yny 4 10 minutes 0 Status Continuous (always visible)
  • Page 86 Programming Commands Quick Reference 9651 Command Key in: Level B Entry Route Operation 61yny (page 51) 0 B=ER = ER (Entry Route) 1 B=ER = FE (Start entry timer) Page 82 497283 Issue 1...
  • Page 87 9651 Programming Commands Quick Reference Command Key in: Output 1 Type (page 55) 81ynny nn = Where n is one of: 00 Bell 01 EE Follow 02 Armed Lamp 03 Set Latch 04 Shock Sensor Reset 05 Walk Test 06 Ready Lamp 07 24-hour Alarm 08 Strobe 09 Smoke Sensor Reset...
  • Page 88 Programming Commands Quick Reference 9651 Command Key in: Command Key in: AC Fail Override (page 61) Plug-by Communications Output 2 137yny 152ynny (page 62) 0 Never See Command 151 for a list of options. 1 Inactive Default is 02 PA 2 Any Plug-by Communications Output 3 153ynny...
  • Page 89 9651 Programming Commands Quick Reference Command Key in: Command Key in: Pulse Set 1 to 4 Duration (page 67) Keyswitch Auto Reset (page 69) 170y 185yny nnynny 0 Off nnynny 1 On nn = 00 to 12 seconds 01 seconds Display Zone Circuit Resistance 199y Pulse Set Allocation (page 67)
  • Page 90 9651 (This page is intentionally blank.) Page 86 497283 Issue 1...

  • Page 91: Index

    9651 Index 24-hour Alarm ...............56 fitting the case ............13 Abort PCB layout...............10 Alarm ...............43 power requirements ..........7 reset after an Abort Alarm........50 CSID......see Central Station Identification AC Fail Override ............61 Date, setting ..............49 AC Fail Reset..............60 Daytime tamper reporting ..........44 Access code..........
  • Page 92 Index 9651 Fire alarm line fault input............8 programming outputs..........57 response to faults on line........59 First circuit lockout ............43 Line Fault Override............61 Forbikobler Line Fault Reset ............60 approved operation..........52 Load bell push operation ..........55 default values for all commands......
  • Page 93 9651 Index Unset 4 ..............57 Strobe output type ...........56 Ready Lamp..............56 Strobe Set A output type .........56 RedCare..........see Remote reset System Remote automatic rearm ............46 reset.................40 reset.................43 setting device ............48 tamper reset ............44 Reset Tamper AC Fail..............60 alarm response............48 after abort ..............50 day tamper reset .............50 Anti-Mask ..............60 external sounder connection........50...
  • Page 94 Cooper Security Ltd. Security House Vantage Point Business Village Mitcheldean Gloucestershire GL17 0SZ www.scantronic.co.uk Product Support (UK) Tel: +44 (0)870 7575400 Available between: 08:15 and 17:00 Monday to Friday. Product Support Fax: +44 (0)1594 545401 Part Number 497283 Issue 1...
