USER'S MANUAL
Of
Intel H61 Express Chipset
Based
M/B for Intel Core Processor Family
No. G03-NMF92-F
Rev: 1.0
Release date: February 6, 2012
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
Advertisement
Table of Contents
Related Manuals for Intel H61
Summary of Contents for Intel H61
- Page 1 USER'S MANUAL Intel H61 Express Chipset Based M/B for Intel Core Processor Family No. G03-NMF92-F Rev: 1.0 Release date: February 6, 2012 Trademark: * Specifications and Information contained in this documentation are furnished for information use only, and are subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
-
Page 2: Table Of Contents
TABLE OF CONTENT ENVIRONMENTAL SAFETY INSTRUCTION................iii ENVIRONMENTAL PROTECTION ANNOUCEMENT.............. iii USER’S NOTICE ........................iv MANUAL REVISION INFORMATION ..................iv ITEM CHECKLIST ........................iv CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD SPECIFICATION ......................1 LAYOUT DIAGRAM....................2 CHAPTER 2 HARDWARE INSTALLATION JUMPER SETTING ..................... -
Page 3: Environmental Safety Instruction
Environmental Safety Instruction Avoid the dusty, humidity and temperature extremes. Do not place the product in any area where it may become wet. 0 to 40 centigrade is the suitable temperature. (The figure comes from the request of the main chipset) Generally speaking, dramatic changes in temperature may lead to contact malfunction and crackles due to constant thermal expansion and contraction from the welding spots’... -
Page 4: User's Notice
USER’S NOTICE COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE MANUFACTURER. -
Page 5: Specification
Chipset Support Intel® Core™ i7 Processor, Intel® Core™ i5 CPU Socket Processor, Intel® Core™ i3 Processor in the LGA 1155 Socket (LGA1155 ) * for detailed CPU support information please visit our website 240-pin DDRIII RAM module slot x 2 supporting two DDRIII... -
Page 6: Layout Diagram
LAN Chip SYSFAN1 Header Over USB 2.0 Ports Mini-PCIE Audio Speaker Header /MSATA Slot* PCI E x16 Slot (MPE SA Slot) Connector Intel H61Chipset PCIE x1 Slot SM_BUS Header TPM Header GPIO Header 32-bit PCI Slot PWRLED SATAII Ports Header... - Page 7 Motherboard Jumper Position CASE_OPEN JBAT Jumper Jumper Name Description JBAT CMOS RAM Clear Function Setting 3-pin Block COM1 Pin9 Function Select 6-pin Block Mini PCI-E Power VCC3.3V/3.3V SB 3-pin Block COM3 RS232/485/422 Function Select 6-pin Block COM7 Pin9 Function Select 6-pin Block COM8 Pin9 Function Select 6-pin Block...
- Page 8 Connectors Connector Name Description ATXPWR ATX Power Connector 24-pin Block ATX12V ATX 12V Power Connector 8-pin Block SATA1/SATA2/ SATAII Connectors 7-pin Connector SATA3/SATA4 HDMI High-Definition Multimedia Interface 19-pin Connector COM1 Serial Port COM Connector x 2 9-pin Connector DVI-D Port Connector 24-pin Connector Video Graphic Attach Connector 15-pin Female...
-
Page 9: Chapter 2 Hardware Installation
Chapter 2 Hardware Installation 2-1 Jumper Setting (1) JBAT (3-pin): Clear CMOS JBAT JBAT 1-2 Closed: Normal; 2-3 Closed: Clear CMOS CMOS RAM Clear Setting (2)JP1 (6-pin): COM1 Pin9 function select 1-2 closed: RS232; 3-4 closed : +12V; 5-6 closed : +5V (3) JP2 (3-pin): Mini PCI-E Power VCC 3V/ 3 VSB Function Select 1-2 Closed: MINI PCI-E VCC= 3V Select；... - Page 10 (4) JP3 (6-pin): COM3 Port RS232/485/422 Function Select 3-4 closed : RS485; 1-2 closed: RS232; 5-6 closed : RS422 (5) JP5 (6-pin): COM7 Pin9 function select 1-2 closed: RS232; 3-4 closed : +12V; 5-6 closed : +5V (6) JP6 (6-pin): COM8 Pin9 function select 1-2 closed: RS232;...
- Page 11 (7) JP7 (6-pin): COM9 Pin9 function select 1-2 closed: RS232; 3-4 closed : +12V; 5-6 closed : +5V (8) JP8 (6-pin): COM10 Pin9 function select 1-2 closed: RS232; 3-4 closed : +12V; 5-6 closed : +5V (9)CASE_OPEN (2-pin): Case Open Message Display function select COPEN 1-2 Open：...
-
Page 12: Connectors And Headers
Connectors and Headers 2-2-1 Rear I/O Back Panel Connectors RJ-45 LAN Ports USB Ports DVI-D Port Serial Port Line-IN Line-OUT MIC-IN HDMI Port VGA Port Serial Port USB Ports (1) High-Definition Multimedia Interface: HDMI1 This point-to-point interface is for audio and video signals designed as a single-cable solution for home theater and consumer electronics equipment. -
Page 13: Motherboard Internal Connectors
2-2-2 Motherboard Internal Connectors Power Connector (24-pin block): ATXPWR ATX Power Supply connector: This is a new defined 24-pins connector that usually comes with ATX case. The ATX Power Supply allows using soft power on momentary switch that connect from the front panel switch to 2-pins Power On jumper pole on the motherboard. - Page 14 (2) ATX 12V Power Connector (8-pin block) : ATX12V This is a new defined 8-pin connector that usually comes with ATX Power Supply. The ATX Power Supply which fully supports AMD AM3 processor must including this connector for support extra 12V voltage to maintain system power consumption.
-
Page 15: Header Pin Definition
2-2-3 Header Pin Definition (1) FP_AUDIO (9-pin): Line-Out/MIC Header for Front Panel This header is connected to Front Panel Line-out, MIC connector with cable. FP_AUDIO Pin 1 Line-Out, MIC Headers (2) COM2/3/4/5/6/7/8/9/10 (9-Pin): Serial Port Headers Pin6 Pin1 Pin5 COM Port 9-pin Block (3) TX-RXCOM (4-pin): RS232/422/485 Header Pin 1 TX-RXCOM Header... - Page 16 (4) SPEAK (4-pin): Speaker Header This 4-pin header connects to the case-mounted speaker. See the figure below. (5) PWR LED (3-pin): Power LED Header The Power LED header is light on while the system power is on. Connect the Power LED header from the system case to this pin. SPEAK PIN1 PWRLED...
- Page 17 (8) USB3 (9-pin): USB Port Header Pin 1 USB3 Header (9) KBMS (6-pin): PS/2 Keyboard & Mouse Header Pin1 (10) JW-FP (9-pin): Front Panel Header Pin 1 PWRLED+ HDLED+ PWRLED- HDLED- PWRBTN RSTSW...
- Page 18 (11) SYSFAN1 (3-pin), SYSFAN2 (4-pin), CPUFAN1 (4-pin): FAN Headers Pin1 Pin1 SYSFAN2 CPUFAN Pin1 SYSFAN1 +12V Fan Power Fan Clock FAN Headers (12) LAN1LED/LAN2LED (2-pin): LANLED Pin1 LANLED Header (13) HDMI_SPDIF (2-pin): HDMI-SPDIF Out header Pin1 HDMI_SPDIF Header...
- Page 19 (14)SM_BUS (2-pin): SM BUS header Pin 1 SM_BUS Header (15) GPIO Header (10-pin): GPIO_CON Pin 1 GPIO_CON Header (16) TPM (19-pin): TPM Header Pin 1 TPM Header...
- Page 20 (17) PARALLEL (25-pin): Parallel Port Header Pin2 Pin 1 Parallel Port Header Pin NO. Pin Definition Pin NO. Pin Definition STB- AFD- Pin 1 Pin 2 ERR- Pin 3 Pin 4 INIT- Pin 5 Pin 6 SLIN- Pin 7 Pin 8 Pin 9 Pin 10 Pin 11...
-
Page 21: Chapter 3 Introducing Bios
Chapter 3 Introducing BIOS Notice! The BIOS options in this manual are for reference only. Different configurations may lead to difference in BIOS screen and BIOS screens in manuals are usually the first BIOS version when the board is released and may be different from your purchased motherboard. Users are welcome to download the latest BIOS version form our official website. -
Page 22: Function Keys
Menu Bar General Help Items Current Setting Value Menu Items Function Keys BIOS Menu Screen Function Key In the above BIOS Setup main menu of, you can see several options. We will explain these options step by step in the following pages of this chapter, but let us first see a short description of the function keys you may use here: Press←→... -
Page 23: Main Bar
Status Page Setup Menu/Option Page Setup Menu Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window, press <Esc>. 3-5 Menu Bar There are six menu bars on top of BIOS screen: Main To change system basic configuration... -
Page 24: Advanced Menu
3-7 Advanced Menu Launch OpROM Support: Launch External PXE OpROM/Launch LAN1 PXE OpROM /Launch LAN2 PXE OpROM Use this item to enable or disable boot option for legacy network devices. Launch Storage OpROM Use this item to enable or disable boot option for legacy mass storage devices with option ROM. - Page 25 No Snoop Use this item to enable or disable PCI Express device No Snoop option. Maximum Payload Use this item to set maximum payload of PCI Express device or allow system BIOS to select the value. Maximum Read Request Use this item to set maximum read request size of PCI Express device or allow system BIOS to select the value.
- Page 26 LTR Mechanism Enable The optional settings are: [Disabled]; [Enabled]. End-End TLP Prefix Blocking The optional settings are: [Disabled]; [Enabled]. PCI Express GEN2 Link Register Settings Target Link Speed The optional settings are: [Auto]; [Force to 2.5GT/s]. Selectable De-emphasis The optional settings are: [-3.5 dB]; [-6.0dB]. Clock Power Management The optional settings are: [Disabled];...
- Page 27 The optional settings are: [Disabled]; [Enhanced]; [Compatible]. Serial-ATA Controller 1 The optional settings are: [Disabled]; [Enhanced]. ► Intel IGD SWSCI OpRegion IGD-Boot Type Use this item to select the video device which will be activated during POST. This has no effect if external graphics present.
- Page 28 The optional settings are: [Disabled]; [Enabled]. USB Transfer time-out Use this item to set the time-out value for control, bulk, and interrupt transfers. Device reset time-out Use this item to set USB mass storage device start unit command time-out. Device power-up delay Use this item to set maximum time the device will take before it properly reports itself to the host controller.
- Page 29 Press [Enter] to view hardware health status. ► Second Super I/O Configuration ► COM3 Port Configuration Press [Enter] to make settings for the following items: Serial Port Use this item to enable or disable serial port (COM). Change Settings Use this item to select an optimal setting for super IO device. Serial Port Mode Select The optional settings are: [RS232];...
- Page 30 Serial Port Use this item to enable or disable serial port (COM). Change Settings Use this item to select an optimal setting for super IO device. ► COM9 Port Configuration Press [Enter] to make settings for the following items: Serial Port Use this item to enable or disable serial port (COM).
-
Page 31: Chipset Menu
CPUFAN / SYSFAN1/SYSFAN2 Idle Temp Use this item to set a degree for CPU/System fan1/ System fan2. FAN will idle speed when below this temperature. CPUFAN / SYSFAN1/SYSFAN2 Stop Temp Use this item to set a degree for CPU/System fan1/ System fan2. CPU FAN will stop when below this temperature. - Page 32 PEG Force Gen1 Use this item to enable or disable PCI Express port Force Gen1. Detect Mon-Compliance Device Use this item to enable or disable Non-Compliance PCI Express device in PEG. ► South Bridge SB Chipset Configuration Onboard Lan1 Device/ Onboard Lan2 Device Use this item to enable or disable the PCI Express port in the chipset.
-
Page 33: Boot Menu
3-9 Boot Menu Boot Configuration Setup Prompt Timeout Use this item to set number of seconds to wait for setup activation key. Bootup Numlock State Use this item to select keyboard numlock state. The optional settings are: [On]; [Off]. Quiet Boot The optional settings are: [Enabled];... -
Page 34: Security Menu
3-10 Security Menu Security menu allow users to change administrator password and user password settings. 3-11 Save & Exit Menu... - Page 35 Save Changes and Reset This item allows user to reset the system after saving the changes. Discard changes and Reset This item allows user to reset the system without saving any changes. Restore Defaults Use this item to restore /Load default values for all the setup options. Save as User Defaults Use this item to save the changes done so far as user defaults.
Need help?
Do you have a question about the H61 and is the answer not in the manual?
Questions and answers

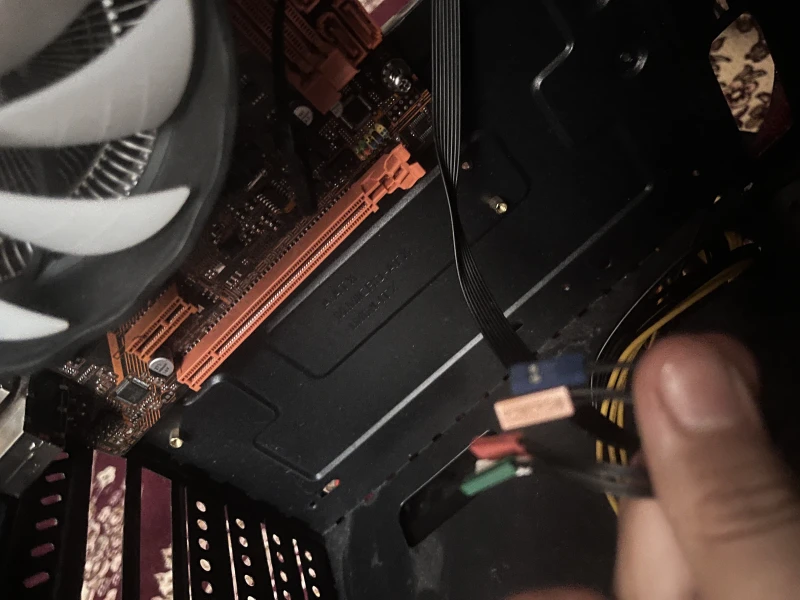

Hi guys I don't know where to put them and I've been tired since morning trying to mount them and I couldn't
