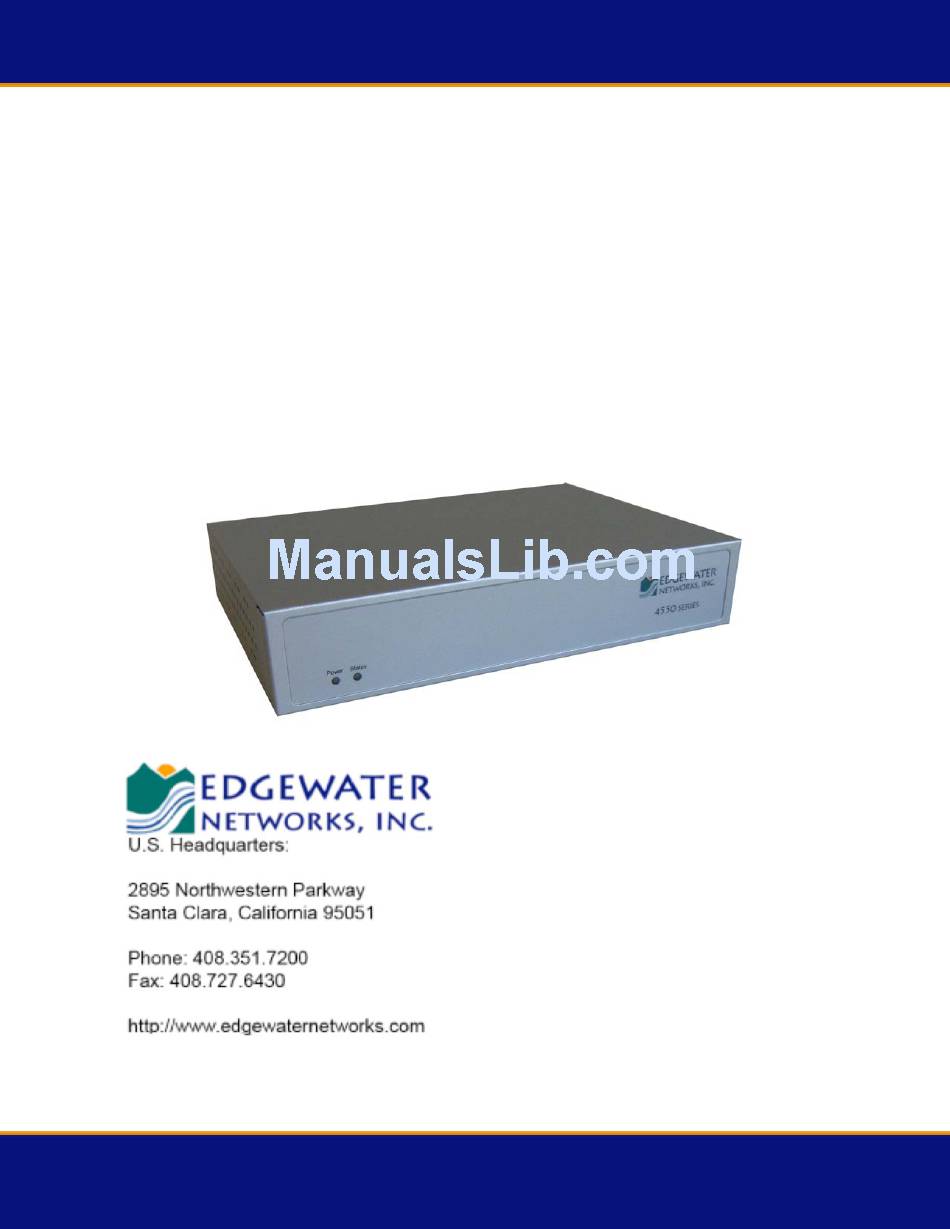

- Page 1 EdgeMarc 4550 Networking Gateway Hardware Installation Guide Version 1.0 EWN009-01-B001...
- Page 2 EdgeMarc is a trademark of Edgewater Networks, Inc. in the United States and other countries. Any other trademarks appearing in this manual are owned by their respective companies.
-
Page 3: Table Of Contents
Contents Preface......................1 Typographic Conventions ..............1 Contact and Support Information ............2 Overview ......................3 Front Panel LEDs ................3 Back Panel ..................4 Getting Started ....................6 Physical Installation................6 Required Tools and Materials ..........6 Desktop Installation ..............7 Wall-Mount Installation ............. -
Page 4: Preface
Preface Thank you for purchasing the 4550 EdgeMarc . This Installation Guide describes the 4550 and hardware installation procedures. It is intended for network installers, network operators, and security officers. About this Guide The following table briefly describes each chapter and appendix in this guide. Chapter or Appendix Description Chapter 1, Overview... -
Page 5: Contact And Support Information
EdgeMarc 4550 Networking Gateway Installation Guide Contact and Support Information Edgewater Networks, Inc. 2895 Northwestern Parkway Santa Clara, CA 95051 http://www.edgewaternetworks.com Phone: +1 (408) 351-7200 General Email: info@edgewaternetworks.com Sales Email: sales@edgewaternetworks.com Edgewater Networks, Inc. - Technical Assistance Center Phone: +1 (408) 351-7200 ext. 2 Support Email: support@edgewaternetworks.com... -
Page 6: Overview
Overview The 4550 is an intelligent, networking solution for enterprises and service providers. The following sections provide more details about the features of the 4550: • Front Panel LEDs • Back Panel Front Panel LEDs Figure 1: 4550 Front Panel LEDs LED Label Activity Description... -
Page 7: Back Panel
EdgeMarc 4550 Networking Gateway Installation Guide Back Panel Figure 2: 4550 Back Panel Name Description Accepts the plug from the supplied power cord to connect the unit Power Connector to an AC power outlet. Local Area Network (LAN) ports to connect the IP phones or an 10/100 Mbps Ethernet switch. - Page 8 EdgeMarc 4550 Networking Gateway Installation Guide Name Description PCs will be down until the system is reconfigured.
-
Page 9: Getting Started
Getting Started Physical Installation The 4550 is designed for desktop, rack or wall-mount installation. Observe the following guidelines when installing the system: • Always verify that the AC cord is disconnected from a power source prior to installation. Ensure that the installation site has adequate air circulation and meets the minimum •... -
Page 10: Desktop Installation
EdgeMarc 4550 Networking Gateway Installation Guide Desktop Installation 1. Remove the 4550 and accessories from the shipping container. 2. Place the 4550 on a flat, dry surface such as a desktop, shelf or tray. Wall-Mount Installation You can mount the 4550 on a wall using the two mounting brackets on the bottom of the appliance. -
Page 11: Rack-Mount Installation
EdgeMarc 4550 Networking Gateway Installation Guide Rack-Mount Installation You can mount the 4550 in a 19” rack by using the rack-mount kit supplied with the product. 1. Attach the ear mounts to both sides of 4550 with the screws. 2. Attach the 4550 with the ear mounts to the shelf by screwing the ear mounts to the shelf with screws. -
Page 12: Administration
EdgeMarc 4550 Networking Gateway Installation Guide Administration You can configure the 4550 using a web browser such as Internet Explorer or Mozilla Firefox. The 4550 is shipped with the pre-configured IP address 192.168.1.1 for the LAN port. To connect to the 4550, follow these steps: 1. - Page 13 EdgeMarc 4550 Networking Gateway Installation Guide 4. Select Network and start configuring the 4550. Note For secure network management, change the default user name and password as described in the VOS for EdgeMarc User Manual.
-
Page 14: Specifications
Specifications WAN Ports 1x10/100 Ethernet LAN Ports 4 10/100 Ethernet (Managed VLAN Switch) Serial Ports 1xRS-232 USB Ports Dimensions Height 1 “ ( ), Width 9” ( ), Depth 6 42.863 mm 228.6 mm 168.275 mm Weight 3 lb (1.361kg) Power 12V @ 3.33A, external plug pack Warranty... -
Page 15: Warranty Information
Warranty Information Hardware Warranty For a period of one (1) year after shipment of the Product, Edgewater warrants that such Hardware will substantially conform to Edgewater’s published specifications for such Hardware on the date of order if properly used in accordance with procedures described in the documentation supplied by Edgewater. -
Page 16: Certification And Compliance
If trouble is experienced with this equipment, Model 4550 for repair or warranty information, please contact Edgewater Networks Technical Assistance Center at 408.351.7255 If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved. -
Page 17: Industry Canada (Ic) Notice
EdgeMarc 4550 Networking Gateway Installation Guide INDUSTRY CANADA (IC) NOTICE This equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications. This is confirmed by the registration number. The abbreviation, IC, before the registration number signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. - Page 18 Edgewater Networks, Inc. 2895 Northwestern Parkway Santa Clara, CA 95051 Phone: (408) 351-7200 Converged Networking. Simplified. info@edgewaternetworks.com...
