JVC FS-V100 Instructions Manual

Compact component system
Hide thumbs
Table of Contents

Advertisement

Quick Links

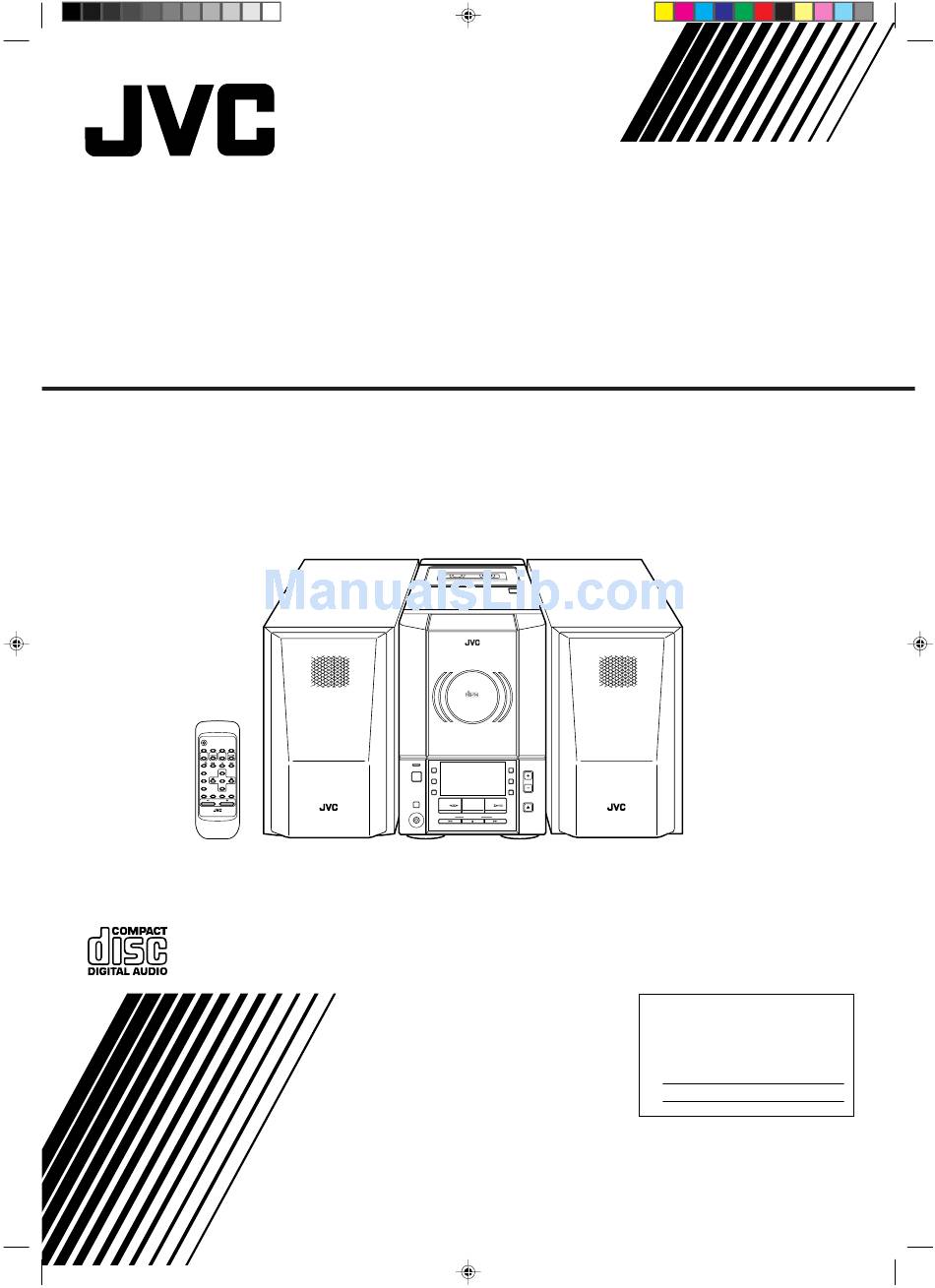

COMPACT COMPONENT SYSTEM
SYSTEME DE COMPOSANTS COMPACT
FS-V100
POWER
FM
AUTO
SLEEP
DISPLAY
MODE
PRESET
TAPE
CD
AUX
FM/AM
CD
REPEAT
UP
PROGRAM
SET
RANDOM
DOWN
AHB
PRO
BASS
TREBLE
CANCEL
VOLUME
REMOTE CONTROL RM-SFSV10J
COVER.FS-V100[J]f
— Consists of CA-FSV100 and SP-UXV100.
STANDBY
POWER
PHONES
INSTRUCTIONS
MANUEL D'INSTRUCTIONS
3
AUTO T APE SELECTOR
AUTO REVERSE
T APE
COMPACT
DIGITAL AUDIO
VERTICAL DISC
LOADING MECHANISM
FS-V100
COMPACT COMPONENT SYSTEM
AHB
AUX
PRO
VOLUME
REC
TIMER
REV.
MODE
CLOCK
CD
OPEN/CLOSE
TAPE
FM/AM
CD
DOWN
MULTI CONTROL
UP
12/12/00, 10:34 AM
For Customer Use:
Enter below the Model No. and Serial No.
which are located either on the rear, bot-
tom or side of the cabinet. Retain this
information for future reference.
Model No.
Serial No.
GVT0056-001A
[J]

Advertisement

Table of Contents
loading

Related Manuals for JVC FS-V100

Summary of Contents for JVC FS-V100

  • Page 1 COMPACT COMPONENT SYSTEM SYSTEME DE COMPOSANTS COMPACT FS-V100 POWER AUTO SLEEP DISPLAY MODE PRESET TAPE FM/AM REPEAT PROGRAM RANDOM DOWN BASS TREBLE CANCEL VOLUME REMOTE CONTROL RM-SFSV10J COVER.FS-V100[J]f — Consists of CA-FSV100 and SP-UXV100. AUTO T APE SELECTOR AUTO REVERSE...
  • Page 2 Consult the dealer or an experienced radio/TV technician for help. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. G1-G3.FS-V100[J]f Warnings, Cautions and Others CAUTION To reduce the risk of electrical shocks, fire, etc.: 1.
  • Page 3 INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQUAU FOND. G1-G3.FS-V100[J]f For Canada/pour le Canada THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL APPARATUS AS SET OUT IN THE INTERFERENCE-CAUSING EQUIPMENT STANDARD ENTITLED “DIGITAL APPARATUS,”...
  • Page 4 10) Power Lines — An outdoor antenna should be located away from power lines. G1-G3.FS-V100[J]f Instructions for safe use 11) Outdoor Antenna Grounding — If this appliance is provided with means to connect the outdoor antenna and outside...

  • Page 5: Table Of Contents

    The controls and operations have been designed to make them very easy to use, freeing you to just enjoy the music. • With JVC’s COMPU PLAY you can turn on the System and automatically start the Radio, Cassette deck or CD Player with a single touch.

  • Page 6: Getting Started

    The Remote Control makes it easy to use many of the functions of the System from a distance of up to 7 m (23 ft.) away. You need to point the Remote Control at the remote sensor on the System’s front panel. EN01-09.FS-V100[J]f R6(SUM-3)/AA(15F)

  • Page 7: Connecting The Fm Antenna

    Rear Panel of the Unit CAUTION: To avoid noise, keep antennas away from the System, the connecting cord and the AC power cord. EN01-09.FS-V100[J]f Using the supplied Wire Antenna Using the coaxial type connector (not supplied) A 75 antenna with coaxial type connector (IEC or DIN 45325) should be connected to the FM (75 ) COAXIAL terminal.

  • Page 8: Connecting The Speakers

    Connect the audio output terminals on the other equipment and the LINE IN (AUX) terminals on the rear, using an audio cord (not supplied). Pin-plug x 2 Signal cord (not supplied) LINE IN (AUX) EN01-09.FS-V100[J]f Left speaker (rear side) Black SPEAKERS IMPEDANCE...

  • Page 9: Connecting The Ac Power Cord

    COMPU PLAY The JVC’s COMPU PLAY feature lets you control the most frequently used System functions with a single touch. With One Touch Operation you can play a CD, a tape, turn on the radio, or listen to an external equipment at a single press of the play button for that function.

  • Page 10: Common Operations

    (called Standby Mode). To switch off the System completely, unplug the AC power cord from the wall outlet. When you unplug the AC power cord, the clock will be reset to AM 12:00. EN01-09.FS-V100[J]f DISPLAY STANDBY lamp STANDBY POWER...

  • Page 11: Reinforcing The Bass Sound

    2 Press the UP or DOWN button on the Remote Control to adjust the treble level. TREBLE DOWN EN01-09.FS-V100[J]f Showing the Clock Time In Standby mode, the digital clock appears on the display. When the System is turned on, you can display the digital clock any time.

  • Page 12: Using The Tuner

    Auto Tuning If you press and hold the 4 or ¢ button for one second or more, the frequency changes down, or up, automatically until a station is found. EN01-09.FS-V100[J]f STANDBY POWER VOLUME TIMER...

  • Page 13: Changing The Fm Reception Mode

    24 hours. However, in case the preset stations are erased, you will need to preset the stations again. EN01-09.FS-V100[J]f Changing the FM Reception Mode When you have tuned into an FM stereo broadcast, the STEREO indicator lights up and you can hear stereo effects.

  • Page 14: Using The Cd Player

    The CD cover opens. 2 Place a CD, with its label side out as shown below. Press down on the portions around the CD’s center hole until you hear a click. EN10-22.FS-V100[J]f DIGITAL AUDIO VERTICAL DISC LOADING MECHANISM CD Cover...

  • Page 15: Playing A Cd

    You can only make a program when the CD Player is stopped. 1 Insert a CD. 2 Press the CD #/8 button. 3 Press the 7 button to stop the CD. EN10-22.FS-V100[J]f 4 Press the PROGRAM button. The System enters the programing mode and the PROGRAM indicator lights up.

  • Page 16: Repeating Tracks

    POWER button while holding the 7 button. “UNLOCKED” appears for a while, and the CD cover is unlocked. Note: If you try to unload the CD, “LOCKED” appears to inform you that the CD cover is locked. EN10-22.FS-V100[J]f 12/12/00, 10:32 AM...

  • Page 17: Using The Cassette Deck (Listening To A Tape)

    TAPE 0 button again. 3 Close the holder gently until it clicks. 4 Press the TAPE @ # button. The tape is played in the direction shown by the Tape Direction indicator. EN10-22.FS-V100[J]f STANDBY POWER VOLUME TIMER...

  • Page 18: Using The Cassette Deck (Recording)

    Note: At the start and end of cassette tapes, there is leader tape which cannot be recorded onto. Thus, when recording CDs or radio broadcasts, wind on the leader tape first to ensure that the recording will be made without any music part lost. EN10-22.FS-V100[J]f STANDBY POWER MODE REV.

  • Page 19: One Track Recording

    Note: When making SLEEP timer settings while doing CD Direct recording, set enough time to allow for the CD to finish playing, otherwise the power will go off before recording is completed. EN10-22.FS-V100[J]f One track recording–––––––––––––––––– 1 Insert a blank or erasable tape into the Cassette Deck.

  • Page 20: Using External Equipment

    To exit from AUX mode, select another source. Notes: • For operation of the external equipment, refer to its Instructions. • For recording from the external equipment, refer to “Standard Recording” on page 14. EN10-22.FS-V100[J]f STANDBY POWER BASS MODE TREBLE TAPE PHONES...

  • Page 21: Using The Timers

    If the System is unplugged, or a power failure occurs, the timer setting will be lost. You will need to reset the clock first, then the timer. Note: The clock may gain or lose 1 to 2 minutes per month. EN10-22.FS-V100[J]f STANDBY POWER VOLUME...

  • Page 22: Setting The Recording Timer

    If the System is unplugged, or a power failure occurs, the timer will be canceled. You will need to reset the clock first, then the timer. EN10-22.FS-V100[J]f Setting the Recording Timer With the Recording Timer, you can make a tape of radio broadcast automatically.

  • Page 23: Setting The Sleep Timer

    If the System is unplugged, or a power failure occurs, the timer will be canceled. You will need to reset the clock first, then the timer. EN10-22.FS-V100[J]f Setting the Sleep Timer When a source is playing, use the Sleep Timer to turn the System off after a certain number of minutes.

  • Page 24: Care And Maintenance

    Open the CD cover and clean the lens as shown. • Use a blower (available from a camera store) to blow dust off the lens. EN10-22.FS-V100[J]f • If there are fingerprints, etc. on the lens, gently wipe clean with a cotton swab.

  • Page 25: Troubleshooting

    The cassette holder cannot be opened. Unable to record. Operations are disabled. Unable to operate the Remote Control. Specifications FS-V100 (CA-FSV100 and SP-UXV100) Amplifier Output Power 25 W per channel, min. RMS, at 4 with no more than 10% total harmonic distortion.
  • Page 26 Sophisticated electronic products may require occasional service. Just as quality is a keyword in the engineering and production of the wide array of JVC products, service is the key to maintaining the high level of performance for which JVC is world famous.
  • Page 27 WHAT WE WILL DO: If this product is found to be defective, JVC will repair or replace defective parts at no charge to the original owner. Such repair and replacement services shall be rendered by JVC during normal business hours at JVC authorized service centers.
  • Page 28 VICTOR COMPANY OF JAPAN, LIMITED 1200MWMMDWJEM COVER.FS-V100[J]f 12/12/00, 10:34 AM...
