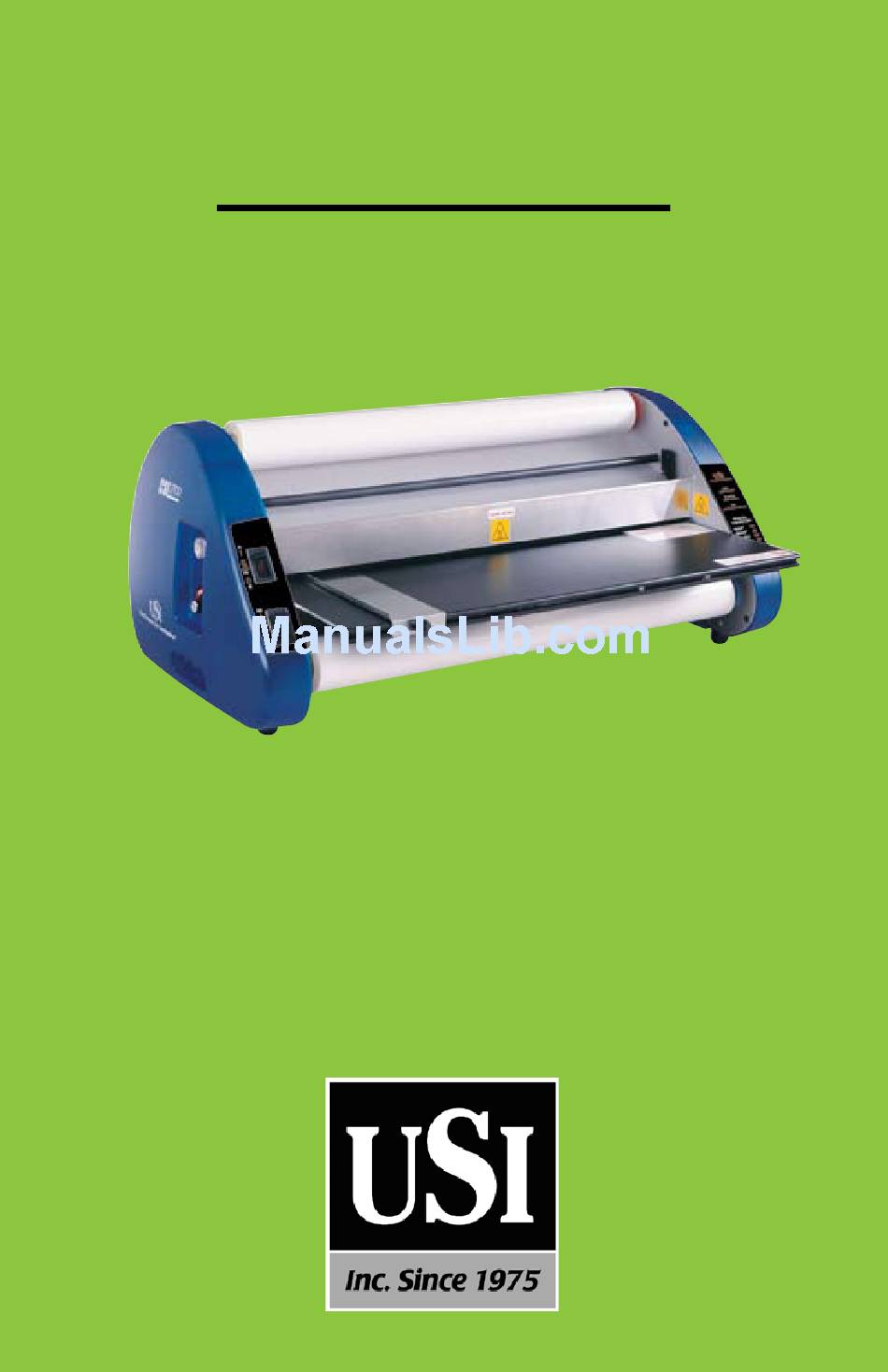

- Page 1 CSL2700 ROLL LAMINATOR O W N E R S M A N U A L c a l l t o l l F r E E 1-800-282-9290 For USI EdUcatIon or GovErnmEnt SalES 1-800-243-4565...
-
Page 2: Equipment Warranty
PlEaSE do not dEStroY tHE SHIPPInG carton! USI urges you to store the original carton in which your laminator was shipped. Should you ever need to return your laminator to our repair and service center, it is best repacked in the original carton to avoid damage during transport. our special foam filled carton ensures the laminator’s safe transit to our service facility. -
Page 3: Table Of Contents
taBlE oF contEntS chapter 1 — Preparation Part I laminator Introduction......... 4,5 Part II Work area . -
Page 4: Laminator Introduction
IntrodUctIon USI roll laminators are uniquely designed and engineered to be user friendly, reliable and virtually trouble free. USI’s modular construction makes them easy to maintain and repair. all equipment controls are basic in design, functional... - Page 5 cSl 2700 Feature location: tension adjusting Knobs color coded Supply mandrel (holds film) Heat Guard Side Housing temperature adjustment knob Built In Handles Heat on/off Switch motor drive Switch Paper Guide Feed tray Heat Shoes (behind heat guard) Film temperature Guide thermometer...
-
Page 6: Work Area
USI laminator. ample room is necessary to access the laminator from all 4 sides. If the laminator is back against a wall, the laminating film may back up and jam the equipment. a USI laminator cabinet is an excellent choice for a work area. -
Page 7: Unpacking
UnPacKInG YoUr lamInator Your laminator comes packed in one carton. It contains (1) laminator, (1) heat guard, (1) top supply mandrel, (1) bottom supply mandrel, (1) threading board, (1) feed table with guide, and this operation and maintenance manual. (See diagram page 5) First, open the box. -
Page 8: Loading Film
loadInG FIlm color-coded laminators & film: (For more information on this revolutionary system see the back cover) Select the two rolls of laminating film that you wish to use. Both rolls of film should be of the same size, type and thickness. - Page 9 note: When loading your laminating film, check for film splices. these rolls will be clearly marked. Splices are not common, but are unavoidable. If you find a spliced roll, place it in the top position on the laminator so that the splice can be monitored carefully. When the splice is ready to come through the laminator, turn the drive and heat off, allow the machine to cool, and rotate the roll of film by hand so the film tension is very loose.
- Page 10 thread the top roll of film under the idler roller as shown in the threading diagram on previous page (see Figure 9-4). Pull the film down so that the films lead edge is below the lower heat shoe. next thread the bottom roll of film under the lower idler bar pulling film upward until it is even with the top heat shoe (the film will overlap).
-
Page 11: Heat Settings
HEat SEttInGS Prior to laminating, allow the machine to pre-heat at least 15 minutes in order to stabilize the temperature. temperature settings depend on the film type being used. the temperature is preset at the factory, but may require adjustment depending on what type of film you are using. turn the heat on by depressing the heat power switch on the left side panel. -
Page 12: Tension
SEttInG tEnSIon to adjust tension for upper and lower rollers, the laminator must be loaded and heated. remove the heat guard and feed tray. loosen both tension control knobs by turning counterclockwise until there is no tension on upper or lower film rolls. Photos 12-1, 12-2. - Page 13 Photo 13-1 Feed tray Photo 13-2 Heat Shoe Guard Photo 13-3...
-
Page 14: Reloading A Hot Laminator
rEloadInG a nEW roll oF FIlm on a Hot lamInator allow the old film to run to a point just before it pulls off the cardboard cores. turn the drive switch to “oFF.” cut the film web with a blade so that approximately 5”... -
Page 15: Cleaning The Heat Shoe
Photo 15-3. turn the drive switch on and off to advance the rollers and clean each section at a time. Wipe clean with the sponge pad and cleaning solution from USI’s laminator cleaning Kit. notE: Use cleaning solution sparingly. do not allow to “run”... -
Page 16: Upper Heat Shoe Removal
UPPEr HEat SHoE rEmoval InStrUctIonS 1. Unplug laminator and allow it to cool to room temperature. 2. remove the left side housing. First remove the thermometer & temperature knob (shown in figure 16-1). the temperature knob has a small allen head set screw retaining it. then remove the housing by unscrewing 4 allen head screws. -
Page 17: Reinstall The Heat Shoe
to rEInStall tHE HEat SHoE 1. Be sure laminator is unplugged. 2. Guide heat shoe wires exiting from the left end of the heat shoe through the slot in the left side of frame. 3. lower the left end of the heat shoe onto its bracket first, then lower the right end and lock in place. -
Page 18: Removing The Rubber Rollers
rEmovInG tHE rUBBEr rollErS notE: only remove rollers if they are cut or in poor condition. notE: the following procedure removes all 4 rollers. In certain instances, it is not necessary to remove all 4 rollers, therefore, remove as required. StEP 1: remove all film from laminator. - Page 19 StEP 7: to remove the upper roller, slide the roll shaft out of the roller and then lift the top rubber rollers from the laminator (top laminating roller shown). Photos 19-1 and 19-2 Photo 19-1 StEP 8: loosen the set screws of the lower roller sprockets (laminating roller shown) Photo 19-3.
- Page 20 StEP 11: to install a new roller or replace the original roller, reverse the removal procedure. Be sure to properly reposition the sprockets and align the chain. all three sprockets should be in line with each other. Since the motor sprocket was not removed, use it as a guide for alignment of the pull roll and laminating roll sprockets.
-
Page 21: Pressure Settings
PrESSUrE the pressure settings for the rubber rollers on USI laminators are preset at the factory and should not require adjusting. In most cases, it is necessary to adjust pressure after the rollers have been removed for service. (Generally this is the only time an adjustment is required.) -
Page 22: Lubrication
lamInator lUBrIcatIon oil the drive chain once every six months with a light weight oil. to avoid binding of the laminating and pull rollers, periodically oil the black plastic bushings. Bushings are located at the end of each roller. to gain access remove side housings. See important information under “removing Upper Heat Shoe”... -
Page 23: Cleaning Friction Studs
clEanInG FrIctIon StUdS If film rolls begin to shudder or squeak, cleaning of tension assembly is required. StEP 1: remove the film rolls. StEP 2: remove the right side housing. StEP 3: disassemble the friction stud by unfastening and removing the knob. Photo 23-1. Photo 23-1 StEP 4: remove the spring, metal washer, leather... -
Page 24: Replacing The Thermostat
(the long one). When removing this screw and repositioning the capacitor to gain access to the thermostat use caution. do not touch the terminals on the capacitor or allow them to contact any metal part of the laminator. contact USI for any further information on servicing the capacitor. (Photos 25-2 & 25-3). - Page 25 Photo 25-1 Photo 25-2 Photo 25-3 Photo 25-4 Photo 25-5 Photo 25-6...
-
Page 26: Sprockets
tIGHtEnInG SProcKEtS laminating roll StEP 1: Pull roll Sprocket Sprocket remove the right side housing. locate loose sprocket. Each sprocket has a 3/32” allen set screw located along the outer edge. If the set screw loosens, it will allow the motor Sprocket sprocket to spin on the roll shaft, causing the rollers to slip. - Page 27 troUBlE SHootInG common EXamPlES oF Poor lamInatInG . . . and their causes. FIlm not BondInG to SUBJEct or to ItSElF at SEalEd EdGES causes: 1. the heat is set too low. 2. Film tension is too tight. 3. Bottom roll of film is threaded incorrectly. 4.
-
Page 28: Trouble Shooting
troUBlE SHootInG common EXamPlES oF Poor lamInatInG . . . and their causes. (continued) HEat doES not WorK and rEd IndIcator lIGHt doES not IllUmInatE 1. check wiring of the laminator. refer to wiring diagram on page 29. 2. replace heat switch and switch wires. notE: Switch should not be replaced without also replacing switch wires. -
Page 30: Parts List
PartS lISt Part # Component Description Per Machine Left Zone a5510 HEat SWItcH lIGHtEd 2002 a5514 drIvE SWItcH 2002 a5846 HEat control KnoB (n021) a5888 SEt ScrEW For HEat control KnoB a4668 claSSroom tHErmoStat a4678 BracKEt, claSSroom tHErmoStat a4707 tErmInal BlocK nUmBErEd W/o JUmPEr a9800 aUto SHUt-oFF tImEr/oPtIonal a4536... - Page 31 Standard roll FIlm Superb value for your dollar, USI’s Standard roll Film is the obvious choice for schools or anywhere cost is the deciding factor. Standard roll Film offers strong bonding characteristics to paper and paper type products. this low density resin has a melting temperature of 275°-300°F and a bonding temperature 280°F.
- Page 32 This is a common problem for most laminator users. That problem will no longer be yours. When it comes to laminating, USI is here to make the job as easy and convenient as possible! Here’s how it works:...
