Page 1

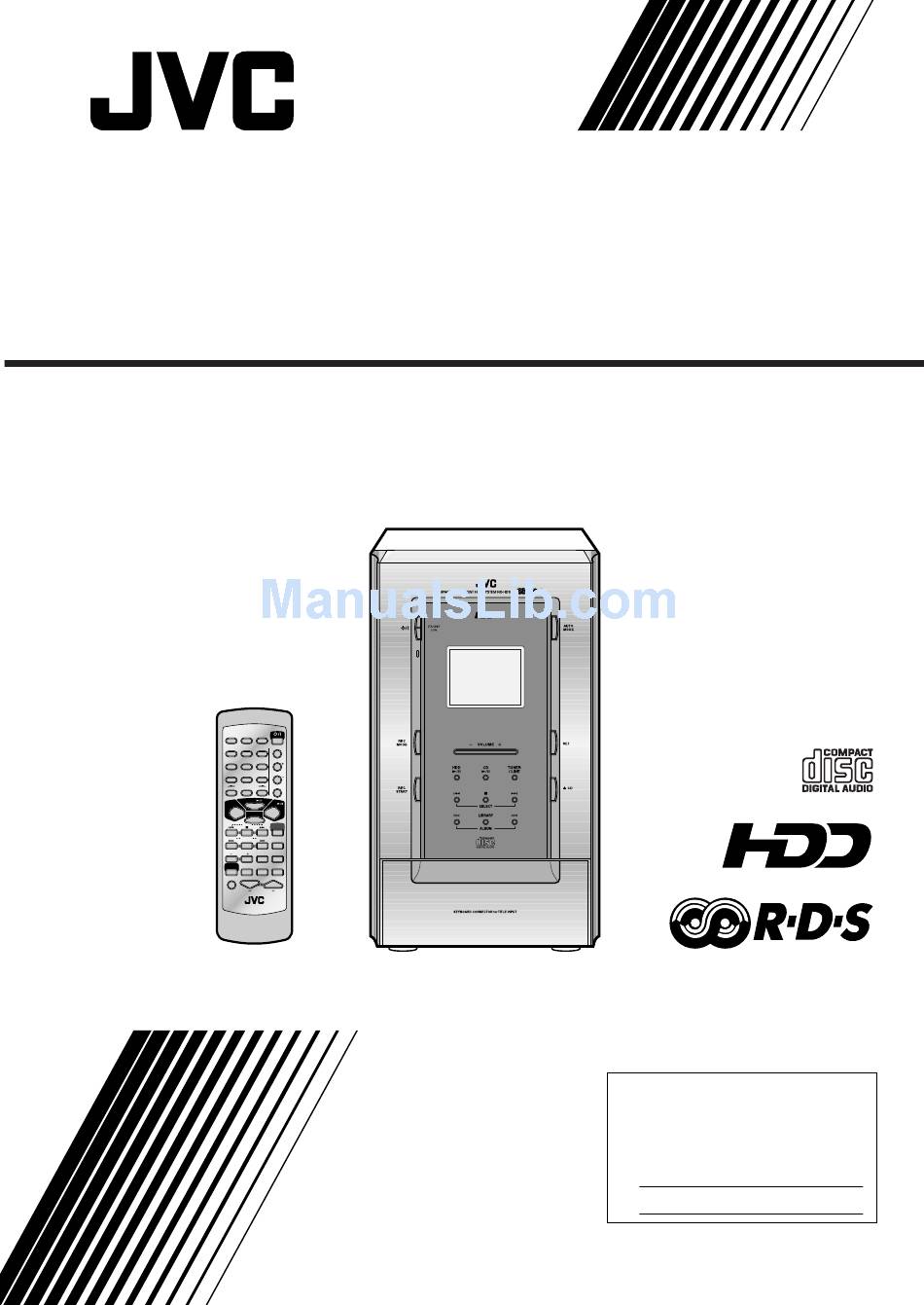

COMPACT COMPONENT HDD SYSTEM CA-NXHD10R STANDBY/ON CLOCK A.P.off SLEEP /TIMER DISP/CHARA 1-MARK 2-ABC 3-DEF CANCEL SELECT 4-GHI 5-JKL 6-MNO SELECT 7-PQRS 8-TUV 9-WXYZ ENTER DISP TUNER /LINE REC START SELECT CONTROL ALBUM LIBRARY ALBUM TA/News/info REPEAT SEARCH FM / PLAY...
Page 2
Warnings, Cautions and Others IMPORTANT for the U.K. DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.
Page 3
IMPORTANT FOR LASER PRODUCTS REPRODUCTION OF LABELS 1 CLASSIFICATION LABEL, PLACED ON REAR ENCLOSURE CLASS LASER 2 WARNING LABEL, PLACED INSIDE THE UNIT 1. CLASS 1 LASER PRODUCT 2. CAUTION: Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam. 3.
Page 4
: Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of 10 cm or more. Front view 1 cm 15 cm CA-NXHD10R 15 cm 15 cm 1 cm 15 cm 10 cm –...
Page 5
To keep the continuity of the recorded sounds Once you record a song into the built-in HDD, it is recorded as a “track.” Then, this unit differentiates these recorded tracks by adding a 2-second blank at the beginning of each track during playback. If you record a CD—on which the sounds were recorded without any interruption between the tracks—such as a “Live”...
Page 6
Introduction We would like to thank you for purchasing one of our JVC products. Before operating this unit, read this manual carefully and thoroughly to obtain the best possible performance from your unit, and retain this manual About This Manual This manual is organized as follows: •...
Contents Location of the Buttons ... 3 Front Panel ... 3 Remote Control ... 5 Getting Started ... 6 Unpacking ... 6 Connecting Antennas ... 6 Connecting Speakers ... 7 Connecting Other Equipment ... 8 Putting the Batteries into the Remote Control ... 9 Basic Settings ...
Remote Control * When using the remote control: For RDS operations, press RDS CONTROL (i) on the remote control first when using the buttons (w – t, o). • After using RDS operations, make sure to change the operation mode of the remote control to the one you want to use by pressing HDD 3/8 (4), TUNER/LINE (5), CD 3/8 (y), or CLOCK/TIMER (1).
Getting Started Unpacking After unpacking, check to be sure that you have all the following items. The number in the parentheses indicates the quantity of the pieces supplied. • FM antenna (1) • AM (MW/LW) loop antenna (1) • Remote control (1) •...
AM (MW/LW) antenna AM (MW/LW) loop antenna (supplied) If cords are covered with insulation, twist the core of the cord at the end of each cord, then remove the insulation. Connect the AM (MW/LW) loop antenna to the AM LOOP terminals as illustrated. Turn the AM (MW/LW) loop antenna until you have the best reception.
To remove the speaker grille The speaker grilles are removable as shown below: Projections To remove the speaker grille, insert your fingers at the top of the speaker grille, then pull towards you. Do the same at the bottom. To attach the speaker grille, put the projections of the speaker into the holes of the speaker grille.
NOW, you can plug in the unit and other connected equipment FINALLY! IMPORTANT: Be sure to check all connections to be done before plugging the AC power cord into a wall outlet. To the AC IN terminal AC power cord (supplied) Connecting a keyboard You can connect a PC-compatible keyboard (with the PS/2 plug) to the KEYBOARD terminal inside the...
Basic Settings The buttons enlarged in the illustration below are used and explained in this section (pages 11 and 12). Remote control CLOCK /TIMER TUNER /LINE REC START DIMMER CONTRAST Front panel STANDBY STANDBY/ON CLOCK A.P.off /TIMER SLEEP DISP/CHARA 1-MARK 2-ABC 3-DEF CANCEL...
Before operating the unit any further, first set the clock built in this unit, then some other basic settings. Turning On the Power When you press one of the source selecting buttons— HDD 3/8, CD 3/8, TUNER/LINE, the unit automatically turns on (and starts playback if the source is ready).
To adjust the clock again Once you have adjusted the clock, you need to press CLOCK/TIMER repeatedly until the clock setting screen appears in the main display (until the day of the week starts flashing), then follow steps 2 to 4 on the previous page. To turn on/off the clock indication You can turn on the clock indication on the display while the unit is in standby mode.
Basic and Common Operations The buttons enlarged in the illustration below are used and explained in this section (pages 14 and 16). Remote control TUNER /LINE REC START Front panel VOLUME STANDBY/ON CLOCK A.P.off /TIMER SLEEP DISP/CHARA 1-MARK 2-ABC 3-DEF CANCEL SELECT 4-GHI...
Selecting the Sources and Starting Play To select FM, AM (MW/LW) or external component as the source, press TUNER/LINE repeatedly until “FM,” “AM” or “LINE*” is selected. • If the unit is in standby mode, the power automatically comes on at the first press of the button. •...
Reinforcing the Bass Sound The richness and fullness of the bass sound is clearly maintained regardless of how low you set the volume —Active Hyper Bass Pro. • You can use this effect only for playback. • This function also affects the sound from headphones. On the remote control ONLY: To get the effect, press AHB PRO repeatedly until “AHB 1”...
Using the AAC Sounds You can apply special sound modes to the tracks recorded in the AAC (Advanced Audio Coding: see the right column) format. • You can use this effect only for playback of the AAC encoded tracks. • This function also affects the sounds through the PHONES jack and the LINE OUT jacks.
Listening to FM and AM (MW/LW) Broadcasts The buttons enlarged in the illustration below are used and explained in this section (pages 18 and 23). Remote control 1-MARK 2-ABC 4-GHI 5-JKL 7-PQRS 8-TUV TUNER /LINE SELECT Front panel SELECT 3-DEF STANDBY/ON CLOCK A.P.off...
Tuning in to a Station Press TUNER/LINE repeatedly until “FM” or “AM” is selected. The unit automatically turns on and tunes in to the previously received station. See page 20. AAC 128 STEREO PS name (see page 20) If an FM program is broadcast in stereo, the STEREO indicator lights up.
Presetting Stations You can preset 30 FM and 15 AM (MW/LW) stations manually following the procedure below. In some cases, test frequencies have been already memorized for the tuner since the factory examined the tuner preset function before shipment. This is not a malfunction. You can preset the stations you want into memory by following the presetting method.
Receiving FM Stations with RDS RDS (Radio Data System) allows FM stations to send an additional signal along with their regular program signals. For example, the stations send their station names, as well as information about what type of program they broadcast, such as sports or music, etc.
Press PTY. “PTY SELECT” starts flashing in the main display. Press PTY SELECT + or PTY SELECT – to select a PTY code while “PTY SELECT” is flashing. • Each time you press the button, the PTY codes change as follows (refer also to the list on page 23): None “News “...
How the Enhanced Other Networks function actually works: CASE 1 If there is no station broadcasting the program you have selected The unit continues tuning in the current station. « When a station starts broadcasting the program you have selected, the unit automatically switches to the station.
Description of the PTY codes: None: Undefined. News: News. Affairs: Topical program expanding or enlarging upon the news—debate or analysis. Info: Programs the purpose of which is to impart advice in the widest sense. Sport: Programs concerned with any aspect of sports.
Playing Back the External Component The buttons enlarged in the illustration below are used and explained in this section (pages 25 and 26). Remote control TUNER /LINE Front panel MODE SELECT DISP/CHARA STANDBY/ON CLOCK A.P.off /TIMER SLEEP DISP/CHARA CANCEL 1-MARK 2-ABC 3-DEF CANCEL...
Selecting the External Component Press TUNER/LINE repeatedly until “LINE*” (external component) is selected. The unit automatically turns on. AAC 128 The current input level (see the right column) appears for a while. * If you have changed the source name of the external component, the currently selected source name will appear (see page 26).
Changing the Source Name You can change the source name of the external component according to the one connected to the unit. • You cannot change the source names while recording. On the remote control ONLY: When the source is “LINE*,” press and hold TUNER/LINE until “NAME CHANGE”...
Playing Back CDs (CD/CD-R/CD-RW) The buttons enlarged in the illustration below are used and explained in this section (pages 28 to 31). Remote control 1-MARK 2-ABC 4-GHI 5-JKL 7-PQRS 8-TUV SELECT Front panel SELECT 3-DEF STANDBY/ON CLOCK A.P.off SLEEP /TIMER 6-MNO DISP/CHARA 1-MARK...
Precautions on CD Playback This unit has been designed to play back discs bearing the following logo: Audio CD (CD-DA) In addition to the above discs, this unit can play back audio data recorded on CD Text, CD-G (CD Graphics), and CD-Extra.
About CD indicator During Source is A CD is playback “CD,” but no loaded CD is loaded Basic CD Operations While playing a CD, you can do the following operations. To stop playback for a moment Press CD 3/8. To resume play, press CD 3/8 again. To locate a particular point in a track during play Press and hold ¢...
• Each time you press the button, play modes change as follows: CD PROGRAM (Program play) CD NORMAL (Normal play) Press the number buttons to select the tracks you want. • For how to use the number buttons, see “To go to another track directly using the number buttons”...
To skip the playing track, press ¢. • You cannot go back to the previous tracks by pressing To stop during playback, press 7. To exit from Random play mode, press FM/PLAY MODE once or twice after stopping the playback so that the unit enters another play mode (Normal play or Program play).
Playing Back the HDD (Hard Disk Drive) The buttons enlarged in the illustration below are used and explained in this section (pages 33 to 41). Remote control 1-MARK 2-ABC 4-GHI 5-JKL 7-PQRS 8-TUV SELECT ALBUM LIBRARY ALBUM Front panel SELECT LIBRARY ALBUM 3-DEF...
To play back the HDD, you must record tracks yourself first. To record into the HDD, see “Recording into the HDD” on pages 42 to 51. How tracks are recorded into the HDD Once you record a song, it is recorded as a “track,” then these recorded tracks can be grouped into an “album.”...
To change the information shown in the main display Each time you press DISP/CHARA on the remote control, the information in the main display changes as follows: • Before playing— Clock 1 Current album number 2 Total track number in the current album 3 Current library number (or assigned name) 4 Album title* appears following “ALBUM TITLE”...
To go to another track directly using the number buttons (in the same album) Pressing the number button(s) on the remote control allows you to start playing the track number you want. Ex. For track number 5, press 5. For track number 15, press +10, then 5. For track number 20, press +10, then 10.
Press HDD 3/8. The tracks in the album are played. Album play ends when all the tracks in the album are played once. • If you move to another album during Album play, another Album play starts with the newly selected album.
Playing at Random—Random Play All the tracks in the HDD will play at random and repeat endlessly. On the remote control ONLY: Press HDD 3/8, then 7. The source is changed to “HDD.” Press FM/PLAY MODE repeatedly until “HDD RANDOM” appears in the main display. The RANDOM and indicators light up on the display.
Searching for Albums and Tracks to Play— Search Modes This unit features the following four Search Modes to give you an easy access to the albums or tracks you want. • Album Number Search (ALBUM No.) : See below. To select and play an album after searching for it by its number.
Page 44
To search for an album or a track by entering its title —ALBUM T./TRACK T. You can easily find and play an album or a track by entering its title (up to the first 5 characters)—Album Title Search or Track Title Search. •...
Page 45
3) Repeat steps 4 – 1) and 4 – 2) to enter other characters. • If the character you want to enter next is assigned to the same button you have just pressed in step 4 – 2), press once to move the character entry position to the right.
Page 46
To search for one of the last 10 albums recently played or recorded—LAST 10 You can easily find and play one of the last 10 albums recently played* or recorded. * Tracks played for more than one second can be stored as the “played”...
Recording into the HDD The buttons enlarged in the illustration below are used and explained in this section (pages 43 to 51). For this section, it is convenient to use the buttons on the front panel. Front panel STANDBY MODE START SELECT Remote control...
Before You Start Recording • It should be noted that it may be unlawful to re-record pre-recorded tapes, records, or discs without the consent of the owner of copyright in the sound or video recording, broadcast or cable programme and in any literary, dramatic, musical, or artistic embodied therein.
Using Automatic Recording Functions This unit features three Auto Modes—Smart Compression, CD Auto Recording, and Tuner Auto Recording. You can activate these functions whether playing a source or not (the unit must be turned on). • Smart Compression (SMART COMP.) : See below. To automatically compress linear PCM tracks into AAC formated data.
Page 50
To automatically record CDs—CD Auto Recording You can automatically make a recording when playing back a CD entirely (from the first track to the last) in Normal play. (You need to start playback by pressing CD 3/8.) The recording will be stored in a library named “Library CD.”...
Page 51
If “CD AUTO REC OFF PLEASE!” appears in the main display You have tried to do the following operations while CD Auto Recording is performed. – To select recording modes or start recording – To edit recording or assign the title to an album or a track –...
To change the information shown in the main display while recording Each time you press DISP/CHARA on the remote control, the information in the main display changes as follows: Clock 1 Preset station number if any 2 Station frequency 3 PS name (see page 20) 4 Remaining recording time in the HDD (counts down every 13 seconds), calculated based on the current setting of the recording mode...
Page 53
Press LIBRARY to select a library where you store the recording just done. • Each time you press LIBRARY, the library changes— “Library 1” to “Library 10.” • If you do not select any library within one minute, the library currently flashing in the main display is automatically selected.
Recording FM/AM (MW/LW) Broadcasts This unit is equipped with the following recording modes to record broadcast programs. • AAC128kbps : AAC format is used at the bit rate of 128 kbps. • AAC 96kbps : AAC format is used at the bit rate of 96 kbps.
To change the information shown in the main display while recording Each time you press DISP/CHARA on the remote control, the information in the main display changes as follows: Clock 1 Preset station number if any 2 Station frequency 3 Remaining recording time in the HDD, calculated based on the current setting of the recording mode 4 Album number and its track number recorded 5 Recording mode in use...
Page 56
Press SET to finish the recording. “ENTRY” flashes in the main display for a while. When no sound comes in for more than 30 seconds Recording stops automatically (after making a 30-second silence recording) and the following message appears in the main display.
Making Your Own Titles The buttons enlarged in the illustration below are used and explained in this section (pages 53 and 54). Remote control 1-MARK 2-ABC 4-GHI 5-JKL 7-PQRS 8-TUV TITLE /EDIT The following operations are possible only from the remote control. •...
Assigning Titles to Albums and Tracks You can assign a title to each album and track. Once a title is assigned, it is displayed during playback. • The maximum number of the characters used for each title is 64. • When you want to change the libraries’ names, see “Changing the Library Names—LIB.
Page 59
Press ENTER. The track title entry screen for the currently selected track appears. • If you want to go on assigning the track titles, go to step 6 on the right column. Press TITLE/EDIT again to exit from the title entry mode.
Editing the HDD The buttons enlarged in the illustration below are used and explained in this section (pages 56 to 66). Remote control 1-MARK 2-ABC 4-GHI 5-JKL 7-PQRS 8-TUV TITLE /EDIT The following operations are possible only from the remote control. 3-DEF STANDBY/ON CLOCK...
Introducing HDD Editing Functions You can edit libraries, albums, and tracks using the following functions. Library Editing You can change the library name as you like. Changing the Library Names (LIB. NAME) : Page 57 You can change the original library name, such as “Library 1,”...
In the following examples of editing procedures, the processes are explained assuming that the unit is turned on. • To exit from the editing screen any time during the process, press TITLE/EDIT. • To return to the previous screen any time during the process, press CANCEL.
Restoring the Libraries—RESTORE If you unplug the unit or if a power failure occurs while recording, compressing (Smart Compression), or editing the data into the HDD, the Library information stored in the HDD and what has been actually recorded in the libraries may happen to become unmatched.
Press LIBRARY to select a library (“Library 1”— “Library 10,”) you want to copy the selected album into, then press SET. Album number is automatically assigned to a newly created album (the youngest unused number will be selected). Ex. When selecting “Library 9” Press ENTER.
Press SELECT ¢ or SELECT 4 to select “MAKE ALBUM?,” then press SET. The currently selected track number of the current album flashes. Select a track you want to copy to a new album. 1) Press ALBUM + or ALBUM – to select the album. 2) Press SELECT ¢...
Erasing All Albums—ALL ERASE All data in the HDD will be erased. On the remote control ONLY: Press TITLE/EDIT repeatedly until “ALBUM EDIT?” appears in the main display, then press SET. • The source changes to “HDD” automatically if another source has been selected. Press SELECT ¢...
3) Press SET. The album selection screen appears. Press ALBUM + or ALBUM – to select an album where to copy the track into, then press SET. Press ENTER. The editing you have made is being stored in the HDD. •...
If necessary, press SELECT ¢ or SELECT 4 to precisely adjust the end point. The unit repeats the newly selected end point. • You can shift the end point up to ±128. This range (±128) corresponds to about ±12 seconds from the original point (ADJUST 0).
Select a track you want to move from. 1) Press ALBUM + or ALBUM – to select an album. 2) Press SELECT ¢ or SELECT 4 to select a track. • You can select the track directly using the number buttons.
Press SET when you find the dividing point. The portion (of 2-second length) following the selected dividing point repeats playing. If necessary, press SELECT ¢ or SELECT 4 to precisely adjust the dividing point. The unit repeats the newly selected dividing point. •...
Select two adjacent tracks you want to join. 1) Press ALBUM + or ALBUM – to select an album. • If the album you have selected includes only one track, you cannot go to the step below. Select another album including more than one track in it. 2) Press SELECT ¢...
Using the Timers The buttons enlarged in the illustration below are used and explained in this section (pages 68 to 72). Remote control CLOCK A.P.off /TIMER SELECT Front panel STANDBY STANDBY/ON CLOCK A.P.off /TIMER SLEEP SLEEP DISP/CHARA 1-MARK 2-ABC 3-DEF CANCEL SELECT 4-GHI...
Before using these timers, you need to set the clock built in the unit (see page 11). There are three timers available—Recording Timer, Daily Timer, and Sleep Timer. In addition, you can use Auto Power Off to turn off the unit automatically. •...
Page 74
Set the timer on-time. 1) Press SELECT ¢ or SELECT 4 to adjust the hour, then press SET. The minute digit starts flashing. 2) Press SELECT ¢ or SELECT 4 to adjust the minute, then press SET. The timer off-time setting screen appears. •...
Using Daily Timer With Daily Timer, you can wake up to your favorite music or radio program. You can set Daily Timer whether the unit is turned on or in standby mode. • To return to the previous screen any time during the process, press CANCEL.
Press SELECT ¢ or SELECT 4 to adjust the volume level, then press SET. • You can adjust the volume level within the range of 0 (silent) to 50 (maximum). • When you select “VOL. – –” (selectable only with the unit turned on), the volume is set to the current level.
To sleep with Sleep Timer and wake up with Daily Timer The unit turns off when the shut-off time comes (set by the Sleep Timer), and turns on when the timer on-time (set by the Daily Timer) comes. Set Daily Timer as explained on page 70. Start playing back any source you want to listen to before sleep.
Using an Optional Keyboard You can connect a keyboard with the PS/2 plug to the KEYBOARD terminal inside the front door (see page 9). You can use the following keys to operate this unit for Edit and Search Modes. • You can use such a keyboard as a PS/2 US101 keyboard or an equivalent. However, the keyboard connected to this unit must be a type of DC 5 V and less than 100 mA.
: Moves the cursor at the beginning of the title entry screen. (Home) : Moves the cursor at the end of the title entry screen. (End) Alphabet keys, 10 keys, Symbol keys, and Space bar : Used to enter letters, numbers, symbols and spaces.
Page 80
To change a library name—F3 See also “Changing the Library Names—LIB. NAME” on page 57. Press F3 so that the following screen appears in the main display. Currently selected library appears. Press = or + to select a library number, then press Enter.
Maintenance To get the best performance of the unit, keep your CDs and mechanism clean. General Notes In general, you will have the best performance by keeping your CDs and the mechanism clean. • Store CDs in their cases, and keep them in cabinets or on shelves.
Messages For HDD: Message ALBUM No. No more album can be additionally made. FULL CANNOT • You are trying to divide a track (album) DIVIDE recorded in “Library TUNER.” • You have already 254 tracks recorded in the album. CANNOT EDIT! (or REC!) The room temperature is too low for the LOW TEMP operation.
Page 83
For CD: Message All the tracks on the disc have a Track Skip mark*. SKIP TRK. You are trying to play back a CD which CANNOT PLAY cannot be played, or there is a problem with the CD. The first track on the CD has a Track Skip mark.
Troubleshooting If you are having a problem with your unit, check this list for a possible solution before calling for service. If you cannot solve the problem from the hints given here, or the unit has been physically damaged, call a qualified person, such as your dealer, for service.
Page 85
Symptom Unable to record into HDD. CD Auto Recording cannot be done correctly. CD Auto Recording does not start. Tuner Auto Recording does not start. Smart Compression is canceled. Some mechanical noises are heard during Smart Compression. If “Level OVER!” appears in the main display.
Page 86
Symptom Tracks cannot be joined. When playing back the joined portion, you will hear noise. Mechanical noises are heard and the cabinet slightly vibrates. No sound is heard. Unable to operate the remote control. If “ERROR” appears in the main display.
Specifications Amplifier Output Power (IEC 268-3/DIN): 40 W (20 W + 20 W) at 4 (10% THD) Audio input sensitivity/Impedance (at 1 kHz) LINE IN : 260 mV/54 k (at “LEVEL 1”) 640 mV/54 k (at “LEVEL 2”) Audio output level/Impedance (at 1 kHz) LINE OUT : 215 mV/3.9 k Speakers/Impedance : 4...
“SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT” This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.
Tak for købet af JVC-højttalerne. Gennemlæs venligst vejledningen omhyggeligt før de tages i brug, så De kan opnå den bedst mulige ydelse. Forhør hos Deres JVC forhandler hvis De har nogen spørgsmål. Kiitos siitä ettë päädyit valinnassasi JVC-kaiuttimiin.
Page 90
Connection Anschluß Raccordement Aansluiting Conexión Collegamento Ansluiting Tilslutning Liitäntä Black Schwarz Noir Zwart Negro Nero Svart Sort Musta 1. Remove the ending part of the vinyl covering from the cut. 2. Twist the wires. 1. Entfernen Sie dan Endstück der Vinylhüle von dem geschnittenen Teil.
Page 91
ANSCHLUSS • Schließen Sie die linken (LEFT) Lautsprecherbuchsen des Verstärkers an die linken (LEFT) Buchsen des Lautsprechers, und die rechten (RIGHT) Lautsprecherbuchsen des Verstärkers an die rechten (RIGHT) Buchsen des Lautsprechers an. Verwenden Sie hierfür das mitgelieferte Lautsprecherkabel — wie in der Abbildung gezeigt — und achten Sie beim Anschluß auf die richtigen Polaritäten;...
Page 92
AANSLUITINGEN • Sluit met de bijgeleverde luidsprekersnoeren de LEFT- aansluitpunten op de versterker, bestemd voor aansluiting van de linkerluidspreker, aan op de LEFT-aansluitpunten op de luidspreker en de punten gemerkt RIGHT op RIGHT, volgens de aanwijzingen op de afbeelding, waarbij u ervoor zorgt de polariteit te respekteren;...
Page 93
COLLEGAMENTO • Collegate i terminali per l’altoparlante di sinistra (LEFT) dell’amplificatore ai terminali LEFT dell’altoparlante e il terminali RIGHT a quelli RIGHT usando i cavi degli altoparlanti in dotazione come mostrato fornite nell’illustrazione, assicurandovi che la polarità sia corretta; (+) a (+) e (–) a (–). Collegate i fili neri dell’altoparlante a i terminali (–).
Page 94
TILSLUTNING • Forbind LEFT højttalerbøsningerne på forstærkeren til LEFT på hojttaleren, og RIGHT til RIGHT med anvendelse af højttalerledningen som vist på tegningen, idet det kontrolleres at polerne vender rigtigt; (+) til (+) og (–) til (–). Tilslut de sorte højttalerledninger til (–) terminalerne.
