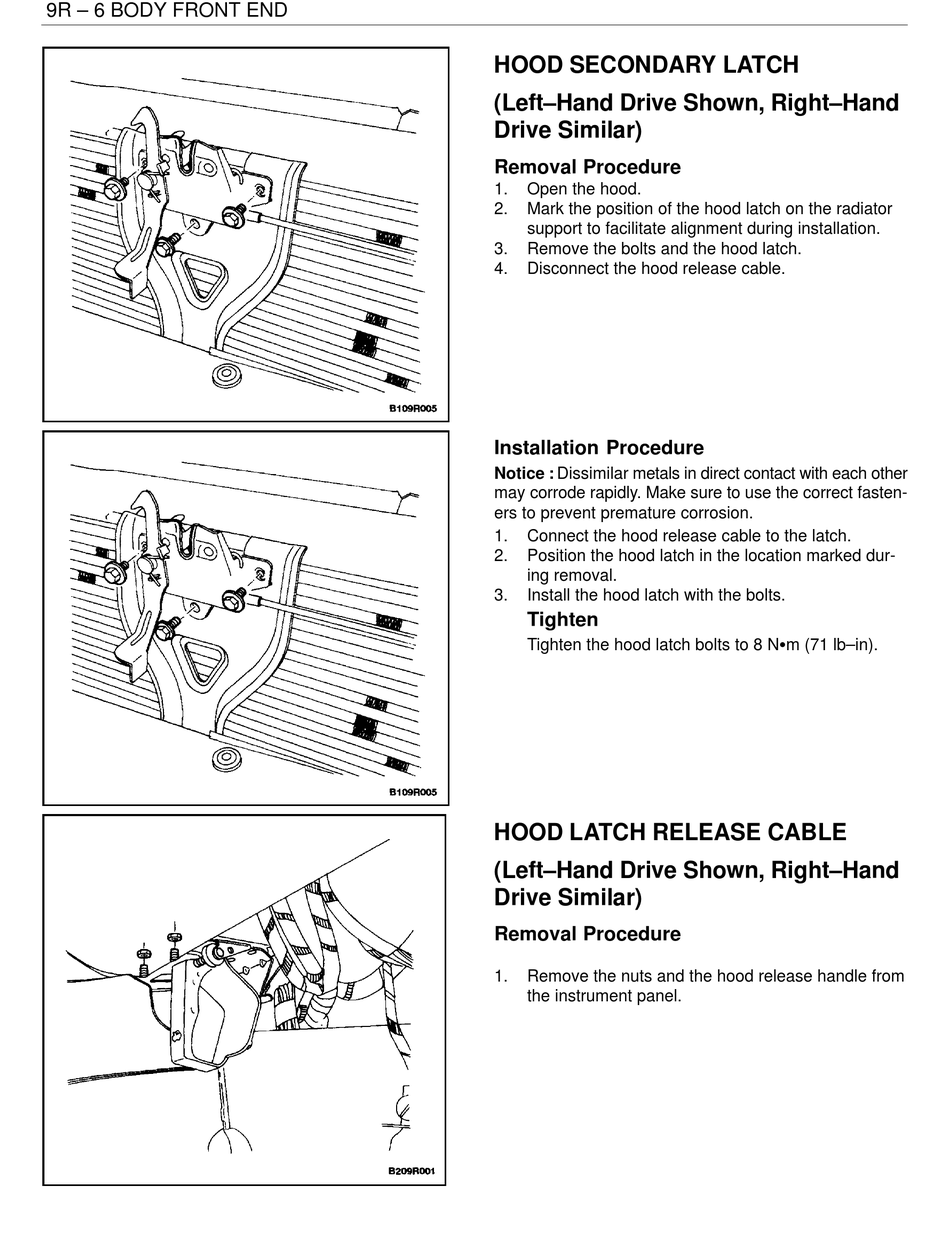

9R – 6IBODY FRONT END
HOOD SECONDARY LATCH
(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure
1. Open the hood.
2. Mark the position of the hood latch on the radiator
support to facilitate alignment during installation.
3. Remove the bolts and the hood latch.
4. Disconnect the hood release cable.
Installation Procedure
Notice : Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.
1. Connect the hood release cable to the latch.
2. Position the hood latch in the location marked dur-
ing removal.
3. Install the hood latch with the bolts.
Tighten
Tighten the hood latch bolts to 8 NSm (71 lb–in).
HOOD LATCH RELEASE CABLE
(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure
1. Remove the nuts and the hood release handle from
the instrument panel.
