Page 1

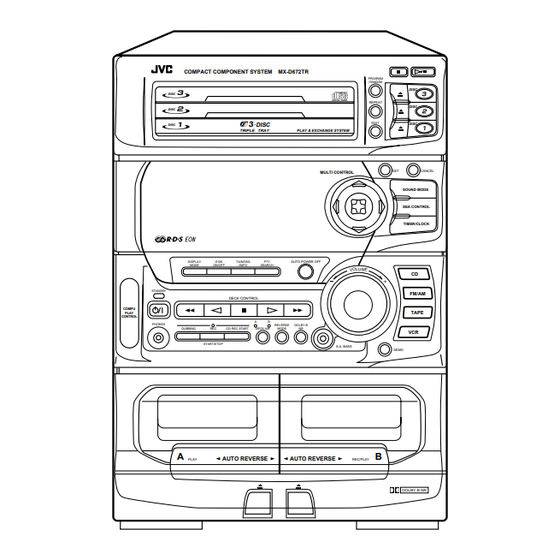

COMPACT COMPONENT SYSTEM KOMPACTES KOMPONENTENSYSTEM SYSTEME DE COMPOSANTS COMPACT KOMPACTO KOMPONENTEN-SYSTEEM SISTEMA DE COMPONENTES COMPACT IMPIANTO A COMPONENTI COMPATTO CA-D672TR PTY SEARCH PTY SELECT TUNER L BALANCE R DISPLAY MODE FM MODE DISC SHIFT SOUND MODE DISC DISC DECK REC PAUSE...
Page 2
IF IN DOUBT - CONSULT A COMPETENT ELECTRI- CIAN. Per l'Italia: "Si dichiara che il questo prodotto di marca JVC è conforme alle prescrizioni del Decreto Ministeriale n.548 del 28/08/95 pubblicato sulla Gazzetta Ufficiale della Repubblica Italiana n.301 del 28/12/95."...
Page 3
Lasciare libere le zone indicate dalle dimensioni di seguito. 3 Base: Collocare su una superficie piana. Consentire un’adeguata ventilazione dell’impianto appoggiandolo su un tavolinetto alto almeno 10 cm. 15 cm 1 cm 15 cm CA-D672TR CA-D3S Side view Seitenansicht Côté Zijaanzicht Vista lateral 15 cm...
IMPORTANT FOR LASER PRODUCTS/ WICHTIGER HINWEIS FÜR LASER-PRODUKTE / IMPORTANT POUR LES PRODUITS LASER /BELANGRIJKE INFORMATIE VOOR LASERPRODUKTEN / IMPORTANTE PARA LOS PRODUCTOS LÁSER / IMPORTANTE PER I PRODOTTI LASER REPRODUCTION OF LABELS/ANBRINGUNGSORTE FÜR LASER-PRODUKTE/REPRODUCTION DES ETIQUETTES/ VERKLARING VAN DE LABELS/REPRODUCCIÓN DE ETIQUETAS/RIPRODUZIONE DELLE ETICHETTE 1 CLASSIFICATION LABEL, PLACED ON REAR ENCLOSURE 1 KLASSIFIKATIONSETIKETTE AN DER RÜCKSEITE...
For questions that are not be answered in the manual, please contact your dealer. Easy operation Here are some of the things that make your CA-D672TR powerful and easy to use. The controls and operations have been redesigned to make them very easy to use so you can spend your time listening to music.
Adjusting the Brightness of the Display ... 6 Using the Amplifier ... 7 Turning the Power On and Off ... 7 Turning the CA-D672TR On ... 7 Turning the CA-D672TR Off ... 7 Adjusting the Volume ... 8 FADE MUTING Function ... 8 Balance adjustment ...
Don’t use different types of batteries together. Using the Remote Control The Remote Control makes it easy to use many of the functions of the CA-D672TR from a distance of up to 7m (23 feet) away. You need to point the Remote Control at the remote sensor on the CA-D672TR’s front panel.
A. Using the Supplied Wire Antenna B. Using the Coaxial Type Connector (Not Supplied) CAUTION: To avoid noise, keep antennas away from metallic parts of the CA-D672TR, connecting cord and the AC power cord. Connecting the AM (MW/LW) Antenna AM antenna wire (Not supplied)
Connecting a VCR Connect the VCR to the VCR terminal. Now you can plug the AC power cord into the wall outlet, and your CA-D672TR is at your command! (Please refer to instructions for speakers as will when you connect speakers.)
DEMO Mode When the CA-D672TR is connected to an AC power outlet, a DEMO mode displaying some of the system’s features automatically starts. The DEMO display cycles through the following items repeatedly. • Scrolling display of “DEMO MODE START”. •...
STANDBY The display comes on and the STANDBY indicator goes out. The CA-D672TR comes on ready to continue in the mode it was in when the power was last turned off. If the last thing you were doing was listening to a tape in Deck B, you are now ready to listen to a tape again in Deck B, or you can change to another source.
VOLUME – button to decrease it. You can adjust the volume level between 0 and 50. When the CA-D672TR is turned on from Standby mode, the volume is set to 0 and automati- VOLUME cally increases to the previous volume level. To stop this automatic volume adjustment, turn the VOLUME control slightly or press the VOLUME button on the Remote Control.
Sound Modes The CA-D672TR has some preset sound effects that give you control of the way your music sounds, so you can tailor it for your room and for the quality of the source. We can give you some idea of how each one affects the music, but the only way to really tell is to try them yourself.
Customizing a Sound Mode ————————————————————— You can change an existing sound mode to suit your own preferences. These changed setting can be stored in the CA-D672TR’s sound mode memory. Select the sound mode you want to change. If you select D. CLUB, HALL, or STADIUM, the surround effect remains unchanged, but you can adjust the S.E.A.
When playing either a tape or a CD, Auto Power Off will shut the Unit off when the tape or CD comes to an end. Although Auto Power Off is very useful for shutting off the CA-D672TR at night, you can also use it if you think you might forget to turn the Unit off when leaving the house or your room at other times of the day.
REPEAT 15 16 ALL 1 CD RDS, EON, [TA NEWS INFO] indicator When the CA-D672TR is being used, the display shows other items as well. However, we have only shown the items described in this section. CANCEL SOUND MODE SEA CONTROL...
Selecting a radio station —————————————————————— Select a frequency by adjusting the MULTI CONTROL stick up or down. The frequency changes in one step increments. “TUNED” appears on the display when a signal is found. This is called Manual Tuning. The frequency increases when MULTI CONTROL stick is pressed upwards, and decreases when the MULTI CONTROL stick is pressed downwards.
Note: RDS may not work correctly if the station to which you are tuned is not transmitting properly or if the signal strength is weak. What Information RDS can Provide —————————————————— CA-D672TR can use the following RDS service. PS (Program Service name) Identifies each station by a name.
Changing the Display ——————————————————————— DISPLAY MODE You can see RDS information on the display. To view RDS information on the display, press the DISPLAY MODE button. (When using the Remote Control, press the DISPLAY MODE button after pressing the RDS button.) Each time you press the button, the display changes to show the following information: DISPLAY MODE While RDS information is being received from a station, “WAIT PS”, “WAIT PTY”, or “WAIT...
Press the PTY SELECT button to choose a PTY. The programme type display changes with each press of the PTY SELECT button as shown PTY SELECT below. TRAFFIC = NEWS = INFO = POP M = ROCK M = M.O.R. M = LIGHT M = CLASSICS = OTHER M = AFFAIRS = SPORT = EDUCATE = DRAMA = CULTURE = SCIENCE = VARIED = (back to the beginning) Press the PTY SEARCH button again.
2. Preset stations are being searched for and while preparing to change the station, sound will be muted. 1 2 3 4 5 6 7 8 9 10 11 12 15 16 3. The station will be changed and the programme type being received will appear on the display. 1 2 3 4 5 6 7 8 9 10 11 12...
REPEAT 15 16 ALL 1 CD All track numbers of the loaded CD When the CA-D672TR is being used, the display shows other items as well. However, we have only shown the items described in this section. PROGRAM/RANDOM ‹/8 DISC...
To put an 8 cm CD into a tray, insert it so that it is aligned with the groove in the tray’s centre. “OPEN” appears in the display when a tray opens, and “CLOSE” when a tray closes. If a tray is open when the CA-D672TR switches to Standby mode, the tray is closed automati- cally.
To Play a Disc —————————————————————————— This function plays the disc in the Unit continuously. Prepare the discs. DISC DISC Press the DISC button (1-3) of the disc you want to play. DISC DISC The first track of the selected disc will begin playing. When the selected disc finishes playing, the next disc will begin playing automatically.
To Select a Disc, Track or Passage Within a Track ———————————— Press the DISC button (1-3) for the disc tray containing the track you want to listen to. Playback starts from the first track of the disc you selected. Example: for the third disc, press 3. To Select a Track —————————————————————————...
Page 26
Select a disc with the DISC buttons (1 to 3). The display changes to the Program Entry display and the disc number and track number DISC sections blink for a few seconds. DISC DISC While the display is blinking, perform the operations in steps 3 to 4. When the blinking display changes to the “PROGRAM”...
Press the £ button. The Unit plays the tracks in the order you have programmed them. If you try to program a 33rd step, the CA-D672TR lets you know that the program is full by displaying the message “FULL” on the display.
Note: Press the DISC buttons (1-3), or the number keys, to cancel Random play and begin playback in Continuous Play mode. Press the REPEAT button before or during random play to instruct the CA-D672TR to continue with a different random track selection after the last selection is played.
Most tapes are now recorded with the Dolby NR system, so first check which type of the Dolby NR system has been used on the tape. Only Dolby B NR is incorporated into the CA-D672TR. With Automatic Tape Detection, you can listen to type I or II tapes without changing any settings.
Deck Indicator DECK A/B, that tape starts to playback. If there is no tape in the deck corresponding to the Deck Indicator, the CA-D672TR automatically turns on the power and displays “TAPE” then the message “NO TAPE” and waits for you to insert a tape or select another function.
Music Scan To find the beginning of a music track during play, use the Music Scan function. Music Scan searches for blank portions that usually separate selections, then plays the next selection. To Find the Beginning of the Current Selection ————————————— Press the 1 or ¡...
The recording level, which is the volume at which the new tape is being made, is automatically set correctly, so it is not affected by the VOLUME control on the CA-D672TR. Thus, during recording you can adjust the sound you are actually listening to without affecting the recording level.
Standard Recording This is the basic method for recording any source. The CA-D672TR also has special ways for recording CD to tape, and tape to tape, which save you time and effort, as well as give you some special effects. However, when you need to add a selection to a tape you have made, or are combin- ing selections from several sources on one tape, use the method described below;...
“CD REC” is displayed on the display then the Unit plays the CD and starts recording. At the end of the tape, the CA-D672TR automatically goes back to the beginning of the last selection and re-records it, this time gently fading out at the end. If you selected Reverse Mode, “TAPE SIDE-B STANDBY”...
CD. When the tape is ready, to prevent the start of a track being cut, the CA-D672TR creates a blank period of 10 seconds before it starts to record the CD. While a blank period is being created, “TAPE SIDE-A STANDBY”...
To stop at any time while recording, press the 7 button (CD control or Cassette Deck control) or the REC START/STOP button. If you press the CD control 7 button, the Cassette Deck creates a four second blank space after the CD Player stops. If you press any other button to stop the recording, the CD Player and Cassette Deck stop at the same time.
REC (Recording) Timer — Unattended recording of radio broadcasts. You can set the starting time and length of the recording. SLEEP Timer — Fall asleep and have your CA-D672TR turn off automatically after a certain length of time. Setting the Clock The timers depend on the clock: the clock must be right for the timers to work as you expect.
CAUTION: If there is a power failure, the clock loses its setting. The display shows “0:00”, and the clock must be reset. Setting the DAILY Timer With this timer you can wake up to music from a CD, tape, your favourite radio program, or other source.
Page 39
3. Press the SET button. If you press the SET button without selecting a disc, the last disc played by the CA-D672TR will be used. 4. Adjust the MULTI CONTROL stick up or down to the select the starting track of the CD.
Turn the power off if you made the timer settings with the power turned on. A few seconds before the start for the timer, the CA-D672TR automatically turns on the power, and the “DAILY TIMER” blinks on the display. When the set time is reached, playback starts using the selected source.
Turn the power off if you made the timer settings with the power turned on. A few seconds before the start time for the recording, the CA-D672TR automatically turns on the power, and “REC TIMER” blinks on the display. When the start time is reached, recording starts using the selected source.
Timer was set. CAUTION: If the CA-D672TR is unplugged, or a power failure occurs, the timer setting will be erased in a few days. If the settings are erased in this way, reset the timer settings.
Timer Priority Since each timer can be set independently, you may wonder what happens if the settings overlap. Here are the priorities for each timer: The REC Timer always has priority. This means that: • If another timer is set to come on during a time when the REC Timer is operating, the other timer just won’t come on at all, so you will always get the entire program on tape.
Care And Maintenance Compact Discs Handle your compact discs, cassette tapes, and Cassette Deck carefully, and they will last a long time. • Remove the CD from the case by holding it at the edges while pressing the centre hole lightly. •...
Troubleshooting • If you are having a problem with your CA-D672TR, check this list for a possible solution before calling for service. • If you cannot solve the problem from the hints given here, or the Unit has been physically damaged, call a qualified person, such as your dealer, for service.
Specifications Output Power (IEC 268-3/DIN) 70 watts per channel, min. RMS, both channels driven, into Input Sensitivity/Impedance (1 kHz) CD Automatic Changer Section Design and specifications are subject to change without notice. Amplifier Section 6 ohms at 1 kHz with no more than 0.9% total harmonic distortion.
Page 47
VICTOR COMPANY OF JAPAN, LIMITED 0298HHMFLEJEM EN, GE, FR, NL, SP, IT...
