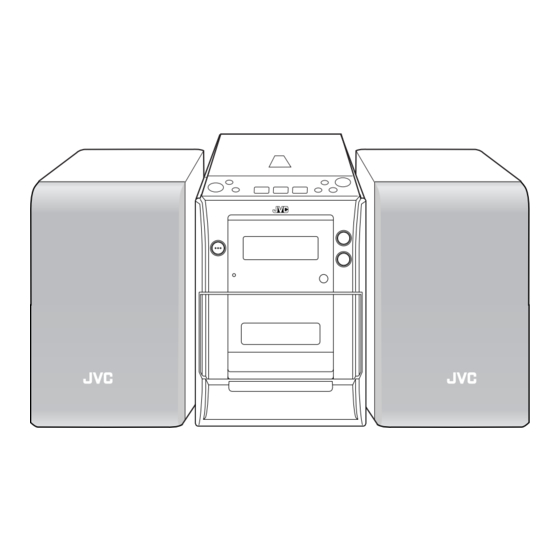

- Page 1 MICRO COMPONENT SYSTEM UX-S10 —Consists of CA-UXS10 and SP-UXS10 INSTRUCTIONS LVT1563-001A...
- Page 2 IMPORTANT for the U.K. DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appro- priate safety approved extension lead or consult your dealer.
-
Page 3: Safety Instructions
European Union. (Business users) If you wish to dispose of this product, please visit our web page www.jvc-europe.com to obtain information about the take-back of the product. [Other Countries outside the European Union] If you wish to dispose of this product, please do so in accordance with applicable national legislation or other rules in your country for the treatment of old electrical and electronic equipment. - Page 4 Introduction We would like to thank you for purchasing one of our JVC products. Before operating this unit, read this manual carefully and thoroughly to obtain the best possible performance from your unit, and retain this manual About This Manual This manual is organized as follows: •...
-
Page 5: Table Of Contents
Contents Location of the Buttons and Controls ... 3 Main unit ... 3 Remote Control ... 5 Getting Started ... 6 Unpacking ... 6 Putting the Batteries into the Remote Control ... 6 Connections ... 6 Basic and Common Operations ... 8 Setting the Clock ... -
Page 6: Location Of The Buttons And Controls
Become familiar with the buttons and controls on your unit. Main Unit Top view Front view Inside the front cover OPEN TIMER ON/OFF BAND MULTI SOUND CONTROL /BASS TAPE TUNER PHONES CONTROL STANDBY/ON VOLUME STANDBY MICRO COMPONENT SYSTEM UX-S10 CD SYNCHRO RECORDING OPEN... - Page 7 Display window on the front panel ON OFF See pages in parentheses for details. Main unit 1 Disc cover (14) 2 PHONES jack (9) 3 TIMER ON/OFF button (20) 4 SOUND/BASS button (9) 5 0 OPEN (disc cover open) (14, 15) 6 Source buttons •...
-
Page 8: Remote Control
Remote Control See pages in parentheses for details. TIMER ON/OFF STANDBY/ON REPEAT/ PTY SEARCH RANDOM REMAIN/ PS/PTY/RT PROGRAM TUNER/ TAPE BAND BEAT CUT DISPLAY/ CLOCK SET SOUND/ MUTING BASS REMOTE CONTROL 1 TIMER SET button (20) 2 REPEAT/PTY SEARCH button (12, 16) 3 RANDOM button (16) 4 REMAIN/PS/PTY/RT button (12, 16) 5 BEAT CUT button (10, 18) -
Page 9: Getting Started
Getting Started Unpacking After unpacking, check to be sure that you have all the following items. The number in parentheses indicates the quantity of each piece supplied. • FM antenna (1) • AM (MW) loop antenna (1) • Remote control (1) •... - Page 10 To connect AM (MW) and FM antennas FM antenna 7 5 Ω C O A X I A L O O AM (MW) loop antenna (supplied) 1 Attach the FM antenna to the FM COAXIAL 75 Ω terminal. Fasten it up in the position which gives you the best reception, then fix it on the wall, etc.
-
Page 11: Basic And Common Operations
Basic and Common Operations Setting the Clock Before operating the unit any further, first set the unit’s clock. When you plug in the power cord, “0:00” starts flashing on the display. You can set the clock when the unit is either turned on or in standby mode. -
Page 12: Selecting The Source
Selecting the Source To select the source, press TAPE, TUNER/BAND, or CD. • When you select TAPE or CD as the source, playback does not start automatically. To operate the tuner (FM or AM (MW)), see pages 10 – 13. To operate the CD player, see pages 14 –... -
Page 13: Listening To Fm And Am (Mw) Broadcasts
Listening to FM and AM (MW) Broadcasts Tuning in to a Station Press TUNER/BAND to select either “FM” or “AM.” The unit automatically turns on and tunes in to the previously received station—either FM or AM (MW). • Each time you press the button, the band alternates between FM and AM (MW). -
Page 14: Presetting Stations
Presetting Stations You can preset 30 FM and 10 AM (MW) stations manually. In some cases, test frequencies have been already stored for the tuner since the factory examined the tuner preset function before shipment. This is not a malfunction. You can preset the stations you want into memory by following the presetting method. -
Page 15: Receiving Fm Stations With Radio Data System
Receiving FM Stations with Radio Data System Radio Data System allows FM stations to send an additional signal along with their regular program signals. For example, the stations send their station names, as well as information about what type of program they broadcast, such as sports or music, etc. - Page 16 Description of the PTY codes: NEWS: News. AFFAIRS: Topical program expanding or enlarging upon the news—debate, or analysis. INFO: Program the purpose of which is to impart advice in the widest sense. SPORT: Program concerned with any aspect of sports. EDUCATE: Educational programs.
-
Page 17: Playing Back Discs
Playing Back Discs This unit has been designed to play back the following discs—CD, CD-R, and CD-RW. When playing a CD-R or CD-RW User-edited CD-Rs (CD-Recordable) and CD-RWs (CD- ReWritable) can be played only if they are already “finalized.” • Usually you can play back your original CD-Rs or CD- RWs recorded in music CD format. -
Page 18: Basic Disc Operations
While playing back an MP3 disc ID3 Tag information (the name of the title, artist, and album up to 30 characters) will be shown on the display. When the name is too long to be displayed at once, it is scrolled. This unit supports ID3 Tag ver. -
Page 19: Playing At Random-Random Play
To modify the last programmed track Press PROGRAM in stop mode, then repeat step 3 above. To finish modifying and start playback, press CD 3/8. • You cannot modify the program after programming the 60th track. To clear the program and exit the program play mode Press 7 in stop mode. -
Page 20: Playing Back Tapes
Playing Back Tapes For Tape operations, use buttons inside the front cover on the unit. Playing Back a Tape You can play back type I tapes only. On the unit ONLY: Open the front cover. Press &/) (stop/cassette holder open). The cassette holder opens. -
Page 21: Recording
Recording IMPORTANT: • It should be noted that it may be unlawful to re-record pre-recorded tapes, records, or discs without the consent of the owner of copyright in the sound or video recording, broadcast or cable program and in any literary, dramatic, musical, or artistic embodied therein. -
Page 22: Recording Discs-Disc Synchronized Recording
Recording Discs —Disc Synchronized Recording You can start disc play and recording at the same time. On the unit ONLY: Put a recordable cassette in with the exposed part of the tape down. • See also page 17. Close the cassette holder gently. Press CD to select the CD player as the source. -
Page 23: Using The Timers
Using the Timers Daily Timer and Sleep Timer are available. • Before using these timers, make sure the built-in clock is set correctly (see page 8). Using the Daily Timer You can set the Daily Timer when the unit is either turned on or in standby mode. -
Page 24: Using The Sleep Timer
To deactivate the timer temporarily, press TIMER ON/OFF until the (timer) indicator goes off. To activate and change the timer, repeat steps 1 to 7 on page 20. • To activate the timer again without changing the setting, press TIMER ON/OFF until the (timer) indicator lights up on the display. -
Page 25: Maintenance
Maintenance To get the best performance of the unit, keep your discs, tapes and mechanism clean. General Notes In general, you will have the best performance by keeping your discs, tapes and the mechanism clean. • Store discs and tapes in their cases, and keep them in cabinets or on shelves. -
Page 26: Troubleshooting
Troubleshooting If you are having a problem with your unit, check this list for a possible solution before calling for service. If you cannot solve the problem from the hints given here, or the unit has been physically damaged, call a qualified person, such as your dealer, for service. -
Page 27: Specifications
Specifications Amplifier Section—CA-UXS10 Output Power (IEC 268-3): 10 W (5 W + 5 W) at 4 Ω (10% THD) Speakers/Impedance: Tuner FM tuning range: AM (MW) tuning range: CD player Dynamic range: Signal-to-noise ratio: Wow and flutter: Cassette deck Frequency response: Normal (type I): Wow and flutter: General... - Page 28 0306NYMMDWORI © 2006 Victor Company of Japan, Limited...
